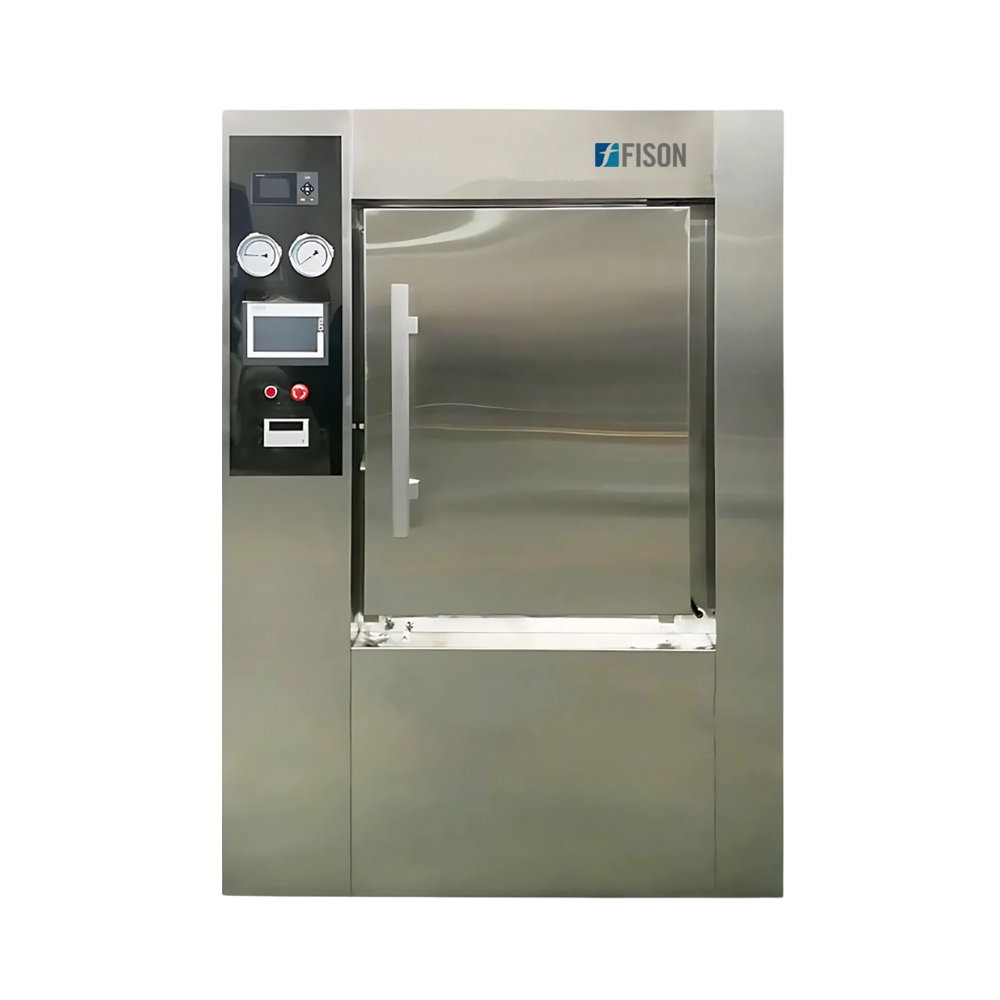

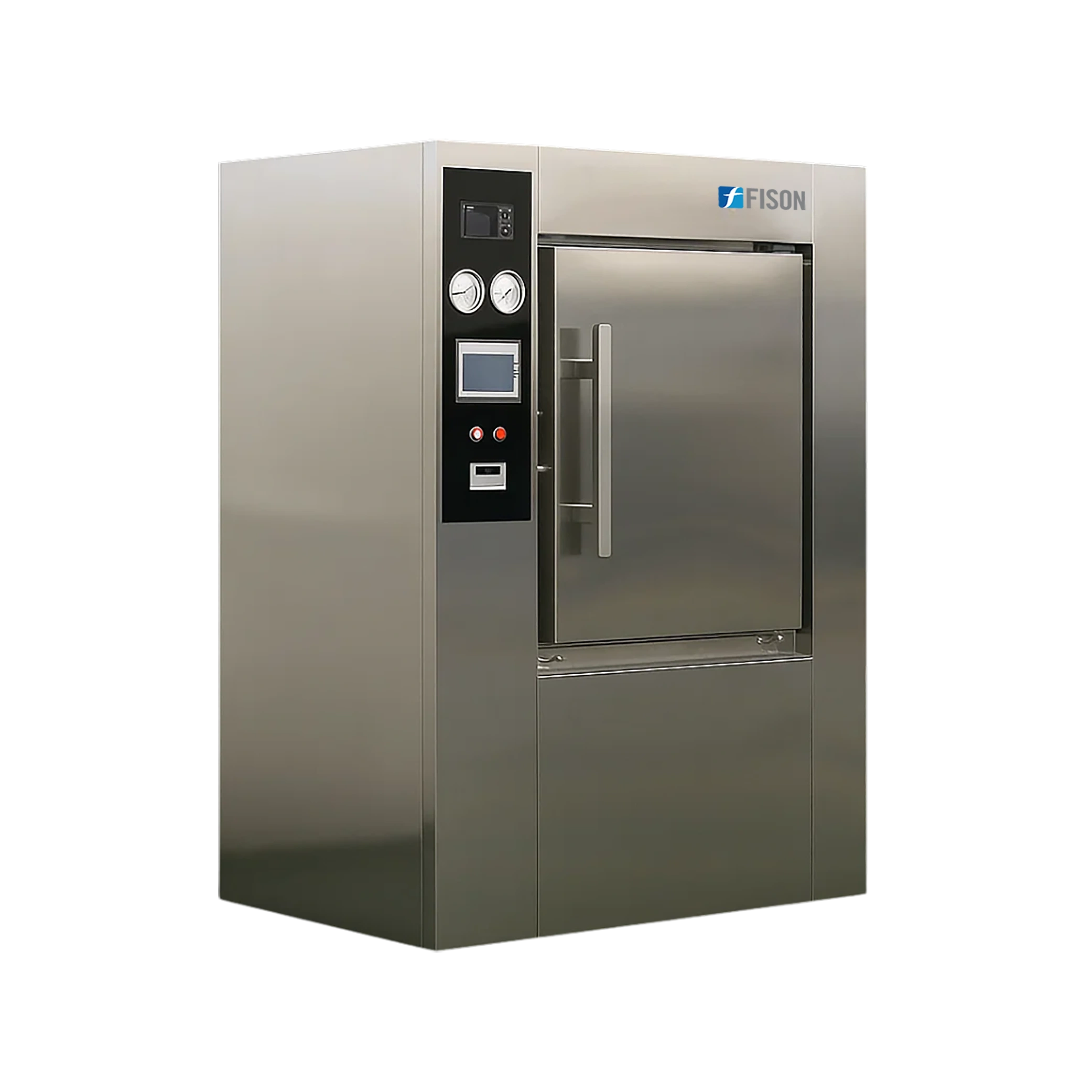

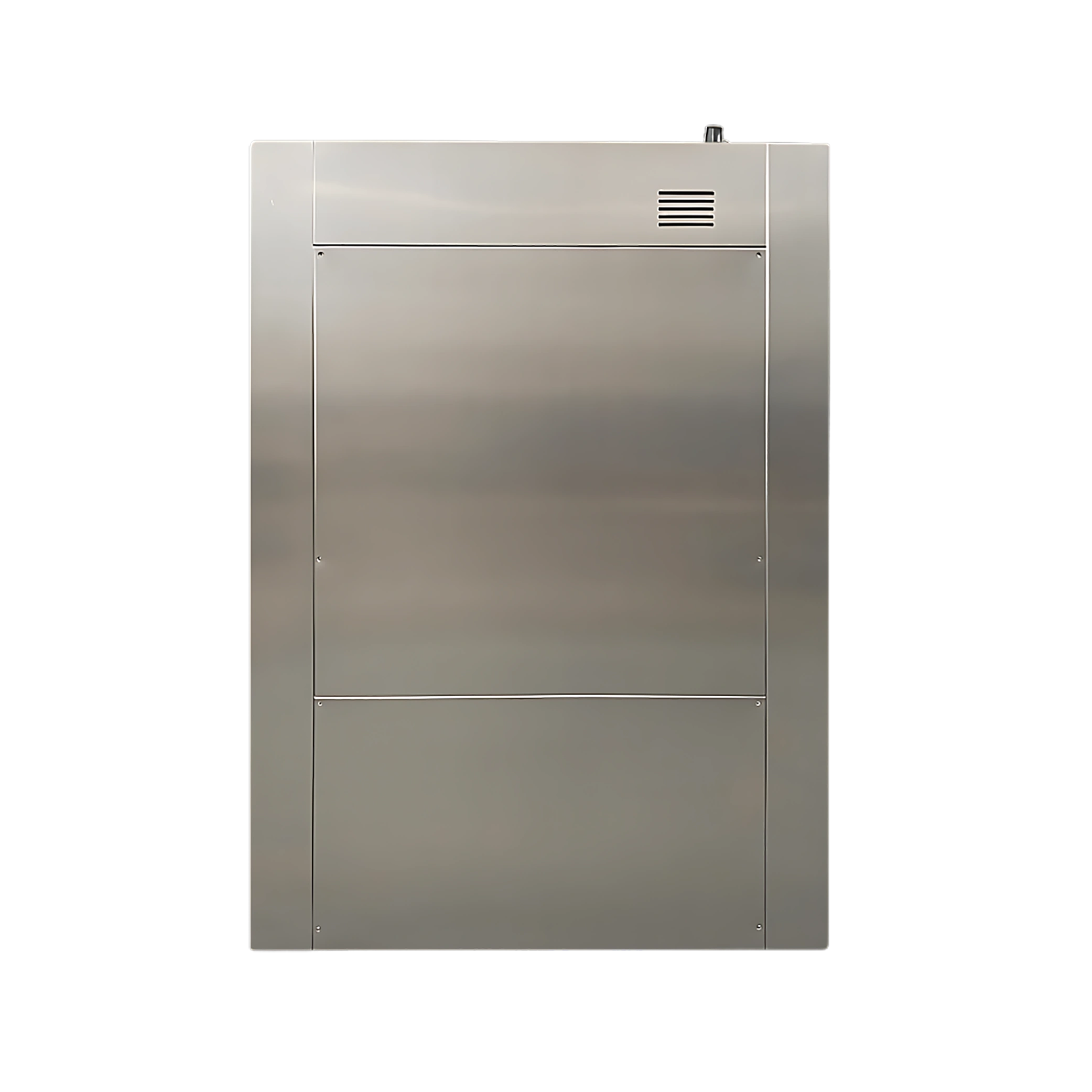

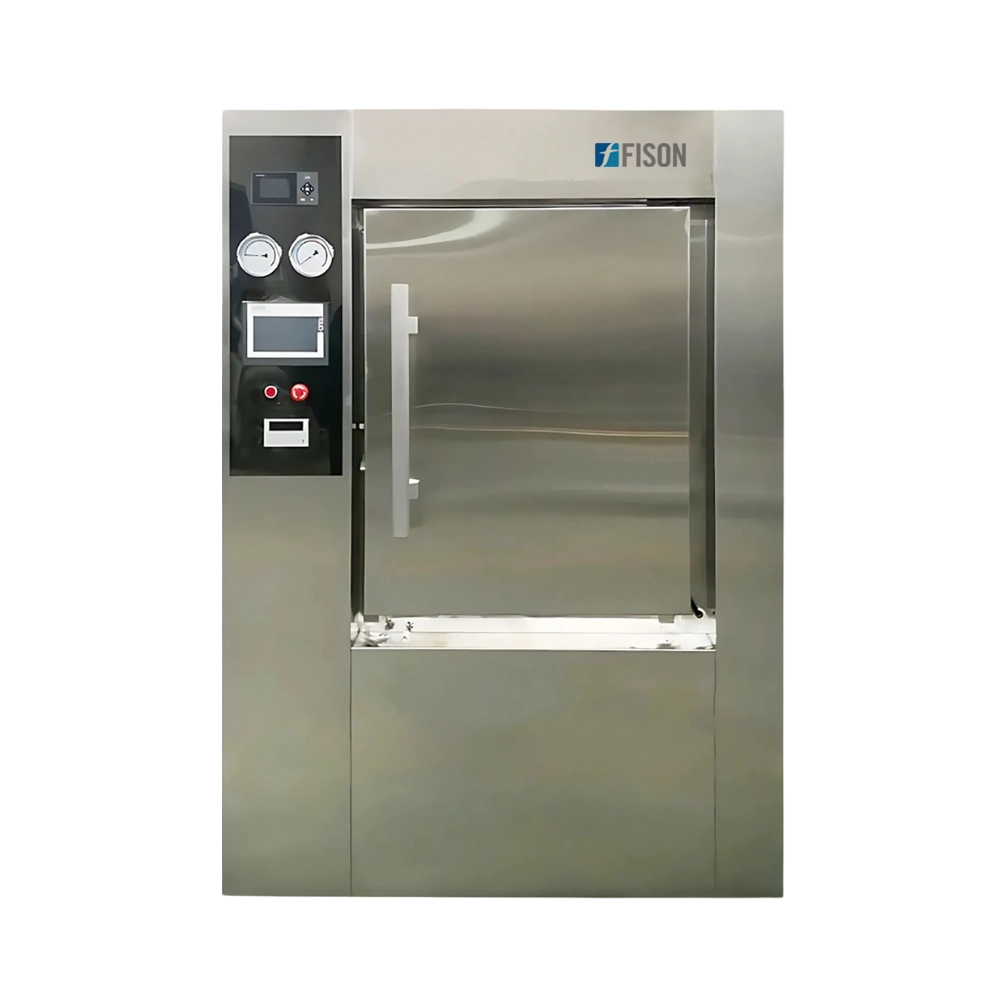

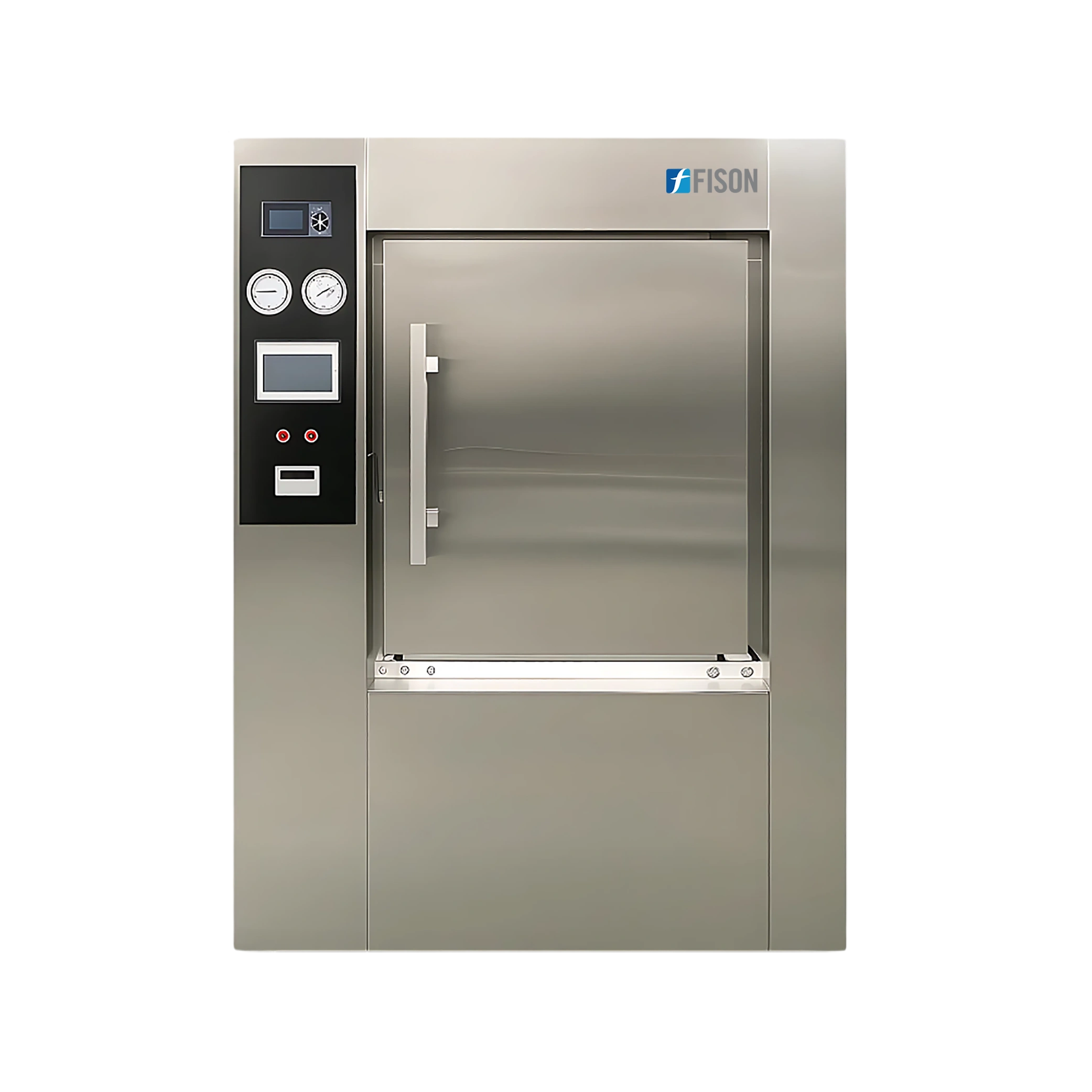

Horizontal Autoclave FM-HA-B101

Horizontal Autoclave FM-HA-B101

Horizontal Autoclave FM-HA-B101 has 600 L capacity with interior liner, and door panels made of s30408 stainless steel material. It is designed to withstand 20,000 cycles. The double pulsation method ensures a more comprehensive removal of internal air during the sterilization process. Jacket is made of high-quality Q245R material specific for pressure vessels.

Specifications

Capacity 600 L
Operating temperature 150 ℃
Maximum working temperature 139 ℃
Maximum working pressure 0.25 MPa
Inner chamber operating pressure -0.1 to 0.3 MPa
Opening pressure of inner chamber safety valve 0.28 MPa
Opening pressure of jacketed safety valve 0.28 MPa
Precision of Sterilization Temperature Control 0 to 2°C
Temperature uniformity ± 1 ℃
Number of pulsations Amplitude -80 to 80 KPa, times 1
Times of positive pressure pulsation 1 to 3
Negative pressure pulsation vacuum Amplitude -80 to 0 KPa
Time of negative pressure pulsation vacuum 1 to 99 times
Time of vacuum pulsation 1 to 99 times
Ultimate vacuum -97 KPa
Vacuum leakage rate ≤ 0.13 KPa/min
Surface temperature ≤ 20 ℃
Steam consumption 35 Kg/C
Tap Water Consumption 320 Kg/C
Power 3 KW + 36 KW
Power supply 380 V, 50 Hz
Liner dimensions (W × D × H) 610 × 1150 × 910 mm
Overall dimensions (L × W × H) 1470 × 1410 × 2100 mm
Weight 1250 kg

Features

  • 600 L volume capacity
  • Horizontal chamber for efficient loading and unloading of items
  • Sanitary pipeline with clamp joint ensures reliability
  • Pneumatic control valve with long life
  • Double door channel type with pressure interlock system
  • Horizontal chamber for efficient loading and unloading of items
  • Water ring vacuum pump with fast pumping speed
  • Colourful touch screen for user friendly operation

Applications

  • Horizontal Autoclave is widely used in hospitals, pharmaceutical factories, food industries, scientific research institutes and other units to sterilize and dry clothing, dressings, metal instruments, culture medium, etc.
