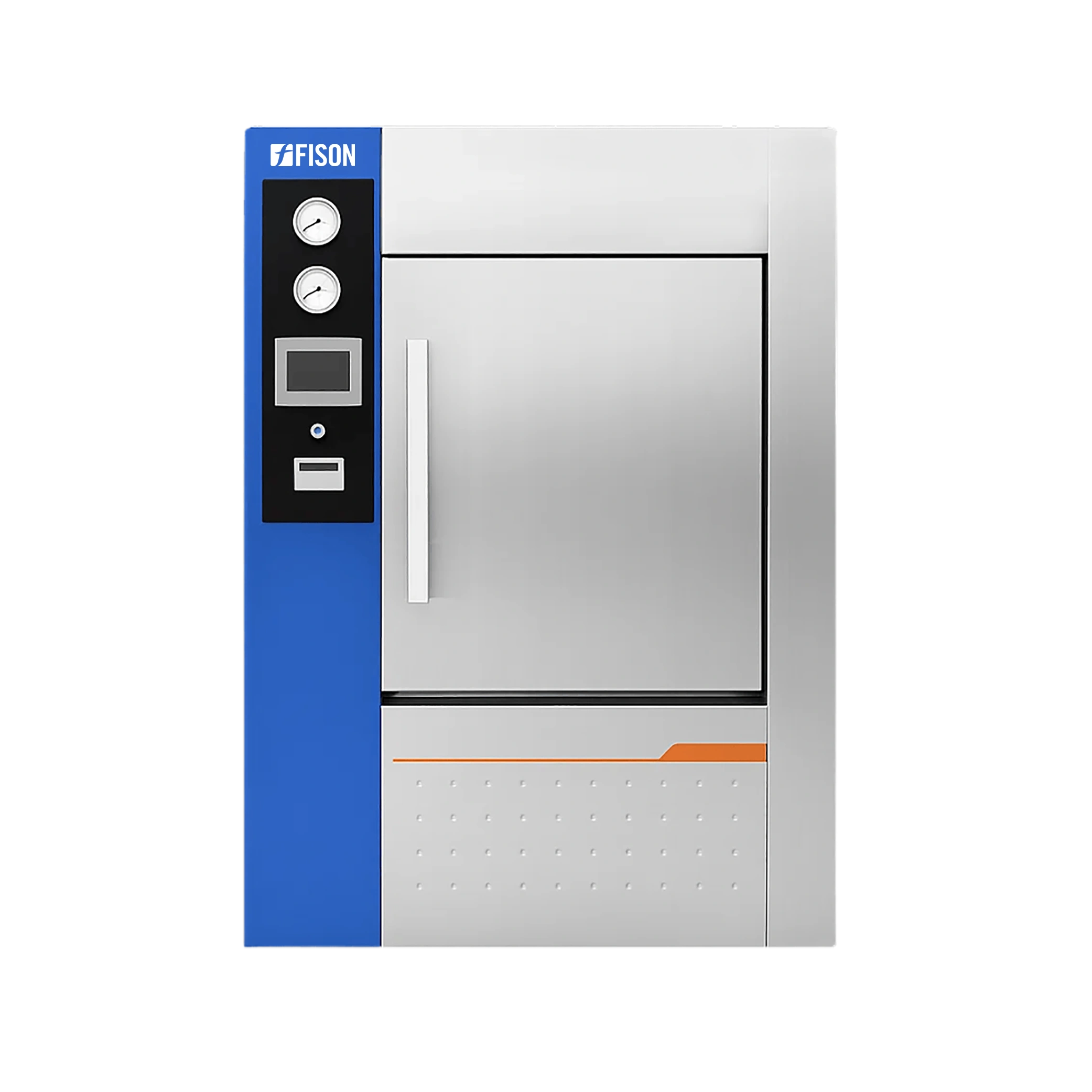

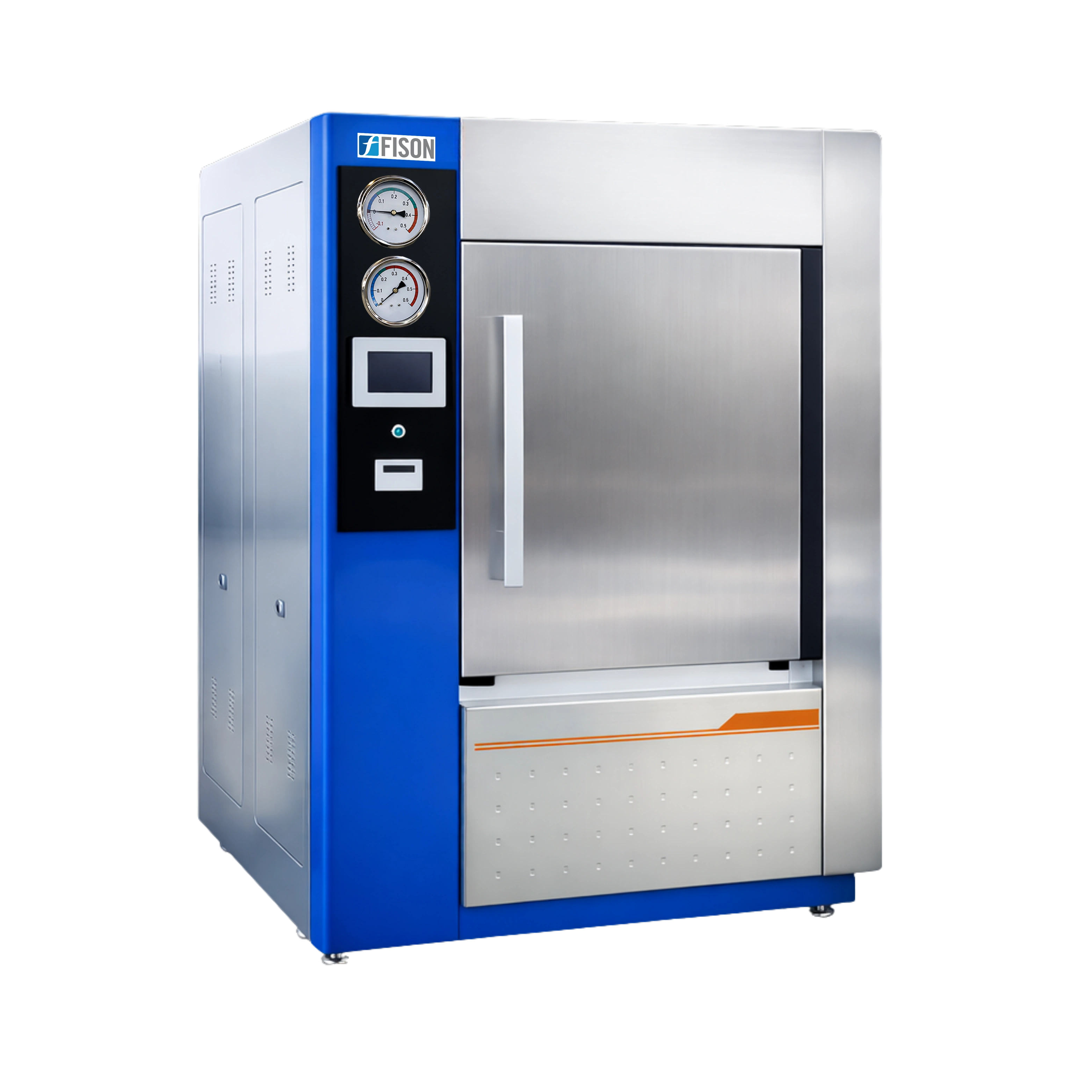

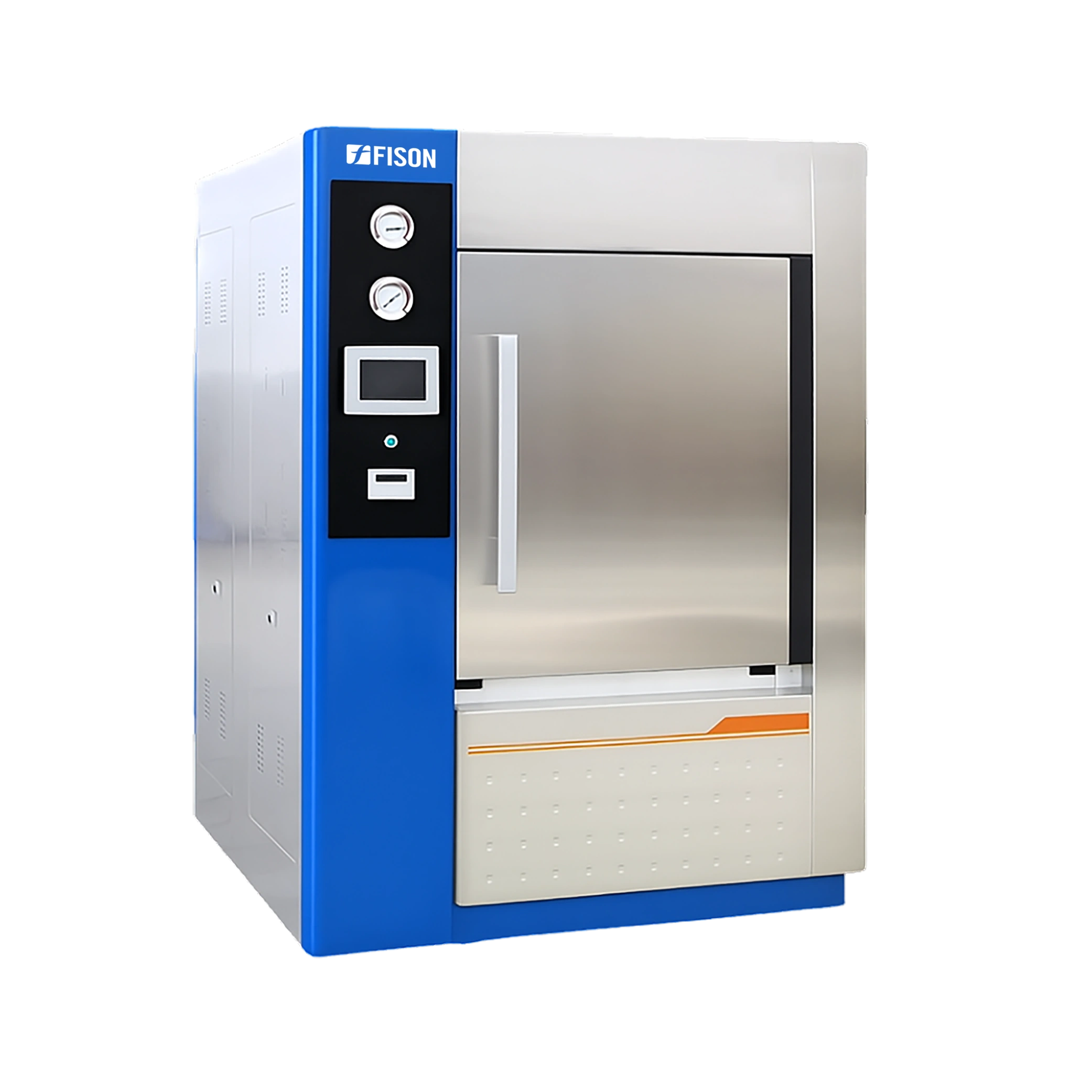

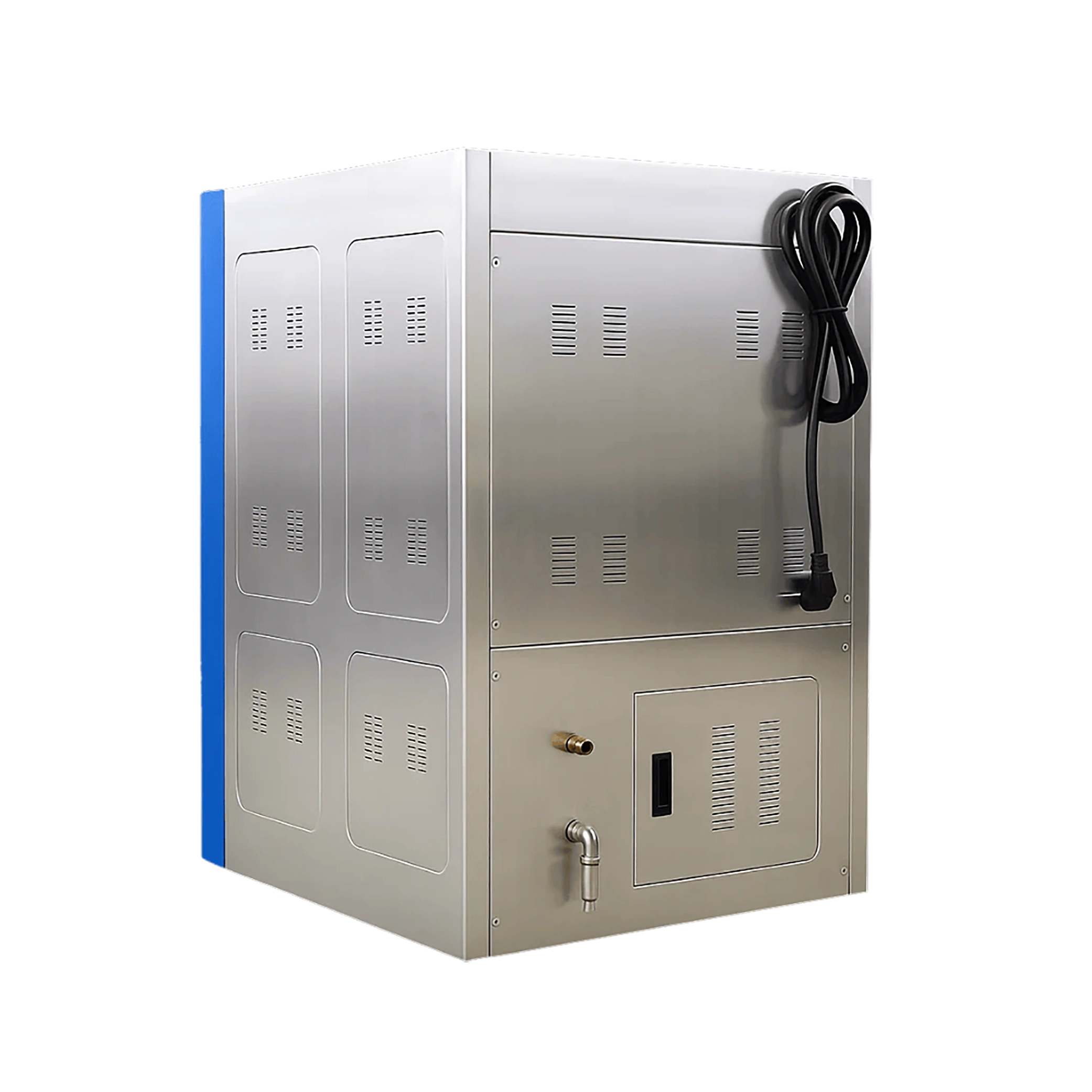

Horizontal Autoclave FM-HA-B100

Horizontal Autoclave FM-HA-B100

Horizontal Autoclave FM-HA-B100 is a floor standing pulse vacuum sterilization unit with 360 L capacity, 105 to 134°C working temperature range and 0.225 MPa working pressure. The best configuration sterilization piping system, pneumatic sealing double door structure and built-in steam generator ensures effective sterilization of articles kept in chamber. Double layer structure of chamber is made up of stainless steel S13603. It finds application in high temperature sterilization, and dry cooling process of sterile equipment, clothing, etc. across pharmaceutical, medical, scientific research industry.

Specifications

Capacity 360 L
Working Temperature 105 to 134°C
Working Pressure 0.225 MPa
Steam Pressure 0.3 to 0.7 MPa
Water source Pressure 0.15 to 0.3 MPa
Steam consumption 25 kg
Water source consumption 40 kg
Vacuum -0.09 MPa
Compressed Air Pressure 0.3 - 0.7 MPa
Inner Chamber Dimension ( L × W × H ) 1000 × 600 × 600 mm
Outer Dimension ( L × W × H ) 1300 × 1350 × 1900 mm
Net Weight 1000 kg
Power Steam generation power 2+24 kW
Power supply AC 380 V, 50 Hz

Features

  • SIEMENS PLC microprocessor controlled system design
  • Best configuration sterilization piping system
  • Double door design with pneumatic sealing and interlock system
  • Digital LCD display to monitor working status and parameters
  • Double layered, horizontal rectangular shaped chamber made up of stainless steel S13603
  • Perfect sterilization records by temperature time and F0 value
  • Built-in thermal printer to print test data
  • Complies with GMP guidelines
  • User-friendly operations

Applications

  • It finds application in high temperature sterilization, and dry cooling process of sterile equipment, clothing, etc. across pharmaceutical, medical, scientific research industries like biotechnology, microbiology etc.

Accessories

  • Accessories NO.Name Qty.
    1The subject of sterilizationHigh quality 304 stainless steel chamber, Ⅰ type pressure vessel
     Sealing doorTwo leafs power door(Double door)
     DMOverload overcurrent protection, Easy to operate, reasonable organization.
     SealHigh quality silicone rubber sealing ring, 250 ℃ heat resistance, gas seal.
    2Pipe systemStainless steel pipes, clamp connection.
     Angle seat type of pneumatic valveRunning life as much as 4 million times.
     Vacuum pumpWater ring type, low noise, high vacuum and easy maintenance.
     Air filterSterile medical grade filter.
     Solenoid valveReliable operation, long service life.
    3Control systemSoftware development platform of Siemens
     PLCProgrammable controller, MTBF 50000 hours
     TouchscreenProgram selection, parameter setting, convenient and quick operation
     A/DHigh precision pressure, temperature modulus conversion
     PrinterSterilization report output
     Pressure transmitterHigh precision pressure conversion
     Temperature sensorTemperature measuring precision of 0.15 ℃ or less
    4Tray-1setFully stainless steel SUS304, attractive and durable
    5Trolley-2 setsFully stainless steel SUS304, sterilizing trays transport, lightweight and flexible
    6Cover plateFully stainless steel SUS304 drawing board production
    7Inner/external steam generator24 KW - 72 KW
