Horizontal Autoclave FM-HA-A200

Horizontal Autoclave FM-HA-A200

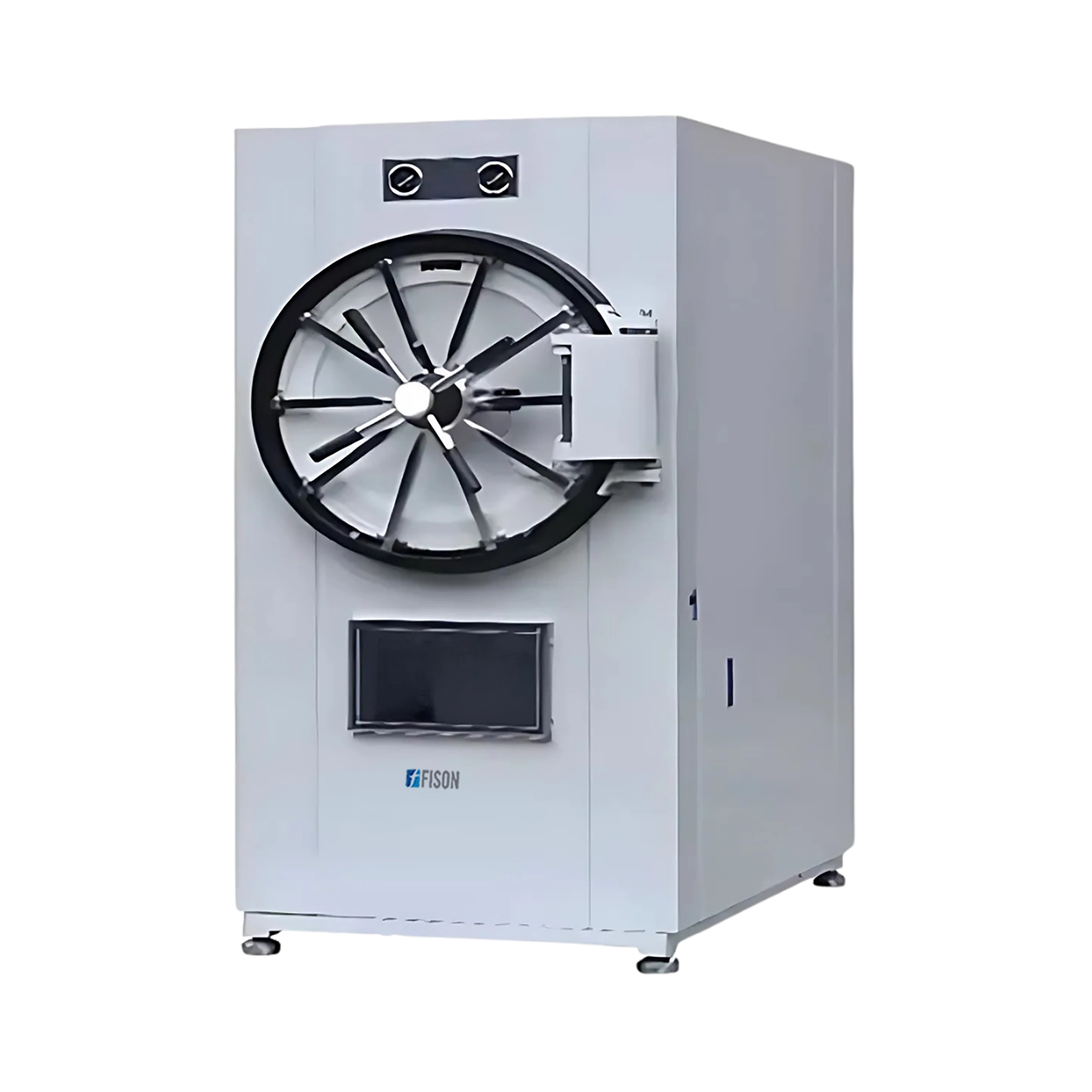

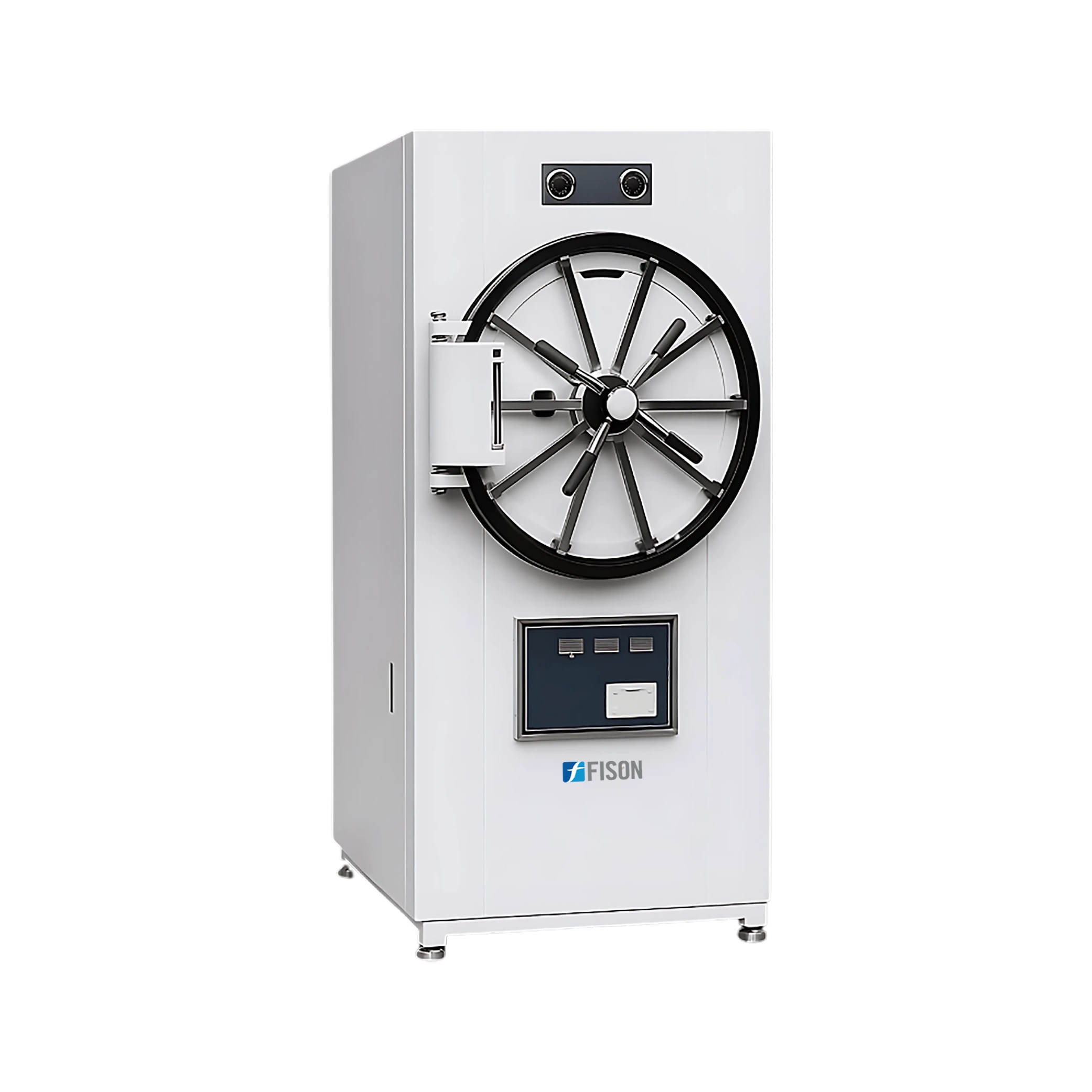

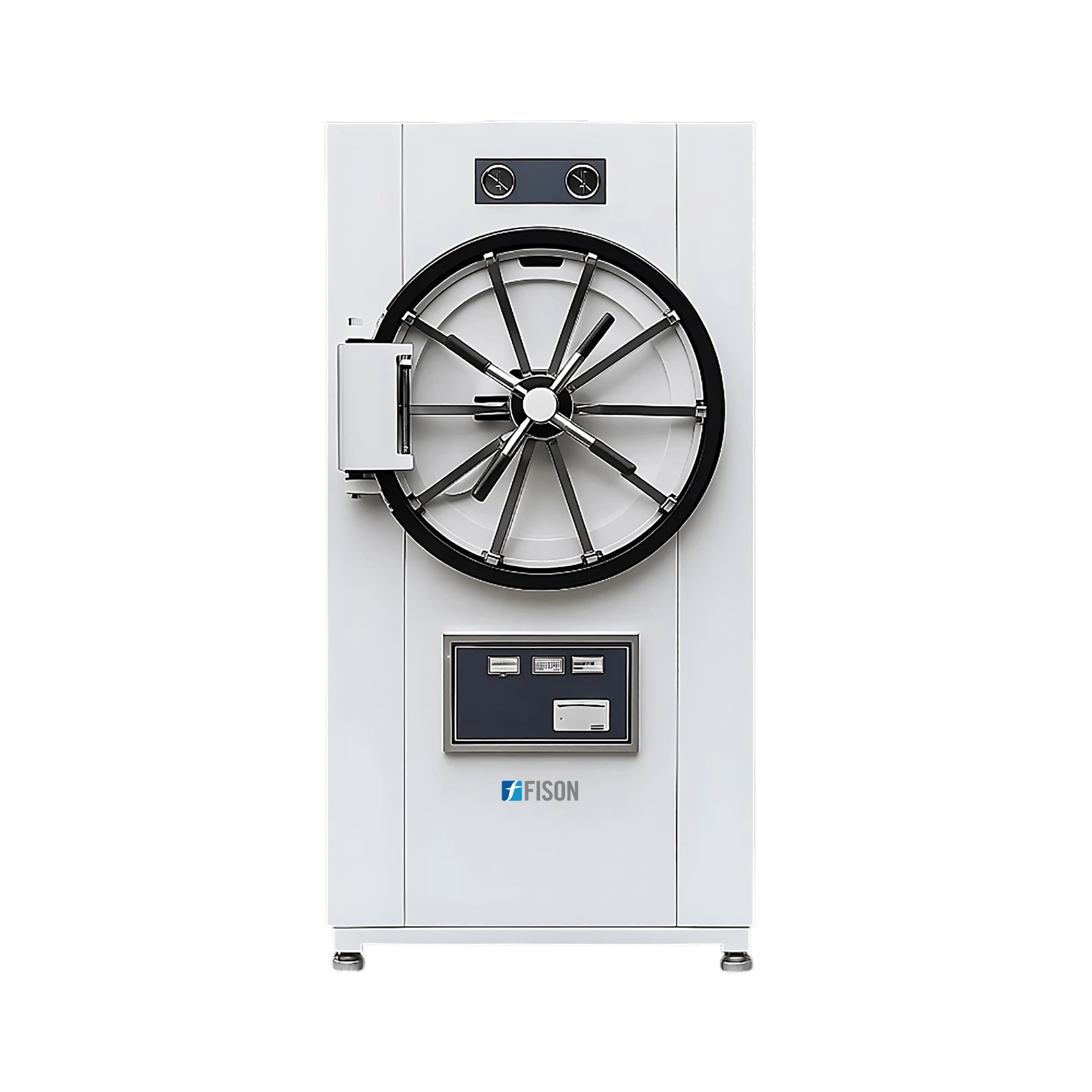

Horizontal Autoclave FM-HA-A200 is a microprocessor controlled automatic single door autoclave with a capacity of 150 L. The complete leak proof chamber provides efficient sterilization process resulting in destruction of all living organisms due to high pressure of 0.22 MPa and 134°C temperature. Unit is constructed with corrosion resistant stainless steel and equipped with many advanced safety features that enables user to achieve fast, reliable and reproducible sterilization.

  •  Microprocessor based control with LED display
  •  Ergonomic rectangular cylindrical design with 304 grade stainless steel construction
  •  Single door with radial locking arrangement
  •  Equipped with 1 standard perforated tray for sample loading
  •  Automatic door opening mechanism when inner pressure drops to 0.027 MPa
  •  Sterilization cycle is controlled by single point multi-port valve fitted at front top
  •  Moisture trap fitted in chamber discharge line to absorb condensate automatically
  •  Fitted with pressure gauge, safety valve and steam release valve
  •  Equipped with pressure control safety valve which automatically unlocks when pressure rises over 0.24 MPa
  •  Fitted with Dial thermometer to indicate the inner chamber temperature

Sterilizing chamber  volume 150 L
Inner tank dimension 440×1000 mm
Design Single door rectangular autoclave
Working pressure 0.22 MPa
Working  temperature 134℃
Adjustment of temperature 40 to 134℃
Chamber construction 304 grade stainless steel
Chamber tray 1 perforated stainless steel tray
Sterilization period 0 to 99 min
Time of drying 0 to 99 min
Control Precision: Temperature ≤ ±2℃
Maximum power consumption 9 kW
Power supply 380V/50Hz
Dimension 1400×650×1600 mm
Packaging dimension 1560×820×1820 mm
Net weight 340 kg
Gross weight 430 kg

It is widely used in Research Centers, Major Universities, Pharma, Biotech, Medical research, and Hospitals. These autoclave are intensively used as medical hospital waste sterilizers due to its assured saturated steam deactivating viruses, bacteria, microorganisms under regulated temperature and pressure.
