Horizontal Autoclave FM-HA-A102

Horizontal Autoclave FM-HA-A102

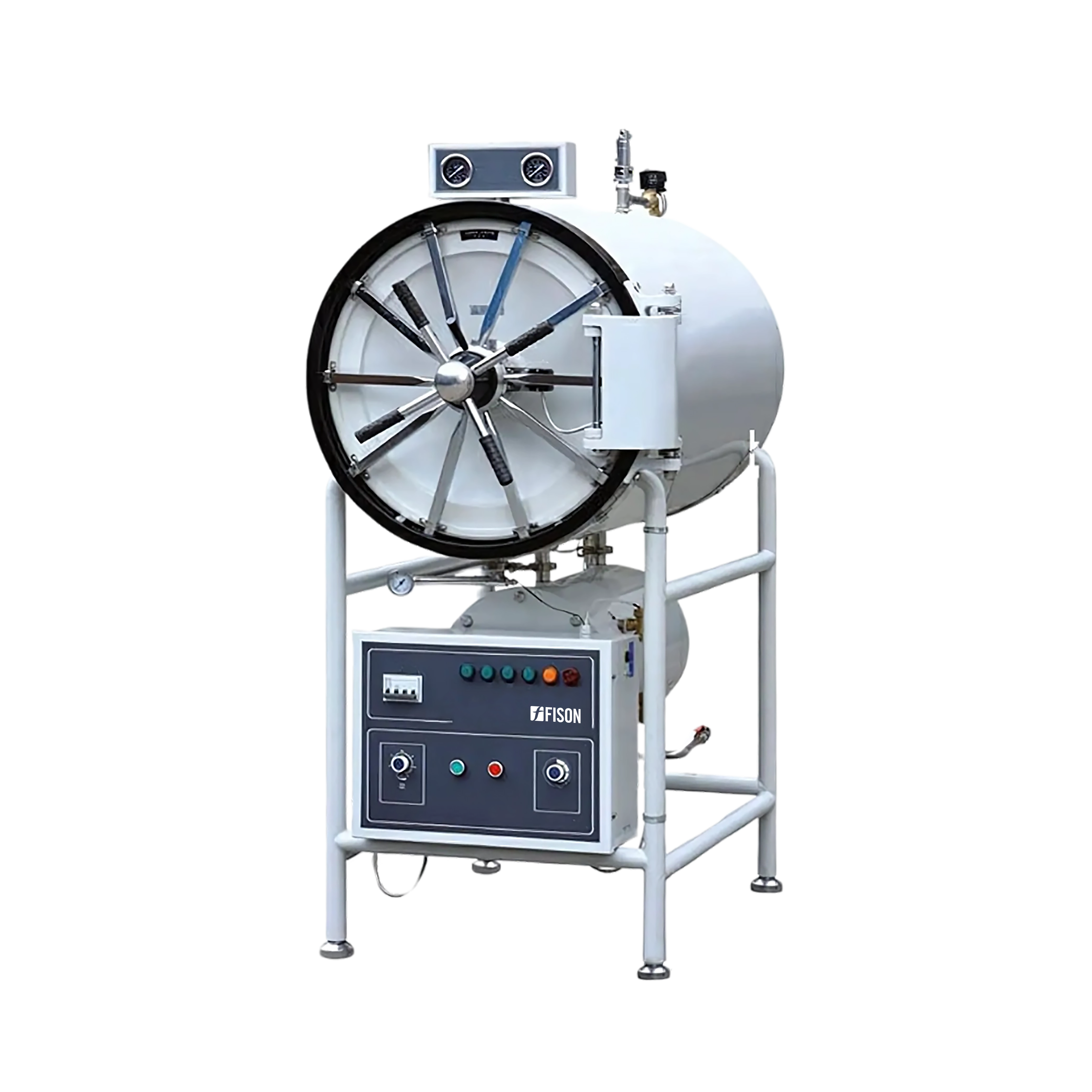

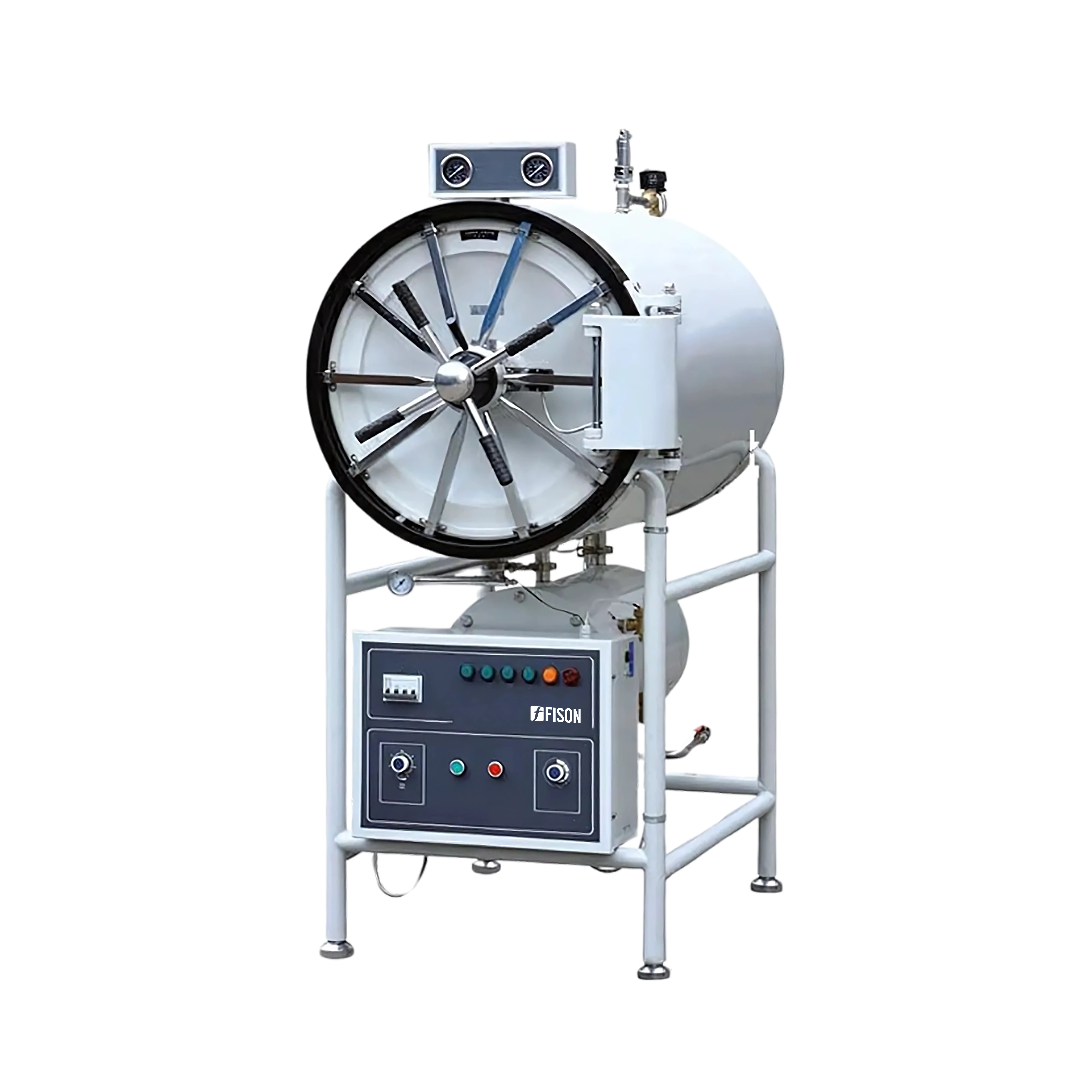

Horizontal Autoclave FM-HA-A102 is a cylindrical oriented autoclave with internal tank capacity of 280 L. Fully automatic computer controlled process with 134°C sterilizing temperature and 0.22 MPa hydraulic pressure. Equipped with vacuum breaker, water level indicator, steam trap and automatic pressure control switch for safe operation. Device comes with high grade durable stainless steel construction and multiport valve for controlling sterilization cycle effectively.

  •  Adopted and designed on basis of downward displacement principle
  •  Steam jacket and unit is constructed with 304 grade stainless steel material
  •  Equipped with 1 standard perforated tray for sample loading
  •  Whole unit is horizontally mounted on heavy duty stainless steel tubular stand
  •  Lid made of stainless steel tightened by radial locking system which cannot be opened when under pressure
  •  Automatic door opening mechanism when inner pressure drops to 0.027 MPa
  •  Sterilization cycle is controlled by single point multi-port valve fitted at front top
  •  Moisture trap fitted in chamber discharge line to absorb condensate automatically
  •  Fitted with pressure gauge, safety valve and steam release valve
  •  Equipped with pressure control safety valve which automatically unlocks when pressure rises over 0.24 MPa
  •  Fitted with Dial thermometer to indicate the inner chamber temperature

Sterilizing chamber  volume 280 L
Inner tank dimension 600×1000 mm
Design Cylindrical orientation
Working pressure 0.22 MPa
Working  temperature 134℃
Adjustment of temperature 105℃ to 134℃
Chamber construction Corrosion resistant 304 grade stainless steel
Chamber tray 1 perforated stainless steel tray
Timer range 0 to 60 min
Control Precision: Temperature ≤ ±1℃
Maximum power consumption 12 kW
Power supply 380 V/50 Hz
Dimension 1430×880×1830 mm
Packaging dimension 1800×1050×2100 mm
Net weight 520 kg
Gross weight 530 kg

Horizontal Autoclaves is ideal tool for Laboratories, Hospitals, Nursing Homes, Agricultural R&D; labs etc., Pharmaceutical, Food & Beverage Industries and Institutions. It is suitable for sterilizing hospital dressings, linen, rubber, plastic goods, surgical instruments, glassware and utensils.
