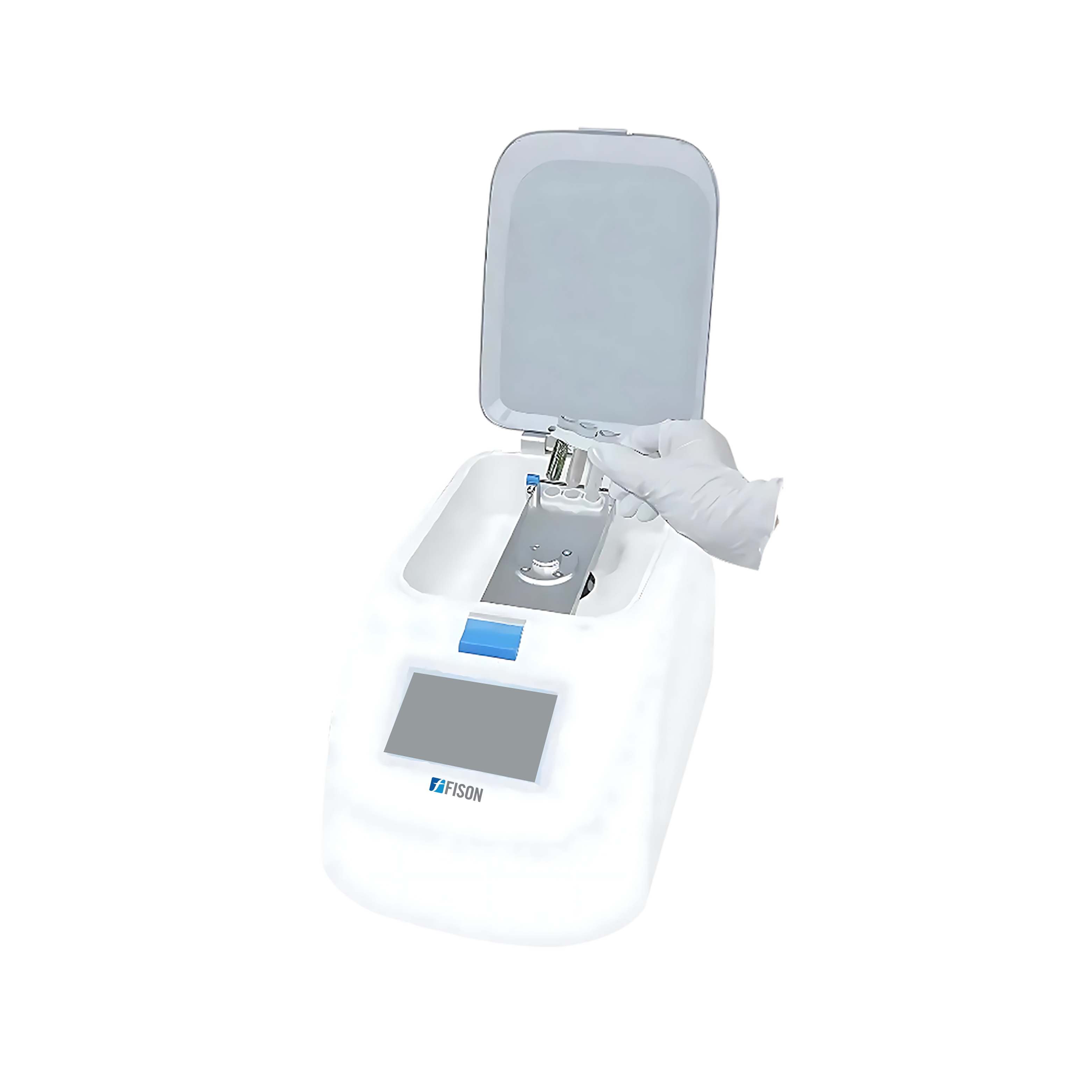

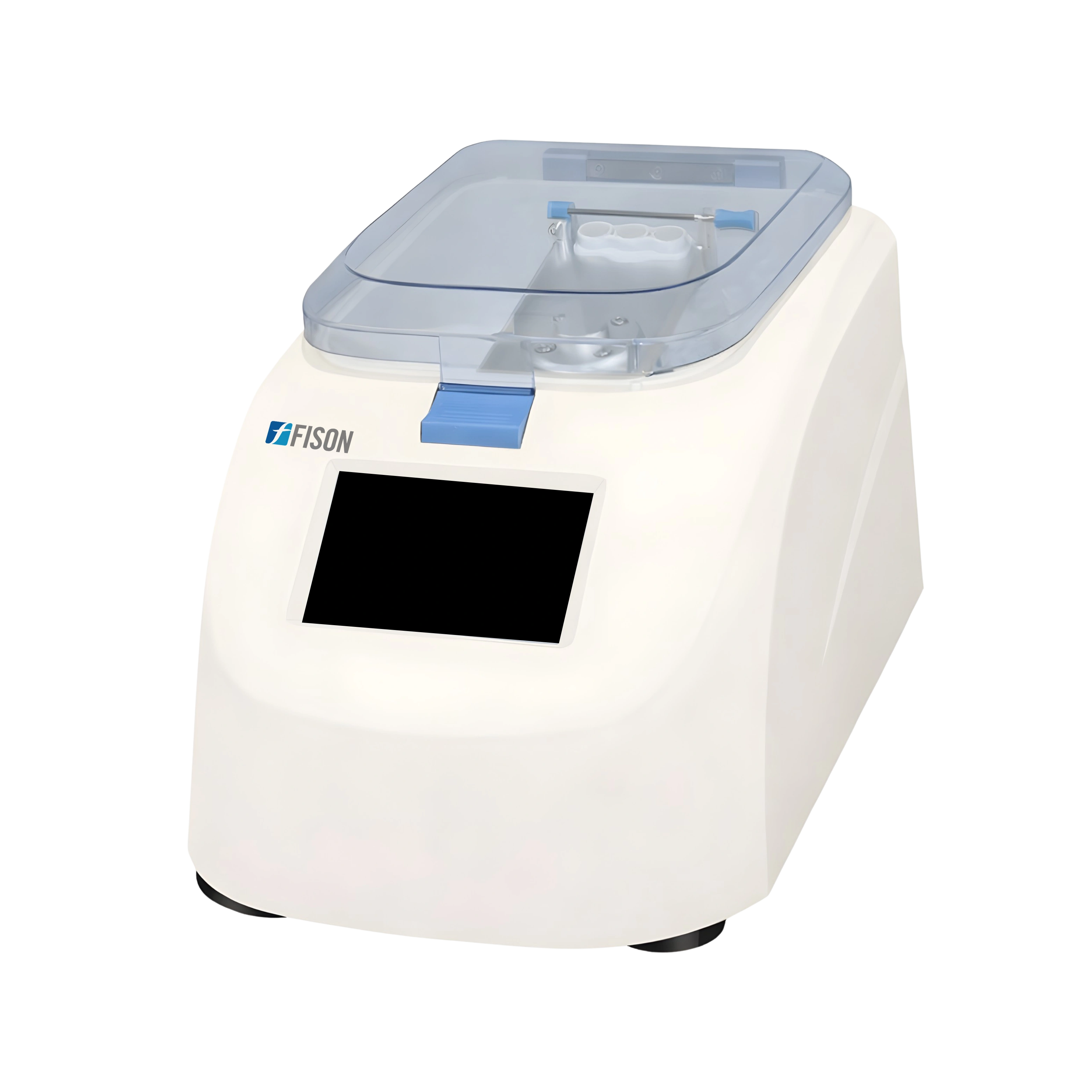

High Throughput Homogenizer FM-HTH-A101

High Throughput Homogenizer FM-HTH-A101

High Throughput Homogenizer FM-HTH-A101 offers a speed range of 2450 to 4450 rpm for versatile and efficient sample processing. This features high-quality bearings for smooth, reliable performance and extended durability. It ensures safety with an immediate stop feature when the lid is opened. Our homogenizer is equipped with a touchscreen display for easy and user-friendly settings control.

Specifications

Speed Range 2450 to 4450rpm
Sample Capacity 6×2ml, 2×5ml
Feed Size According to tube size
Final Fineness ~5µm
Acceleration Time 2 sec
Deceleration Time 2 sec
Grinding Beads Diameter 0.1 to 5mm
Grinding Method Dry, Wet
Adapter Material POM, Nylon
Safety level Immediate stop once lid open
Power 250W
Power Supply AC100 to 240V 50/60Hz
Dimension (W×D×H) 351 × 215 × 202 mm

Features

  • Equipped with powerful reinforced motor
  • Efficient heat dissipation
  • Energy-efficient power supply
  • Corrosion-resistant components
  • Multi-purpose grinding capabilities

Applications

  • High Throughput Homogenizer FM-HTH-A101 is primarily used in laboratory settings for efficient grinding and homogenizing of biological, chemical, and pharmaceutical samples. It is commonly applied in industries such as pharmacology, chemistry, and medicine for sample preparation and pretreatment.

Alternative Models Of High Throughput Homogenizer

Fison High Throughput Homogenizer uses high-frequency vertical vibrations precisely controlled by a frequency converter for reliable homogenization. Their user-friendly touchscreen interface simplifies operation, enhancing productivity in laboratory settings. They feature customizable programs, allowing users to tailor settings for specific sample processing needs. The homogenizer is equipped with a maintenance-free motor, ensuring reliable performance with minimal upkeep. Our homogenizer features a safety guard and emergency stop button for enhanced protection and quick response in emergencies.

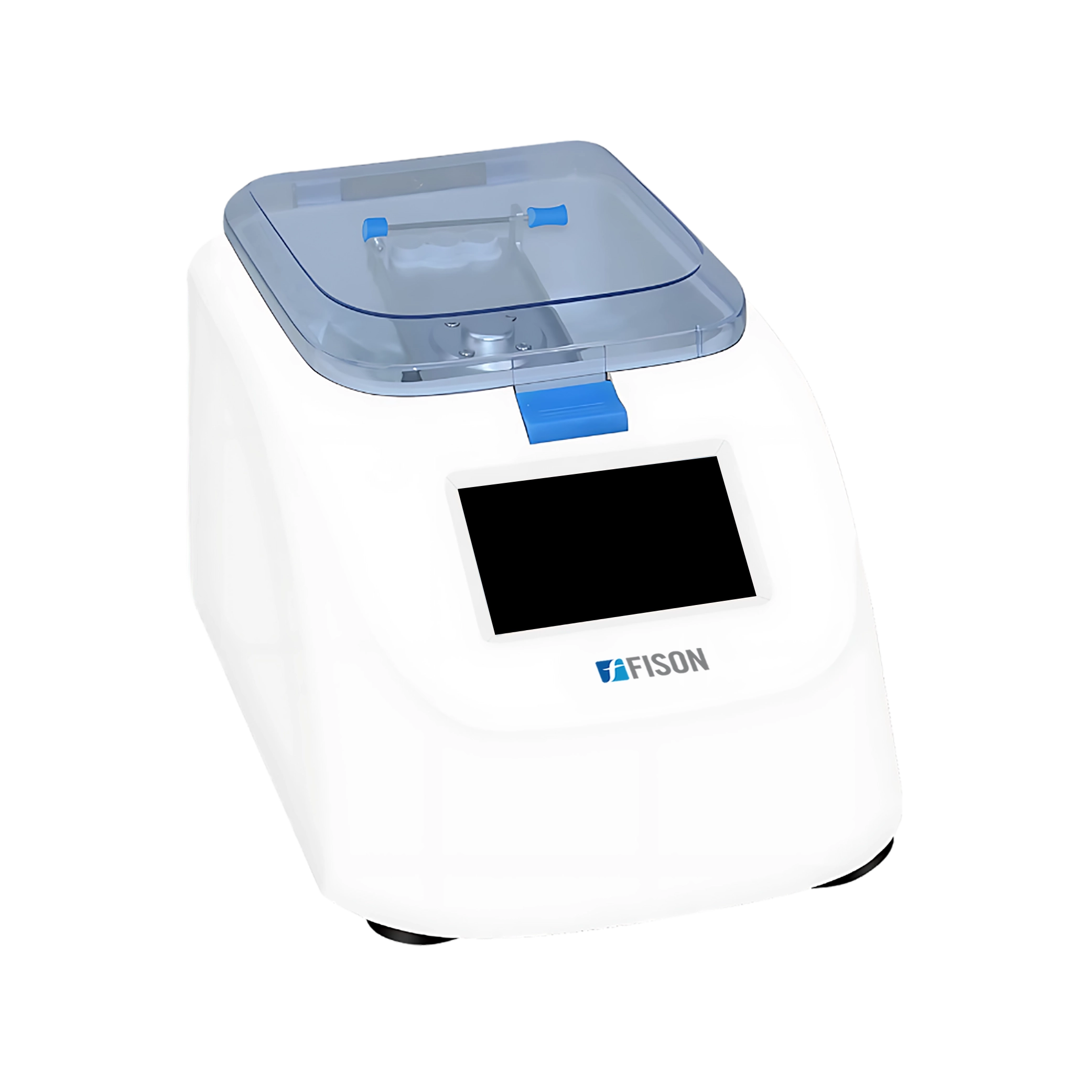

High Throughput Homogenizer FM-HTH-A100

  • Capacity: 96×2 ml
  • Frequency Range: 30 to 70 Hz
  • Feed Size: According to tube size
Catalog

Ball Mill Grinder

Fison Ball Mill Grinder features adjustable speed and particle size settings, enabling versatile use for coarse, medium, or fine milling. They are equipped with a powerful, energy-efficient motor that ensures consistent, high-quality output while minimizing operational noise. Their automatic shutdown system activates in case of overload or overheating, ensuring safe operation and preventing damage to the machine. The quick assembly and disassembly reduces maintenance and allows for fast cleaning and component replacement with minimal downtime. Our Ball Mill Grinder has a digital interface that allows easy adjustment of speed, time, and particle size.

Ball Mill Grinder FM-BMG-A100

  • Speed : 180 to 2100rpm
  • Sample Capacity : 96×2ml, 64×2ml, 48×2ml, 16×2ml, 10×5ml
  • Sample Batch : 2 batches
Catalog
