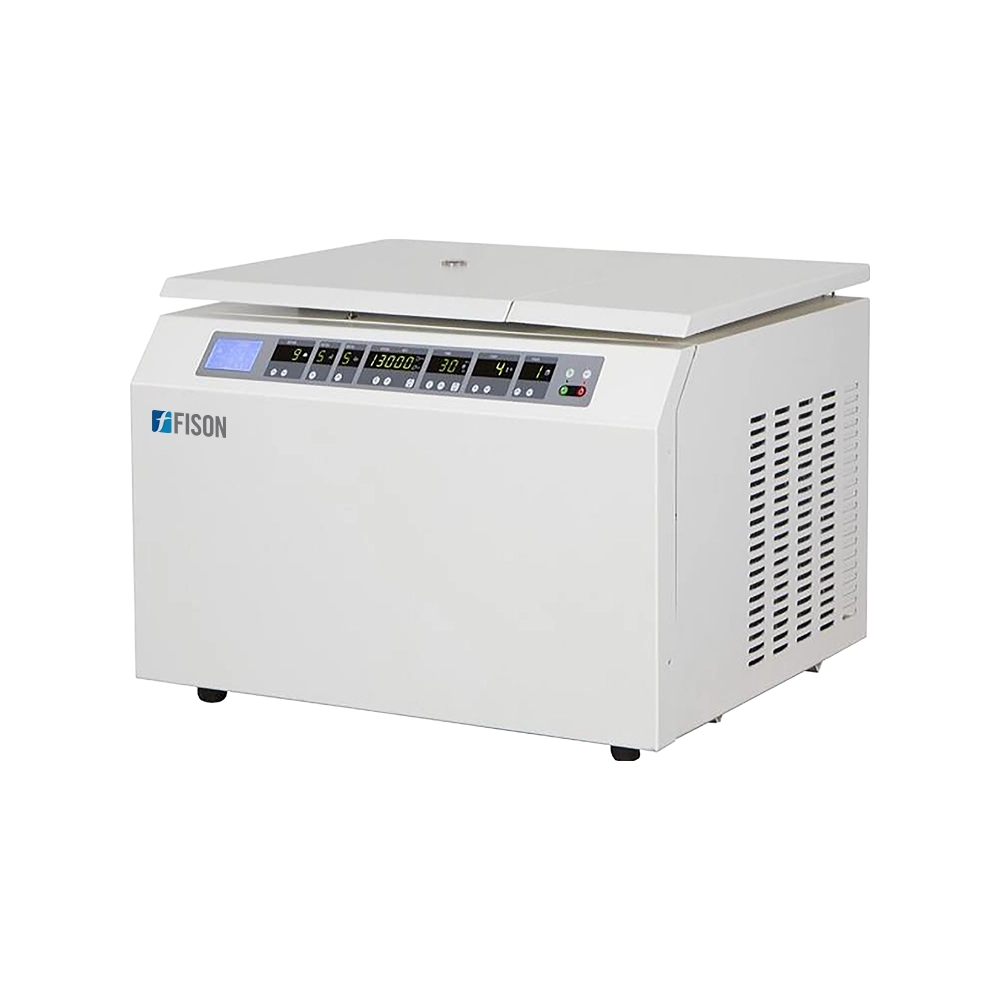

High speed  Refrigerated Centrifuge FM-HRC-A303

High speed Refrigerated Centrifuge FM-HRC-A303

High-speed Refrigerated Centrifuge achieves a maximum speed of 21,000 r/min for rapid centrifugation. Operating from -20℃ to +40℃ ensures optimal sample preservation. Soft brake technology (SBT) prevents sample resuspension and maintains specimen integrity. Automatic rotor identification and imbalance alarms enhance safety and reliability.

  •  High-speed Refrigerated Centrifuge with LCD/LED Display
  •  Microcomputer control
  •  Brushless frequency converter motor
  •  Aerosol-tight rotors
  •  Acceleration/Deceleration Rates
  •  Duralumin alloy components

Maximum speed 21000 r/min
Maximum RCF 31300 × g
Maximum Capacity Angle rotor : 600 ml
Swing rotor : 3000 ml
Temperature range - 20℃ to +40℃
Temperature Accuracy ±1℃
Speed accuracy ± 20 r/min
Noise level ≤ 65 dB
RPM/ RCF Conversion Yes
Storage 40 parameters
Time Range 1 to 999 min/sec
Power supply AC 220V 50Hz 10A
Dimension 640 × 710 × 400 mm
Net Weight 98 Kg

High speed Refrigerated Centrifuge is ideal for use in molecular biology, genomics, biochemistry, pharmaceutical, medical, microbiology, and proteomic laboratories

Number Rotor Maximum speed (rpm) Maximum Volume (ml) Maximum RCF(xg)
1 Angle Rotor 21000 rpm 12 × 1.5 ml 31300 × g
2 Angel Rotor 13000 rpm 8 × 15 ml 20300 × g
3 Microplate Rotor 4000 rpm 2 × 2 × 96 Wells 2540 × g
4 Swing Rotor 5500 rpm 4 × 50/100 ml 5640 × g
5 Angel Rotor 12000 rpm 4 × 100 ml 17700 × g
6 Swing Rotor 4000 rpm 4 × 500 ml 3150 × g
7 Swing Out Rotor 4000 rpm 4 × 250 ml 2930 × g
8 Swing Out Rotor 4000 rpm 4 × 750ml 3350 × g
