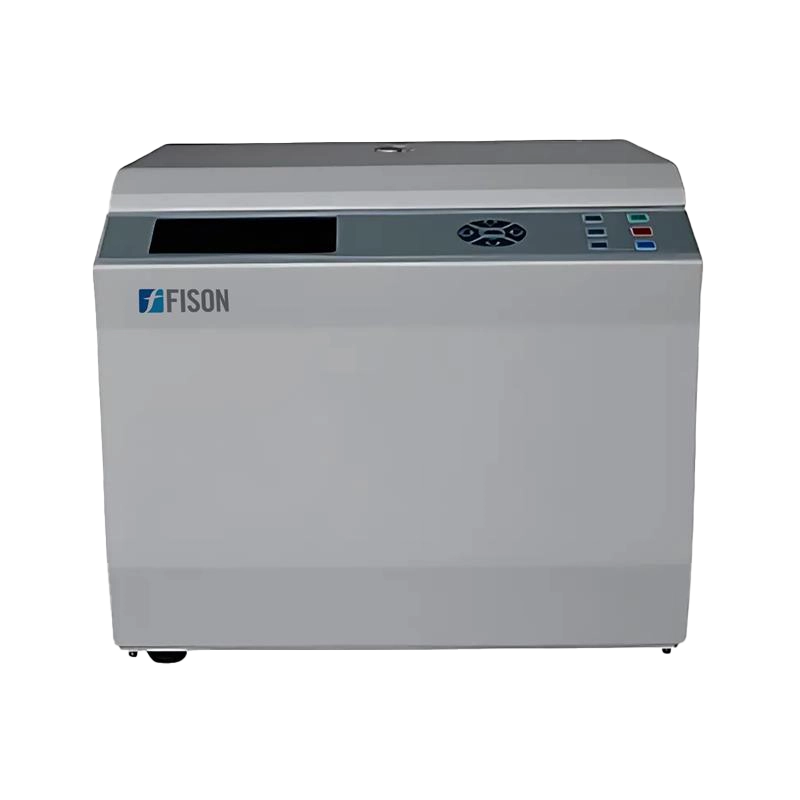

High Speed Refrigerated Centrifuge FM-HRC-A300

Name: High Speed Refrigerated Centrifuge FM-HRC-A300
Brand: Fison
SKU: FM-HRC-A300
Rating: 4.5 (216 reviews)

High Speed Refrigerated Centrifuge FM-HRC-A300 is a microcomputer controlled and inching function comprised high speed refrigerated centrifuge, with 23000 rpm of maximum speed, 600 ml of maximum capacity, and 33097 × g of maximum RCF. It offers 99 h 99 m 55 s of time range, -20°C to +40°C of temperature range, imported refrigerating compressor, AC frequency conversion motor drive, and automatic identification of rotor. The ergonomic design features full steel structure with stainless-steel centrifugal cavity, LCD display, double lock rod design door, magnetic locks, and electric door, and automatic balance with customizable speed/centrifugal force. Incorporated with memory function and prompt alarm system for better service life, supports 9 ascending/descending rate selection mode with 10 working mode, enables user to get ideal centrifugation result.

Catalog Buy Now

✔ A microcomputer controlled and inching function comprised high speed refrigerated centrifuge
✔ 23000 rpm of maximum speed with 33097 × g of RCF and 99 h 99 m 55 s of time range
✔ '-20°C to +40°C of temperature range and imported refrigerating compressor
✔ 2 optional timing mode: run start timing and timing starts, easy to switch
✔ AC frequency conversion motor drive, ensures quiet and smooth operation
✔ Automatic identification of rotor, automatic balance and customizable speed/centrifugal force
✔ Ergonomic design with full steel structure and stainless-steel centrifugal cavity
✔ LCD display, for easy and convenient monitoring of operation
✔ Magnetic induction door lock, electric door (Double lock rod design door)
✔ Memory function and alarm prompt for service life
✔ Supports 9 ascending/descending rate selection mode with 10 working mode
✔ Highly efficient, stable and reliable with convenient operation

Maximum speed	23000 rpm
Maximum capacity	600 ml
Maximum RCF	33097 × g
Temperature range	-20°C to +40°C
Temperature accuracy	± 2°C
Speed accuracy	± 100 rpm
Time range	99 h 99 min 59 s
Noise	≤ 55 dB
Rate selection mode	9 ascending/descending rate selection mode
Working mode	10
Controller	Microcomputer
Display	LCD
Motor	AC frequency conversion motor drive
Housing	Full-steel structure
Centrifugal cavity	Stainless-steel
Lid/Door lock	Double lock rod design door, magnetic locks, and electric door
Rotor identification	Automatic
Timing mode	2 optional timing mode: run start timing and timing starts
Power supply	AC 220 V, 50 Hz
Power	1.5 kVA
Dimension (L×W×H)	585×580×500 mm
Weight	95 kg

Refrigerated Centrifuge is used to collect or separate samples of different densities such as micro-organisms, cellular debris, larger cellular organelles, proteins, yeast cells, chloroplasts, blood cells etc. under preferred range of temperature, speed, and RCF across biotechnology, microbiology, biochemistry, pharmaceuticals etc. industries.

Rotor Type No.	Maximum Speed	Maximum Capacity	Maximum RCF
Angle Rotor 01	21000 rpm	24 ×0.2 ml	25622 × g
Angle Rotor 02	18000 rpm	24 × 0.5 ml	23864 × g
Angle Rotor 03	23000 rpm	12 ×0.5 ml	26614 × g
Angle Rotor 04	2150 rpm	12 × 1.5 ml/2.2 ml	33097 × g
Angle Rotor 05	16000 rpm	24 × 1.5 ml/2.2 ml	22810 × g
Angle Rotor 06	16000 rpm	12 × 5 ml	17459 × g
Angle Rotor 07	14000 rpm	12 × 10 ml	18188 × g
Angle Rotor 08	12000 rpm	8 × 15 ml	14170 × g
Angle Rotor 09	12000 rpm	6 × 50 ml	16099 × g
Angle Rotor 10	10000 rpm	6 × 100 ml	14645 × g
Angle Rotor 11	15000 rpm	36 × 1.5 ml/2.2 ml	20376 × g
Angle Rotor 12	14000 rpm	8 × 4 × 0.2 ml (PCR Special Rotor)	13367 × g
Angle Rotor 13	16000 rpm	48 × 0.5 ml	31482 × g
Swing-out Rotor 01	5000 rpm	4 × 50 ml	3775 × g
