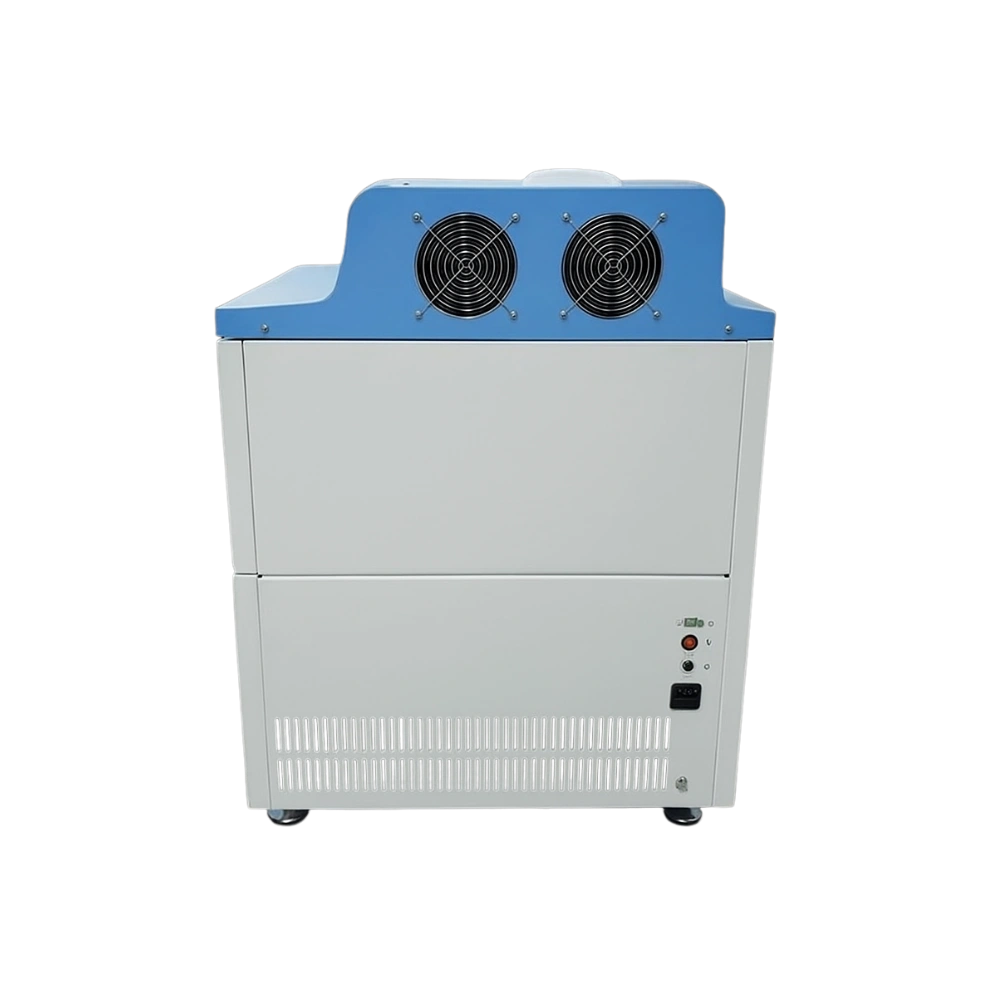

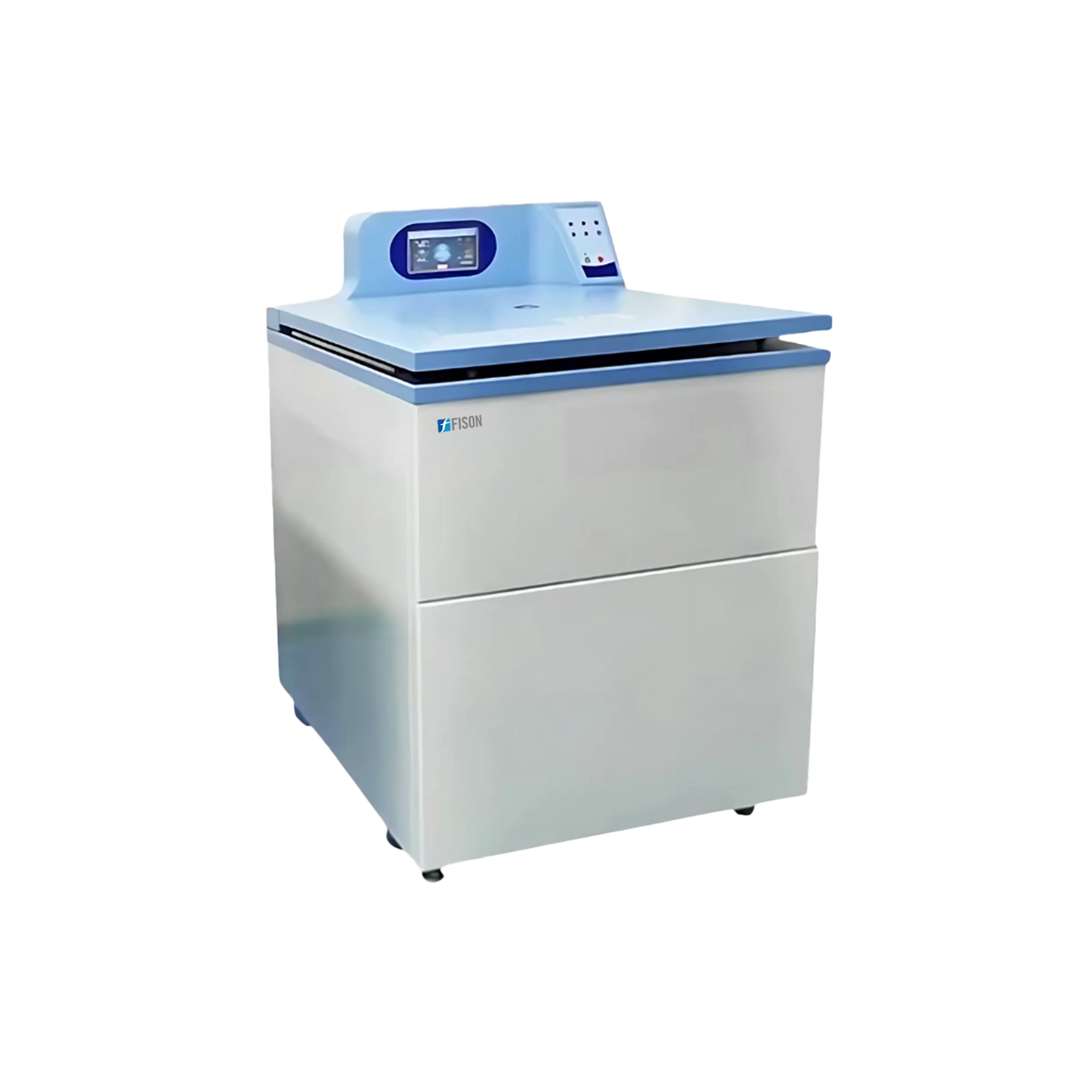

High Speed Centrifuge FM-HSC-A303
High Speed Centrifuge FM-HSC-A303 can accommodate 4L of sample and rotates at maximum speed of 25000 r/min. It is designed to work in wide temperature range of -20°C to 40°C. Features large LCD touch screen display for real-time monitoring. It includes various rotor options for versatile functioning. Our High Speed Centrifuge features CFC-free refrigeration technology for energy efficient and eco-friendly operation.
Specifications
| Maximum Speed | 25000 r/min |
| Speed Accuracy | ± 20 r/min |
| Maximum RCF | 64983 × g |
| Capacity | 4 × 1000 mL |
| Temperature Range | -20°C to 40°C |
| Temperature Accuracy | ±1 °C |
| Time Range | 1 min to 99 h 59 min |
| Noise | ≤ 65 dB (A) |
| Refrigerant | R404a |
| Power | 5 kW |
| Power Supply | AC 220 V 50 Hz 30 A |
| Dimensions | 710 × 840 × 1200 mm |
| Packaging Dimensions | 890 × 960 × 1450 mm |
| Net Weight | 290 kg |
Features
- Microcomputer controller
- Multiple protection functions
- Automatic fault alarm function
- Electronic door lock
- 10 programmable settings
- Reduced noise and vibration
Applications
- High Speed Centrifuge are essential for separation of temperature sensitive biological samples including nucleic acids, protein, blood etc.
Optional Rotor Selection
Rotor Type No. Maximum Speed Maximum Capacity Maximum RCF Rotor 1 25000 r/min 10 × 5 mL 64983 × g Rotor 2 25000 r/min 24 × 1.5 mL 64983 × g Rotor 3 23000 r/min 16 × 10 mL 60900 × g Rotor 4 18000 r/min 8 × 50 mL 40930 × g Rotor 5 14000 r/min 6 × 250 mL 30200 × g Rotor 6 10000 r/min 6 × 500 mL 17800 × g Rotor 7 7000 r/min 4 × 1000 mL 9980 × g Horizontal Rotor 8 4000 r/min 2 × 2 × 96 well 2236 × g Horizontal Rotor 9 5000 r/min 4 × 750 mL 5470 × g
Adapter Selection
Adapter Type No. Maximum Speed Capacity Maximum RCF Adapter 1 25000 r/min 0.5 mL, 1.5 mL 64983 × g Adapter 2 25000 r/min 0.2 mL, 0.5 mL 64983 × g Adapter 3 23000 r/min 1.5 mL, 5 mL 60900 × g Adapter 4 18000 r/min Alternative Models Of High Speed Centrifuge
Fison High Speed Centrifuge applies large centrifugal force to separate sample components. They come with microprocessor regulated LCD Display for easy monitoring. Cooling systems protect heat-sensitive samples by maintaining sub-zero temperatures. They feature multiple working modes along with noise-free operation. We offer High Speed Centrifuge with different speed settings, ranging from 6000 to 23000 rpm.
High Speed Centrifuge FM-HSC-A100
- Maximum speed: 6000 rpm
- Maximum RCF: 1248 × g
- Maximum capacity: 2 × 8 × 0.2 ml
High Speed Centrifuge FM-HSC-A101
- Maximum speed: 10000 rpm
- Maximum RCF: 6596 × g
- Maximum capacity: 12 × 1.5 / 0.5 / 0.2 ml
High Speed Centrifuge FM-HSC-A102
- Maximum speed: 12000 rpm
- Maximum RCF: 7567 × g
- Maximum capacity: 6 × 1.5/ 0.5 / 0.2 ml
High Speed Centrifuge FM-HSC-A200
- Maximum speed: 14000 rpm
- Maximum RCF: 13132 × g
- Maximum capacity: 8 × 7 ml
High Speed Centrifuge FM-HSC-A201
- Maximum speed: 16500 rpm
- Maximum RCF: 18110 × g
- Maximum capacity: 5 × 10 ml
High Speed Centrifuge FM-HSC-A301
- Maximum speed: 18000 rpm
- Maximum RCF: 23846 × g
- Maximum capacity: 24 × 0.5 ml
High Speed Centrifuge FM-HSC-A302
- Maximum speed: 21000 rpm
- Maximum RCF: 23194 × g
- Maximum capacity: 6 × 100 ml
High Speed Centrifuge FM-HSC-A300
- Maximum Speed: 23000 rpm
- Speed Accuracy: ± 100 rpm
- Maximum Rcf: 33097 × g
Benchtop High-Speed Centrifuge FM-BHC-A100
- Maximum RPM: 24000 r/min
- Maximum RCF: 47800 × g
- Maximum Capacity: 4 × 100 ml
High Speed Centrifuge FM-HSC-A400
.png "High Speed Centrifuge FM-HSC-A400")
- Maximum Speed: 20000 rpm
- Maximum RCF: 27994 × g
- Maximum Capacity: 6 × 100 ml
High Speed Centrifuge FM-HSC-A401
.png "High Speed Centrifuge FM-HSC-A401")
- Maximum Speed: 16500 rpm
- Maximum RCF: 24814 × g
- Maximum Capacity: 6 × 100 ml
High Speed Centrifuge FM-HSC-A402
.png "High Speed Centrifuge FM-HSC-A402")
- Maximum Speed: 15000 rpm
- Maximum RCF: 21630 × g
- Maximum Capacity: 12 × 5 ml
High Speed Centrifuge FM-HSC-B100
.png "High Speed Centrifuge FM-HSC-B100")
- Speed: 200 to 15000rpm
- Maximum RCF: 21380 × g
- Capacity: 1.5/2ml×24, 0.2/0.5ml × 36 PCR-8 trips × 4, 5ml × 12, 5ml × 18
Low Speed Centrifuge
Fison Low Speed Centrifuges are designed for efficient separation of biological and chemical samples. They offer reliable low speed centrifugation, ensuring gentle handling of sensitive materials. These units feature a user-friendly control panel, allowing easy speed and time adjustments. They include a lid-lock mechanism and imbalance detection for enhanced safety. Our centrifuges are equipped with multiple rotors to accommodate various sample types and volumes for versatile use.
Low speed centrifuge FM-LSC-A100
- Maximum speed : 4000 rpm
- Maximum RCF : 2432 × g
- Rotor capacity : 15 ml/ 20 ml × 6
Low speed centrifuge FM-LSC-A101
- Maximum speed : 6000 rpm
- Maximum RCF : 5000 × g
- Rotor capacity : 100 ml × 4
Low Speed Centrifuge FM-LSC-A102
- Maximum speed : 6000 rpm
- Maximum RCF : 5000 × g
- Rotor capacity : 450 ml × 4
Low Speed Refrigerated Centrifuge
Fison Low Speed Refrigerated Centrifuges are designed for efficient separation of temperature-sensitive biological and chemical materials. They offer stable and adjustable temperature control, ensuring optimal conditions for sample preservation. These units feature a user-friendly control panel for easy operation and monitoring. They are equipped with multiple rotor options, accommodating various sample volumes for versatile applications. Our centrifuges deliver quiet and stable operation, minimizing noise and vibration to enhance laboratory efficiency.
Low Speed Refrigerated Centrifuge FM-LRC-A100
- Maximum speed : 4200 rpm
- Maximum RCF : 3387 ×g
- Swing rotor capacity : 4 × 600 ml
Low Speed Refrigerated Centrifuge FM-LRC-A101
- Maximum speed : 4200 rpm
- Maximum RCF : 5116 ×g
- Swing rotor capacity : 6 × 1000 ml
Low Speed Refrigerated Centrifuge FM-LRC-A102
- Maximum speed : 8000 rpm
- Maximum RCF : 11068 ×g
- Swing rotor capacity : 6 × 2400 ml
High Speed Refrigerated Centrifuge
Fison High Speed Refrigerated Centrifuges are designed for rapid and precise separation while maintaining accurate temperature control. They provide an advanced cooling system, maintaining stable temperatures to protect heat-sensitive samples. These units are equipped with multiple rotor types for versatile applications. Our centrifuges deliver low noise and vibration, ensuring a quiet and stable laboratory environment. They feature durable and corrosion-resistant construction for long-term use.
High speed Refrigerated Centrifuge FM-HRC-A303
- Maximum speed : 21000 r/min
- Maximum RCF : 31300 × g
- Maximum Capacity : Angle rotor : 600 ml
Swing rotor : 3000 ml
High Speed Refrigerated Centrifuge FM-HRC-A100
- Maximum speed : 18000 rpm
- Maximum RCF : 23846 × g
- Maximum capacity : 24 × 0.5 ml
High Speed Refrigerated Centrifuge FM-HRC-A101
- Maximum speed : 23000 rpm
- Maximum RCF : 33097 × g
- Maximum capacity : 6 × 250 ml
Mini Centrifuge
Fison Mini Centrifuge features a transparent lid design, allowing easy observation of samples during operation. They provide protection at high speed, preventing damage from excessive forces or rapid movements. Their adoption of high-frequency broad voltage technology ensures stable performance across varying voltage levels. The rotor snaps allow for easy replacement, reducing downtime and ensuring continuous, efficient operation. Our mini centrifuge uses the opening and closing of the lid as the stop or start mechanism, ensuring safe and efficient operation.
Mini Centrifuge FM-MC-A100
- Maximum speed : 4000 rpm
- Maximum RCF : 900 × g
- Speed accuracy : ±20 rpm
Mini Centrifuge FM-MC-A101
- Maximum speed : 6000 rpm
- Maximum RCF : 2000 × g
- Speed accuracy : ±20 rpm
Mini Centrifuge FM-MC-A102
- Maximum speed : 10000 rpm
- Maximum RCF : 5500 × g
- Speed accuracy : ±20 rpm
Microplate Centrifuge
Fison Microplate Centrifuge offers adjustable speed settings for efficient spin-downs and pellet formation. They are crafted to minimize vibrations for a comfortable lab environment. Their digital controls with pre-set or customizable spin programs to accommodate various protocols. These are equipped with quick acceleration and deceleration to minimize total processing time. The advanced safety features secure lid locks to ensure safe and reliable operation during use. Our Microplate Centrifuge offers a compact storage option, making them easy to store.
Microplate Centrifuge FM-MPC-A100
- Maximum speed : 2500 rpm
- Maximum RCF : 500 × g
- Maximum Rotor Radius : 63 mm
Microplate Centrifuge FM-MPC-A101
.png "Microplate Centrifuge FM-MPC-A101")
- Maximum Speed : 2800rpm
- Maximum RCF : 600×g
- Capacity : 8×0.2ml PCR tube strips/ 0.2ml PCR tubes / 2×96-well PCR plate
