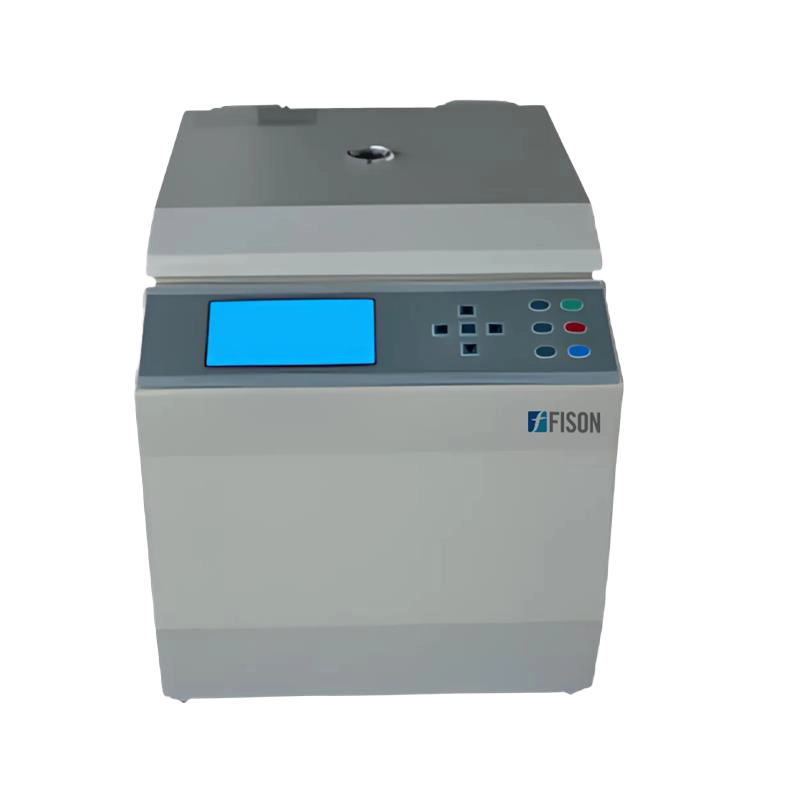

High Speed Centrifuge FM-HSC-A302
High Speed Centrifuge FM-HSC-A302 is a microcomputer controlled system with 21000 rpm maximum speed and 23194 × g maximum centrifugal force. Features angle rotor with 6 × 100 ml maximum capacity. Equipped with brushless frequency motor offers smooth working of the unit. The digital LCD display offers convenient reading of test data, stores various parameter data information. Two optional timing mode: Run start timing and timing to set speed are easy to switch. Acceleration and deceleration of 9 kinds and 10 options for self-defined work mode selection.
Specifications
| Maximum speed | 21000 rpm |
| Maximum RCF | 23194 × g |
| Maximum capacity | 6 × 100 ml |
| Speed accuracy | ± 100 rpm |
| Time range | 1 min to 99 h 99 m 99 s |
| Temperature indicator | ≤ 8°C (running 20 min) |
| Construction | Stainless steel centrifuge chamber |
| Noise | ≤ 55 dB |
| Power | 550 VA |
| Power supply | AC 220 V 50 Hz |
| Dimension (L × W × H) | 373 × 510 × 405 mm |
| Net weight | 50 kg |
Features
- Microcomputer control with LCD display
- DC brushless motor for smooth functioning
- Automatic balancing without need of trimming
- Maximum spin speed 21000 rpm with 23194 × g RCF
- Acceleration and deceleration of 9 kinds
- Work mode selection with 10 options
- Mutual setting of rotating speed / centrifugal force and double synchronous display screen
- Stainless steel centrifugation chamber
- Parameter changes adjustable any time without disturbing centrifugation process
- Over speed protection
- Equipped with air exhaust temperature system
- Electric safety door locks for protection
Applications
- Used to extract supernatant, serum from blood, rapid sample precipitation, microcell separation, PCR experimental zone centrifugation, microbiological sample treatment and to obtain nanoparticle.
Optional Rotor Selection
Rotor Name Max. Speed (rpm) Max. Capacity (ml) Max. RCF (g) Angle rotor 1 21000 12 × 0.5 ml 22182 Angle rotor 2 16000 24 × 1.5 ml /2.2 ml 20049 Angle rotor 3 18000 12 × 1.5 / 2.2 ml 23198 Angle rotor 4 16000 12 × 5 ml 17459 Angle rotor 5 14000 12 × 10 ml 18188 Angle rotor 6 16000 48 × 0.5 ml 21504 Angle rotor 7 16000 36 × 1.5/ 2.2 ml 23194 Angle rotor 8 12000 8 × 15 ml 14170 Angle rotor 9 12000 6 × 50 ml 16099 Angle rotor 10 10000 6 × 100 ml 10170 Swing-out rotor 1 5000 4 × 50 ml 3775 Swing-out rotor 2 6000 8 × 15 ml 5582
