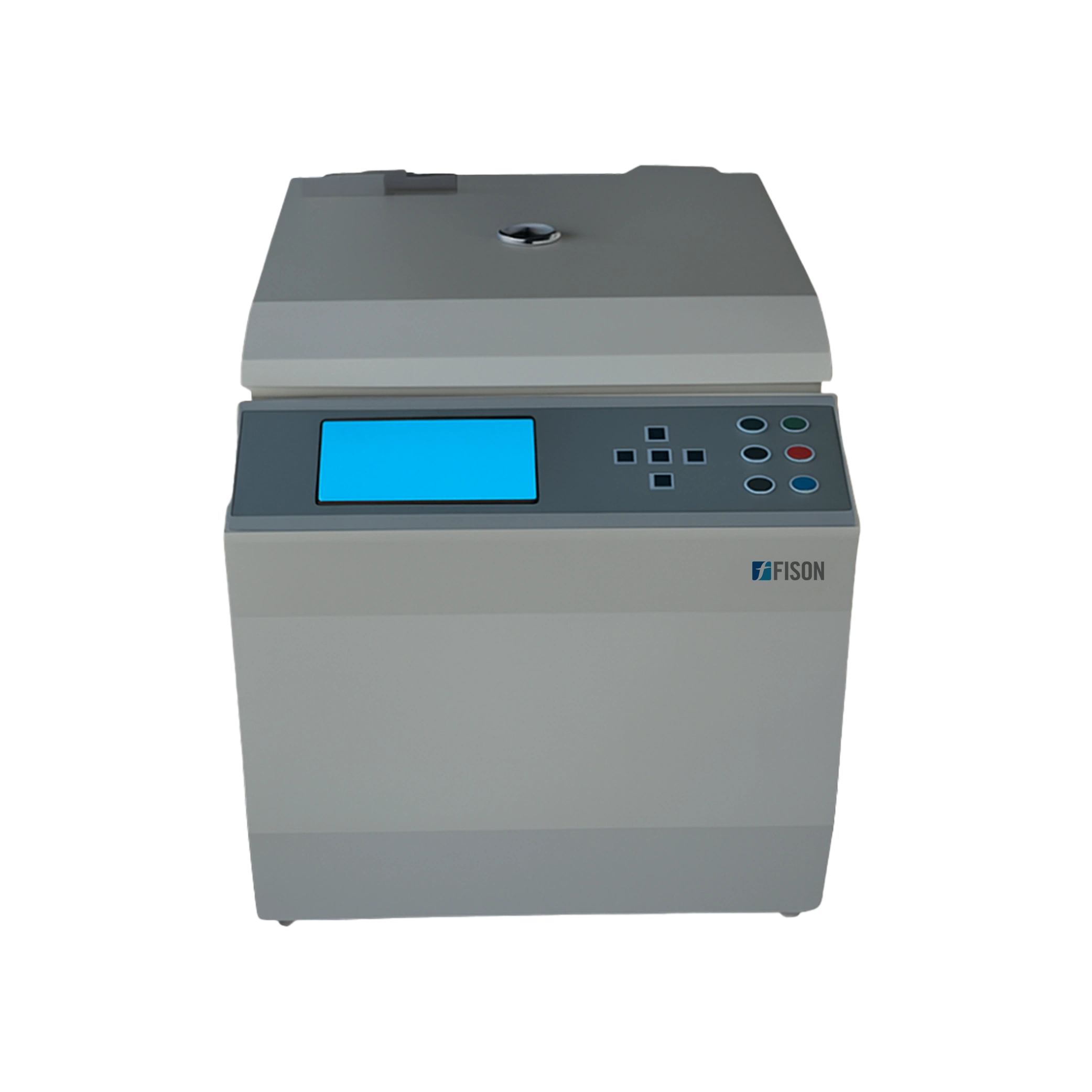

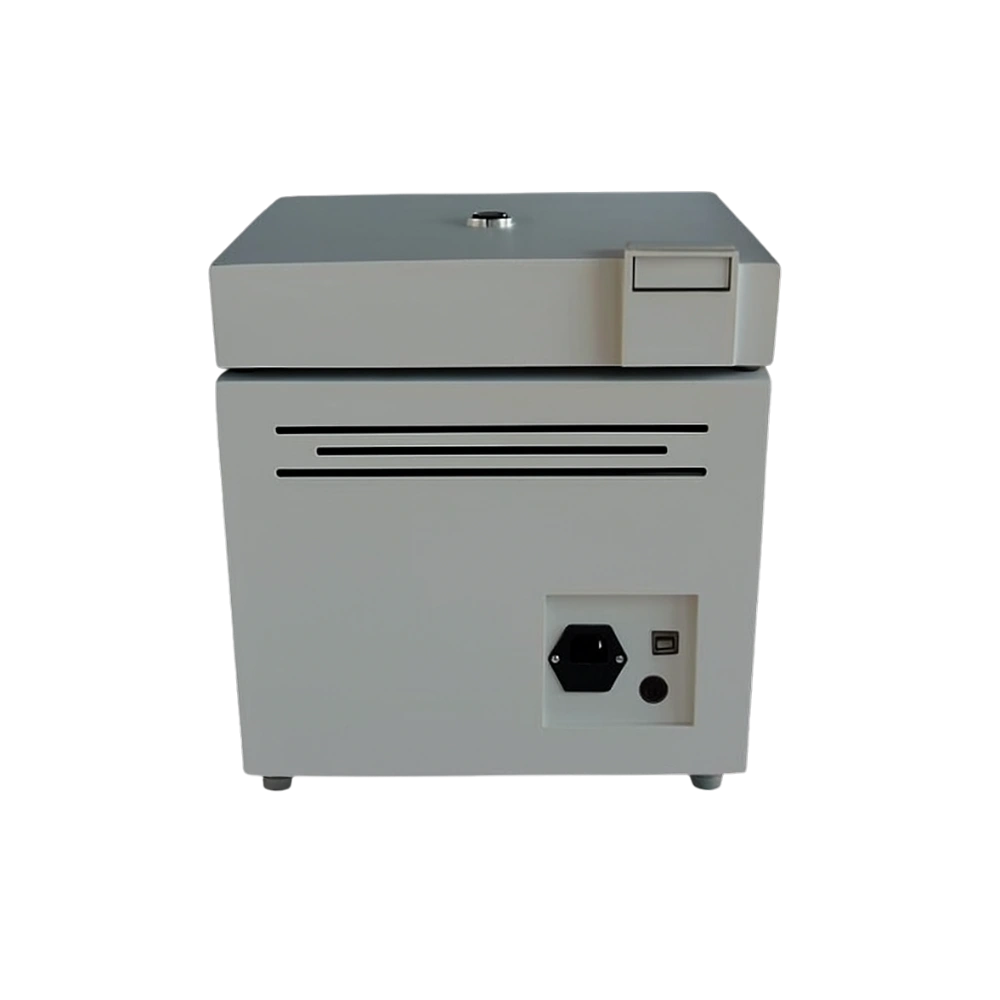

High Speed Centrifuge FM-HSC-A301
High Speed Centrifuge FM-HSC-A301 is a microcomputer controlled system with 18000 rpm maximum speed and 23846 × g maximum centrifugal force. Features angle rotor with 24 × 0.5 ml maximum capacity. Equipped with brushless frequency motor offers smooth working of the unit. The digital LCD display offers convenient reading of test data, stores various parameter data information. Two optional timing mode: Run start timing and timing to set speed are easy to switch. Acceleration and deceleration of 9 kinds and 10 options for self-defined work mode selection.
Specifications
| Maximum speed | 18000 rpm |
| Maximum RCF | 23846 × g |
| Maximum capacity | 24 × 0.5 ml |
| Speed accuracy | ± 100 rpm |
| Time range | 1 min to 99 h 99 m 99 s |
| Temperature indicator | ≤ 8°C (running 20 min) |
| Construction | Stainless steel centrifuge chamber |
| Noise | ≤ 55 dB |
| Power | 250 VA |
| Power supply | AC 220 V 50 Hz |
| Dimension (L × W × H) | 460 × 315 × 355 mm |
| Net weight | 29 kg |
Features
- Microcomputer control with LCD display
- DC brushless motor for smooth functioning
- Automatic balancing without need of trimming
- Maximum spin speed 18000 rpm with 23846 × g RCF
- Acceleration and deceleration of 9 kinds
- Work mode selection with 10 options
- Mutual setting of rotating speed / centrifugal force and double synchronous display screen
- Stainless steel centrifugation chamber
- Parameter changes adjustable any time without disturbing centrifugation process
- Over speed protection
- Equipped with air exhaust temperature system
- Electric safety door locks for protection
Applications
- Used to extract supernatant, serum from blood, rapid sample precipitation, microcell separation, PCR experimental zone centrifugation, microbiological sample treatment and to obtain nanoparticle.
Optional Rotor Selection
Rotor Name Max speed (rpm) Max capacity (ml) Max RCF (g) Angle rotor 1 18000 rpm 24 × 0.2 ml 18824 × g Angle rotor 2 18000 rpm 12 × 0.5 ml 16297 × g Angle rotor 3 18000 rpm 24 × 0.5 ml 23846 × g Angle rotor 4 18000 rpm 12 × 1.5 / 2.2 ml 23198 × g Angle rotor 5 14000 rpm 24 × 1.5 / 2.2 ml 14935 × g Angle rotor 6 16000 rpm 12 × 5 ml 17459 × g Angle rotor 7 14000 rpm 12 × 7 ml 16327 × g Angle rotor 8 12000 rpm 12 × 10 ml 13363 × g
