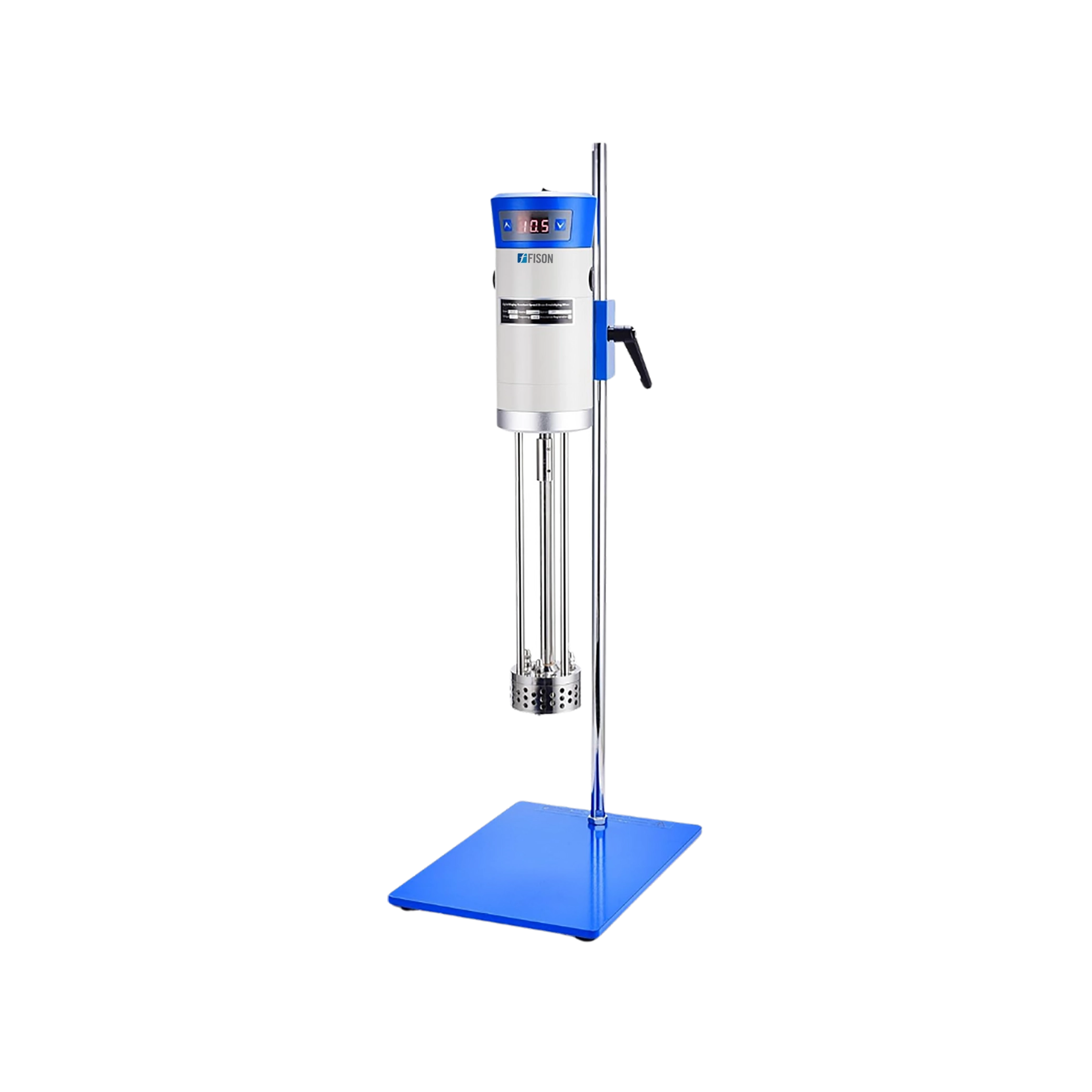

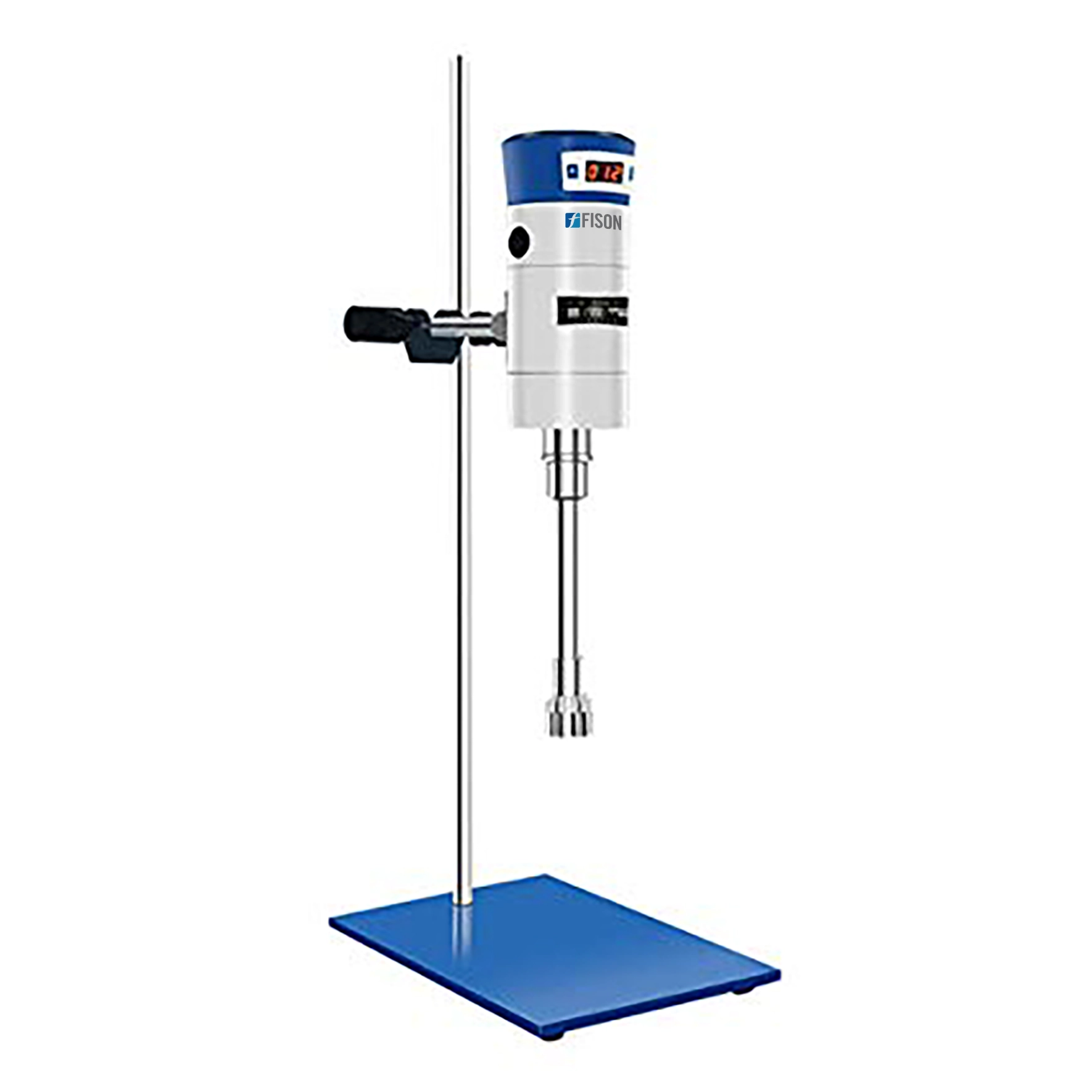

High Speed Dispersion Homogenizer FM-HDH-A100

High Speed Dispersion Homogenizer FM-HDH-A100

High Speed Dispersion Homogenizer FM-HDH-A100 offers adjustable speed range of 300 to 23000 rpm and 0.68 Nm torque. It is applicable for 30 to 1500 ml capacity of the sample liquid. Working head made of high quality stainless steel, corrosion resistant with the head diameter of 12 mm and 18 mm. It consist of drive motor with large output power, working head connected to drive motor by coupling and speed controller base that uses step less speed governor. Used in field of medicine, biochemistry, cosmetics, food and drinks. Also suitable in laboratory to further homogenize the pulverized experimental materials in the liquid medium.

Specifications

Capacity 30 to 1500 ml
Speed range 300 to 23000 rpm
Working head diameter 12 mm and 18 mm
Torque 0.68 Nm
Input power 280 W
Output power 200 W
Working mode Intermittent
Power supply AC 220 V, 50 Hz
Exterior dimension 250 × 350 × 600 mm
Net weight 9.5 kg
Gross weight 11 kg

Features

  • Speed controller base with step less speed governor
  • Adjustable speed range 300 to 23000 rpm
  • Drive motor with large output power
  • Securing clips for height adjustment
  • Stainless steel stirring heads
  • Aluminium metal case ensure mechanical precision for long use
  • Corrosion resistance stainless steel working head
  • Working head connected to drive motor by coupling

Applications

  • Used in field of medicine, biochemistry, cosmetics, food and drinks. Also suitable in laboratory to further homogenize the pulverized experimental materials in the liquid medium.

Working Head Parameter

  • Specification Head Diameter 12 mm Head Diameter 18 mm
    Capacity 30 to 800 ml 50 to 1500 ml
    Viscosity 1000 mPas 2000 mPas
    Rotor line speed 11 s/m 15 m/s
    Immersion in liquid 25/ 85 mm 30/120 mm
    Stator diameter 12 mm 18 mm
    Working head length 150 mm 190 mm
    Operating temperature 120°C 120°C
    Work heating SS304 SS304
    Working head bearing material PTEE PTEE
