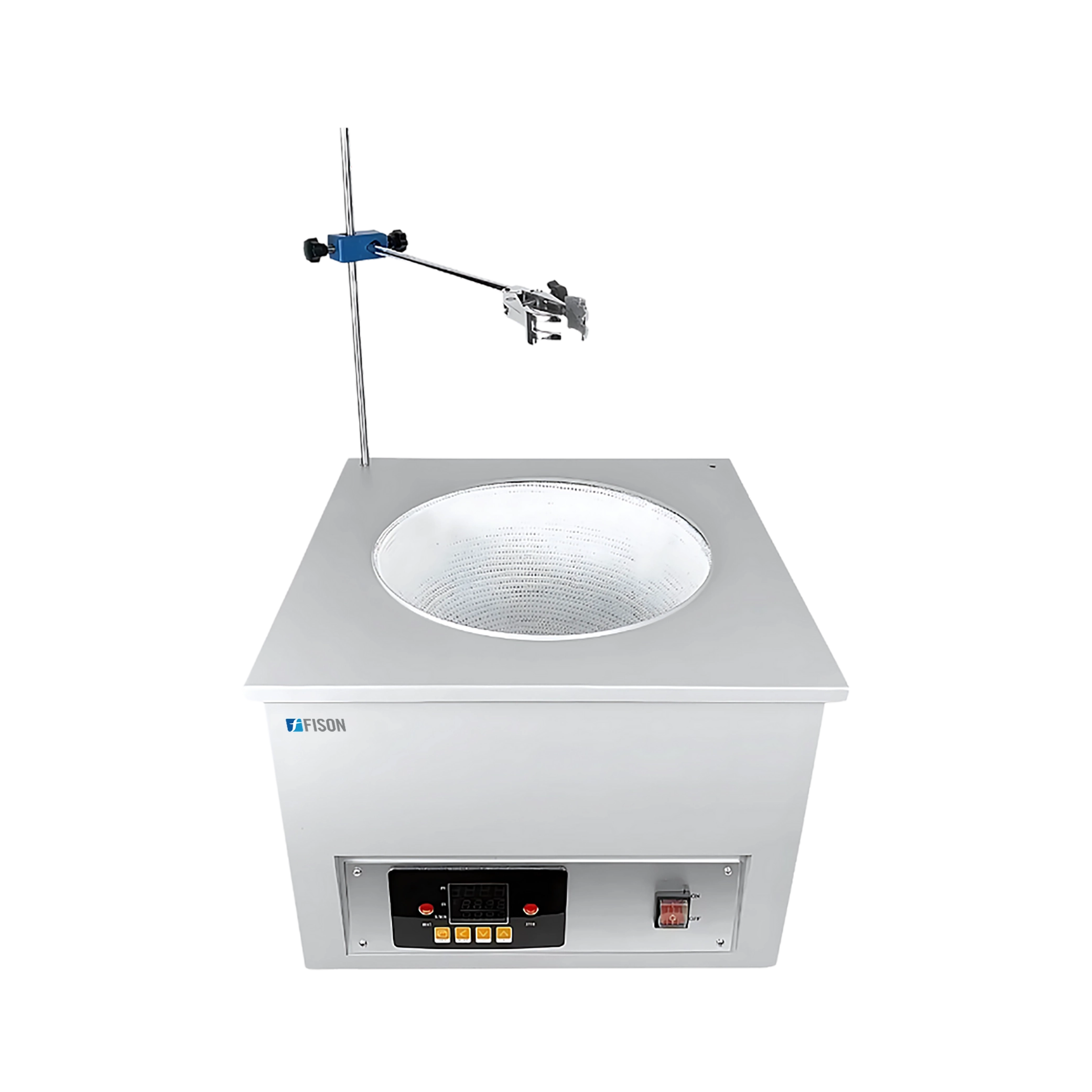

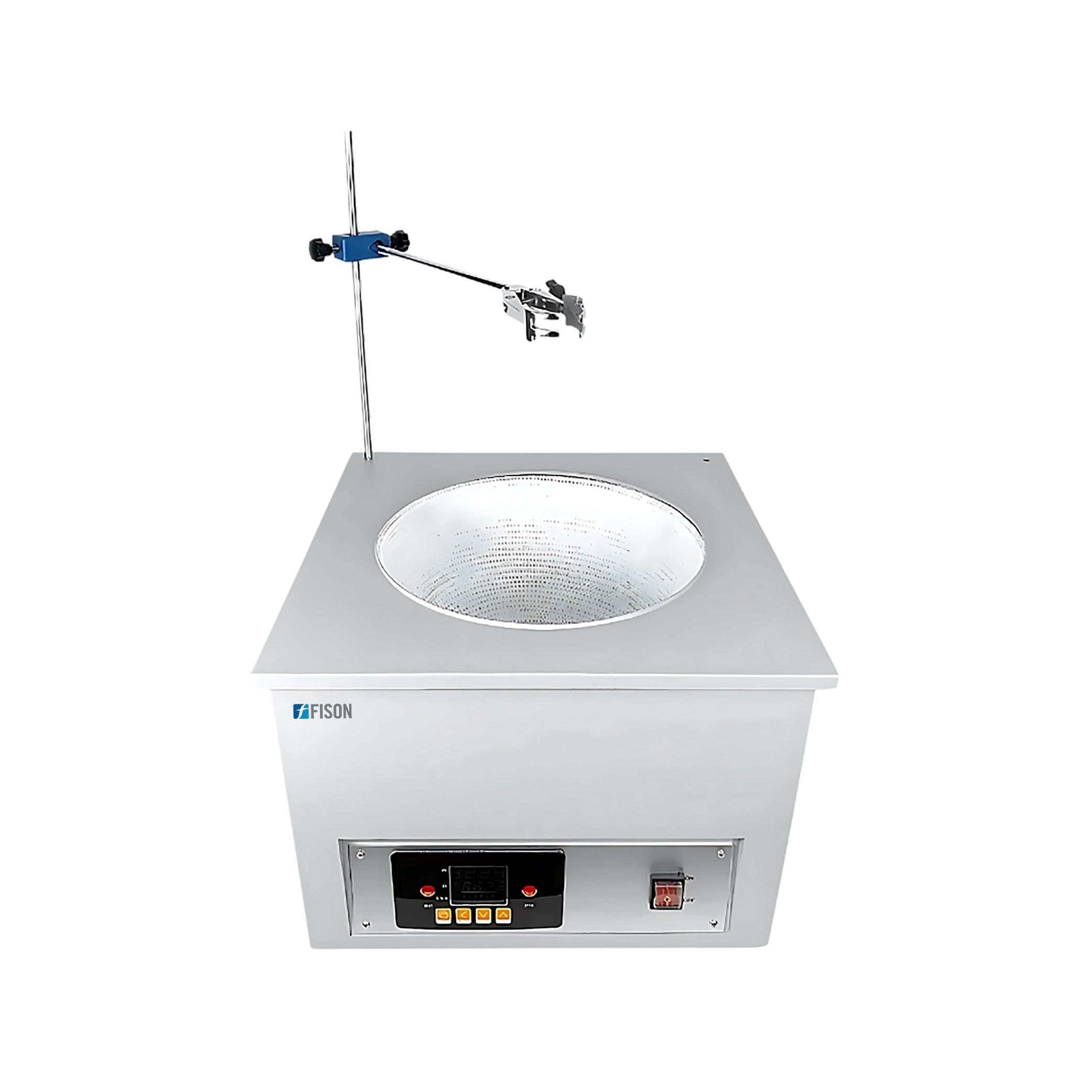

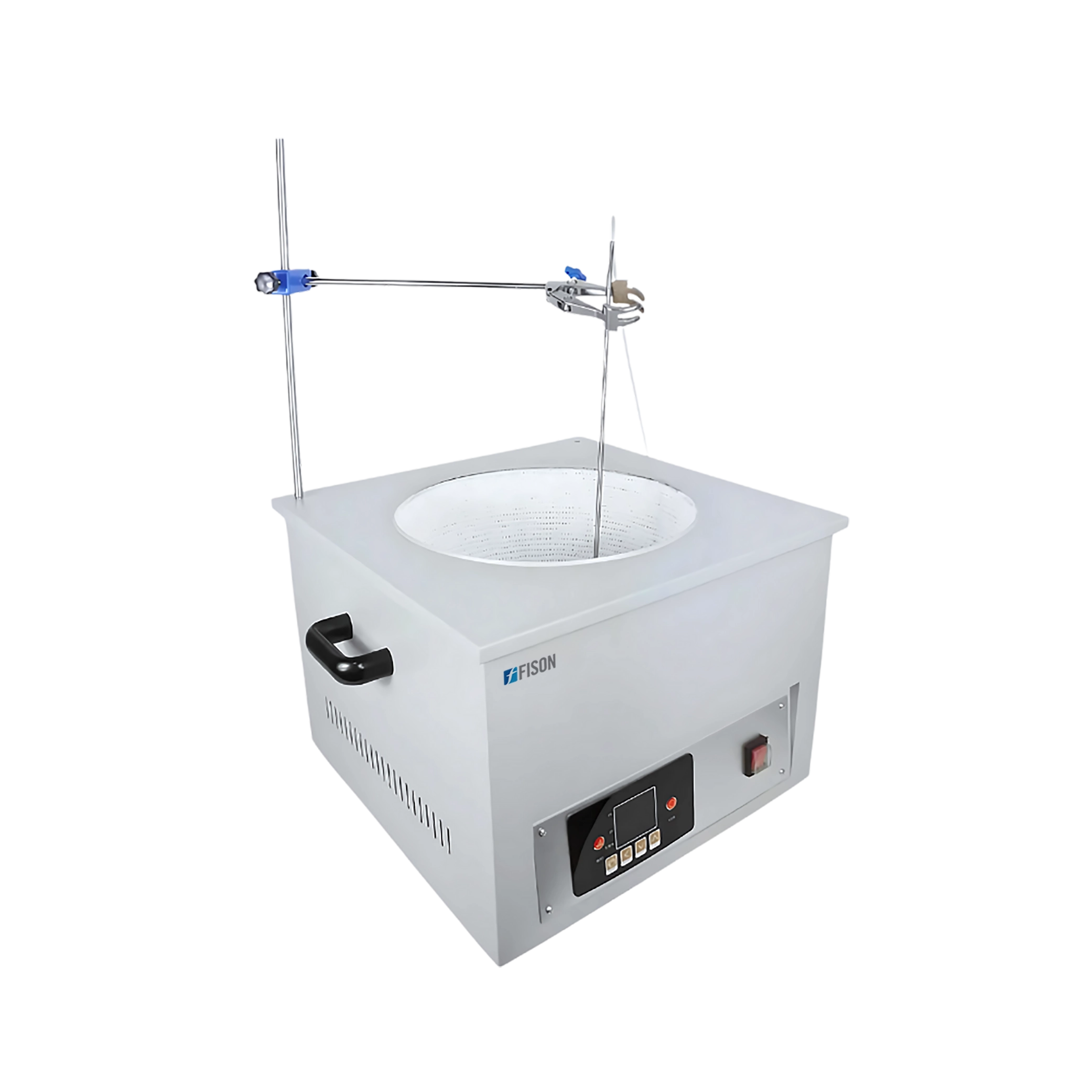

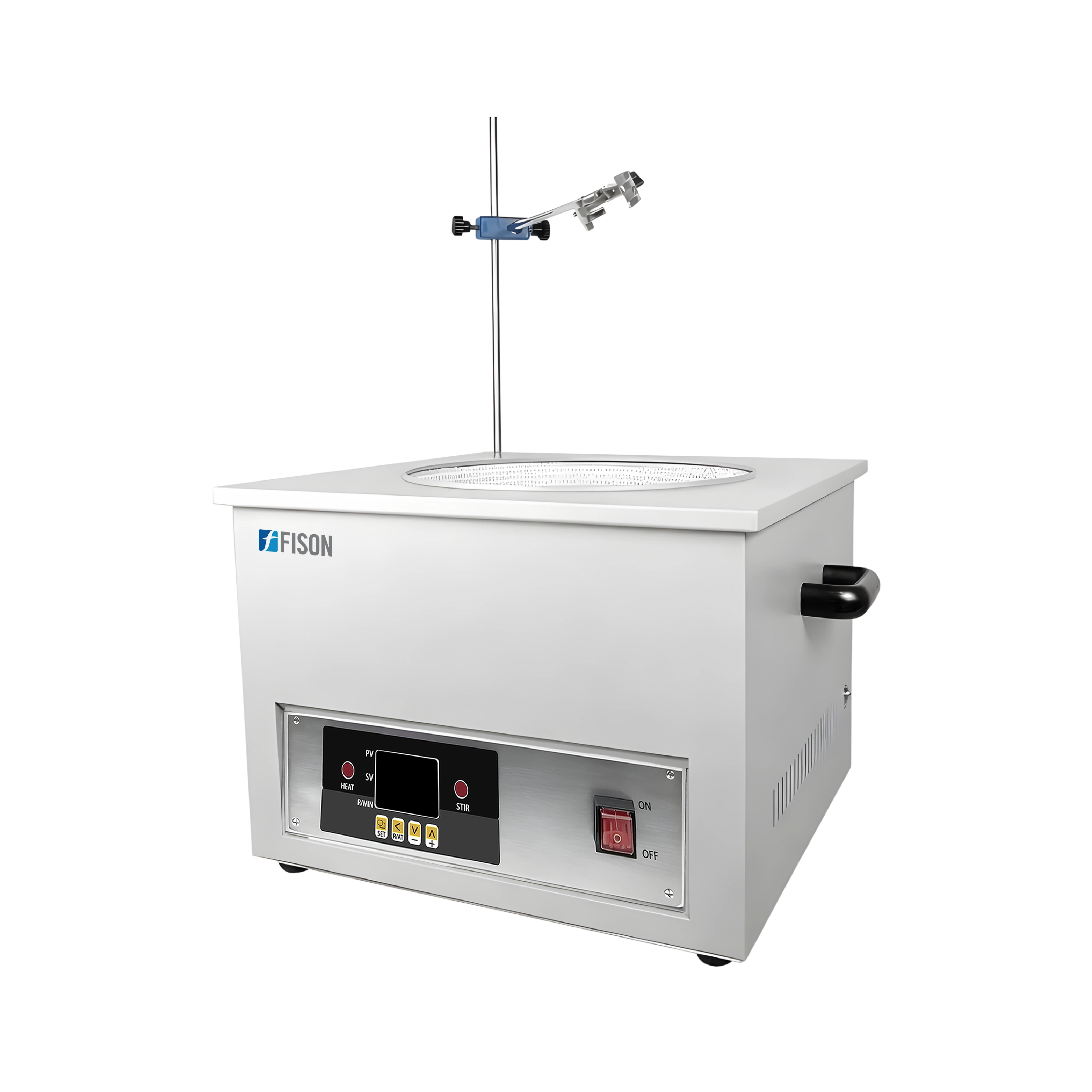

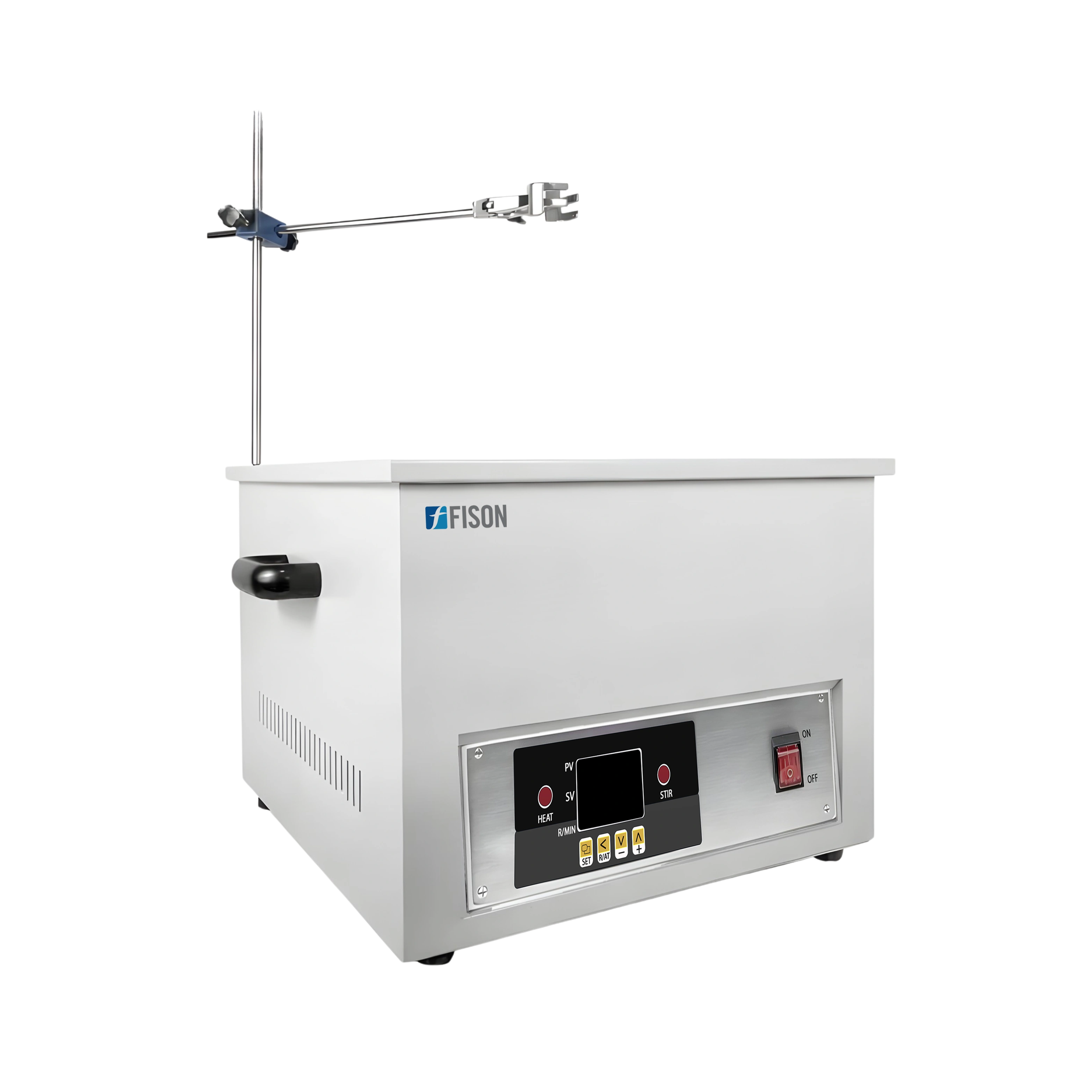

Heating Mantle with Magnetic Stirrer FM-DHM-B100

Heating Mantle with Magnetic Stirrer FM-DHM-B100

Heating Mantle with Magnetic Stirrer FM-DHM-B100 is built to accommodate round bottom flasks with a capacity of 10 liters. It ensures precise temperature regulation from ambient conditions up to 380°C, with an accuracy of ±1°C. This mantle features a magnetic stirrer capable of variable speed control up to 1800 rpm. Our heating mantle includes a durable, anti-corrosive steel housing with a safe-to-touch exterior finish.

Specifications

Capacity 10 L
Temperature control PID controlled system, inner and outer thermocouple
Temperature drift ≤ 0.01% FS /°C (typical 50 PPM /°C)
Temperature response time ≤ 0.3 sec
Thermocouple probe type K type
Temperature range Ambient to 380℃
Temperature accuracy ± 1°C
Maximum temperature resistance 450°C
Ambient temperature 0 to 50°C
Ambient humidity ≤ 85% RH
Heat material Alkali-free glass fiber
Shell material Superfine metal, anti-aging, anti-corrosion, blue color or white color
Thermal Insulation Glass fiber
Stir speed range 100 to 1800 rpm
Stir speed display ± 1 rpm
Stir motor 40 W, DC 20. Brushless motor
Stir Response time ≤ 1.5 sec
Electromagnetic compatibility (EMC) ± 4 kV / 5 kHz according to IEC61000-4-4; 4 kV according to IEC61000-4-5
Working environment Without corrosion and strong electric radiation
Working time More than 8 hours, Continuous
Heating Power 2100 W
Machine power 2140 W
Power Supply AC 220 V, 50 Hz or AC 240V, 60 Hz
Upper Diameter 279 mm
Dimensions (W × D × H) 440 x 510 x 300 mm
Packaging dimensions (W × D × H) 550 x 550 x 360 mm
Net weight 18.1 kg
Gross weight 21 kg

Features

  • Built-in PID temperature control system
  • K-type thermocouple probe
  • Insulated by Cr20Ni80 alloy wire spring and aluminum silicate cotton
  • LED and digital display for stir speed and temperature
  • Easy operation with self-tuning or translocated button
  • UL and CE-certified

Applications

  • The Heating Mantle with Magnetic Stirrer is widely used in research, pharmaceuticals, and industrial applications where consistent and reliable heating and stirring are required for chemical solutions facilitating precise temperature control and mixing.

Accessories

  • Stainless steel removable holder (L x D: 500 x 10 mm)
    Clamp with screw
    Inner Thermocouple 4 -spin probe
    Outer PT-100 Thermocouple 4-spins probe with 500 mm length
    Four-finger extension clamp with 400 mm length
    White PTFE coated magnetic stir bar (L x D: 40 x 15 mm)

Alternative Models Of Heating Mantle with Magnetic Stirrer

Fison Heating Mantles with Magnetic Stirrers are designed for round-bottom flasks with a capacity of up to 10 Liters. They provide precise temperature control, ranging from ambient conditions to 380ºC, with an accuracy of ±1ºC. Their built-in magnetic stirrer allows for variable speed control of up to 1800 rpm. Our heating mantles feature sturdy, anti-corrosive steel housing, ensuring both durability and safety during use.

Heating Mantle with Magnetic Stirrer FM-DHM-B101

  • Capacity: 20 L
  • Temperature control: PID controlled system, inner and outer thermocouple
  • Temperature drift: ≤ 0.01% FS /°C (typical 50 PPM /°C)
Catalog

Digital Display Heating Mantle

Fison Digital Display Heating Mantles with a capacity of 50ml feature a digital display and light indicators for heat and power status. These mantles can achieve a maximum surface temperature of 450°C. They come with adjustable temperature settings, that allow the users to customize heating levels according to their specific needs. They also have unique ventilation slots that keep the exterior cool during continuous operation. Our heating mantle is coated with an anti-corrosive layer giving it a longer shelf life.

Digital Display Heating Mantle FM-DHM-A100

  • Capacity : 50 ml
  • Surface Maximum Temperature : 450°C
  • Heating Element : Nichrome Wire
Catalog

Digital Display Heating Mantle FM-DHM-A101

  • Capacity : 100 ml
  • Surface Maximum Temperature : 450°C
  • Heating Element : Nichrome Wire
Catalog
Digital Display Heating Mantle FM-DHM-A102
  • Capacity : 250 ml
  • Surface Maximum Temperature : 450°C
  • Heating Element : Nichrome Wire
Catalog
