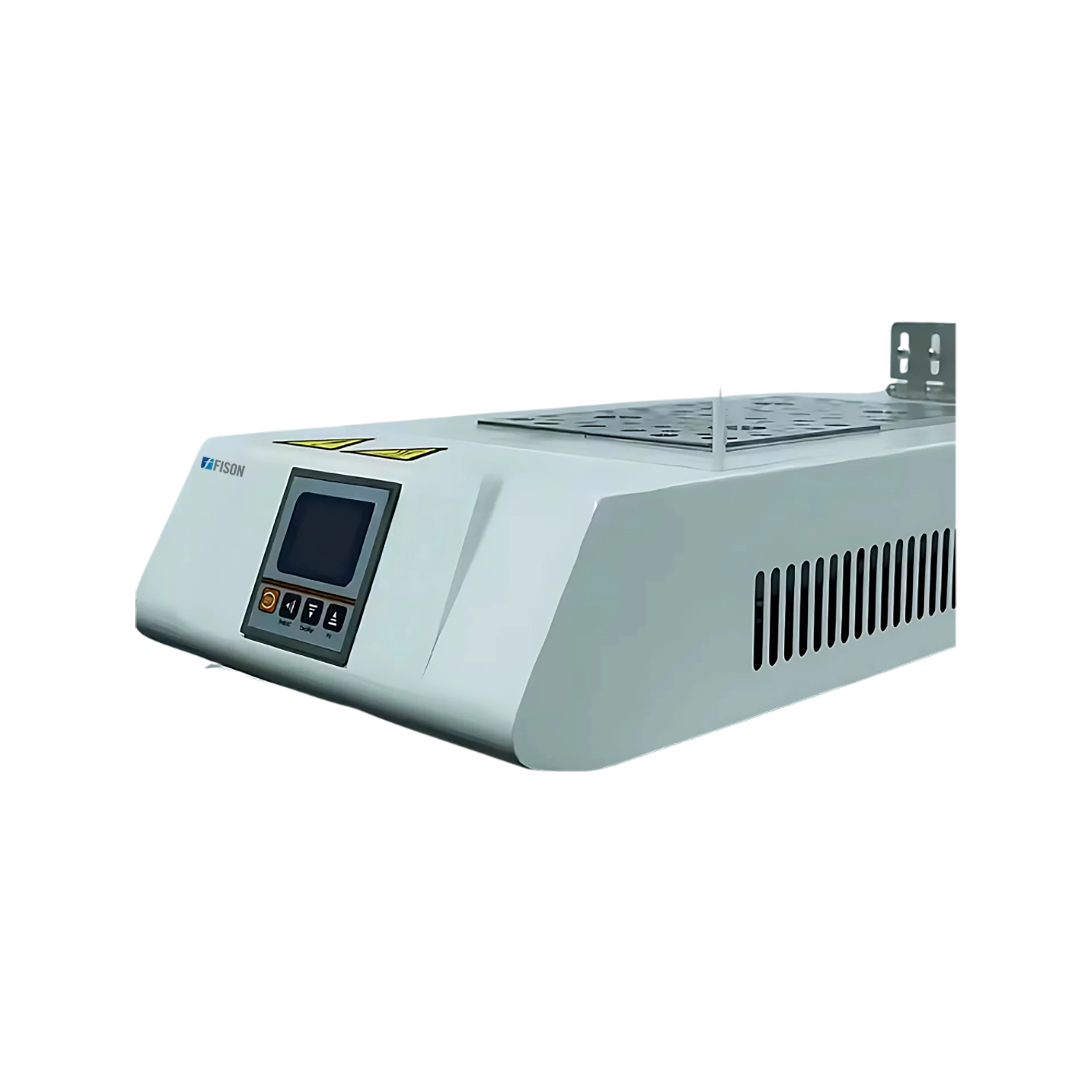

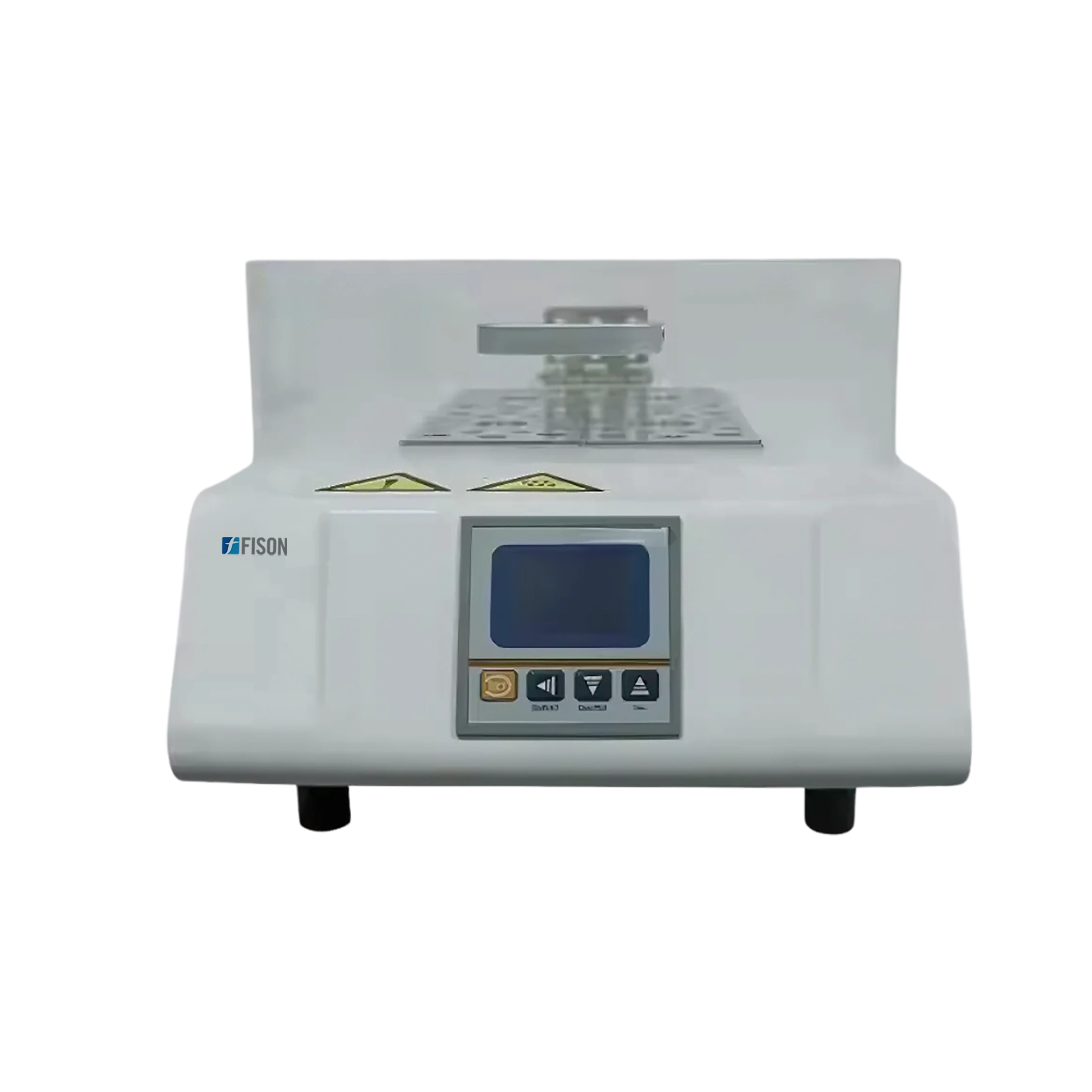

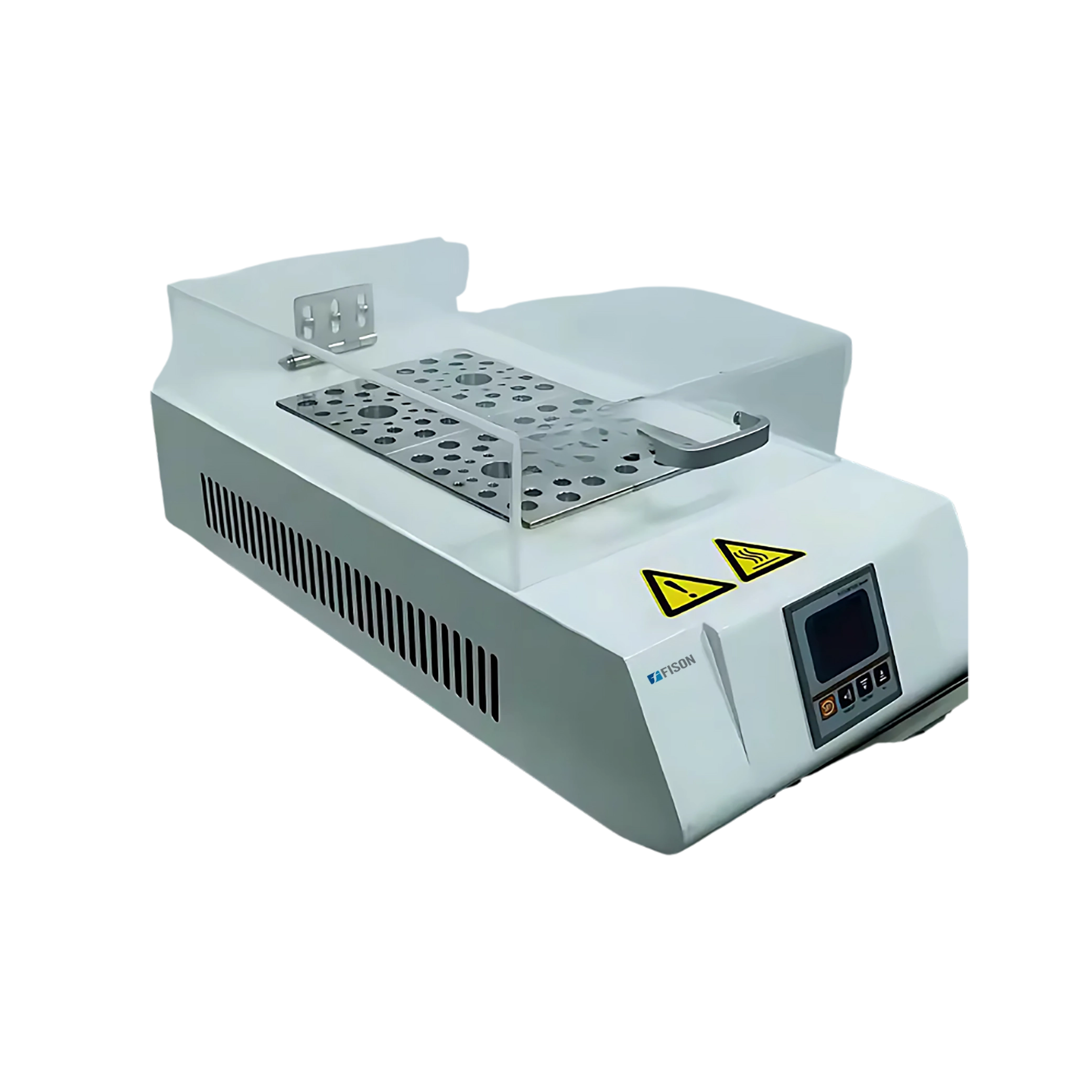

Heating Dry Bath FM-HDB-A102

Name: Heating Dry Bath FM-HDB-A102
Brand: Fison
SKU: FM-HDB-A102
Rating: 5 (288 reviews)

Heating Dry Bath FM-HDB-A102 utilizes a PID microprocessor controller for precise temperature control within a range of RT+5°C to 160°C. Incorporated with high-quality heating elements for efficient and even heat distribution within the block. It offers flexible timing options from 1 to 8999 minutes or continuous operation. Equipped with automatic fault detection and alarm function, enhances operational safety. Our dry bath features an LCD for real-time monitoring temperature and other parameter.

Catalog Buy Now

✔ Temperature deviation calibration function
✔ Compact and space saving unit
✔ Built-in over temperature protection
✔ Heating blocks are easily replaceable

Temperature Range	RT+5°C to 160°C
Temperature Accuracy	+ 0.5°C (at 40°C)
Temperature Uniformity	+ 1.0°C (at 40°C)
Timing Range	1 to 8999 mins or continuous operation.
Heating Time	< 20 mins (30°C to 130°C) < 30 mins (30°C to 160°C)
Material	Cold-rolled steel with anti-bacteria powder coating
Power Supply	220VAC+10% or 110VAC+10%, 50/60Hz
External Dimensions (W×D×H)	310×220×190 mm
Packaging dimensions (W×D×H)	360×280×240 mm
Net Weight	3.5 kg
Gross Weight	5 kg

Heating dry baths is used for tasks such as PCR amplification, enzyme reactions, protein denaturation, and sample preparation in laboratory settings.

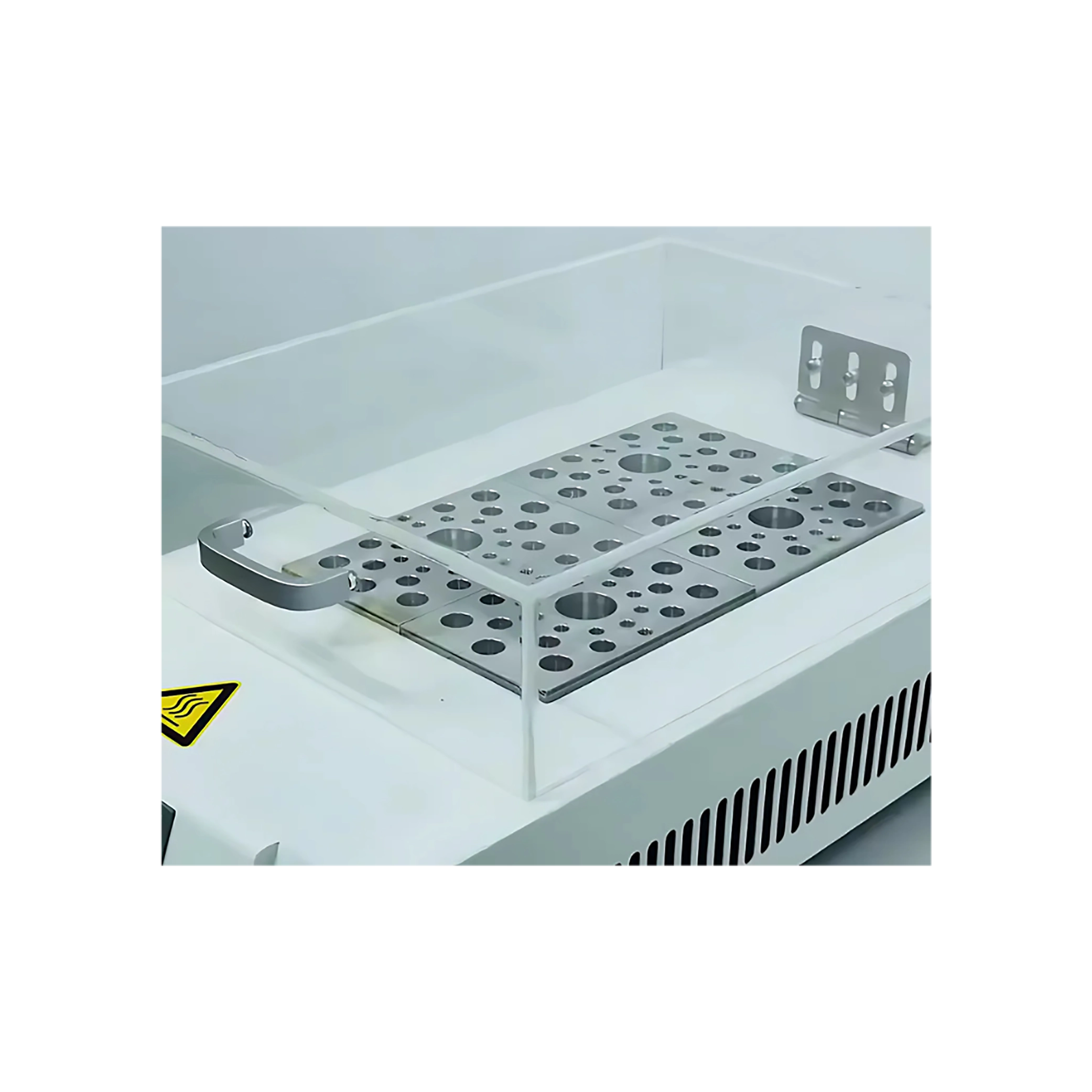

Standard Block

Tube diameter	Maximum number of tubes
0.2ml Centrifugal Tube \|	96
Φ 6mm	50
Φ 0.5ml Centrifugal Tube	40
Φ 10mm	28
1.5ml Centrifugal Tube	28
2.0ml Centrifugal Tube	28
Φ 13mm	24
Φ 16mm	15
Φ 18mm	12
Φ 20mm	8
Φ 26mm	6
Mixed Sizes 1	6 × φ 13 mm + 8 × φ 10 mm
	10 × φ 6 mm + 1 × φ 25 mm
Mixed Sizes 2	14 × φ 11 mm
	14 × φ 12 mm
Mixed Sizes 3	Customized
