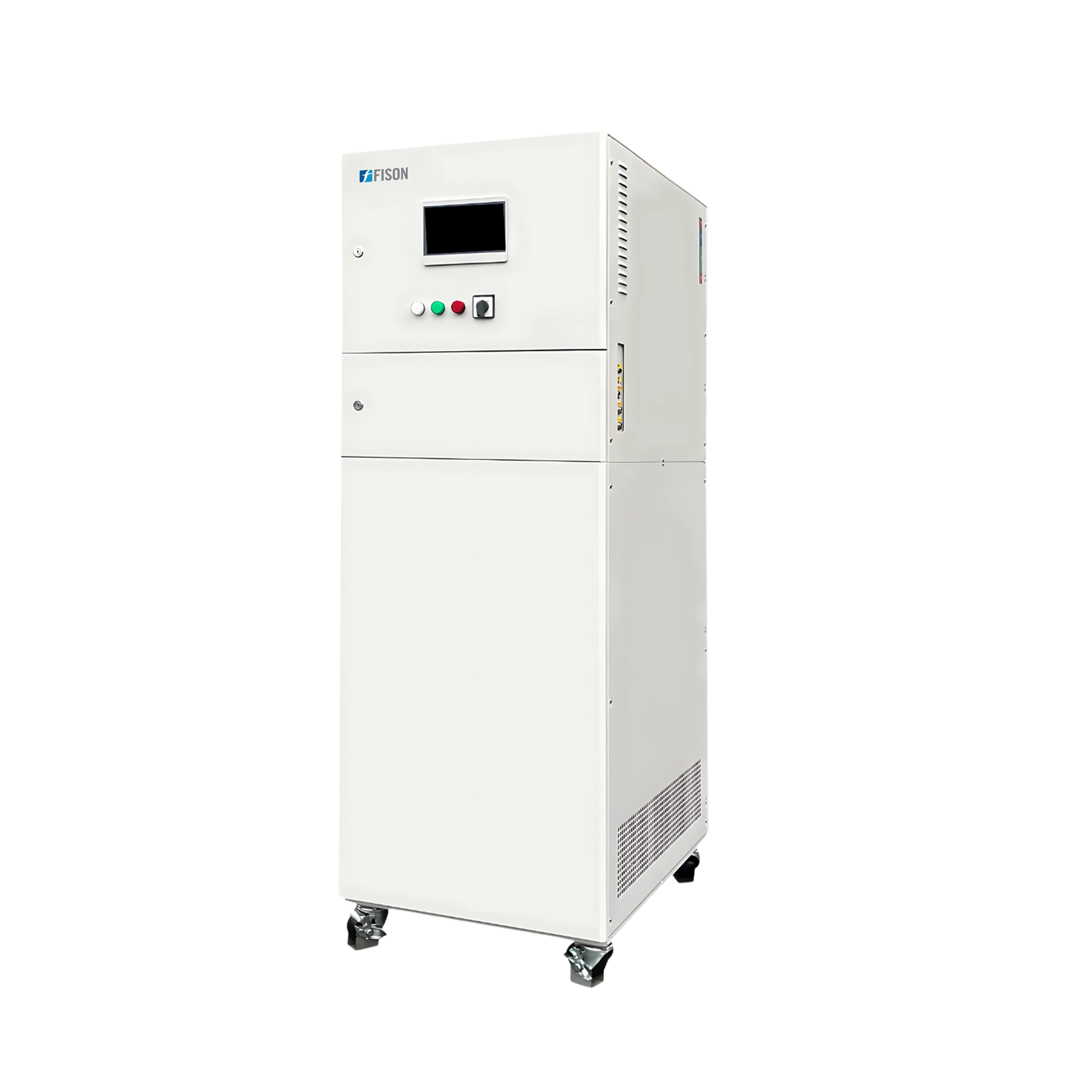

Heating And Cooling Circulator FM-HCC-A100
Heating and Cooling Circulator FM-HCC-A100 ensures dynamic temperature regulation from -45 °C to 250 °C, with PLC integration for precise management. It has a 7- inch touch screen panel for real-time data monitoring, system adjustments and seamless data export. Its fully closed circulation system prevents contamination extending equipment lifespan. Our Heating and Cooling Circulator is ideal for industrial applications requiring stable thermal control.
Specifications
| Temperature range | -45 °C to 250 °C |
| Control mode | Feedback PID+LNEYA special dynamic control calculation, PLC controller |
| Temperature control | Process temperature control mode/jacket temperature control mode |
| Temperature difference | Set or control the temperature difference between jacket oil and raw material process |
| Program editor | 20 programs, each program can edit 40 steps |
| Communication protocol | MODBUS RTU protocol, RS485 interface, Ethernet interface |
| Temperature feedback | The temperature of three points: the inlet and outlet of thermal fluid, material temperature in reactor (required external temperature sensor) |
| Process temperature feedback | PT100 |
| Jacket temperature accuracy | ±0.5 °C |
| Process temperature accuracy | ±1 °C |
| Heating power | 5.5kw |
| Cooling capacity | 250 °C - 5.5kw 20 °C - 5.5kw 0 °C - 5kw -20 °C - 2.3kw -35 °C - 0.9kw |
| Flow pressure | 1.2 L/min bar |
| Circulation pump | Magnetic drive pump |
| Compressor | Tecumseh/Emerson Copeland/Carlyle |
| Expansion valve | Electronic expansion value |
| Evaporator | Plate heat exchanger |
| Operation panel | 7-inch colour touch screen, show temperature curve\EXCEL data output |
| Safety protection | Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, high temperature protection and temperature fault protection. |
| Closed circulation system | The whole system is full closed circulation, there is no oil mist at high temperature and no water vapour at low temperature, pressure do not rise up when system is running. The system will supply oil automatically at low temperature. |
| Refrigerant | R-404A/R507C |
| Connection size | ZG3/4 |
| Cooling water | 20 °C – 1400L/H 105 ͂4bar |
| Case material | Cold rolled steel powder coating (standard colour 7035) |
| Dimension (L×B×H) | 45×70×160 cm |
| Power supply | 380V 50Hz, 7kw |
| weight | 180kg |
Features
- Self-diagnosis protection
- High accuracy PT100 sensor
- Magnetic drive pump
- PID feedback control
Applications
- Fison’s Heating and Cooling Circulator can be widely used in reactor systems, distillation processes and semiconductor industries to ensure stable temperature control.
Accessories
Socket
Quartet inch faucet
Accessories Optional
Insulated pipe
Bypass component
Heat transfer oil
