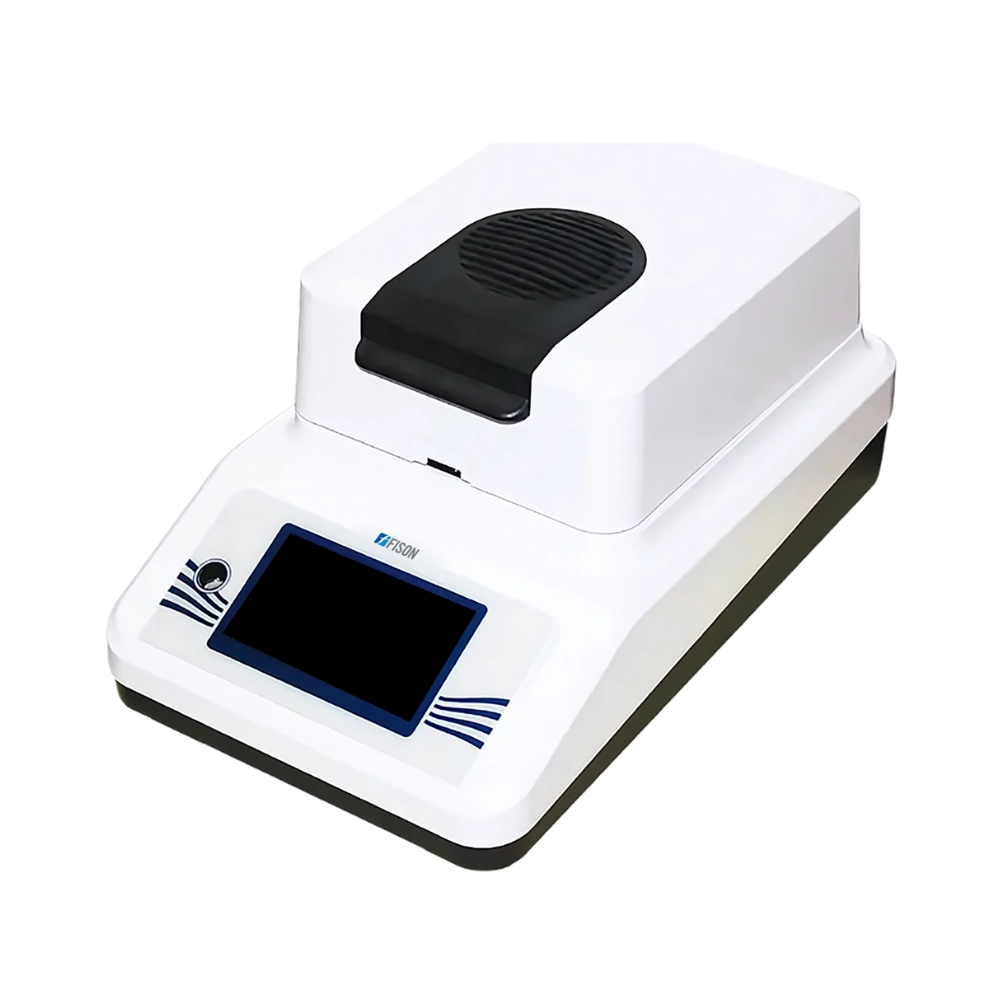

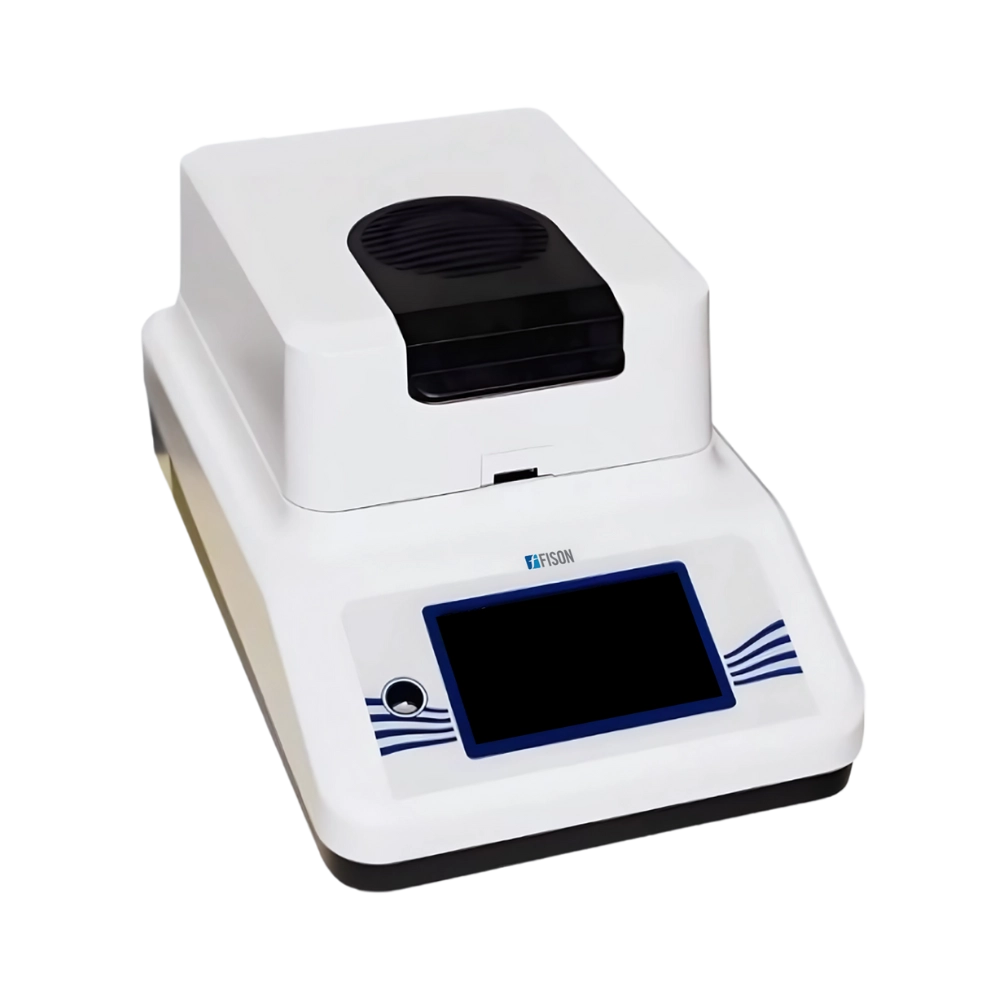

Halogen Moisture Analyzer FM-HMA-B103
Halogen Moisture Analyzer FM-HMA-B103 is designed for precise moisture analysis, featuring a weighing range of 0 to 100g to accommodate various sample sizes. It offers highly reliable measurements with a readability of 1mg, ensuring consistent results. It features dual test modes, auto and timing, providing flexible testing options for various sample needs. Our analyzer offers real-time curve monitoring for continuous tracking of moisture content during drying.
Specifications
| Weighing Range | 0 to 100g |
| Readability | 1mg |
| Repeatability (3g samples) | 0.3% |
| Minimum Sample Amount | 0.5g |
| Advised Sample Amount | 3 to 10g |
| Heat-up Time | 1 to 99 minutes (1-minute interval) |
| Real-time Curve | Moisture %, Weight, Time |
| Heating Temperature | 50 to 160°C (1°C interval) |
| Display Content | Moisture, Solid %, Weight, Temperature, Time, Drying mode, Real-time Curve |
| Heating Source | Halogen Lamp |
| Heating Time | 30 minutes |
| Drying Mode | Standard heating / Fast heating |
| Calibration | Weighing (external weight calibration), Temperature (special temperature equipment, factory calibrated) |
| Output | USB drive, USB host |
| Ambient Temp. | 10 to 30°C |
| Ambient Humidity | Less than 75% |
| Pan Size | 90mm |
| Dimension | 210 x 340 x 180 mm |
| Shipping Size | 380 x 530 x 340mm |
| Net Weight | 3kg |
| Gross Weight | 5kg |
Features
- 4.3-inch Color Touch Screen
- Smooth PC Connectivity
- Versatile Functionality
- User-friendly Interface
Applications
- Halogen Moisture Analyzer FM-HMA-B103 is widely used in the Food Industry, Pharmaceuticals and Chemicals, Agriculture and Animal Feed, Plastics and Polymers, Paper and Textiles, and Environmental and Research Laboratories.
Accessories
Calibration Weight
Power Cord
