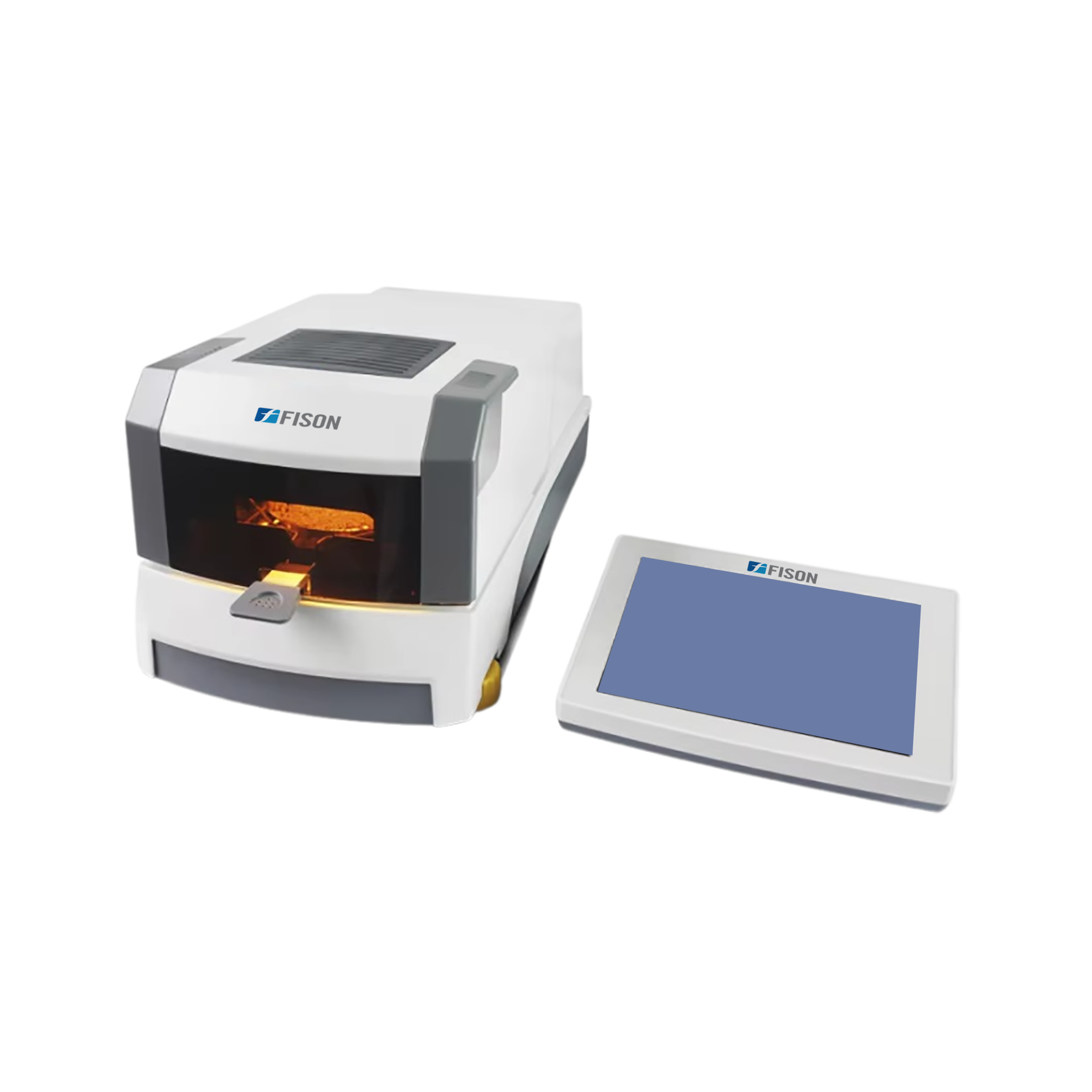

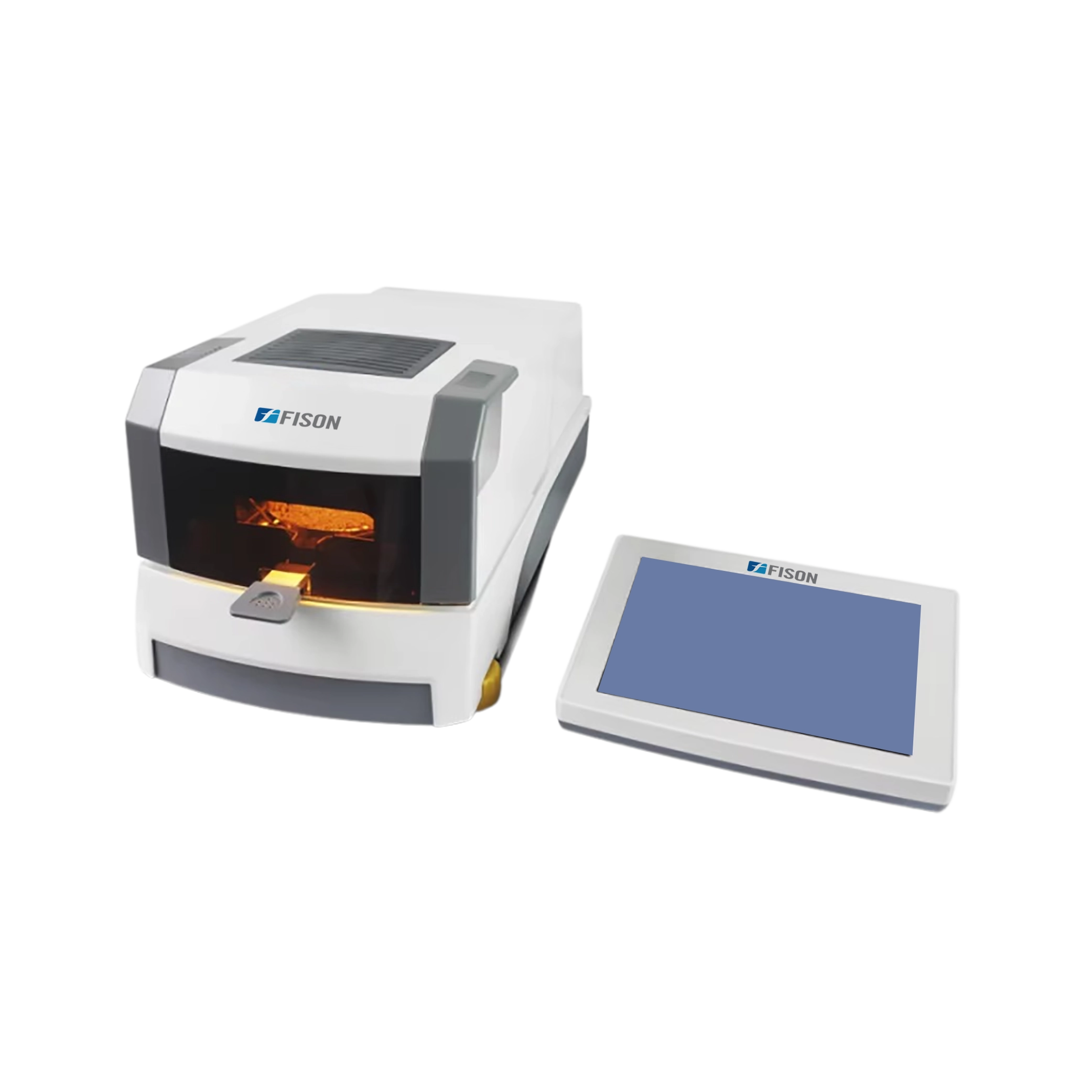

Halogen Moisture Analyzer FM-HMA-A202
Halogen Moisture Analyzer FM-HMA-A202 is a benchtop automatic and intelligent moisture content analyzer designed with sensor opening automatic door for heating chamber. Incorporated with halogen heating lamp for rapid determination of moisture content and dry weight of test sample with range of 4 mg to 210 g. The sample is effectively placed in heating chamber at 35 cm height, yields accurate results. Features temperature setting of 40 to 230 °C, cable communication mode and RS232/RJ45/USB interface. User-friendly 7” touch panel LCD display illustrates test curve data and other test parameters.
Specifications
| Range | 4 mg to 210 g |
| Readability | 1 mg |
| Temperature range | 40 to 230 °C |
| Communication mode | Cable |
| Rechargeable battery | Nil |
| Heat source | Halogen lamp |
| Pan size | 100 mm diameter |
| Operating temperature range | 5 to 35°C |
| Temperature sensor | PT-100 |
| Temperature step | 1°C |
| Temperature setting | 40 to 230°C by 1°C |
| Time setting | 1 to 99 min by 10s |
| Dry residual range | 0 to 100 % |
| Dry residual readability | 0.0001 |
| Moisture range | 0 to 100 % |
| Moisture readability | 0.0001 |
| Number of storage data | 20 |
| Number of history data | 20 |
| Heater part power | 220 V ± 15 % 50 Hz, 110 V ± 15 % 60 Hz, 400 W |
| Balance part power | Input: 220 V 50 Hz/ 110 V 60 Hz, Output: 9 V |
| Mechanical part machine | Input: 220 V 50 Hz/ 110 V 60 Hz, Output: 24 V (dual –drive) |
| Display | 7 inch touch panel |
| Interface | RS232/USB |
| Operation height | 275 mm |
| Chamber height | 35 mm |
| Indicator dimension | 200 × 75 × 135 mm |
| Unit dimension | 215 × 195 × 415 mm |
| Gross weight | 10 kg |
Features
- Halogen lamp heating mode
- Ergonomically designed pan handle
- 7-inch smart touch LCD display
- Automatic sensor opening door of heating chamber
- Displays test values as percentage of dry weight (%) / Moisture (% m) / the weight (g)
- Weighing range: 4 mg to 210 g
- Weighing resolution or readability: 0.001 g
- Moisture content measuring range: 0.00 to 100.00 %
- Moisture content resolution or readability: 0.01 %
- Adjustable drying time and temperature
- Memory stores up to 20 drying profiles
- Long distance operation using smart touch panel
- Maximum 230°C heating temperature
- <b>Testing Mode: </b>
- Auto Mode: The mode is suitable for most of the samples for common moisture analysis
- Soft Mode: Some fusible and volatility things can choose this mode
- Fast Mode: Some stable and thermostable things can choose this mode
- Stainless steel drying pan is quick and easy to clean
- Manual setting for temperature and time
- Cable communication mode and RS232/RJ45/USB interface
Applications
- Suitable for the testing and analysis of samples of materials such as wood, pellets, biomass, granules, feed, food products and pastes. Also, designed for food, plastics and chemical moisture analysis.
Accessories
Accessories no Accessories name Units 1. Moisture Analyzer Mainframe 1 set 2. Wind Cover 1 piece 3. The sample pan holder 1 piece 4. Tray handle 1 piece 5. Aluminum sample pan 1 set of 50pcs 6. 100g standard weight 1 piece
