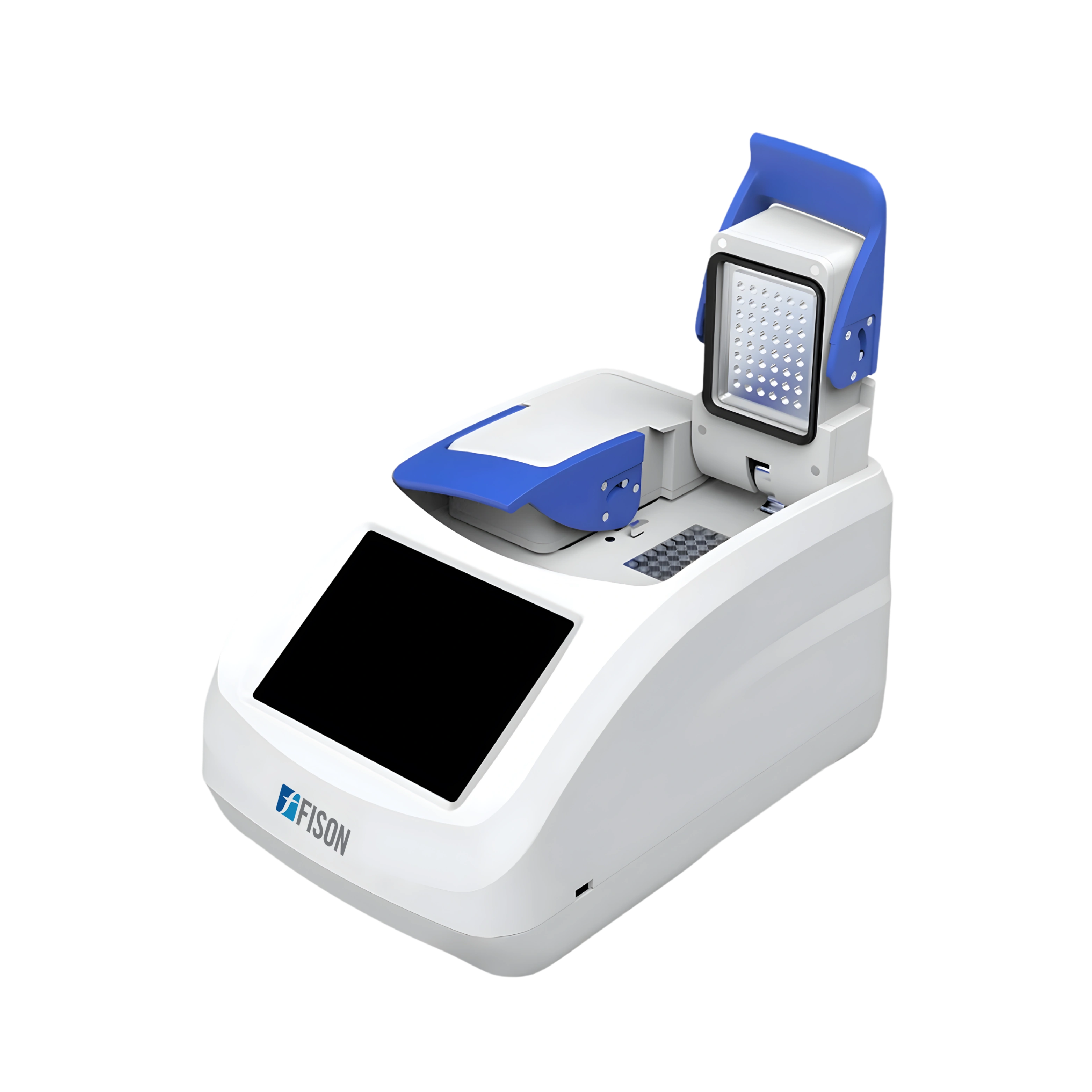

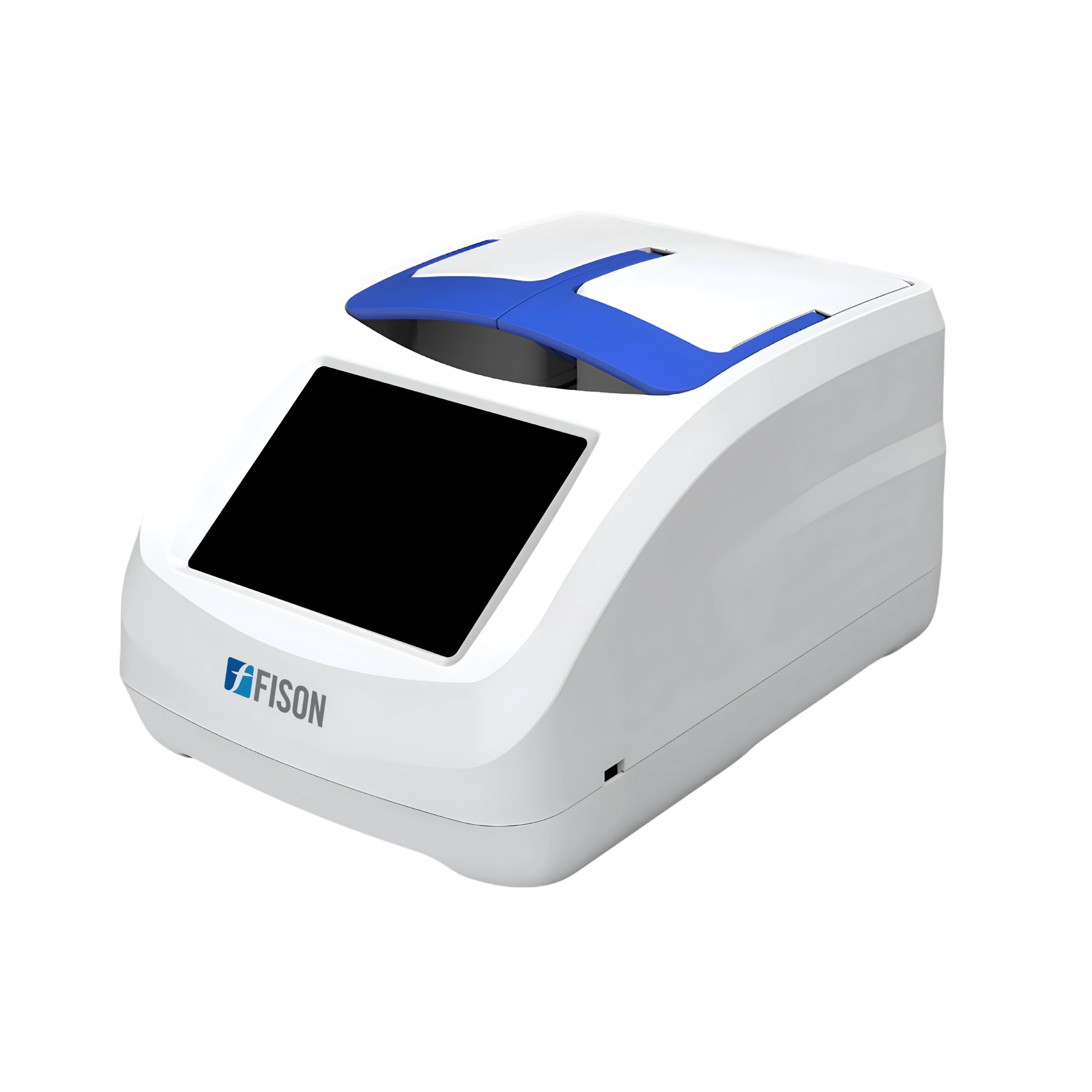

Gradient Thermal Cycler FM-GTC-B102
Gradient Thermal Cycler FM-GTC-B102 has a double capacity of 48 PCR tubes or 0.2ml strip tubes for high-throughput applications. This features temperature uniformity, which helps reduce the edge effect, ensuring consistent results across all samples. It includes power failure recovery, and resuming cycling from the last saved point after an interruption. Our Thermal Cycler utilizes Peltier technology, ensuring rapid and precise temperature control.
Specifications
| Capacity | Double 48×0.2ml |
| Max. Cycles | 99 |
| Number of Gradients | 12 |
| Gradient Temperature Range | 30 to 105℃ |
| Gradient Temperature Accuracy | ≤±0.3℃ |
| Max. Steps | 30 |
| Block Temperature Range | 4 to 105℃ |
| Block Temperature Uniformity | ≤ ±0.25℃ |
| Block Temperature Accuracy | ±0.2℃ |
| Gradient Set Span (Max.) | 30℃ |
| Pause Function | Yes |
| Power Failure Recovery | Yes |
| Temperature Display Accuracy | 0.1℃ |
| Temperature Holding Function | Infinite duration |
| Temperature Control Ways | Block or Tube |
| Timer (Increasing/Decreasing) | -599 to 599 s for Long PCR |
| Timer | 1s to 59min59sec / Infinite Duration |
| Temperature Increasing/Decreasing Rate | -9.9 to 9.9℃ for Touchdown PCR |
| Heating Lid Temperature Range | 30℃ to 110℃ |
| Display | LCD Touch Screen Display |
| Operation System | Linux |
| Programs Stored | 1000+ |
| Heating Rate (Max) | 6℃ /s |
| Cooling Down Rate (Max) | 5℃ /s |
| Adjustable Range of Heating Up/Cooling Down | 0.1 to 6℃/s |
| Tubes Applied | 0.2ml microtubes, 8×0.2ml tubes strips |
| Power | 800W |
| Power Supply | 110V to 220V, 50 to 60Hz |
| Dimension (W×D×H) | 400×260×228 mm |
| Weight | 9 kg |
Features

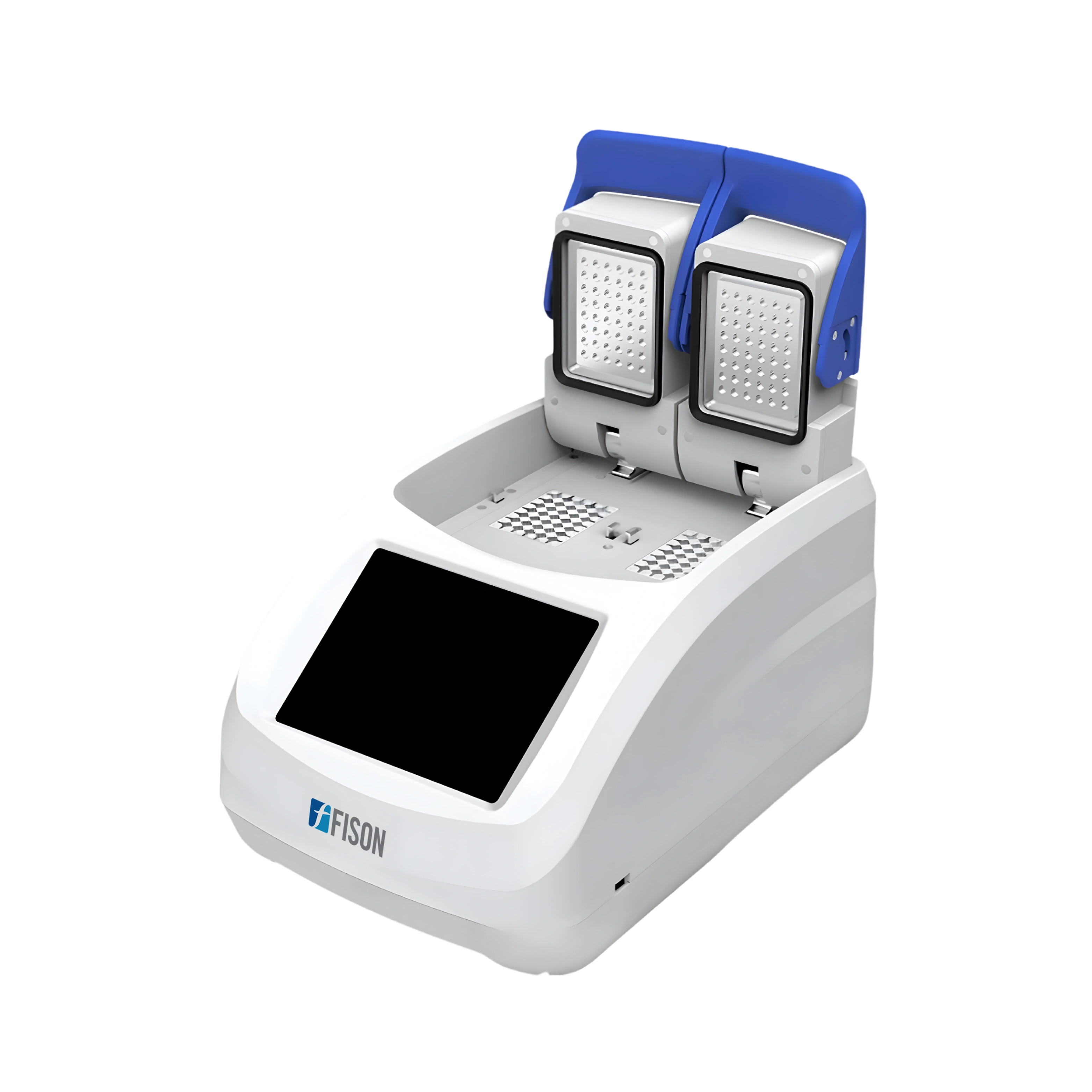

- Two independent controlled blocks
- Accurate gradient functionality
- Real-time display of cycle status
- Equipped with USB connection port
- Advanced Linux operation system
Applications
- Gradient Thermal Cycler FM-GTC-B102 is commonly used in research laboratories, clinical diagnostics, and biotechnology for PCR amplification. It applies to gene expression analysis, DNA sequencing, and pathogen detection applications.
