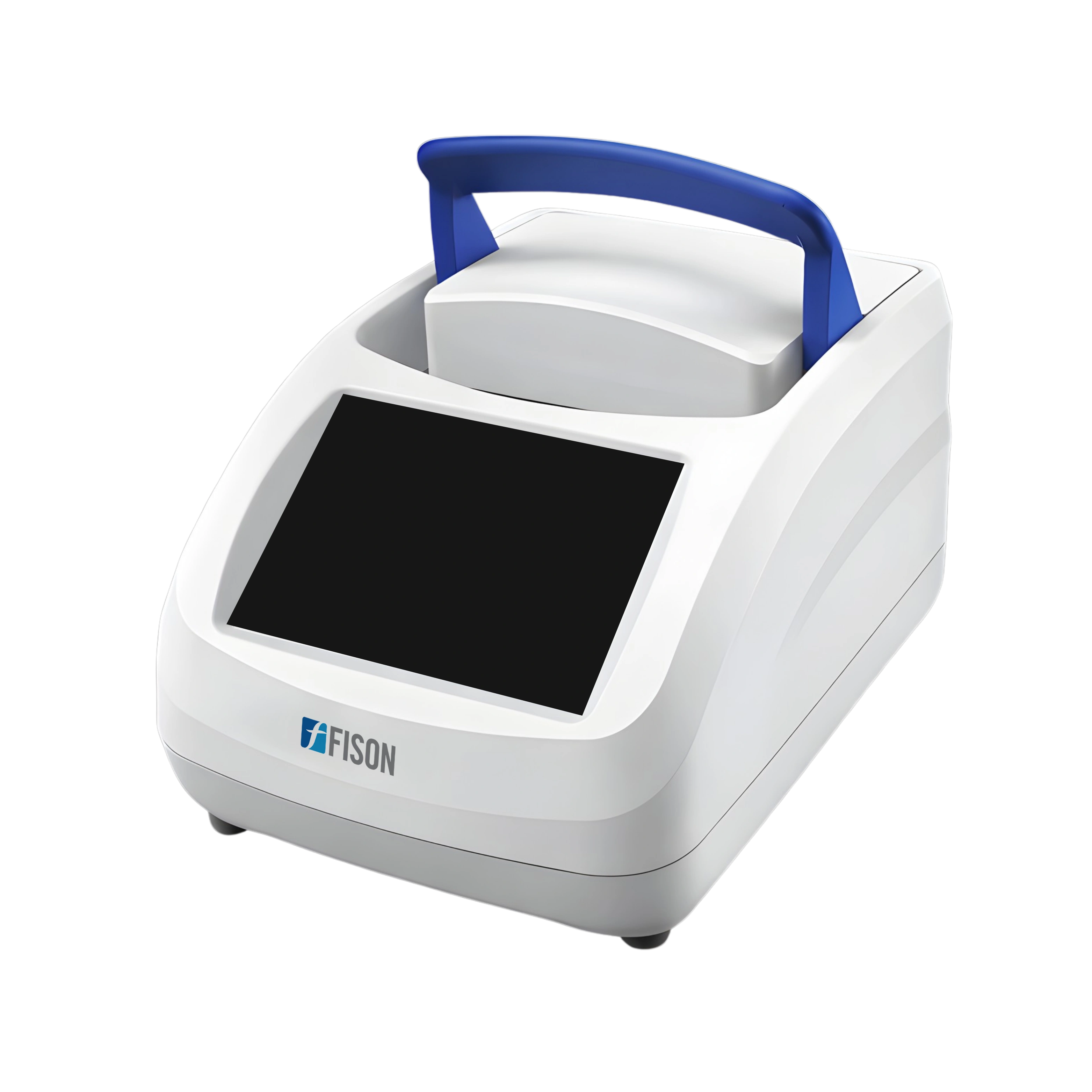

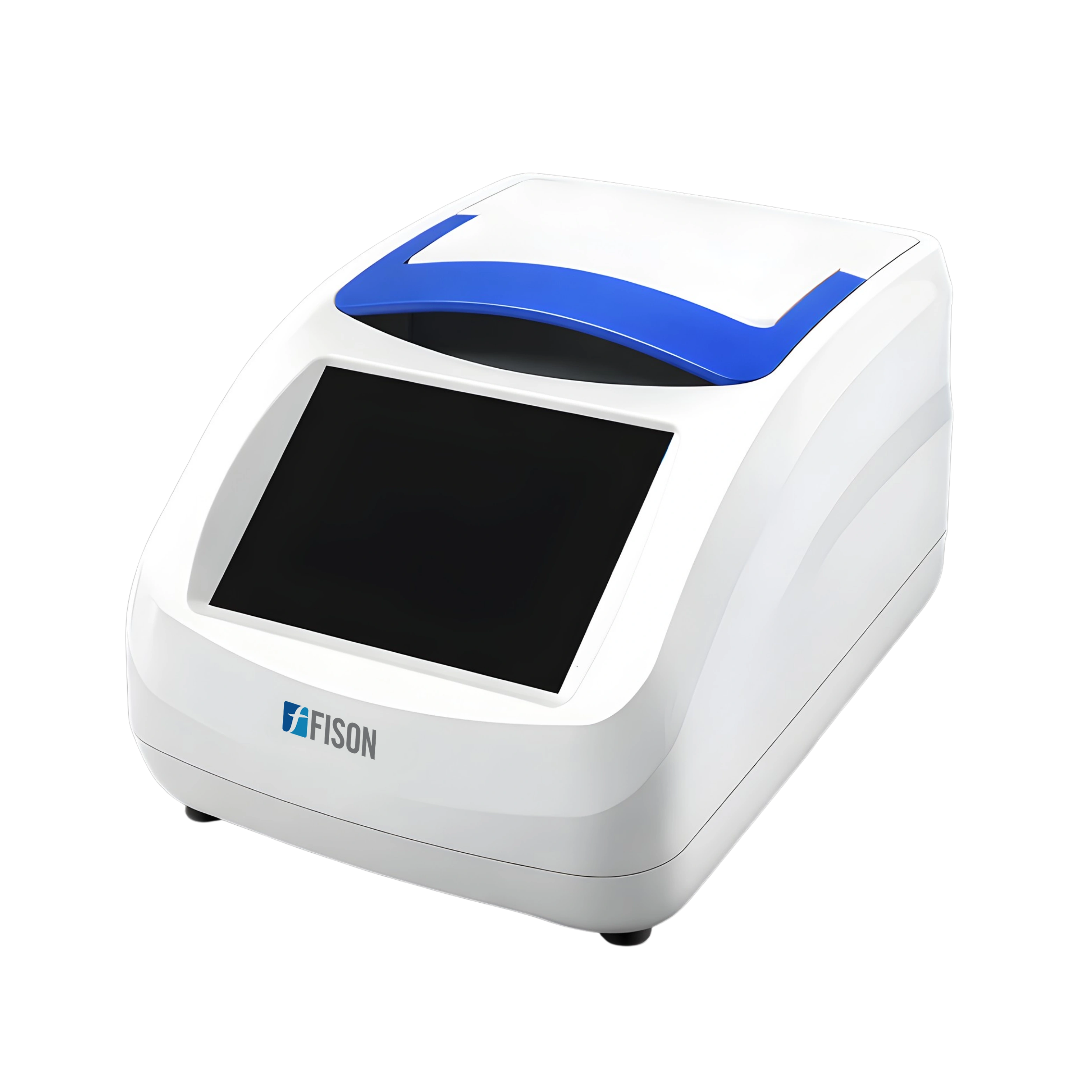

Gradient Thermal Cycler FM-GTC-B101

Gradient Thermal Cycler FM-GTC-B101

Gradient Thermal Cycler FM-GTC-B101 is a 96-well PCR machine providing precise, reliable temperature control for efficient DNA or RNA amplification. This has six precise Peltier elements for stable, uniform temperature control in amplification. It offers accurate sample tracking with real-time temperature monitoring for improved control. Our Thermal Cycler features a real-time display of cycle status for continuous monitoring and control.

Specifications

Capacity 96×0.2ml
Max. Cycles 99
Number of Gradients 12
Gradient Temperature Range 30℃ to 100℃
Gradient Temperature Accuracy ±0.3℃
Max. Steps 30
Block Temperature Range 0 to 105℃
Block Temperature Uniformity ≤ ±0.25℃
Block Temperature Accuracy ±0.2℃
Gradient Set Span (Max.) 42℃
Pause Function Yes
Power Failure Recovery Yes
Temperature Display Accuracy 0.1℃
Temperature Holding Function Infinite duration
Temperature Control Ways Block or Tube
Real-Time Operation Status Image-text displayed
Timer (Increasing/Decreasing) -599 to 599 s for Long PCR
Timer Duration 1s to 59min59sec / Infinite Duration
Temperature Increasing/Decreasing Rate -9.9 to 9.9℃ for Touchdown PCR
Heating Lid Temperature Range 30℃ to 110℃
Display LCD Touch Screen Display
Programs Stored 1000+
Heating Rate (average) 6℃ /s
Cooling Down Rate (Max.) 5℃ /s
Adjustable Range of Heating Up/Cooling Down 0.1 to 6℃/s
Tubes Applied 0.2ml microtubes, 8×0.2ml tubes strips
Power 700W
Power Supply 110V to 220V, 50 to 60Hz
Dimension (W×D×H) 400×260×228 mm
Weight 8.5 kg

Features

  • Automatic power failure recovery
  • Advanced error handling system
  • Enhanced heating lid with adjustable pressure
  • Noiseless operation during cycling
  • Efficient heat dissipation system

Applications

  • Gradient Thermal Cycler FM-GTC-B101 is used in molecular biology laboratories for PCR amplification, gene analysis, and diagnostics. It is ideal for research, clinical testing, and genomics applications.

Alternative Models Of Gradient Thermal Cycler

Gradient Thermal Cycler FM-GTC-A100

  • Sample Capacity: 96 × 0.2ml
  • Temperature Range: 4 to 105℃
  • Temperature Resolution: 0.1℃
Catalog

Gradient Thermal Cycler FM-GTC-B100

  • Capacity: 96×0.2ml, 12×8×0.2ml strips, 8×12×0.2ml strips, 0.2ml tubes (height 20 to 23mm)
  • Max. Cycles: 99
  • Gradient Temperature Range: 30℃ to 100℃
Catalog

Gradient Thermal Cycler FM-GTC-B102

  • Capacity: Double 48×0.2ml
  • Max. Cycles: 99
  • Number of Gradients: 12
Catalog

Mini Thermal Cycler

Fison Mini Thermal Cycler accommodates various tube formats, including microtubes and tube strips, making it highly versatile for PCR applications. Their efficient cooling through a high-performance axial flow fan provides reliable operation with minimal noise. They provide advanced software that supports real-time monitoring, for precise control and analysis. The gradient temperature range accommodates diverse protocols with precise temperature control. Our Thermal Cycler allows the programming of multiple cycles, providing flexibility.

Mini Thermal Cycler FM-MTC-A100

  • Capacity : 32×0.2ml (microtubes), 4×8×0.2ml (tube strips)
  • Cooling Down Rate (Max.) : 4℃ /S
  • Max. Cycles : 99
Catalog
