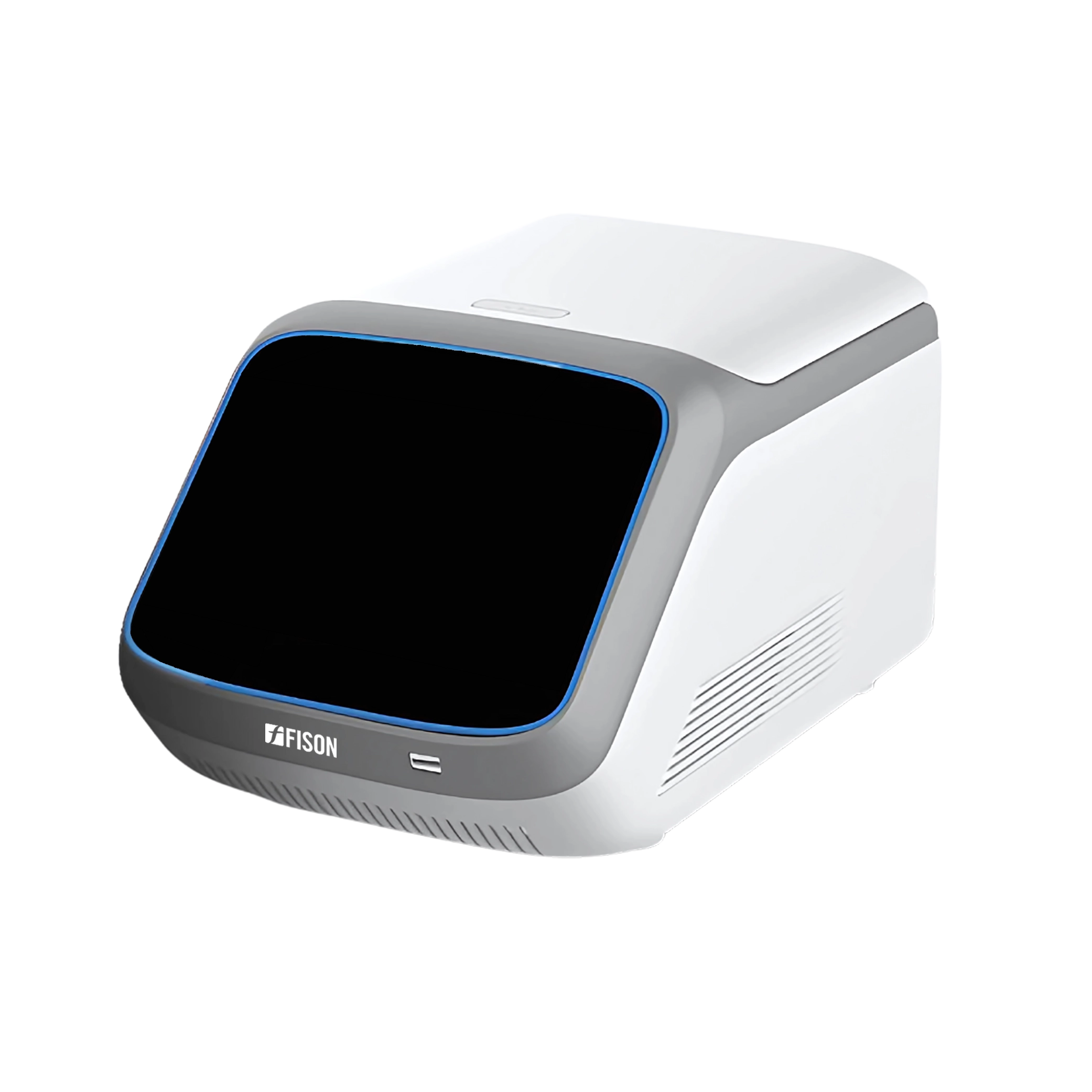

Gradient Thermal Cycler FM-GTC-A100
Gradient Thermal Cycler FM-GTC-A100 can accommodate up to 96 PCR tubes with a volume of 0.2ml each for high throughput. It offers a temperature range of 4°C to 105°C with an accuracy of ≤ 0.2℃ for precise results. Utilizes advanced technology to achieve rapid temperature changes, improving experimental efficiency. Our cycler features an 8-inch full-color touchscreen with a completely redesigned user interface (UI) for intuitive operation.
Specifications
| Sample Capacity | 96 × 0.2ml |
| Temperature Range | 4 to 105℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ≤ ± 0.3℃ |
| Temperature Accuracy | ≤ 0.2℃ |
| Average Cooling Rate | 2.5℃/sec |
| Average Heating Rate | 3.5℃/sec |
| Hot-lid Temperature Range | 30℃ to 110 |
| Gradient Temperature Difference Range | 1 to 30℃ |
| Display | LCD |
| Memory | ≥ 2000 programs on board Unlimited with USB flash drive expansion |
| Network Connections | USB / LAN / WIFI |
| Hot-lid Mode | One-time locking with handle |
| Mobile App Compatibility | iOS / Android |
| Power Consumption | 600W |
| Dimensions (L×W×H) | 420 × 269 × 254 mm |
| Weight | 13 kg |
Features
- Provides faster heating & cooling rate
- Improved structural durability
- Remote operational interface
- Innovative mobile app and Wi-Fi capability
- Custom block and Peltier ensure accuracy
Applications
- Gradient thermal cycler is used in molecular biology for PCR optimization, gene analysis, and disease detection, enabling diverse applications in research, diagnostics, and environmental studies.
