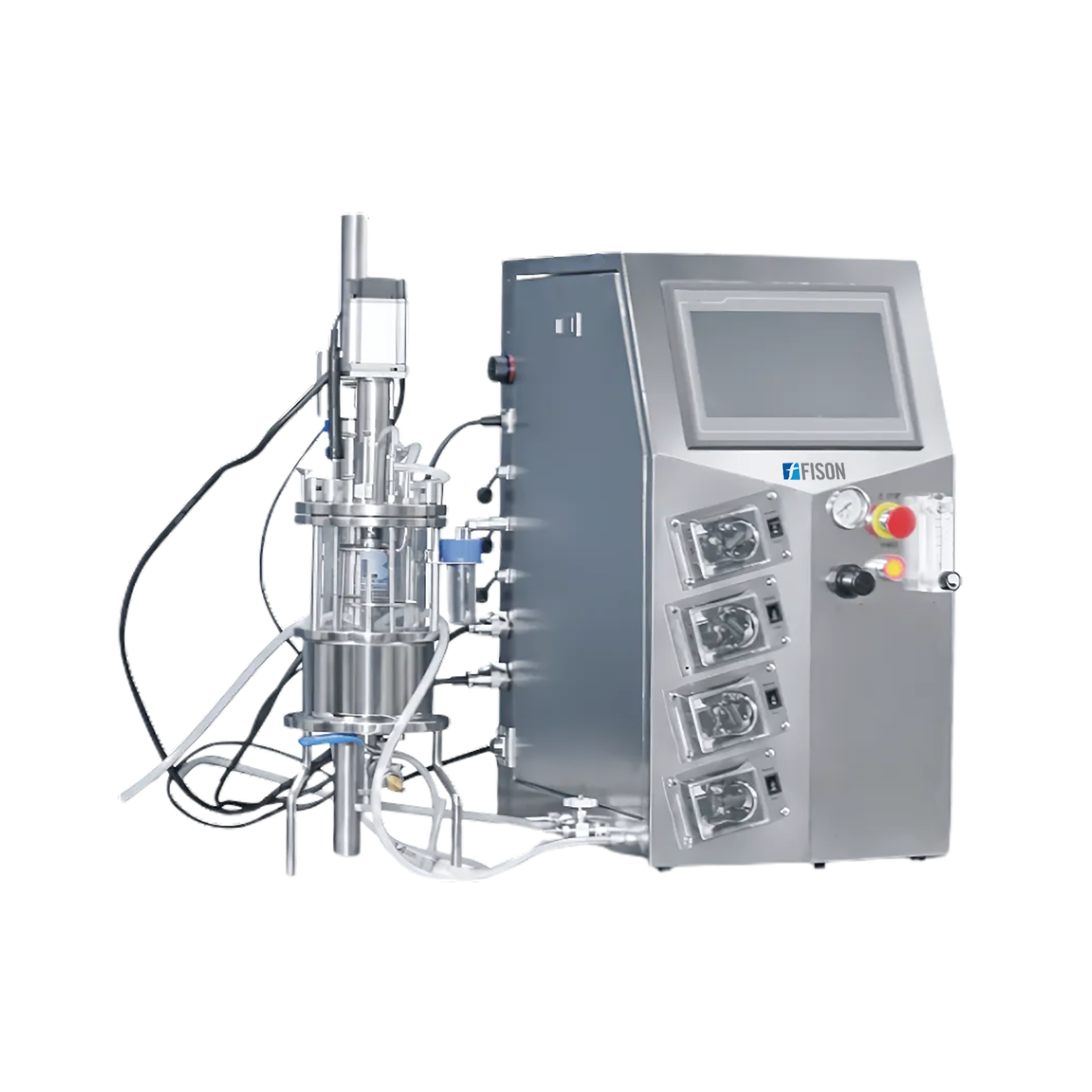

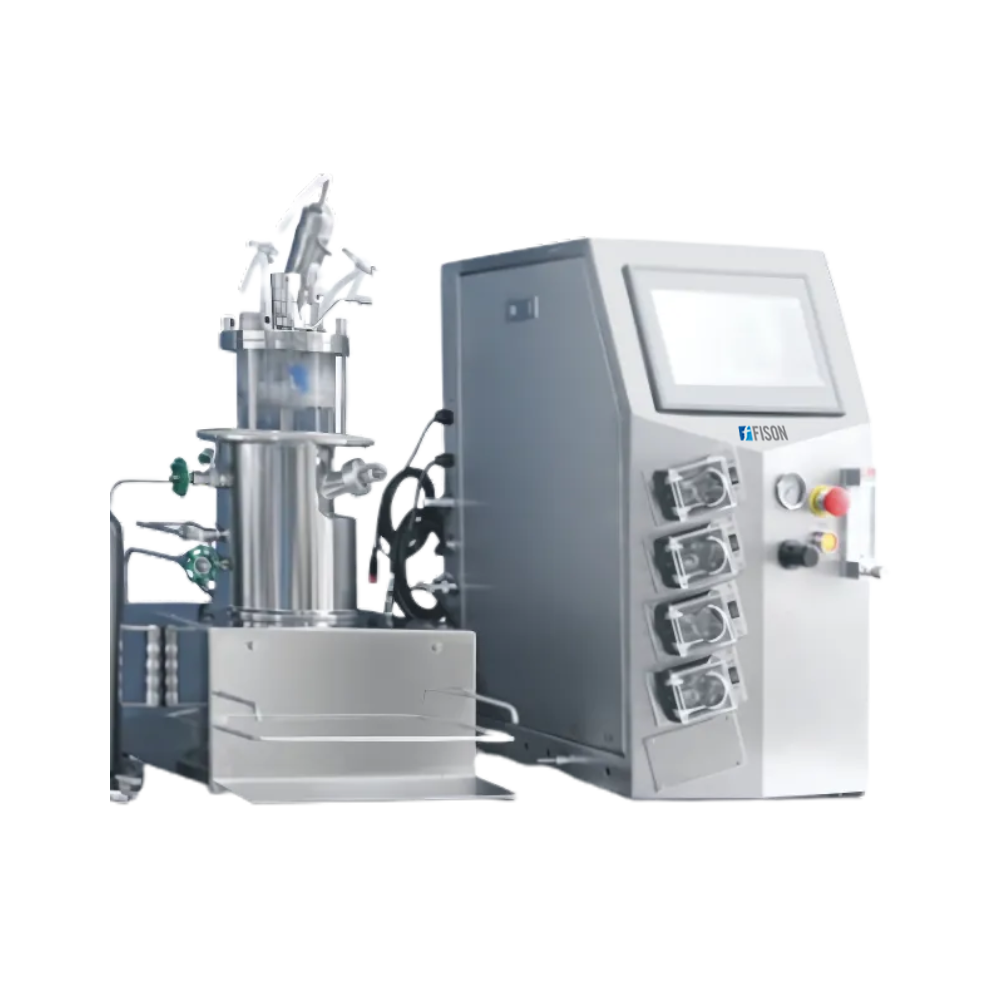

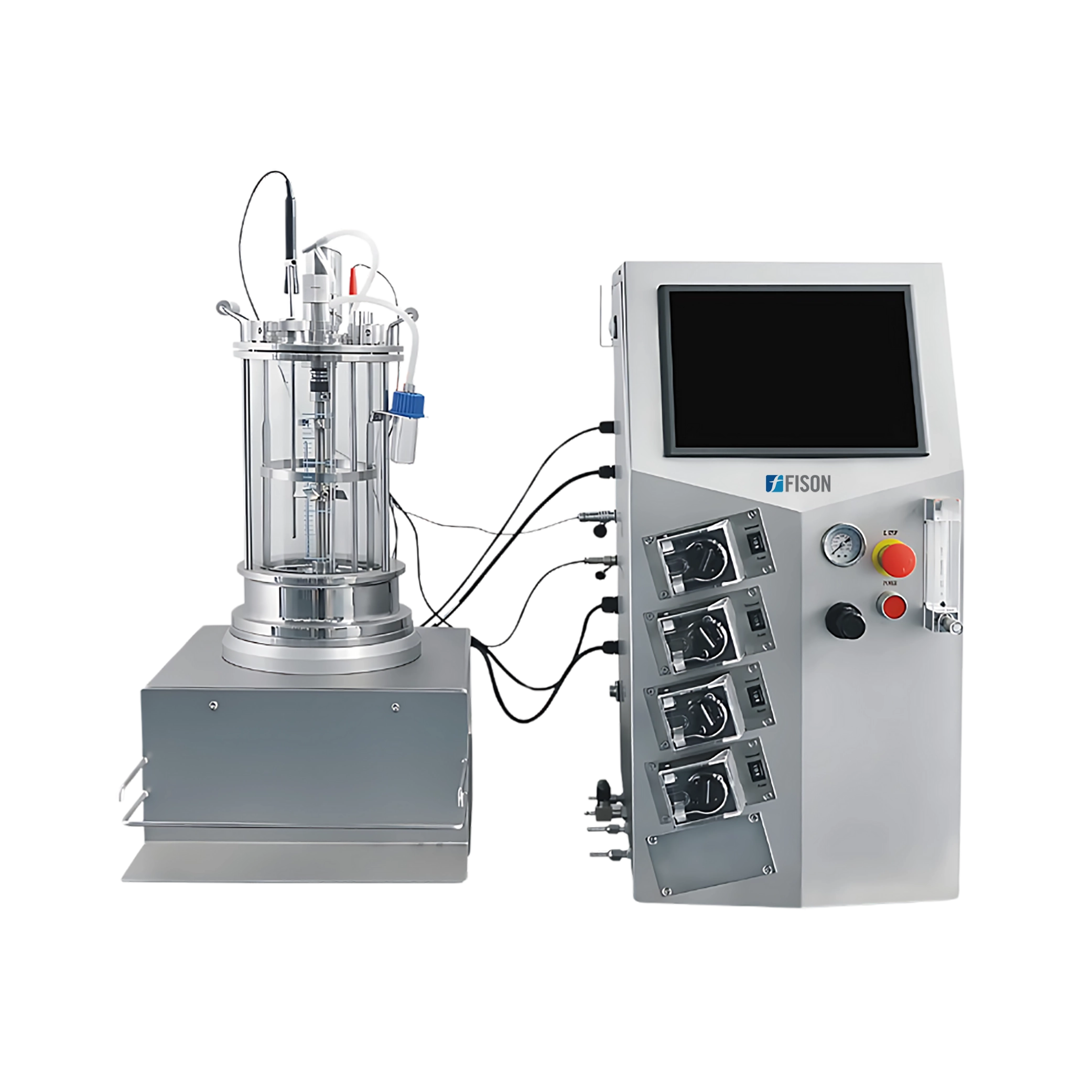

    Glass Fermenter FM-GF-A100

    Glass Fermenter FM-GF-A100

    Glass Fermenter FM-GF-A100 is designed for high-performance bioprocessing applications. With a 5L total volume and a working volume of 2.5 to 3.5 L, this fermenter offers precise control. The system features robust construction with a glass vessel and a stainless steel 316L bottom, ensuring durability and ease of sterilization. It’s ideal for microbial fermentation, cell culture, enzyme production, and biofuel research.

    Catalog Buy Now
    • ✔  Efficient Agitation with a height-adjustable six-blade stirrer
    • ✔  High-end aeration system
    • ✔  Removes excess heat with a reflux cooler
    • ✔  Prevents backflow and evenly distributes air through the ring sparger
    • ✔  Temperature Probe, pH-Gel-Electrode, pO2-Probe, Antifoam-Probe
    • ✔  Provides an LCD interface for monitoring and control
    • ✔  Danfoss Speed Regulator controls stirrer speed for precise agitation
    • ✔  Solenoid Valve Regulates fluid flow accurately
    • ✔  Peristaltic Pump ensures precise fluid transfer

    Capacity 5L
    Working Volume 2.5 to 3.5L
    Material Borosilicate glass with stainless steel 316L bottom
    pH control range 0.00 to 14.00 ± 0.01
    Auto control pH range 2.00 to 12.00 ± 0.05
    Dissolved oxygen control range 0 to 150 ± 3%
    Dissolved oxygen control precision 0.001
    Temperature of cooling water 5°C to 80 °C ± 0.2 °C
    Temperature Control Jacket at bottom
    Motor DC, 90 W
    Stirring speed 50 to 1000 rpm ± 5%
    Agitator Height-adjustable six-blade stirrer
    Air Pressure 1.5 bar
    Components of aeration system Auto cleavable sterile filter, check valve, ring sparger
    Air flow 1 vvm
    Aeration filter 0.2 µm
    Reflux Cooler Yes
    Temperature Range 4 to 60°C
    Heating/Cooling Heating finger and cooling water valve
    Temperature Probe Autoclavable
    Feeding system PID
    PLC Siemens S7-1200 series
    Display 10-inch LCD touch screen
    Modes Manual and automatic control
    Packing dimensions 1000 × 900 × 1100 mm
    Net weight 110 Kg
    Gross weight 130 Kg

    Glass fermenters are widely used across biotechnology, pharmaceuticals, food and beverage, biofuel, chemicals, environmental biotechnology, agriculture, academic and research institutions.
