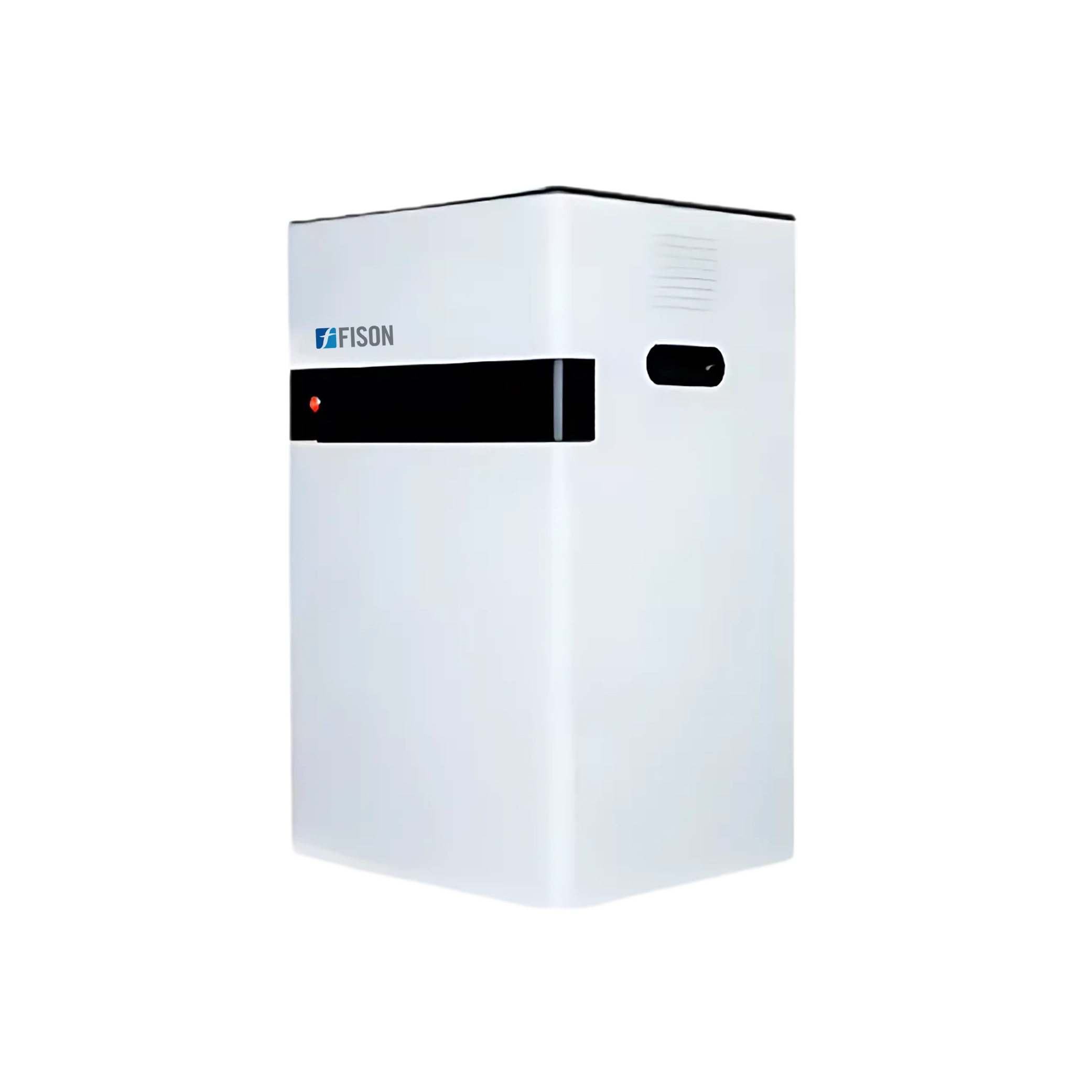

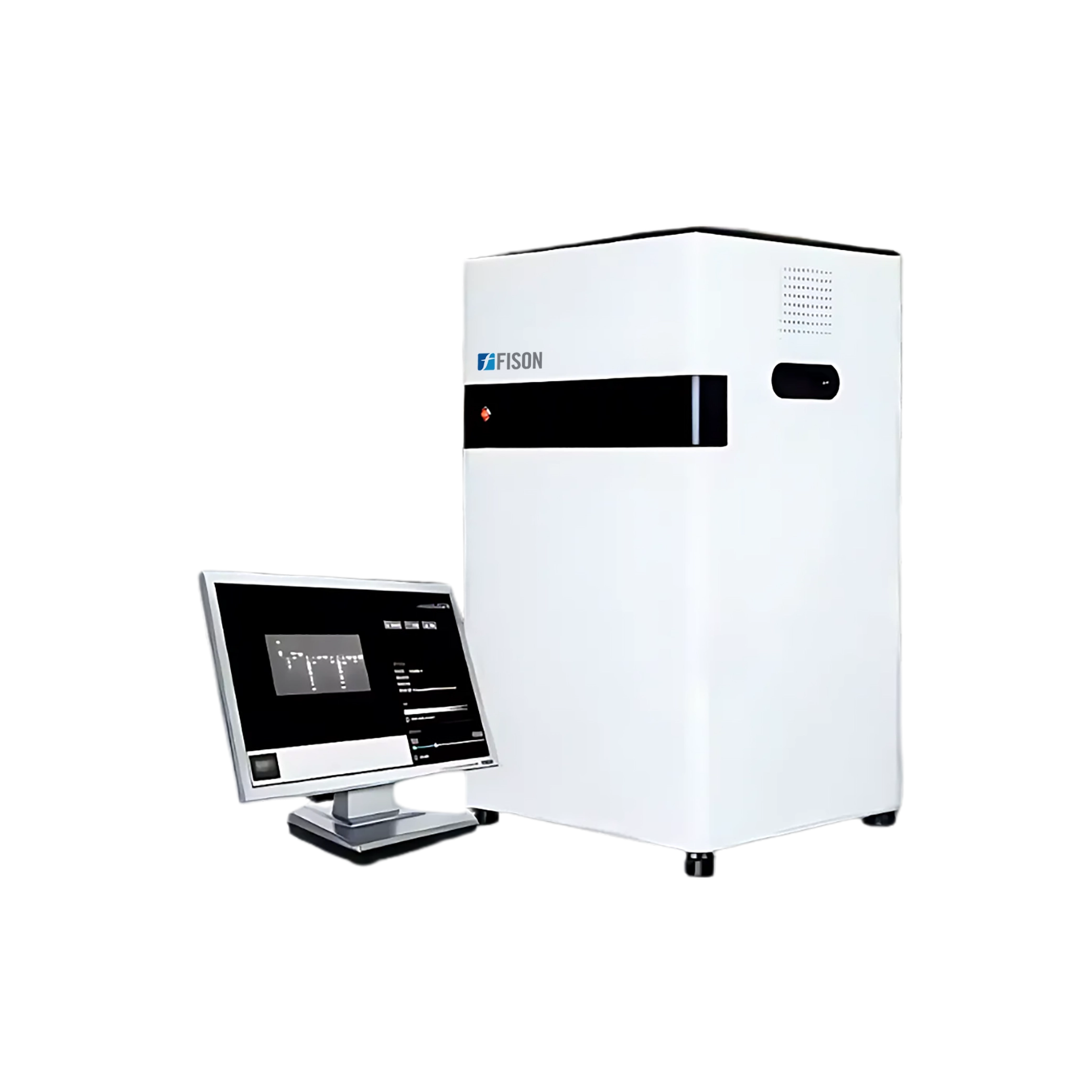

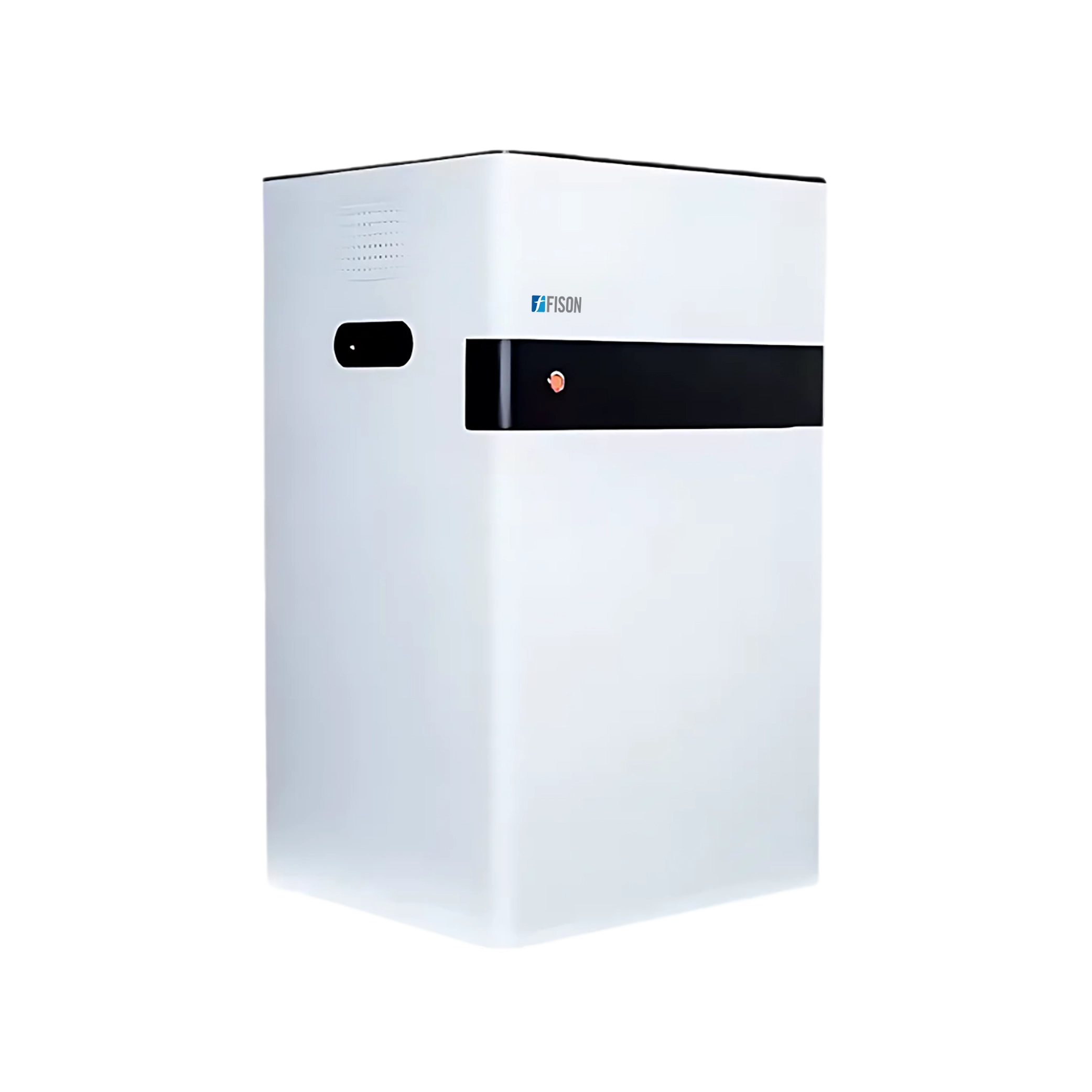

Gel Doc Imaging System FM-GIS-A100 offers a high-resolution 5-megapixel camera, for high pixel clarity for precise gel documentation and imaging. This features advanced capture and analysis software for efficient gel imaging. It is equipped with a sensitive digital camera that captures high-resolution images with clarity for accurate imaging. Our imager comes with a standard filter tailored for gel documentation applications, ensuring high image quality.
| Resolution | 5 Megapixels (2592×1944) |
| Quantum Efficiency | 0.77 |
| Linear Range | 4.8 OD |
| Pixel Density | 16-bit (65,536 Grey scales) |
| Lens | F1.2 Motorized Lens |
| Lens resolution | 20 Megapixels |
| Control | Numeric Focus controlled via Software |
| Protein Gel Illumination | Sample tray: 19×26cm White LED Transmission |
| DNA/RNA Detection | Sample tray: 21×26cm UV Transmission |
| Dimensions(L×W×H) | 500 × 550 × 880 mm |
| Weight | 26kg |
Gel Doc Imaging System FM-GIS-A100 is used for high-resolution imaging and analysis of gels commonly applied in molecular biology, biochemistry, and genetics laboratories. It is ideal for documenting DNA, RNA, and protein gels, providing clear and accurate results.
Blue LED transmission
Fison UV Trans illuminators comes with 04 light filters which ensures uniform light distribution during operations. They have an observation board and an adjustable UV blocking shield that aids in safe and user-friendly observation. The UV intensity is 20µW/cm2 when the sample is 20cm away, and they support real-time observation. These also come with a fixed camera port rack that makes it easier to take images of the gel. Our UV trans illuminators are more intuitive and safer for UV light examination across research institutes, molecular biology, medicine and tissue culture laboratories.
Fison Chemiluminescence Imager is a specialized device used to detect and visualize chemiluminescent signals in various scientific applications. Their high-resolution imaging allows the imager to capture clear, detailed images with precise accuracy. They offer high sensitivity for low-light detection, enabling the capture of precise signals. The automated workflow ensures efficient, consistent results with minimal manual effort. Our imager is equipped with software for precise analysis and quantification of results.
Fison Multispectral Imager offers precise spectral calibration, ensuring accurate measurements across multiple wavelengths for reliable data analysis. Their customizable spectral range feature tailors the device to specific applications and captures a wide variety of wavelengths. They support real-time image processing, delivering immediate data analysis. The electronic lens of the imager provides precise, automated focus adjustments. Our imager supports unlimited software users, allowing efficient data access across multiple workstations.
Fison Blue Light Transilluminator uses high-intensity blue LED light, ensuring clear and sharp imaging while protecting samples from UV damage. Their large, anti-scratch viewing surface provides a broad work area, accommodating various gel sizes with ease. They are energy-efficient with minimal heat output, cost-effective, and environmentally friendly. The adjustable brightness settings, allow users to control light intensity for an optimal image. Our Transilluminator features a corrosion-resistant hardware design, ensuring durability and reliability even in high-humidity laboratory environments.
