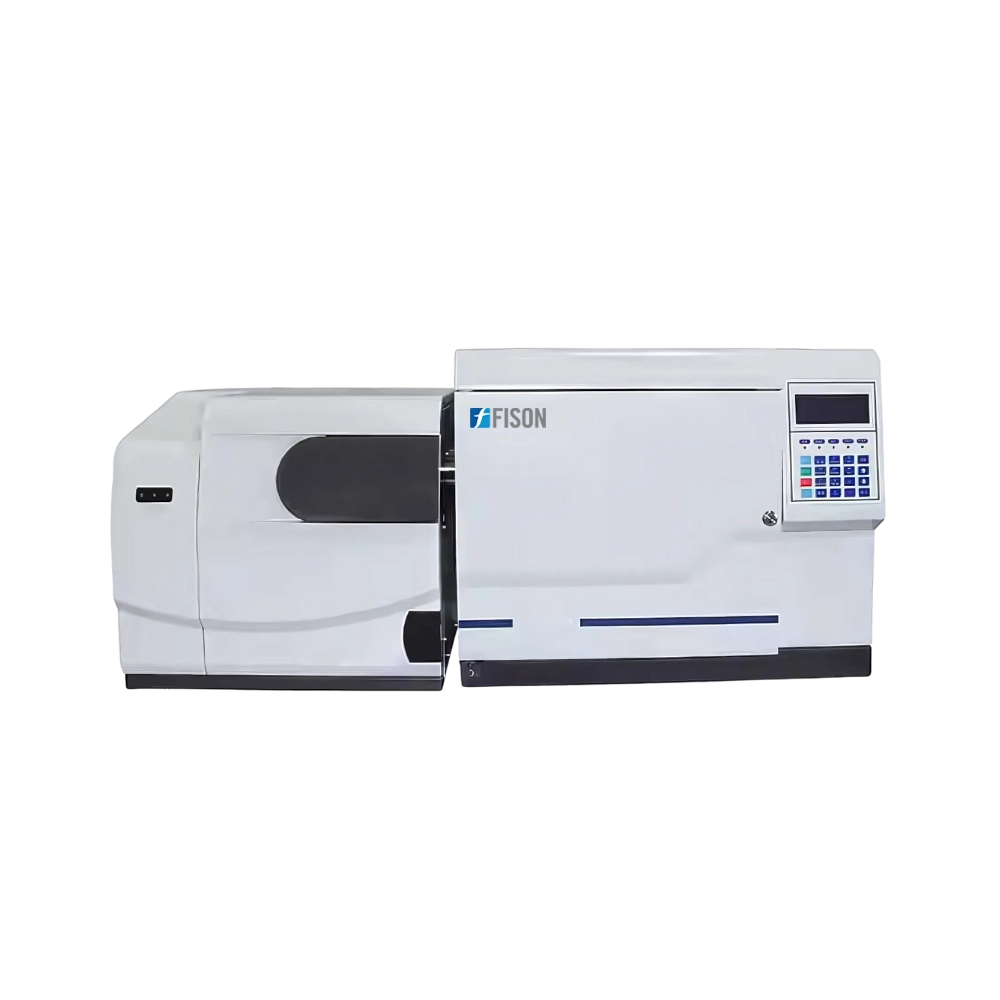

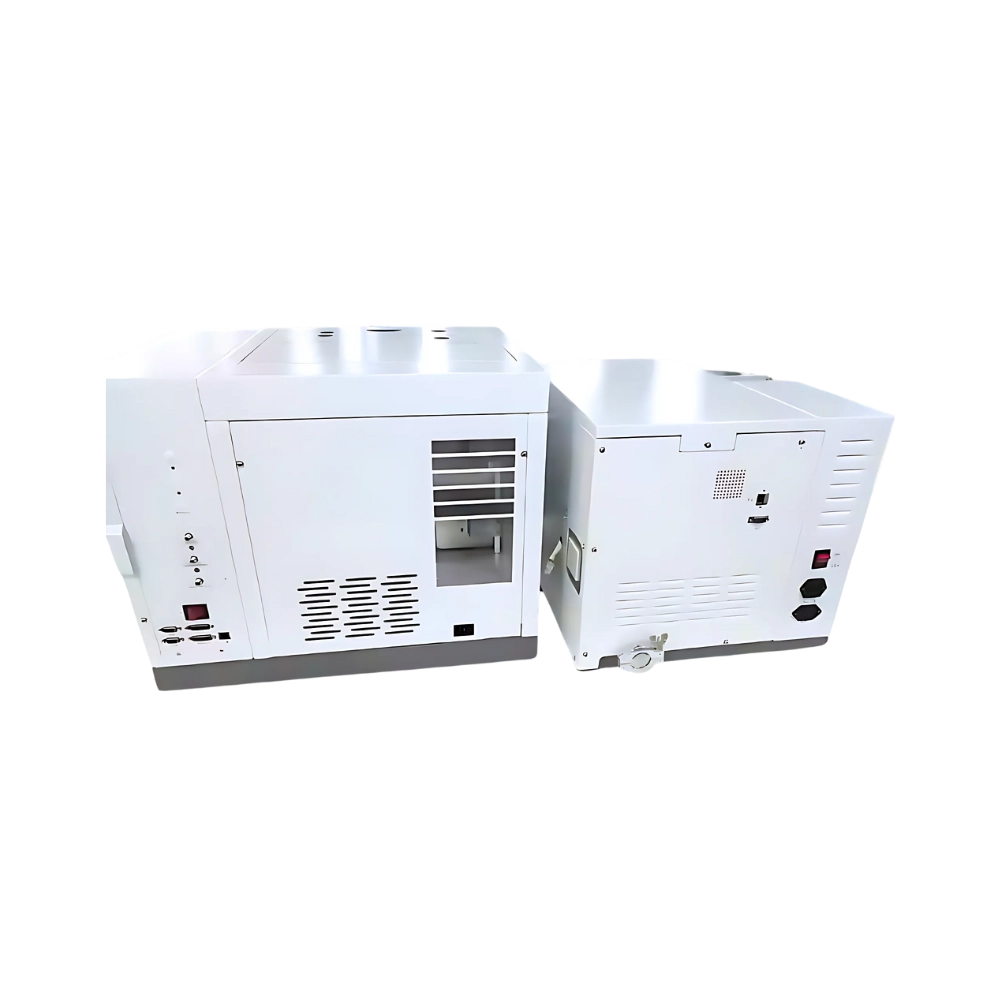

Gas Chromatography-Mass Spectrometry FM-GCMS-A100
Gas Chromatography-Mass Spectrometry FM-GCMS-A100 supports an inlet temperature of up to 450°C, enabling a wide range of compound analysis. This is equipped with a turbo molecular pump, which maintains a stable vacuum environment essential for accurate analysis. Its column oven can achieve heating rates up to 120°C/min, facilitating faster analyses. Our GC-MS includes a dynode electron multiplier for superior sensitivity and detection of analytes.
Specifications
| Inlet Temperature | Max. 450°C |
| Pressure Range | 0 to 100 psi (±0.002 psi) |
| Pressure Control Mode | Electronic Pressure Control (EPC), supports Constant Volume (CV) and Constant Current (CC) |
| Split Mode | Split/Splitless, max. split ratio: 1000:1 |
| Column Oven Temperature | Room temperature + 4°C to 450°C |
| Heating Rate | Up to 120°C/min |
| Temperature Programming | 7 stages / 8 platforms |
| Auto Sampler | Optional |
| EI Source Ionization Energy | Adjustable from 5 eV to 250 eV |
| Mass Range | 1.5 to 1000 amu |
| Resolution | Unit resolution (full width at half maximum) |
| Ion Source Temperature | 100 to 350°C |
| Filament Emission Current | 0 to 350 μA |
| GC-MS Temperature Interface | Max. 450°C |
| Stability | ±0.10 amu over 48 hours |
| Sensitivity | Full scan, 1 pg OFN at m/z 272 with S/N ≥ 30:1 (RMS) |
| Scan Rate | Up to 10,000 amu/s |
| Vacuum | Turbo molecular pump (67 L/s) |
| Detector | High-energy dynode electron multiplier |
| Power Consumption | 3000W |
| Dimensions (L×H×W) | 500 ×480 ×1200 mm |
| Weight | 200kg |
Features
- Versatile split injection modes
- Integrated data processing system
- Automated compound identification
- High-speed scanning capability
- Enhanced ion source efficiency
Applications
- Gas Chromatography-Mass Spectrometry FM-GCMS-A100 is widely used in environmental monitoring, food safety, petrochemical analysis, and pharmaceutical research. It is essential for detecting pollutants, analyzing additives, and identifying trace compounds in various industries.
Accessories
Name Quantity Mechanical Pump 1 Pc GC-MS Column 1 Pc Network Cable 1 Pc Series Port Cable 1 Pc Power cable 5 Pcs Corrugated pipe 1 Meter Clamp hoop 2 Pcs Seal ring 2 Pcs Wrench - 5.5mm, 7mm 1 Pc Wrench-10mm, 12mm 1 Pc Wrench -8mm, 10mm 1 Pc Tweezers 1 Pc Cross Screwdriver - Ф6×120，ph2 1 Pc Cross Screwdriver- Ф2×50，ph1 1 Pc Straight Screwdriver 1 Pc Monkey Wrench 1 Pc Allen Wrench 1 Pc Sleeve 1 Pc 15% Graphite /85% Vespel Ferrule 10 Pcs Syringe 1 Pc Column Cutter 1 Pc Liner 1 Pc Fuse 2 Pcs Plastic Corrugated pipe 1.5 Meter Sylphon Bellows Connector 1 Pc Hose clamp 1 Pc Ion Source Holder 1 Pc Column measuring tool 1 Pc Stainless Steel Tube 7 Meter 1/8"Ferrule 1 Pc Valve Connector 2 Pcs O-ring - 2.5×1.8 5 Pcs O-ring - 1.8×1.8 1 Pc O-ring 5 Pcs Glass Wool 1 Pc Front Ferrule 3 Pcs Back Ferrule 3 Pcs Injection port Wrench 1 Pc Glass Liner 1 Pc Moisture Trap 1 Pc Oxygen Trap 1 Pc Trap Bracket 1 Pc Ribbon 8 Pcs Injection Septum 1 Pc Ethernet switch 1 Pc
Accessories Optional
- Auto Sampler
