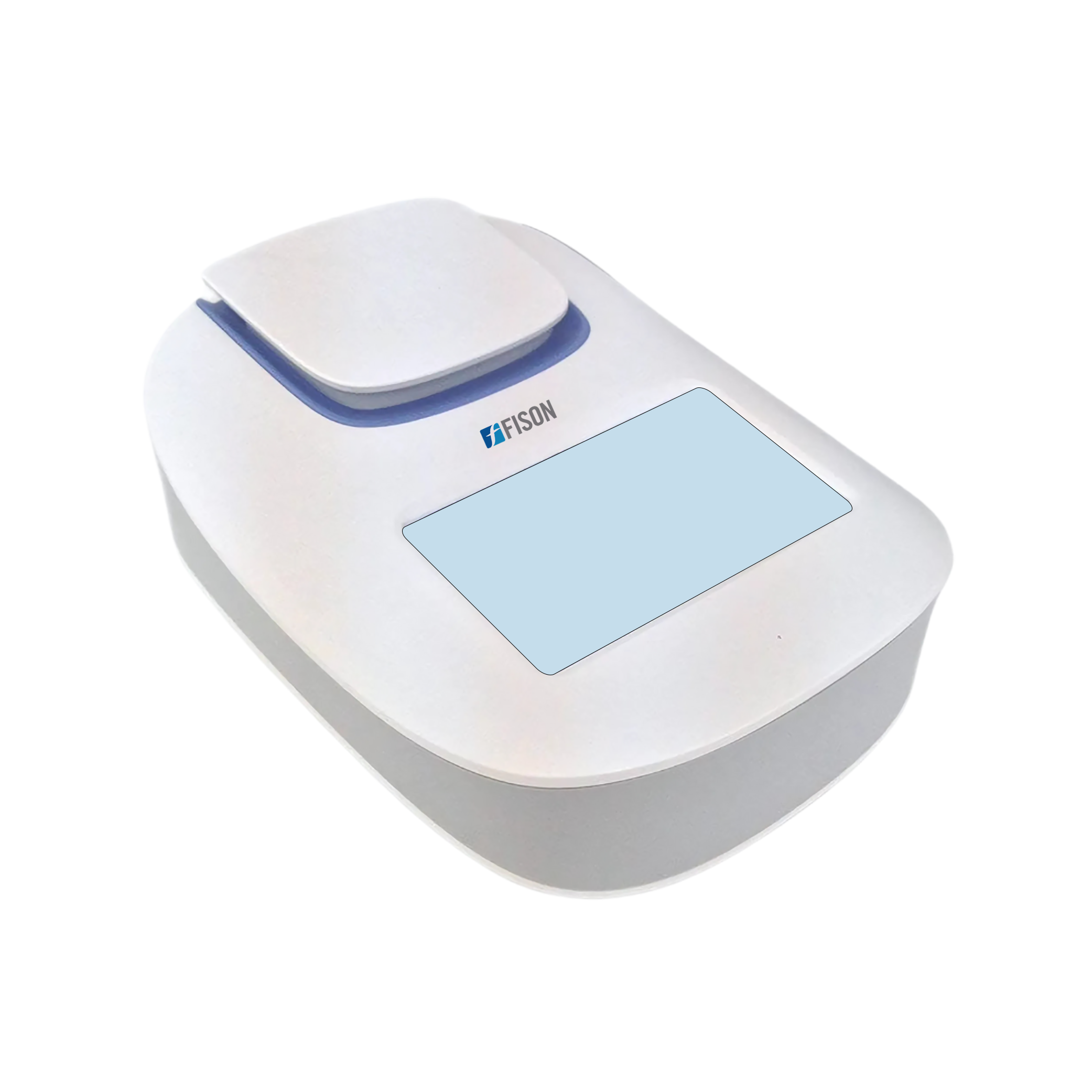

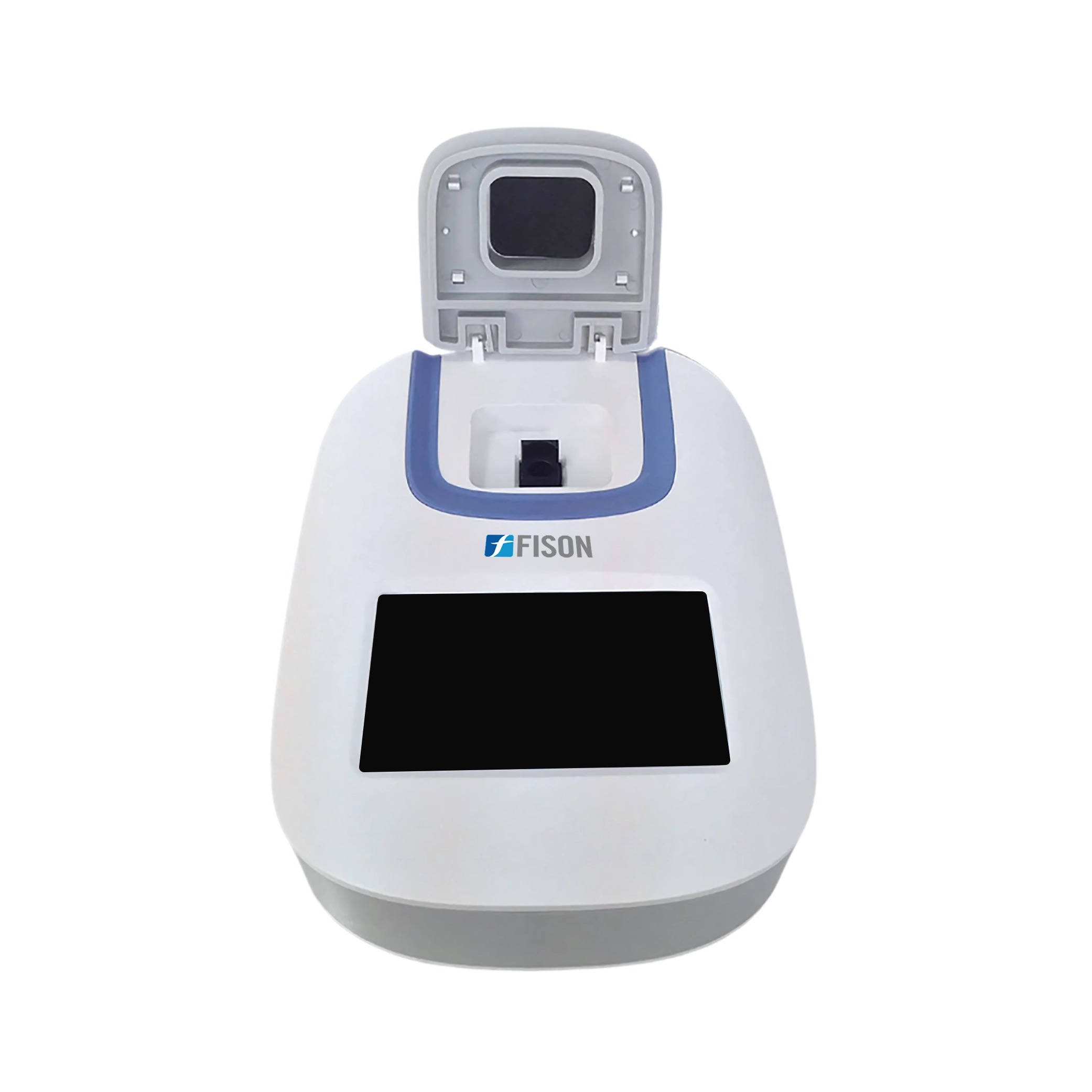

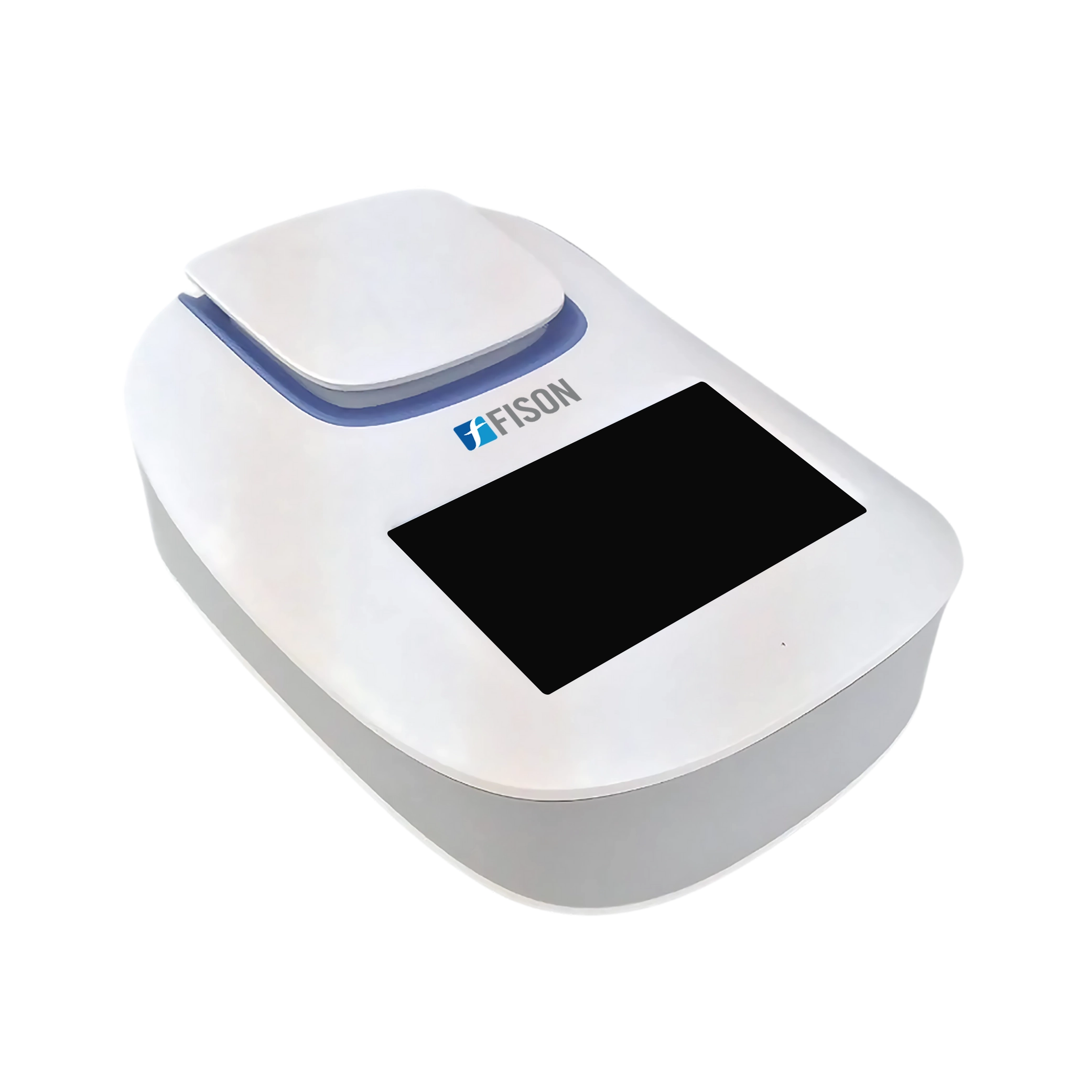

Fluorometer FM-FLM-A100

Fluorometer FM-FLM-A100

Fluorometer FM-FLM-A100 is the next generation of benchtop dual-channel Fluorometer, features 365 ± 20 nm and 460 ± 20 nm excitation filter and measures dsDNA concentration with sensitivity of 5 ng/ul. It uses UV and blue channel fluorescence to measure fluorescence intensity of fluorescent reagent that combines with target molecule to read concentration of sample. Designed to accurately detect high-sensitive fluorescence while quantifying DNA, RNA, and protein.

Specifications

Dynamic range Five orders of magnitude
Linear dynamic range R > 0.995
Processing time ≤3 seconds/sample
Light sources UV LED
Blue LED
Excitation filters UV 365 ± 20 nm
Blue 460 ± 20 nm
Emission filters UV 420 to 480 nm
Blue 525 to 570 nm
Detector Photodiode: measurement capability from 300 to 1000 nm
Repeatability <1.5%
Stability <1.5%
Sensitivity dsDNA: 0.5 ng/ml
Dimension (W×D×H) 194 × 155 × 72.5 mm
weight 0.4 kg

Features

  • Simple operation with 4.3-inch touch screen, small and easy to use
  • Accurately quantifies DNA, RNA, and protein in <3 seconds per sample
  • High sensitivity with lowest DNA detection limit of 0.5 ng/ul
  • Two optical channels equipped with two fluorescence channels for macromolecule quantitation in one detection
  • UV and blue dual fluorescence channels
  • Linear dynamic range with five orders of magnitude
  • It can save at most 1,000 data and output data by USB port

Applications

  • Ideal for processing scarce and difficult samples, for low quantity of DNA, RNA, or protein after extraction, also, in expensive experiments: qPCR, PCR cloning, transfection, the next generation sequencing and etc. Applied for Nucleic acid quantification, Plant GUS reporter gene detection, Apoptosis detection.

Accessories

  • Accessories no Accessories name
    1.        Adapter for 0.5ml qPCR tube

Accessories Optional

  • Accessories no Accessories name
    1.        Adapter for 0.2ml qPCR tube
    2.        Printer

Fluoroscence Channel

  • UV and blue channels
    For UV fluorescence channel:
    Light Source: UV LED
    Excitation Wavelength: 365 ± 20 nm
    Emission wavelength: 420 to 480 nm (60nm)
    For blue fluorescence channel:
    Light source: Blue LED
    Excitation wavelength: 460 ± 20 nm
    Emission wavelength: 525 to 570 nm (45nm)

Alternative Models Of Fluorometer

Fison Fluorometers are designed to measure fluorescence in various samples, ensuring accurate and efficient analysis. They offer high sensitivity, detecting even low concentrations of fluorescent compounds. These units feature a wide wavelength range, allowing excitation and emission measurements across multiple spectrums. They are equipped with adjustable parameters for excitation, detection, and filters for precise customization. Our fluorometers include compact and portable designs, making them suitable for both laboratory and field applications.

Fluorometer FM-FLM-A101

  • Dynamic range: Five orders of magnitude
  • Linear dynamic range: R > 0.995
  • Processing time: ≤3 seconds/sample
Catalog

Fluorometer FM-FLM-A102

  • Dynamic range: Five orders of magnitude
  • Linear dynamic range: R > 0.995
  • Processing time: ≤3 seconds/sample
Catalog
