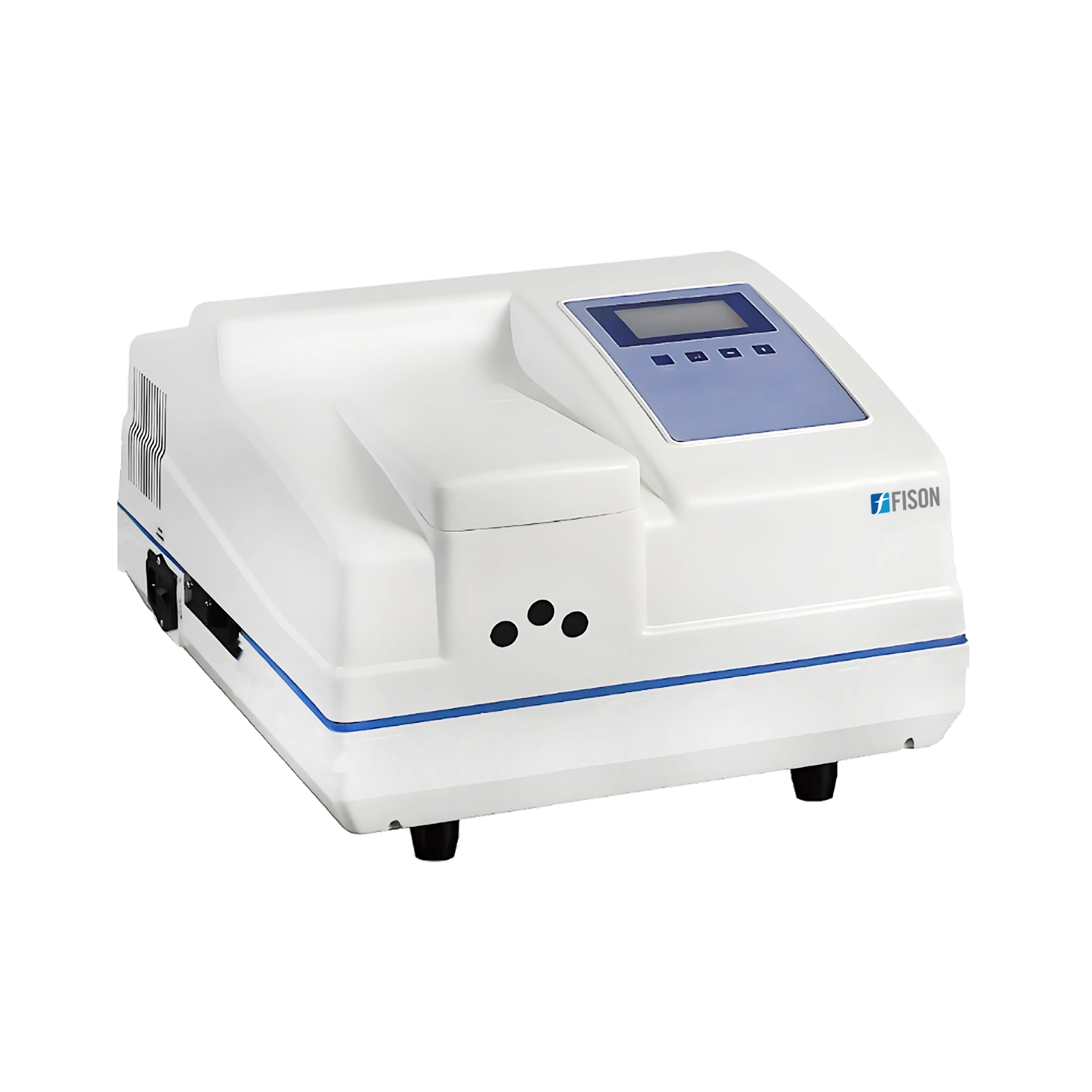

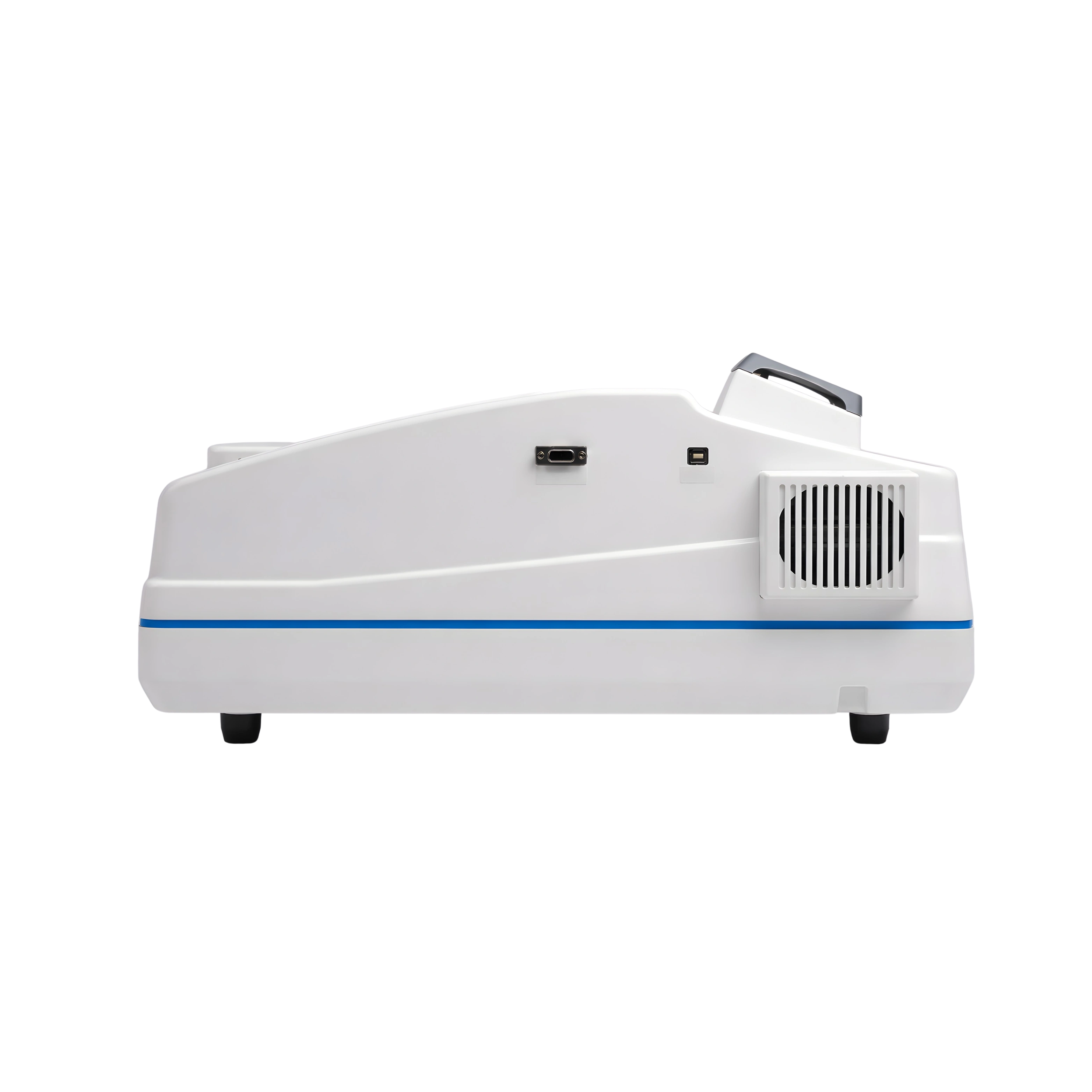

Fluorescence Spectrophotometer FM-FS-A202

Fluorescence Spectrophotometer FM-FS-A202

Fluorescence Spectrophotometer FM-FS-A202 offers a versatile wavelength range from 200 to 900 nm, enabling accurate analysis across ultraviolet, visible, and near-infrared spectra. This includes software for fluorescence analysis and data export, ensuring precise results. It features fast scanning speeds, completing full-spectrum analysis reaching up to 30,000 nm/min. Our Spectrophotometer incorporates a replaceable interference filter system for flexible excitation.

Specifications

Wavelength Range 200nm to 900nm
Detection Sensitivity S/N ≥ 150 (P-P)
Excitation Wavelength Bandwidth 10nm
Microprocessor PID 0 to 199.9
Accuracy ±1.0nm
Repeatability ≤0.5nm
Optional Range 200nm to 900nm
Emission Wavelength Range 200nm to 870nm
Wavelength Scanning Speed Fast 30000nm/min, fine scan 15nm/min
Measure Linearity Correlation coefficient ≥ 0.995
Gain Adjustment Range 1 to 17 options available
Integral Response Time 6 options: 0.1s to 4s
Resolution Ratio Bandwidth of 10nm, transmission range of 0.001μm
Time Scan Settings Can be set arbitrarily, up to 60000s high
Concentration Range 0 to 199.9%
Data Transmission Mode USB
Photometric Value Range 0.00 to 600
Unit -300 to 1999 conc
Peak Intensity Repeatability ≤1.5%
Power Consumption 200W
Power Supply 220V/50Hz, 110V/60Hz
Dimensions (W×D×H) 442 × 392 × 250 mm
Net Weight 10 kg
Gross Weight 14 kg

Features

  • High-intensity light source
  • Multi-sample compatibility
  • Integrated USB connectivity
  • Real-time data analysis
  • Advanced noise reduction

Applications

  • Fluorescence Spectrophotometer FM-FS-A202 is used for analyzing fluorescence in research, pharmaceuticals, and environmental monitoring. It applies in laboratories and industrial settings for precise sample measurement and analysis.

Accessories

  • Laser filter 365nm (1 PC)
    10mm quartz colorimetric dish (1 PC)

Accessories Optional

  • Glass Colorimetric dish,5mm
    Glass Colorimetric dish,10mm
    Glass Colorimetric dish,20mm
    Glass Colorimetric dish,30mm
    Glass Colorimetric dish,50mm
    Quartz two-way colorimetric dish,5mm
    Quartz two-way colorimetric dish,10mm
    Quartz two-way colorimetric dish,20mm
    Quartz two-way colorimetric dish,30mm
    Quartz two-way colorimetric dish,50mm
    Glass four-way colorimetric dish,10mm
    Quartz four-way colorimetric dish,10mm
    Quartz semimicro colorimetric dish,10mm
    Quartz microchromatographic dish,200ml
    Quartz microchromatographic dish,500ml
    Multi-function adapter
    Membrane sample holder
    Powder sample holder
    10mm cell holder adapter
    Double frequency filter
    Peltier temperature control holder
    Upconversion laser head holder (fiber and laser generator not included)
    Laser filters 200nm-850nm
    Laser Source 255nm
    Laser Source 265nm
    Laser Source 280nm
    Laser Source 310nm
    Laser Source 325nm
    Laser Source 335nm
    Laser Source 345nm
    Laser Source 350nm
    Laser Source 365-525nm

Alternative Models Of Fluorescence Spectrophotometer

Fison Fluorescence Spectrophotometers offer high sensitivity and selectivity, detecting low-concentration samples with superior accuracy. They are equipped with an advanced optical system, ensuring precise detection. These units provide automatic wavelength adjustment for accurate and consistent wavelength selection. They feature a user-friendly interface, offering a digital display and control system for easy operation. Our spectrophotometers come with a compact and durable construction for long-term reliability.

Fluorescence Spectrophotometer FM-FS-A100

  • Light source: LED
  • Exciting optical system: Interference optical filter
  • Optical filter bandwidth: 10nm
Catalog

Fluorescence Spectrophotometer FM-FS-A101

  • Light source: Xenon lamp 150 W
  • Exciting optical system: Interference optical filter
  • Optical filter bandwidth: 10 nm
Catalog

Fluorescence Spectrophotometer FM-FS-A200

  • Light source: 150 W xenon lamp
  • Excitation wavelength: 200 nm to 900 nm
  • Emission wavelength: 200 nm to 900 nm
Catalog
Fluorescence Spectrophotometer FM-FS-A201
  • Light source: 150 W xenon lamp
  • Excitation wavelength: 200 nm to 900 nm
  • Emission wavelength: 200 nm to 900 nm
Catalog

Visible Spectrophotometer

Fison Visible Spectrophotometer features a high-resolution LCD screen, offering clear and precise monitoring of parameters. They automatically set the wavelength, ensuring precise adjustments and simplifying the measurement process for accurate results. The large sample compartment fits cuvettes with various path lengths for efficient testing. Their data restoration after a sudden power cut ensures that important test results are not lost. Our Visible Spectrophotometer have grating optical system that ensures high spectral resolution.

Visible Spectrophotometer FM-VS-A100

  • Wavelength range : 325 nm to 1000 nm
  • Spectral bandwidth : 4 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog

Visible Spectrophotometer FM-VS-A101

  • Wavelength range : 325 nm to 1000 nm
  • Spectral bandwidth : 4 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog
Visible Spectrophotometer FM-VS-A102
  • Wavelength range : 320 nm to 1100 nm
  • Spectral bandwidth : 4 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog

Single Beam UV-Visible Spectrophotometer

Fison Single Beam UV-Visible Spectrophotometers are designed for accurate measurement of light absorbance and transmittance. They provide a wide wavelength range, covering the UV and visible spectrum for diverse applications. These units include automatic wavelength adjustment, ensuring precise and consistent wavelength selection. Our Spectrophotometers retain data after power loss, ensuring secure results. They provide USB and printer connectivity, allowing easy data transfer and efficient reporting.

Single Beam UV-Visible Spectrophotometer FM-UVS-A101
  • Wavelength range : 200 nm to 1000 nm
  • Spectral bandwidth : 4 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog

Single Beam UV-Visible Spectrophotometer FM-UVS-A102

  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 4 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog

Single Beam UV-Visible Spectrophotometer FM-UVS-A103

  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 2 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog

Double Beam UV-Visible Spectrophotometer

Fison Double Beam UV-Visible Spectrophotometers provide high-precision optical system. They provide accurate and stable measurement of absorbance and transmittance. These units feature a double beam design, simultaneously measuring the sample and reference to reduce errors and improve accuracy. They include USB and printer connectivity, enabling seamless data transfer and efficient reporting. Our spectrophotometers offer a wide wavelength range for versatile analytical applications.

Double Beam UV-Visible Spectrophotometer FM-UVS-C100
  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 1.8 nm
  • Optical system : Double beam, grating 1200 lines / mm
Catalog
Double Beam UV-Visible Spectrophotometer FM-UVS-C101
  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 1.0 nm
  • Optical system : Double beam, grating 1200 lines / mm
Catalog

Double Beam UV-Visible Spectrophotometer FM-UVS-C102

  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 0.5, 1, 2 and 4 nm
  • Optical system : Double beam, grating 1200 lines / mm
Catalog

Single Beam Scanning UV-Visible Spectrophotometer

Fison Single Beam UV-Visible Spectrophotometers are designed for accurate measurement of light absorbance and transmittance. They provide a wide wavelength range, covering the UV and visible spectrum for diverse applications. These units include automatic wavelength adjustment, ensuring precise and consistent wavelength selection. Our Spectrophotometers retain data after power loss, ensuring secure results. They provide USB and printer connectivity, allowing easy data transfer and efficient reporting.

Single Beam Scanning UV-Visible Spectrophotometer FM-UVS-B100

  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 4 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog
Single Beam Scanning UV-Visible Spectrophotometer FM-UVS-B101
  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 2 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog
Single Beam Scanning UV-Visible Spectrophotometer FM-UVS-B102
  • Wavelength range : 190 nm to 1100 nm
  • Spectral bandwidth : 1.8 nm
  • Optical system : Single beam, grating 1200 lines / mm
Catalog

Atomic Absorption Spectrophotometer

Fison Atomic Absorption Spectrophotometers offer high precision and sensitivity for detecting metal concentrations in various samples. They feature an advanced optical system with a high-resolution monochromator for enhanced spectral accuracy. These units provide automated sample handling, reducing manual intervention. They include a user-friendly interface and digital controls for easy operation. Our spectrophotometers deliver multiple calibration modes, allowing single and multi-element analysis to ensure versatility.

Atomic Absorption Spectrophotometer FM-AAS-A100

  • Wavelength range  : 190 to 900 nm
  • Wavelength accuracy : ≤ ±0.5 nm
  • Wavelength repeatability : ≤0.3 nm (single direction)
Catalog

Atomic Absorption Spectrophotometer FM-AAS-A101

  • Wavelength range  : 190 to 900 nm
  • Wavelength accuracy : ± 0.15 nm
  • Wavelength repeatability : ≤ 0.04 nm
Catalog
Atomic Absorption Spectrophotometer FM-AAS-A200
  • Wavelength Range : 190 to 900 nm
  • Wavelength Accuracy : ±0.5 nm
  • Resolution : Two spectral lines of Mn at 279.5 nm and 279.8 nm, separable with spectral bandwidth of 0.2 nm and valley-peak energy ratio < 30%
Catalog
