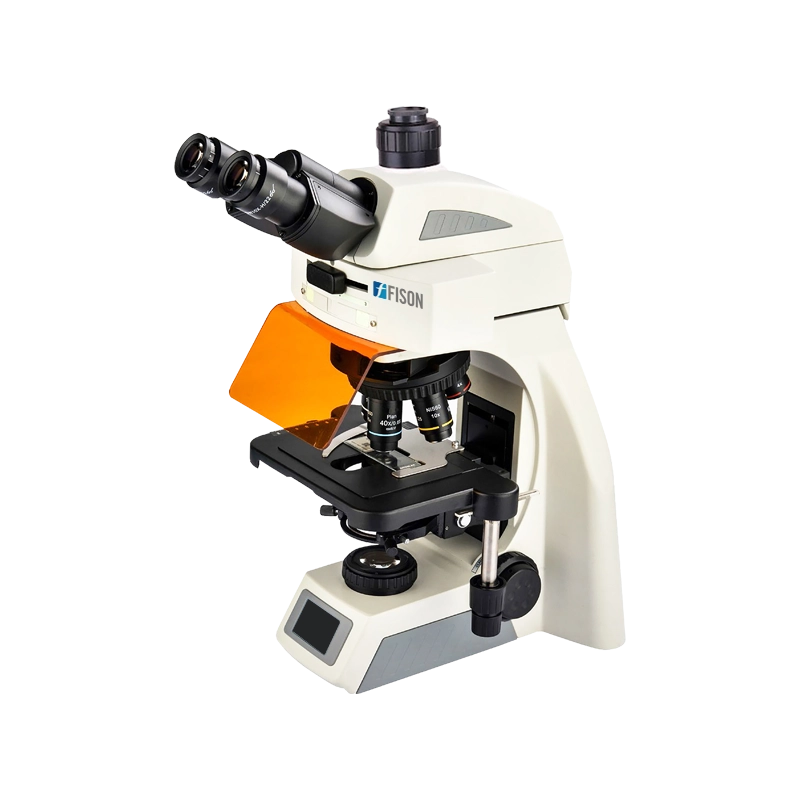

Fluorescence Microscope FM-FM-A204 is an infinite optical system comprised unit, comes with
Seidentopf trinocular viewing head, inclined at 30° and WF 10X/20 mm of eyepiece. Features
Backward Quintuple Coding Nosepiece and Synchronous belt platform stage with low
hand-position coarse and fine coaxial focusing mechanism. Designed with 1.25 NA Abbe condenser
and ECO function has 4 Infinite plan achromatic objective and bright illumination. Equipped with 2
standard fluorescence filters sets: Fluorescein isothiocyanate excitation filter cubes and Fluorescein
DAPI excitation filter cubes, has LCD display for easy and convenient operation along with 0.5X
c-mount.
Specifications
Viewing head | Siedentopf trinocular head inclined at 30º Interpupillary adjustable distance 47 mm to 78 mm | ||||||||||||
Eyepiece | WF10X/20 mm | ||||||||||||
Objectives | Infinite plan achromatic objectives: 4x, 10x, 40x, 100x (s, oil) | ||||||||||||
Nosepiece | Backward Quintuple Coding Nosepiece | ||||||||||||
Power supply | 100 to 240 V, 50/60 Hz | ||||||||||||
Condenser | Abbe N.A. 1.25 condenser | ||||||||||||
Stage | Synchronous belt platform stage: 235 mm×150 mm Moving range: 80 (X) mm×54 (Y) mm | ||||||||||||
Fluoresence attachment |
|
||||||||||||
Focusing | Low- handposition coarse and fine coaxial focusing mechanism, Coarse Stroke 37.7mm per Rotation Fine division 0.002mm; Fine Stroke 0.2mm Per Rotation, Focal Disatnce30mm, With adjusting elastic device and upper limit, with platform up and down adjustment mechanism, stage XY graduation step 0. | ||||||||||||
Illumination | Halogen lamp 6 V/30 W or 3 W LED brightness adjustable |
Features
Applications
Accessories Optional
Accessories No. | Accessories Name |
1 | Photo attachment with standard Ø 23.2 mm tube |
