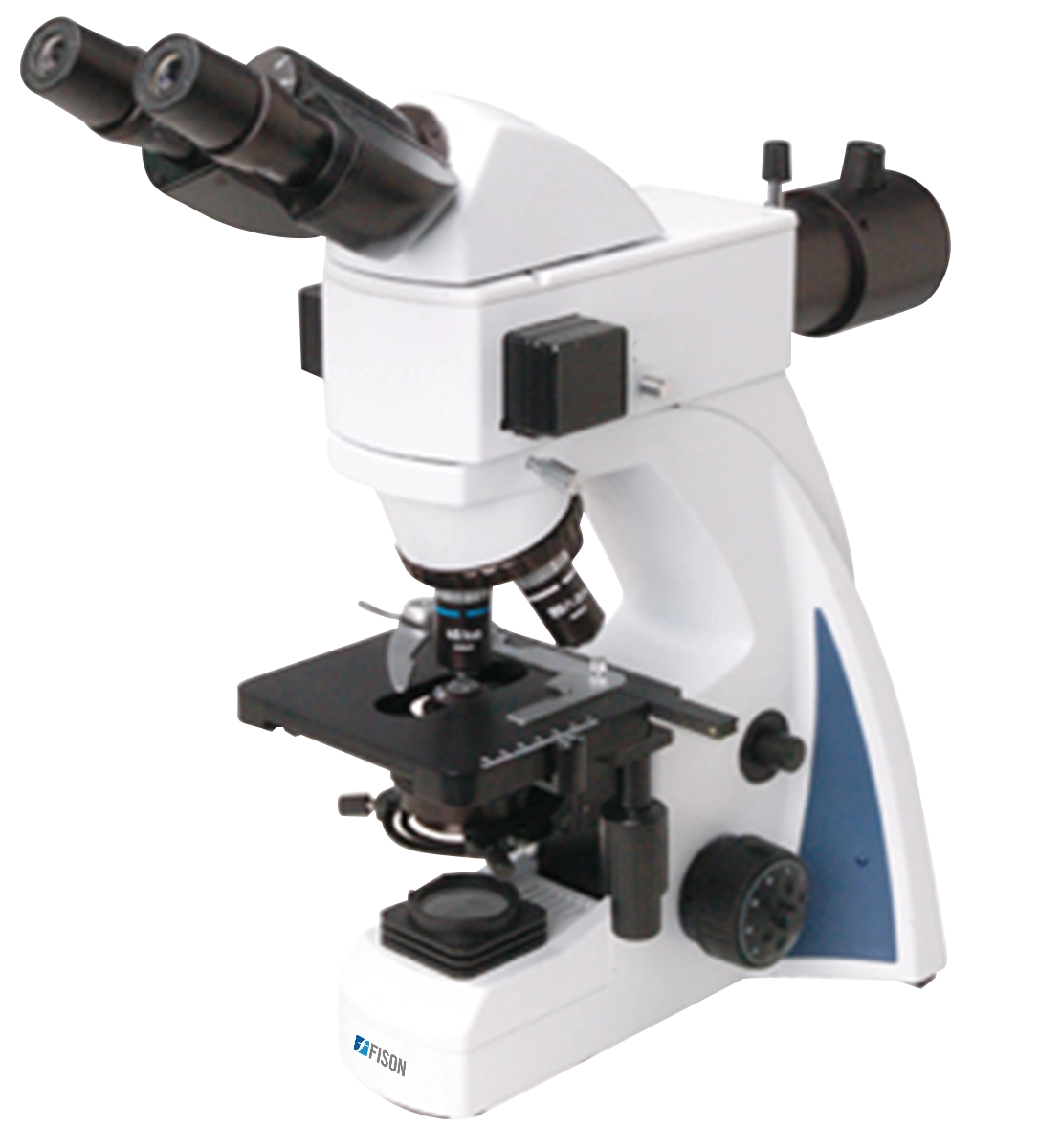

Fluorescence Microscope FM-FM-A200 is an upright microscope with binocular viewing head, backward quadruple nosepiece and infinite semi-plan achromatic objective. The LED fluorescent attachment with Blue excitation filter helps in fluorescent microscopic observations.
Specifications
Optical system | Infinite optical system | ||||||||||||||||
Viewing head | Compensation free binocular head inclined at 30°, interpupillary distance 48 to 75 mm | ||||||||||||||||
Eyepiece | Wide field eyepiece EW10X/ 18 mm | ||||||||||||||||
Objectives | Infinite semi-plan achromatic objective 4X, 10X, 40X, 100X | ||||||||||||||||
Nosepiece | Backward quadruple nosepiece | ||||||||||||||||
Condenser | Sliding in centerable N.A. 1.25 | ||||||||||||||||
Stage | Double layer mechanical stage 140 × 140 mm, Moving stage 75 × 50 mm | ||||||||||||||||
Fluoresence attachment |
|
||||||||||||||||
Focusing | Coaxial coarse and fine adjustment, vertical objective movement, Coarse stroke 37.7 mm per rotation, Fine stroke 0.2 mm per rotation | ||||||||||||||||
Illumination | S-LED illumination lamp with adjustable brightness | ||||||||||||||||
Weight | About 17 kg |
Features
Applications
Accessories Optional
Accessories No. | Name |
1 | Extra wide field eyepiece EW10X/ 20 mm with diopter adjustment |
2 | Fluorescent objectives 4X, 10X, 20X, 40X, 100X |
3 | Infinite semi-plan achromatic objective 20X |
4 | Infinite plan achromatic objective 20X |
6 | Green Excitation filter ( BP 510 to 550 nm, DM570, BA590 nm) |
7 | Lamp 3W LED (525 to 530 nm) |
8 | Dark field attachment: Dark field condenser (Dry) |
9 | Dark field attachment: Dark field condenser (Oil) |
10 | Video attachment: C Mount 1X |
11 | Video attachment: C Mount 0.5X |
12 | Photo attachment 1X adapter |
13 | Sliding phase condenser with phase sliding plate for 10X & 40X and infinity phase objective 10X, 40X centering telescope, filter |
14 | Turret phase condenser with infinity plan phase objective 10X, 20X, 40X,100X, centering telescope, filter |
