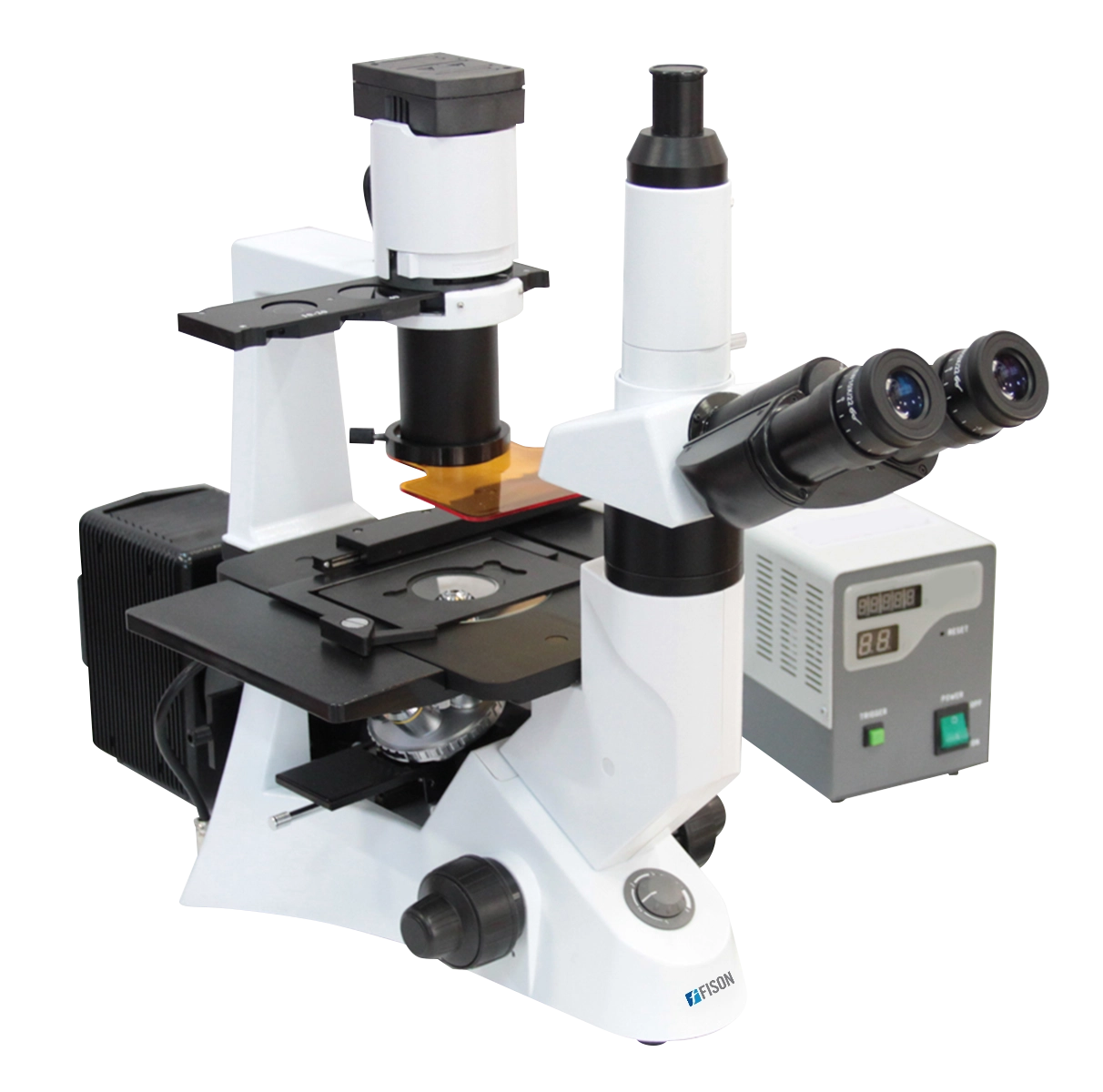

Fluorescence Microscopes FM-FM-A101 is an inverted microscope with trinocular viewing head and long working distance infinite plan objectives. The fluorescent attachment with B and G excitation filter modules aids in fluorescent microscopic observations.
Specifications
Optical system | Infinite optical system | ||||||||||||||||||||||||||||
Viewing head | Trinocular head inclined at 30°, interpupillary distance 48 to 75 mm | ||||||||||||||||||||||||||||
Eyepiece | High eye point, extra wide field eyepiece EW10x/ 22 mm | ||||||||||||||||||||||||||||
Objectives |
|
||||||||||||||||||||||||||||
Nosepiece | Quintuple nosepiece | ||||||||||||||||||||||||||||
Condenser | ELWD Condenser N.A. 0.3, LWD 72 mm | ||||||||||||||||||||||||||||
Stage | Plain stage 160 × 250 mm, glass insert Auxiliary stage 70 ×180 mm | ||||||||||||||||||||||||||||
Fluoresence attachment |
|
||||||||||||||||||||||||||||
Focusing | Coaxial coarse and fine adjustment, vertical objective movement, coarse stroke 37.7 mm per rotation, fine stroke 0.2 mm per rotation | ||||||||||||||||||||||||||||
Illumination | 6 V, 30 W Halogen lamp | ||||||||||||||||||||||||||||
Filter | Blue/Green and Ground glass (45 mm) | ||||||||||||||||||||||||||||
Dimension (L×W×H) | 515 × 302 × 475 mm | ||||||||||||||||||||||||||||
Weight | About 20 kg |
Features
Applications
Accessories Optional
Accessories No. | Name |
1 | Terasaki holder |
2 | Attachable mechanical stage, X-Y coaxial control, moving range 120 × 78 mm |
3 | 38 mm petri dish holder |
4 | 54 mm slide glass holder |
5 | Neutral filter ND 25 |
6 | Neutral filter ND 6 |
7 | Centering plate |
8 | Photo attachment |
9 | Video adapter 1X C mount |
10 | Video adapter 0.5X C mount |
