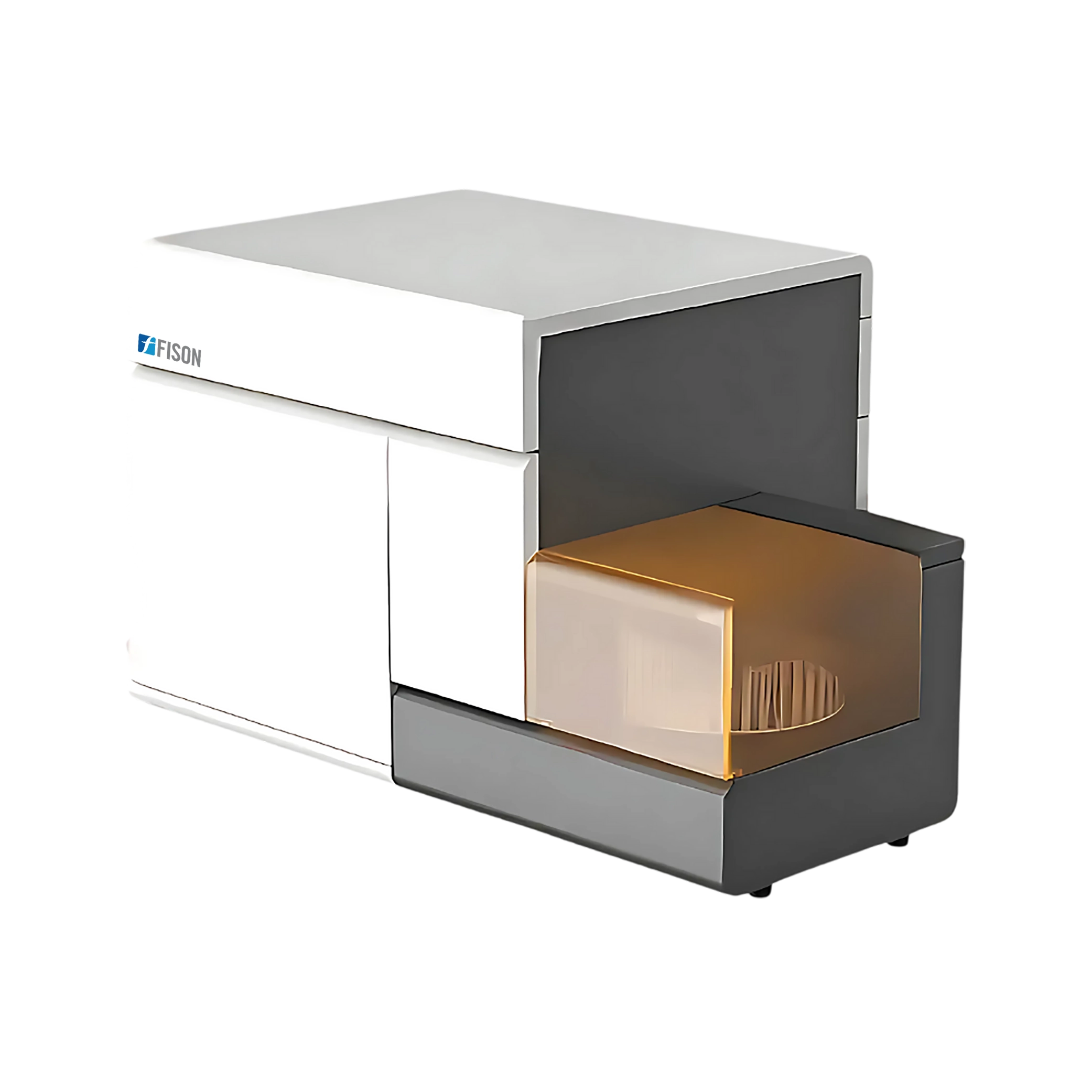

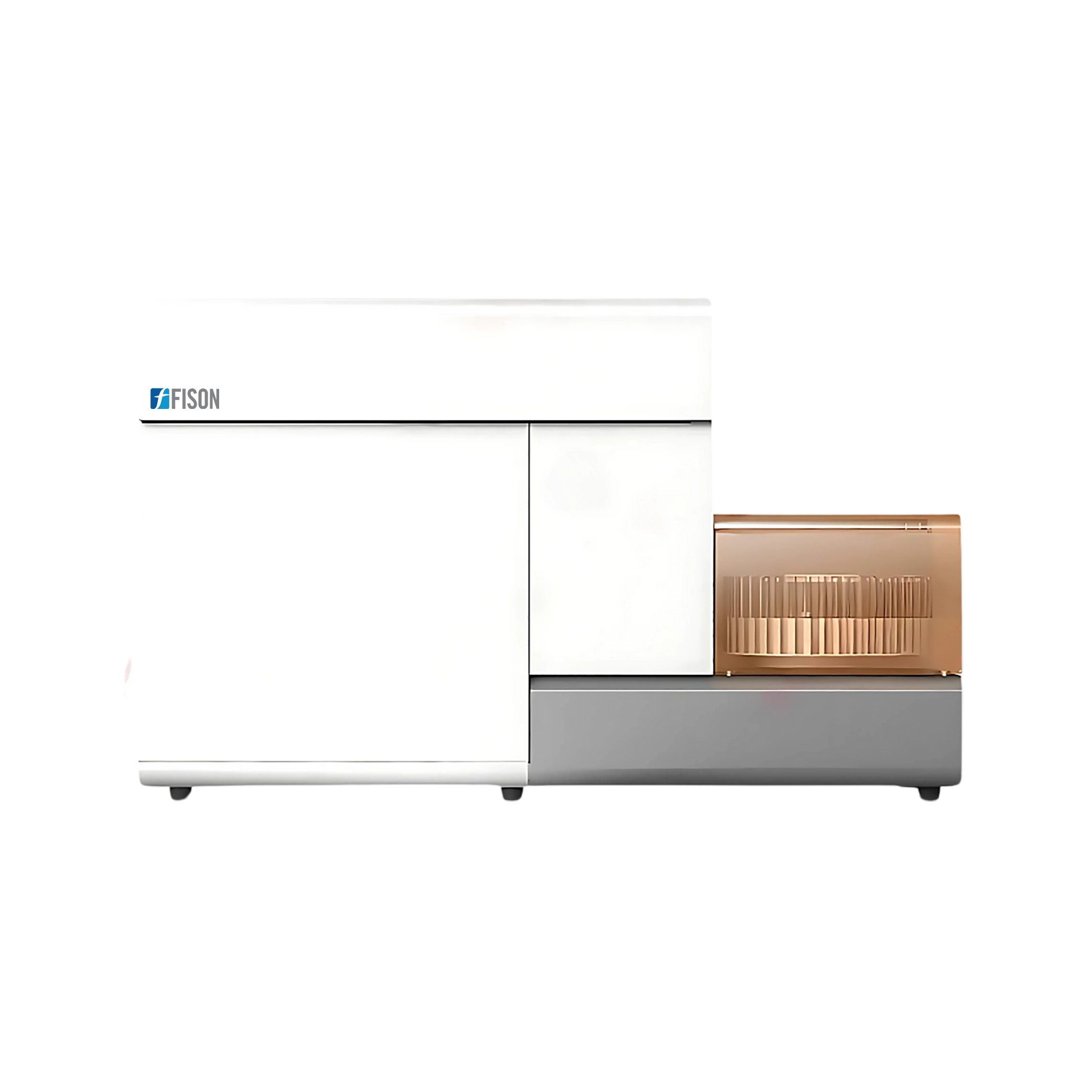

Flow Cytometer FM-FC-A102
Flow Cytometer FM-FC-A102 is equipped with up to three lasers 405 nm, 488 nm, and 638 nm, and utilizes an APD Detector. It can detect particles ranging from 0.2 to 50 μm and supports volumetric and microsphere absolute counting methods. Our Unit offers automatic fluorescence adjustments and supports 40-tube rotary and 96-well microplate sampling. Additionally, it can process over 50,000 events per second, making it a highly efficient instrument for precise cell configuration analysis.
Specifications
| Wavelength | 405 nm, 488 nm, 638 nm |
| Laser power | 100 mW, 60 mW , 80 mW respectively |
| Resolution | < 2 % |
| Fluorochromes | 15 |
| Fluorescence detection limit | FITC < 50 MESF , PE < 30 MESF , APC < 30 MESF |
| Linearity | ≥ 0.99 |
| Detector | APD Detector |
| Particle size sensitivity | 0.2 to 50 μL |
| Carry-Over Rate | ≤ 0.1 % |
| Analysis rate | > 500000 events/s |
| Signal range | Maximum 107 |
| Injection speed | Low : 15 μL / min , Medium : 30 μL / min High 1 : 60 μL /min , High 2 : 90 μL/ min , High 3 : 120 μL/min Adjustable speed range : 15 to 120 μL / min |
| Sensitivity adjustment | Utilizes two thresholds |
| Fluorescence compensation | Supports dual thresholds to minimize cell debris |
| Configuration template | Support project template function |
| Performance monitoring | Automatic |
| Sample delivery method | Single tube manual sampling 40 tubes auto sampler with single sample mixing function 96-hole plates |
| Software | Support acquisition and analysis at the same time |
| Data storage format | FCS3 , 1 /FCS3.0 and FCS2.0 |
| Dimensions (L × W × H) | 760 × 450 × 470 mm |
| Weight | 40 kg |
Features
- Flow Cytometer with high stability
- Adjustable injection speeds ranging from 15 to 120 L/min
- Resolves particles smaller than 0.45µm
- Equipped with a DELL CPU, 15/Memory 8G/ HDD
- Full-automatic detection process
- Enables fast loading for efficient operation
- Supports up to 3 lasers and 15 fluorescent channels
Applications
- Flow Cytometer is ideal for Biomedical Research, Clinical Diagnostics, Food and Beverage Industry, Agriculture, and Plant Sciences.
Accessories
- Computer
1.5m USBA-A
Fuse × 2
2 M connection pipeline + wire harness Liquid sensor × 4
10 L Waste Liquid barrels
1O L Sheath Liquid barrels
2 L Shutdown Liquid barrels
2L Cleaning Liquid barrels
Bottle holder
Wire Harness Fixer
Accessories Optional
- Injection Pump
Sample Probe
One-way valve
Waste Liquid Pump
Air Pump
Sheath Pump
Filter
Pinch Valve
Two-way Valve
Three-way Valve
Pressure Tank Set
Integrated Flow Tank
Rotary Mixing Motor
Mixing lifting motor
Forward facing AD board
Lateral AD board
Mainboard
Injection Pump
Sample Probe
96 – well Autosampler System
40 Rotary Autosampler System
