Specifications

Wavelength	488nm, 638nm
Laser	Semiconductor laser
Laser Power	488 nm & 638 nm laser: 20mW 40/60mW (Optional)
Fluorescence Channels	6
Filters Configuration	488nm laser: 530/30 nm BP FITC, 585/42 nm BP PE, 700 BP Per CP/ PE-Cy 5, 785/55 nm BP PE-Cy7 638nm laser: 660/20 nm BP APC, 785/55 nm BP APC-Cy7
Optics	The excitation and receiving of solid spatial separation. No fiber conduction. Fixed optical path.
Sensitivity of Fluorescence	FITC < 75 MESF PE < 55 MESF APC < 55 MESF
FSC Sensitivity	0.5 μm
SSC Sensitivity	0.2 μm
Range of Particles	0.2 μm to 60 μm
Linear	≥ 0.98
Resolution	CV ≤2%
Carry-Over	≤ 0.1%
Detector	Avalanche Photodiode Detector(APD)
Speed	45,000 events/s; 96 - well plates/30min
Minimum Sample Volume	10μL
Speed of Sample	15 to 235 μL/Min
Absolute Count	Volumetric method: Microspheres method
Preheating Time	<4min
Blending Mode	Whole plate; single pipe; interval mixing is set freely

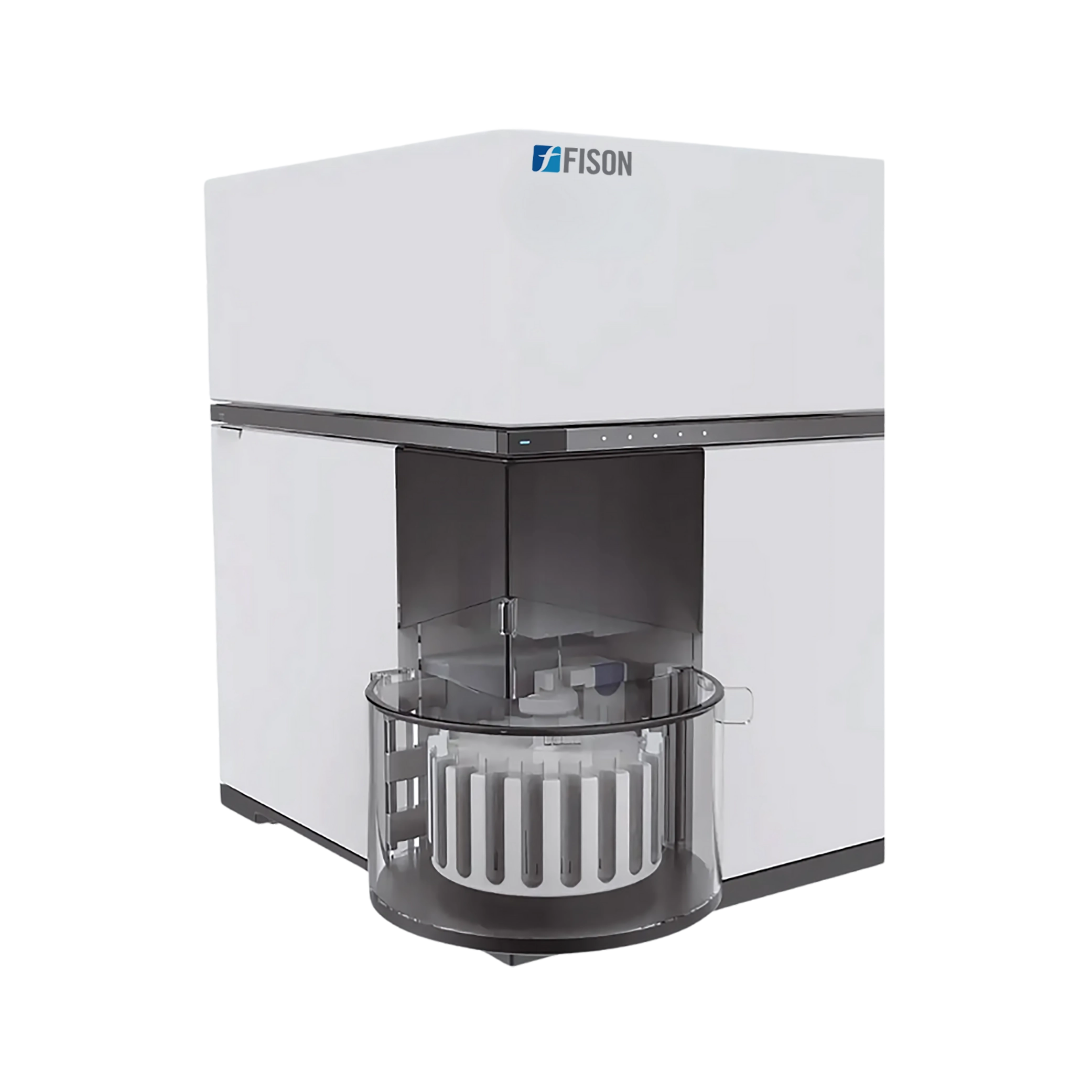

Tube Numbers of Loader	40 tubes and 96 holes
Type of Tube	Standard flow pipe（12 × 75mm, 5ml) 96 - well plates(F,U,V type) Centrifugal tube (1.5ml, 2ml)
Capacity of Liquid Bottle	Waste liquid barrel 6L,Sheath liquid drum 6L,Cleaning liquid drum 1L
Maintenance System	Liquid path maintenance automation
Software	Software has an edition in English and Chinese With the function of automatic quality control detection, the software can draw the Levey-Jennings curve automatically Support to be connected with clinical LIS software, to facilitate data graphic transmission
Feature of Software	Automatic saving mode against power failure Detection and analysis can run at the same time
Compensation	Compensation Matrix List Quick Compensation Auto Compensation Auto Compensation Calculation
FCS Format	FCS 3.0
Operational Environment	10°C to 35°C, 15 to 80 % RH
Computer Operating System	Win10 pro
Voltage	220 V, 50Hz
Dimension (W × D × H )	The host system: 44 × 43.5 × 52 cm The host system with leader: 57.2 × 53.3 ×52 cm Liquid tray: 44 × 32 × 45 cm
Liquid Tray Weight	7 Kg
Host System Weight	32 Kg
Host System with Leader Weight	38 Kg

Features

• Automated liquid path maintenance
• Multi-parametric analysis
• Incorporated with Avalanche Photodiode Detector
• Bilingual software
• Features quick and auto compensation calculation
• Offers multiple single-color antibodies

Applications

• Flow cytometer ideal for cell sorting, cell cycle analysis, cell viability assays, DNA content analysis, immunophenotyping,

Accessories

• Power Line ×1

  ---

  Sheath Fluid External Pipeline×1

  ---

  Waste Fluid External Pipeline×1

  ---

  Sheath Shunt External Pipeline×1

  ---

  Cleaning Fluid External Pipeline×1

  ---

  Connecting Line Between Main Engine and Reagent Platform×1

  ---

  USB Data Signal Cable×1

  ---

  Reagent Platform×1

  ---

  Sheath Fluid Bottle×1

  ---

  Waste Fluid Bottle×1

  ---

  Cleaning Solution Bottle×1

  ---

  Centrifuge Tube Rack (40 wells)×1

  ---

  Flow-through pipe Rack (40 wells)×1

  ---

  Spare Fuses×2

  ---

  In-line Filter×2

  ---

  Sheath Fluid Filter×1

  ---

  1/8"PVC Hose (1m)×1

  ---

  3/32"TPE 75E Hose (2m)×1

  ---

  3/32"TPE 84E Hose(0.2m)×1

  ---

  Flow Cytometer Operator's Manual×1

  ---

  USB Drive×1

  ---

  Product Quality Certificate×1

  ---

  Computer (Host and Display)× 1

Accessories Optional

• The Apc Detection Board

  ---

  The Fitc Detection Board

  ---

  Side Detection Board

  ---

  Wdm Assembly

  ---

  Acquisition Board Assembly

  ---

  Light Blocking Needle Assembly

  ---

  Power Switch Assembly

  ---

  Buffer Components

  ---

  Vials

  ---

  Mixing Device

  ---

  Flow Pool Assembly

  ---

  Forward Pd Lens Assembly

  ---

  Forward Detection Board Assembly

  ---

  Reagent Bench Section

  ---

  External pipe Assembly

  ---

  Achromatic Focusing Lens Assembly

  ---

  Liquid Circuit Control Board

  ---

  Wdm Signal Acquisition and Integration Harness

  ---

  The FPGA Interface Drive Board

  ---

  Wdm Signal Acquisition of the Integrated Wire Harness

  ---

  The Wdm High-Voltage Power Supply Line

  ---

  Diaphragm Air pump

  ---

  Kpp Peristaltic Pump Straight Plate Installation

  ---

  Single Normally Closed Solenoid Diaphragm Valve

  ---

  Three-Way Normally Closed the Solenoid Diaphragm Valve

  ---

  Flx 7SE 13-2.5 Tpe Hose(15m)

  ---

  Flx 84E 1.5-2.5 Tpe Hoses (15m)

  ---

  Standard Test Tube Rack

  ---

  Centrifuge Test Tube Rack

  ---

  Blue Laser

  ---

  Red Laser

  ---

  Plunger Pump with Optical Coupling Harness (With Plunger Pump)

  ---

  Pall Online Filter Lcf

  ---

  Bag Filter

  ---

  Bottle Bottom Filter

  ---

  1/8 inches Pvc Hose (Tygon)2

  ---

  Upper Sample Three-Way Valve
