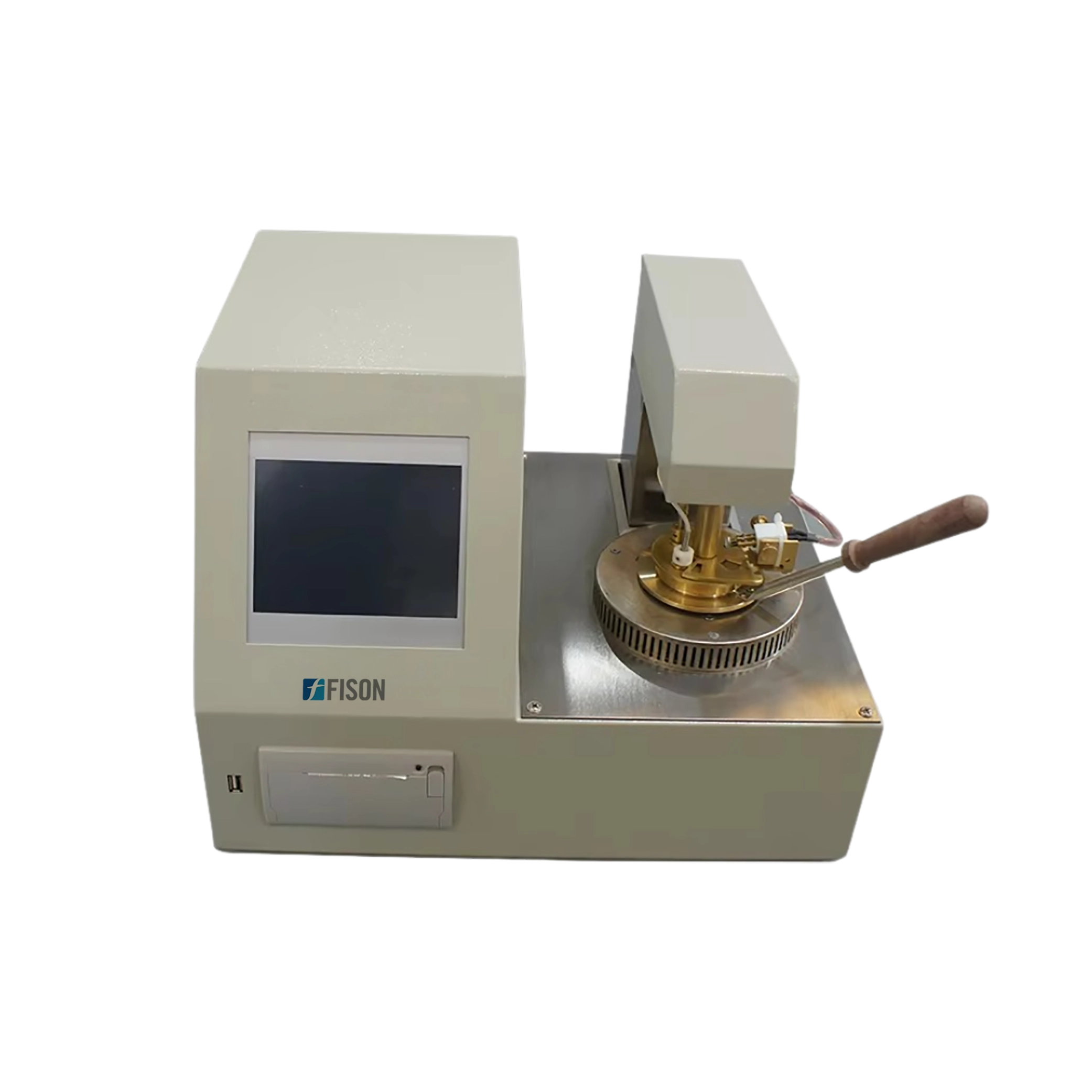

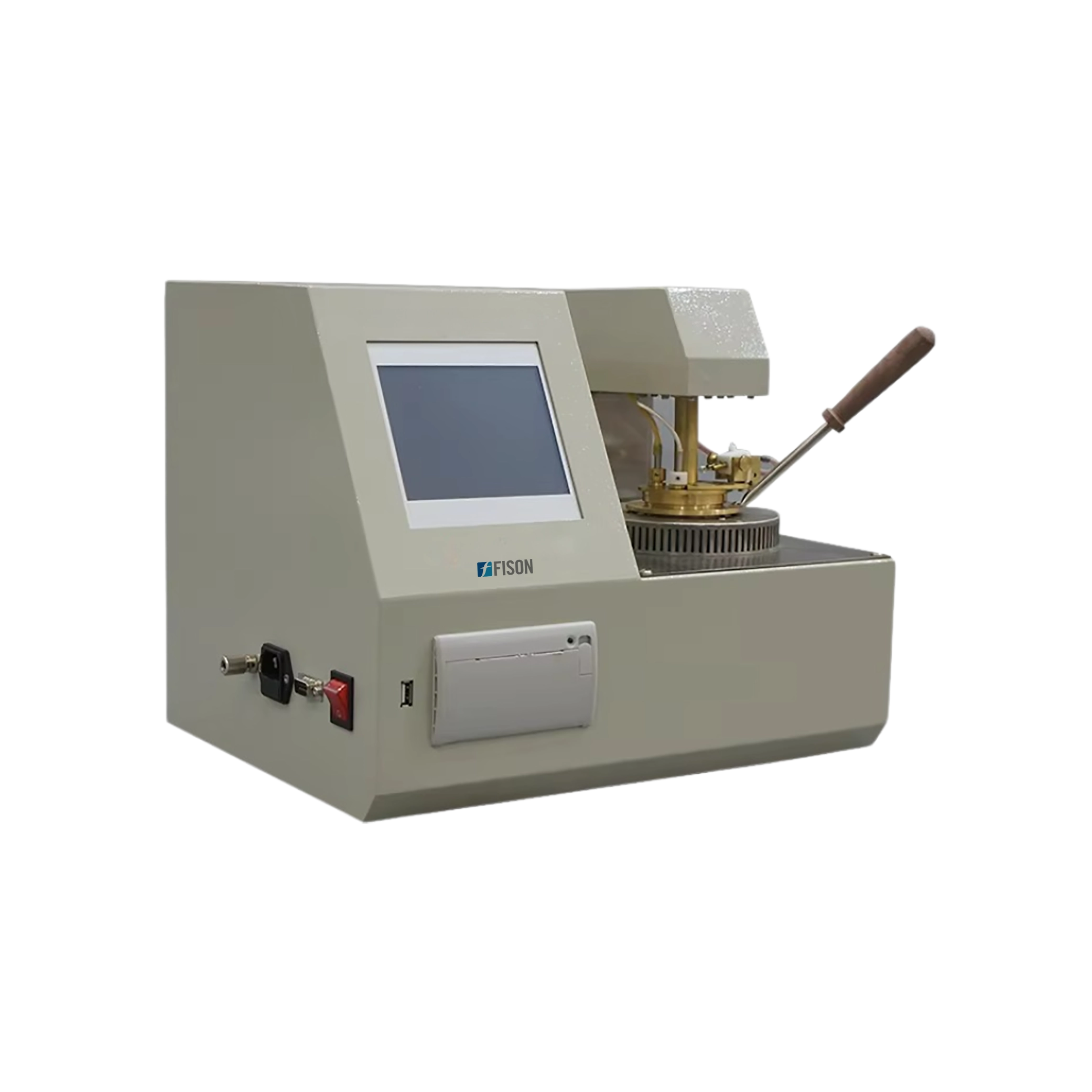

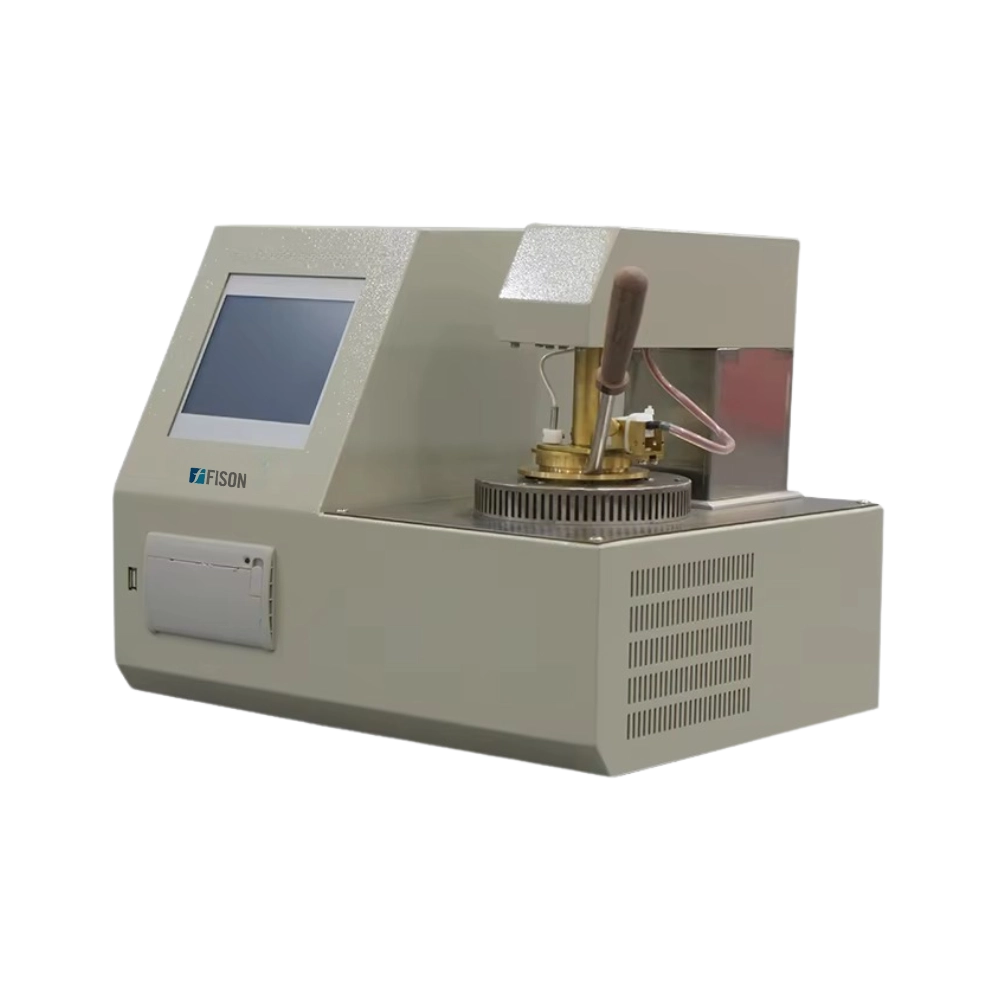

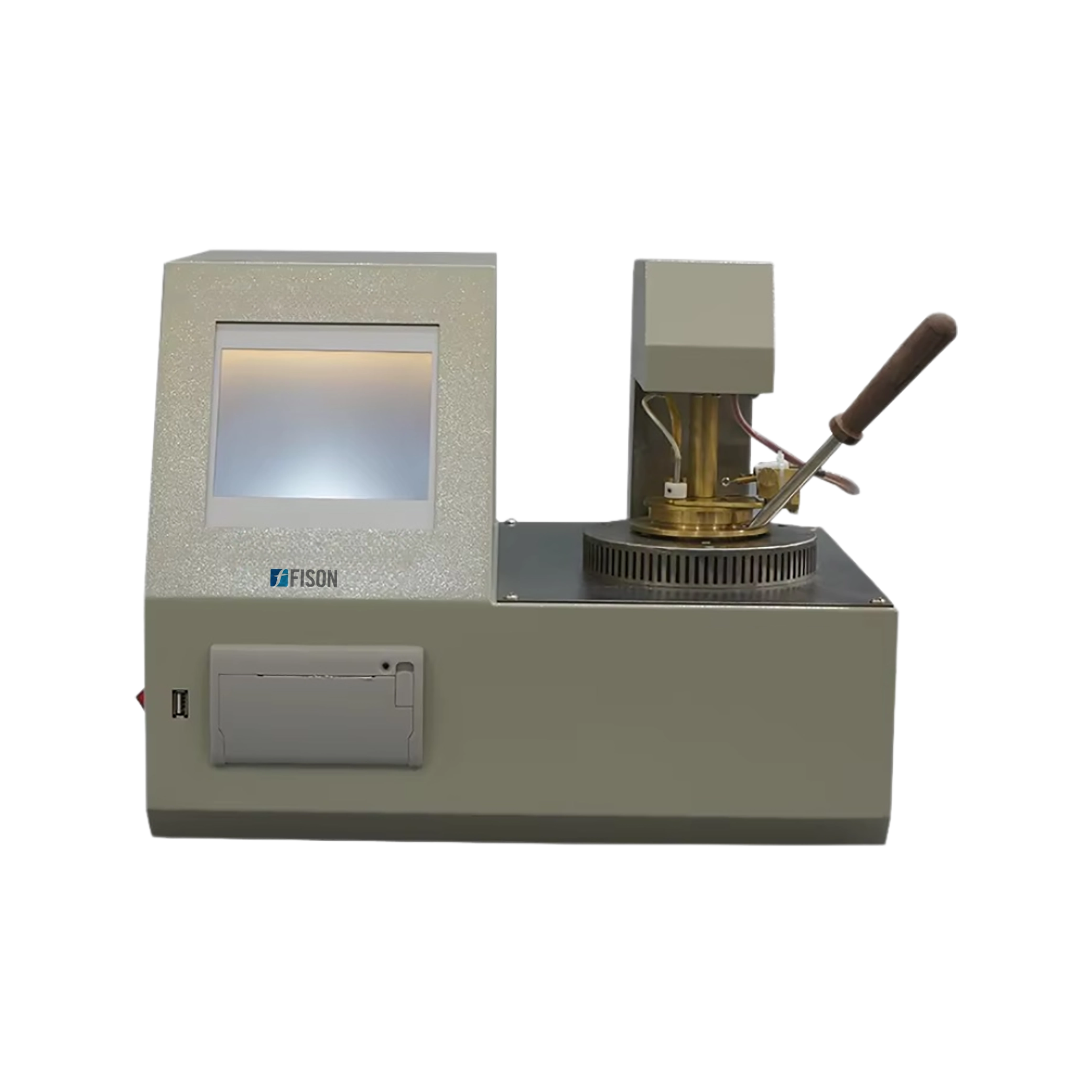

Flash Point Tester FM-FPT-A100
Flash Point Tester FM-FPT-A100 accurately and consistently measures the closed flash point of petroleum products. It has temperature measurement range of about -49.9 ℃ to 400 ℃. By replacing traditional keyboard operations with a user-friendly color touch screen, it provides an intuitive and efficient user experience. This modern tester uses cutting-edge technology to ensure that it fulfils worldwide standards such as ASTM D93, IEC60296, and European Union requirements.
Specifications
| Temperature Measuring Range | -49.9°C to 400.0°C |
| Temperature Control Range | Room temperature to 300°C |
| Repeatability | 0.029X |
| Resolution | 0.1°C |
| Precision | 0.005 |
| Temperature Sensor | Platinum Resistor (PT100) |
| Flash Fire Detection | K Thermocouple |
| Ambient Temperature | 10°C to 40°C |
| Relative Humidity | ≤ 85% RH |
| Power Supply | AC 220V ± 10% |
| Power Consumption | < 500 W |
| Dimensions | 390 × 300 × 302 mm |
| Packing Dimensions | 560 × 420 × 450 mm |
| Net weight | 15 Kg |
| Gross weight | 26 Kg |
Features
- Flash Point Tester has high speed digital signal processor
- Automated testing process
- Electric ignition and atmospheric pressure measurement
- High-efficiency heating
- Safety features include alarms on reaching excess temperature
- Thermal-sensitive micro-printer
- Stores up to 50 test records with time markers
Applications
- Flash Point Tester is ideal for usage across railway, aviation, electric power supply, and petroleum industry.
