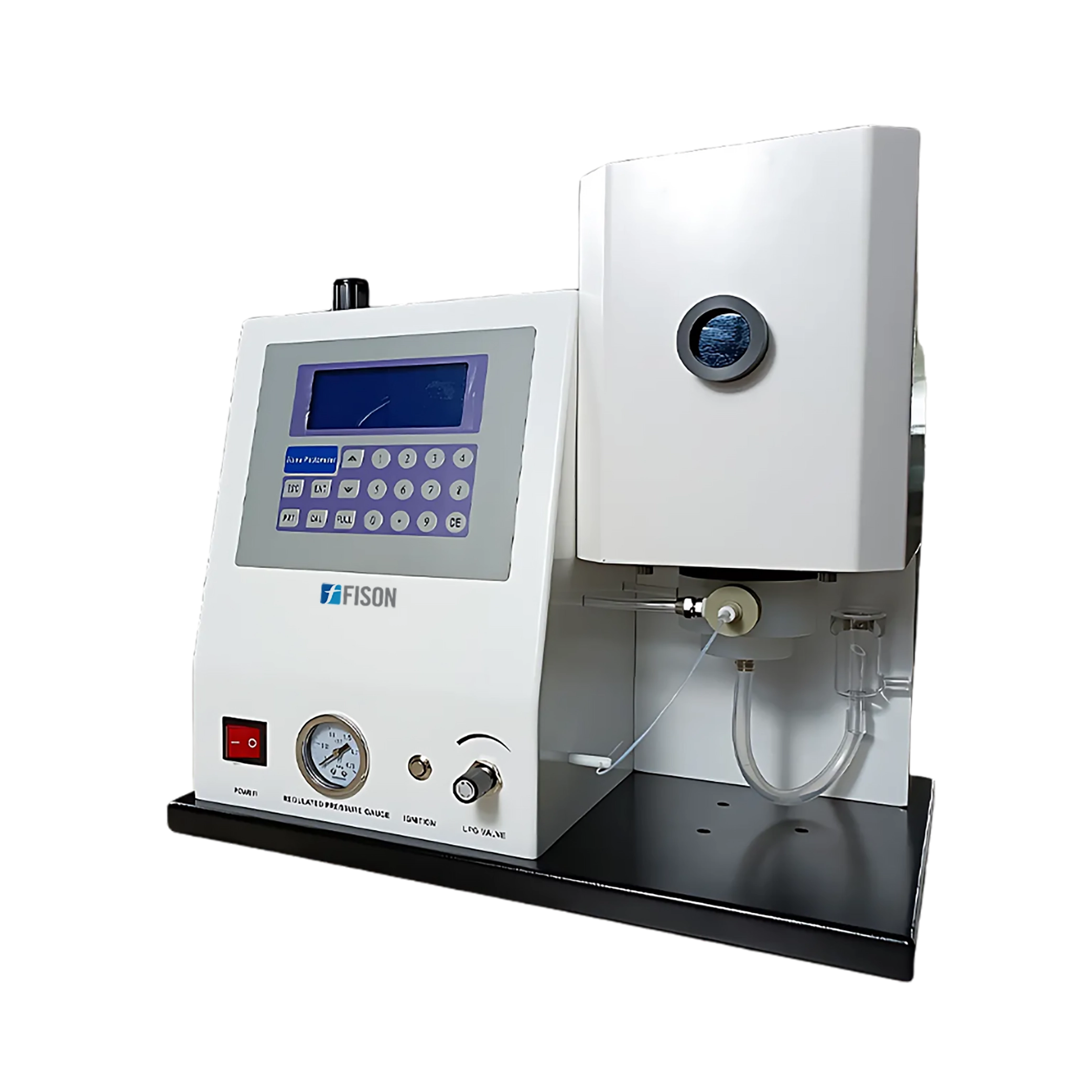

Flame Photometer FM-FPM-A101

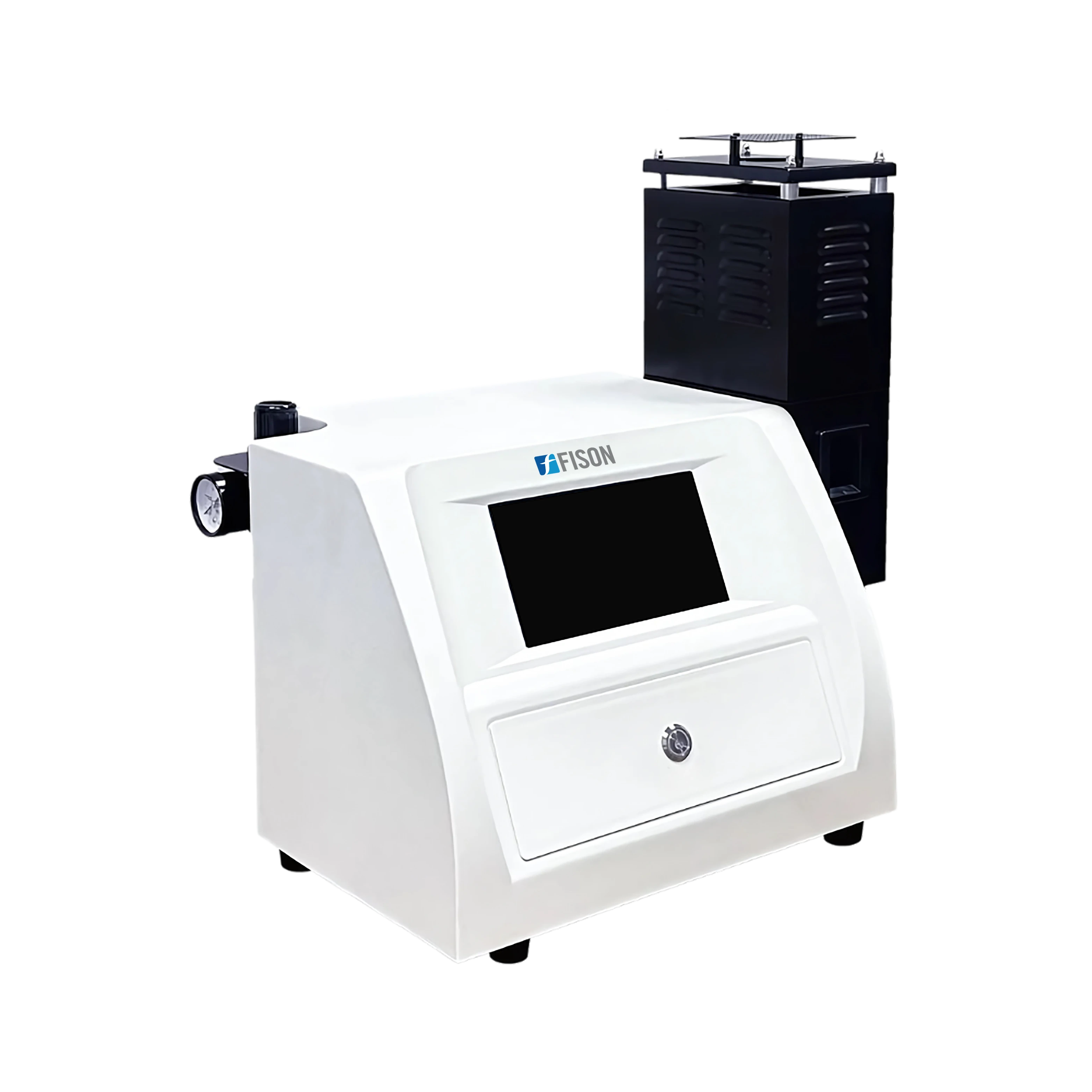

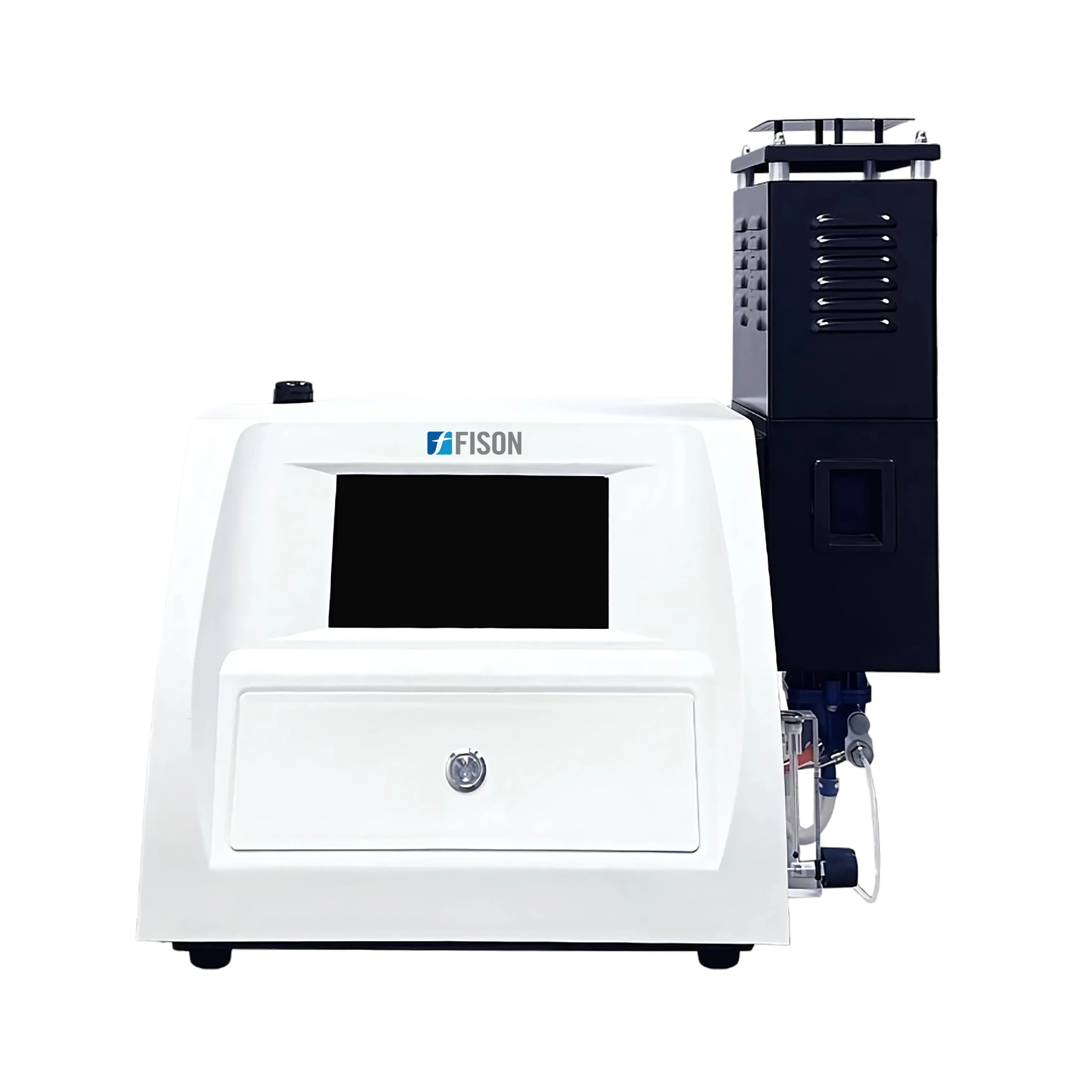

Flame Photometer FM-FPM-A101 is a fully innovative photometer engineered to analyze metal ion concentrations such as K, Na, Li, and Ca within test samples. It automatically determines the correlation coefficient of the test sample with a minimum suction volume of < 6 mL/min. Fitted with an RS232 interface for seamless data transfer that enables easy communication via PC. Our photometer is configured with a 7-inch color touchscreen display that provides instant readings of element concentrations.
Specifications
| Measurement Range | K: 0-100ppm Na: 0-160ppm Li: 0-100ppm Ca: 0-1000ppm |
| Display | LCD Display |
| Elements Display Channels | Max. 3 channels |
| Display Range (ug/ml) | Potassium:0-100 ug/ml sodium: 0-160 ug/ml lithium: 0-100 ug/ml calcium: 0-1000 ug/ml |
| Response Time | <8 sec |
| Minimum Suction Volume | ＜6mL∕min |
| Repeatability | ≤3% |
| Stability | Relative volume in 15s: ≤3% |
| Linear Error | K:0.2ppm Na:0.5ppm Li:0.1ppm Ca:2ppm |
| Detection Limit | K:0.1ppm Na:0.1ppm Li:0.1ppm Ca:2ppm |
| Linearity | 2% (single-point CAL) |
| Optional | PC Software |
| Curve Calibration | Straight-line method; Polygon method; Quadratic fit. |
| Dimension | 740 × 400 × 550 mm |
| Weight | 27 Kg |
Features
- Include RS232 interface for seamless data transfer and storage
- Designed with an LCD display that allows clear visibility of working status
- Equipped with an air compressor
- Improved with a flameout safety feature guarantees operational safety and effectiveness
- The relief valve is easily accessible for adjustment, enabling users to quickly set the pressure level
- Optimized for efficient combustion using LPG, providing reliable performance and consistent results
- Effortless handling with convenient cleaning
Applications
- Flame Photometer has wide applications in areas like clinical laboratories, pathology, research laboratories, soil and fertilizer industries, petroleum and mining industries, chemical product manufacturing units, and pharmaceutical and beverage industries.
Accessories
- Air compressor 1unit
PU pipe for air road 2.5 m
Silicone tube (spare) 0.6 m
Funnel parts 1 pc
Glass cylinder 1 pc
Capillary 1 pc
Fuse 2 pc
Power cable 1 pc
Micro-printer 1 set
