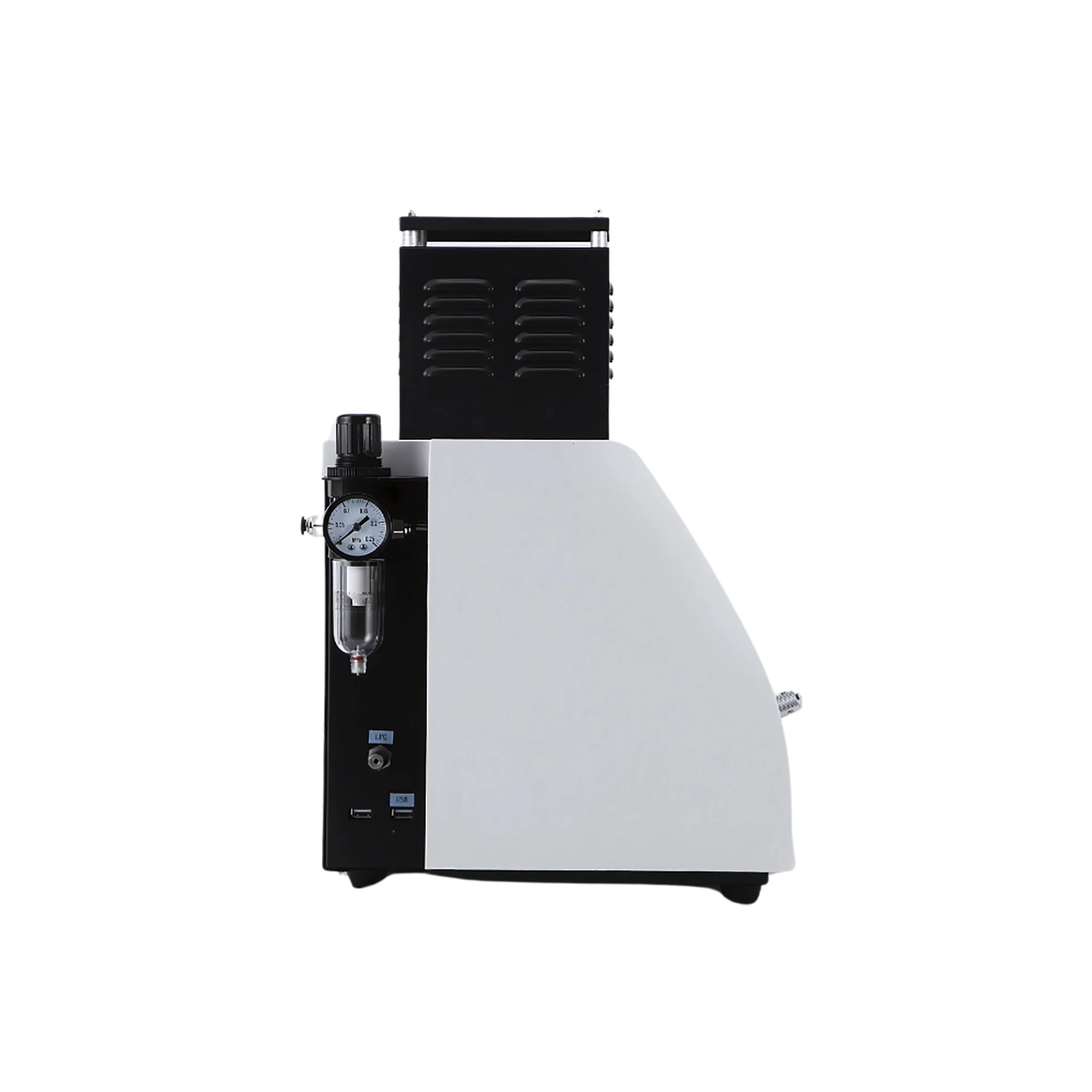

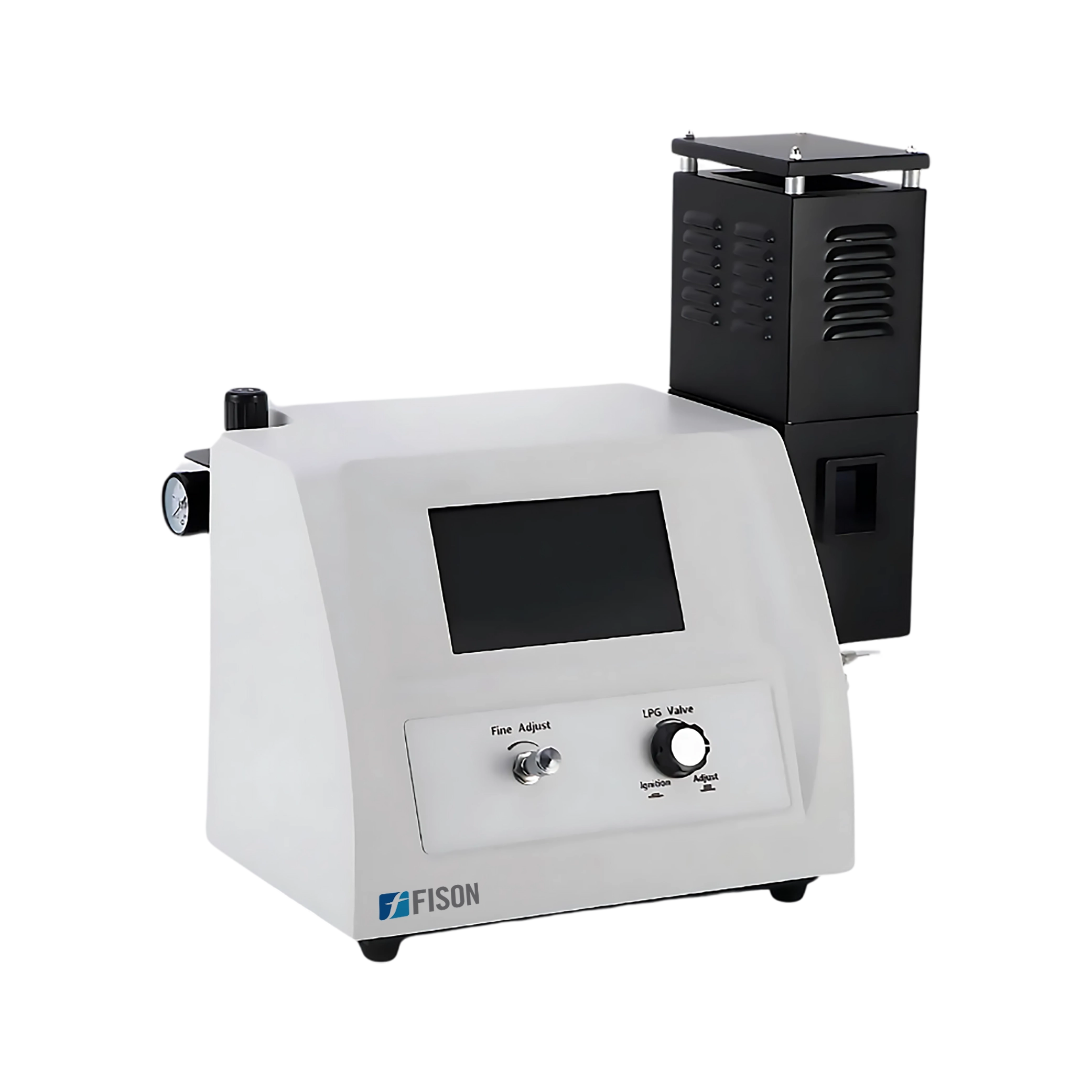

Flame Photometer FM-FPM-A100
Flame Photometer FM-FPM-A100 is specially designed for the quantitative analysis of the concentration of K, Na, and Li in a sample solution based on their characteristic emission spectra when introduced into a high-temperature flame. It generates quick results in less than 8 seconds and accommodates data ranges from 0.000 to 9.999. It Incorporates a safety feature to prevent flameout and ensure continuous operation.
Specifications
| Operation Model | 7-inch color touchscreen |
| Display Value | Concentration value |
| Data Range | 0.000 to 9.999 |
| Testable | K, Na, Li |
| Channel Quantity | 3 |
| Range ppm | K: 0-100ppm Na: 0-160ppm Li: 0-100 ppm |
| LOD ppm | K: 0.01ppm Na: 0.01ppm Li: 0.1 ppm |
| Linear Error | K: 0.195ppm Na: 0.69ppm Li: 0.15 ppm |
| Response Time | <8s |
| Sample Uptake | <6L/min |
| Stability | ＜3% drift over 15s when continuously aspirating |
| Reproducibility | ＜3% coefficient of variation for 7 consecutive samples |
| Display | Curve Graph |
| Printer | Optional build-in thermal printer |
| COM | USB |
| Software | Optional software connecting with computer |
| Fuel | LPG |
| Power | AC 220V±22V 50/60Hz±1Hz, 250w |
| Dimension | 54 × 41 × 58cm |
| Weight | 26kg |
Features
- Featuring a vibrant 7-inch color touchscreen
- Equipped with an air compressor for optimal performance
- Offering a user-friendly multilingual interface
- Allows to choose from various concentration units
- Easily adjust the measuring range to suit your needs
- Offers pre-selection of flame sizes for precise analysis
- Automatically calculates correlation coefficients
- Provides instant concentration display for quick results
Applications
- These are commonly used in analytical chemistry for a variety of fields, including, Clinical Chemistry, Environmental Analysis, Industrial Quality Control, Research Laboratories, etc.
