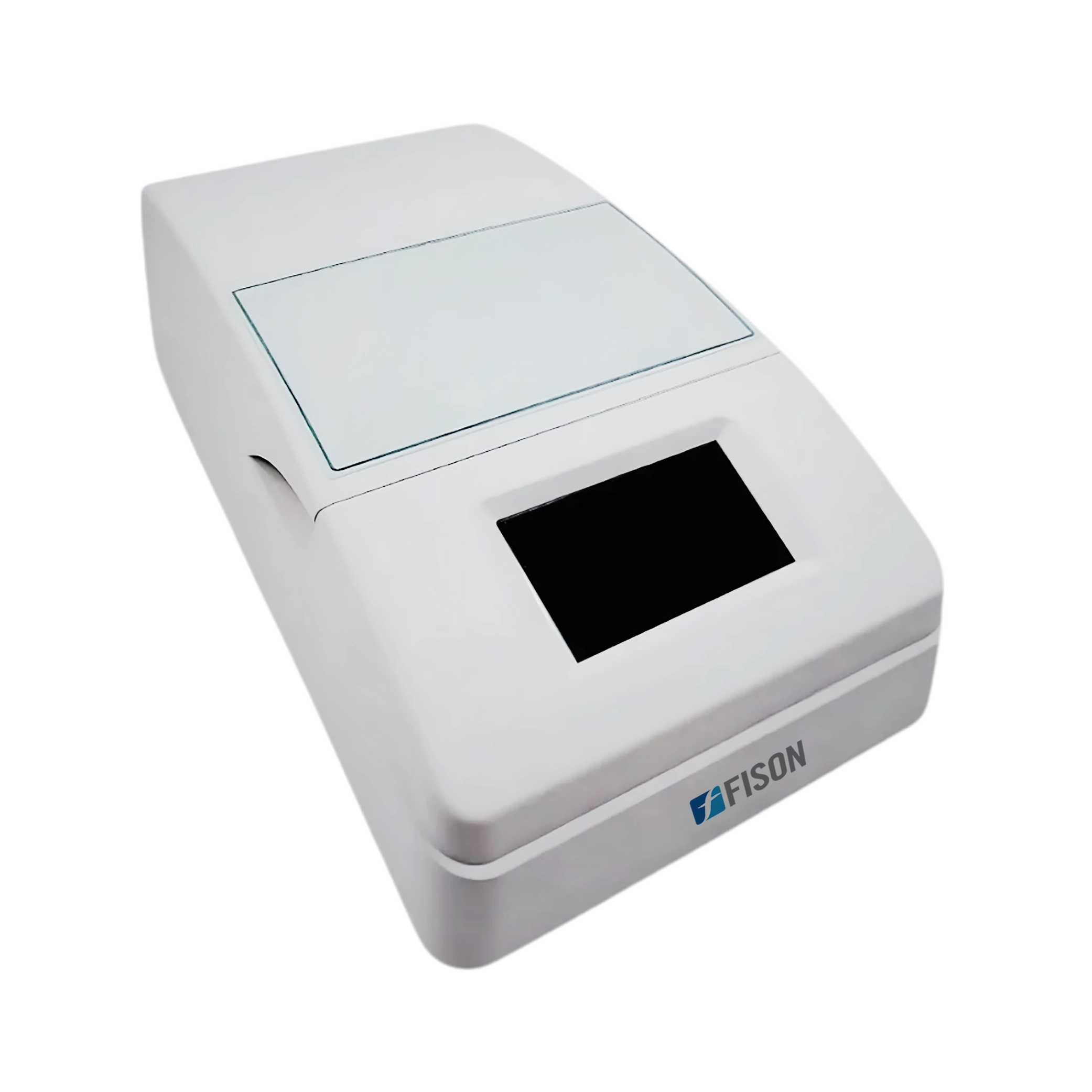

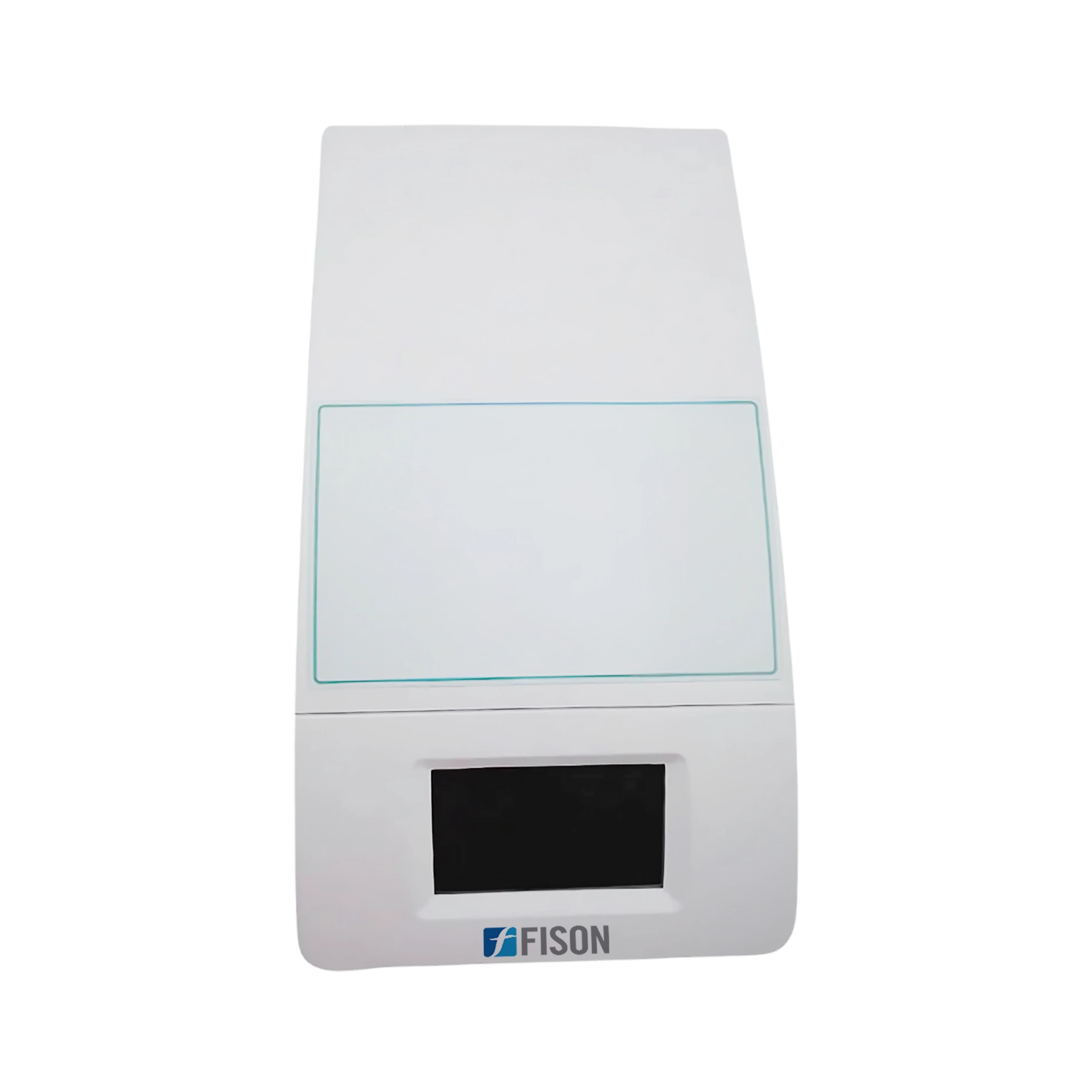

FISH Hybridization System FM-FHS-A100 is a compact and benchtop model, adopted with FISH processing step and three operation modes as denaturation plus hybridization, hybridization, and multiple-step operation. It offers 12 slides capacity, 0 to 100°C of temperature range and automatic cooling and warm-up function with 1 min to 99 h 59 min of time range. Features touch screen interface, automatic power recovery, high precise temperature control and 105 custom stored programs, ensures reliable results with high efficiency and accuracy.
| Capacity | 12 slides |
| Temperature control range | RT +5 to 100°C |
| Temperature setting range | 0 to 100°C |
| Temperature accuracy | ≤ ± 1℃ |
| Temperature uniformity | ≤ ± 1℃ |
| Time range | 1 min to 99 h 59 min |
| Heating time | ≤ 2 min (37°C to 95°C) |
| Cooling time | ≤ 6 min (95°C to 45°C) |
| Operation modes | Denaturation and hybridization, hybridization and multiple-step |
| Display | Touch screen |
| Programs | 105 custom stored programs |
| Power supply | AC 110/220 V, 50/60 Hz |
| Power | 350 W |
| Dimension (W×D×H) | 440×220×120 mm |
| Weight | 4.5 kg |
FISH Hybridization System is used to detect the genetic material in human cells, including specific genes or portions of genes, genetic abnormalities associated with cancer, for diagnosing infectious diseases etc. across cytogenetic laboratories, clinical research, cancer research etc.
