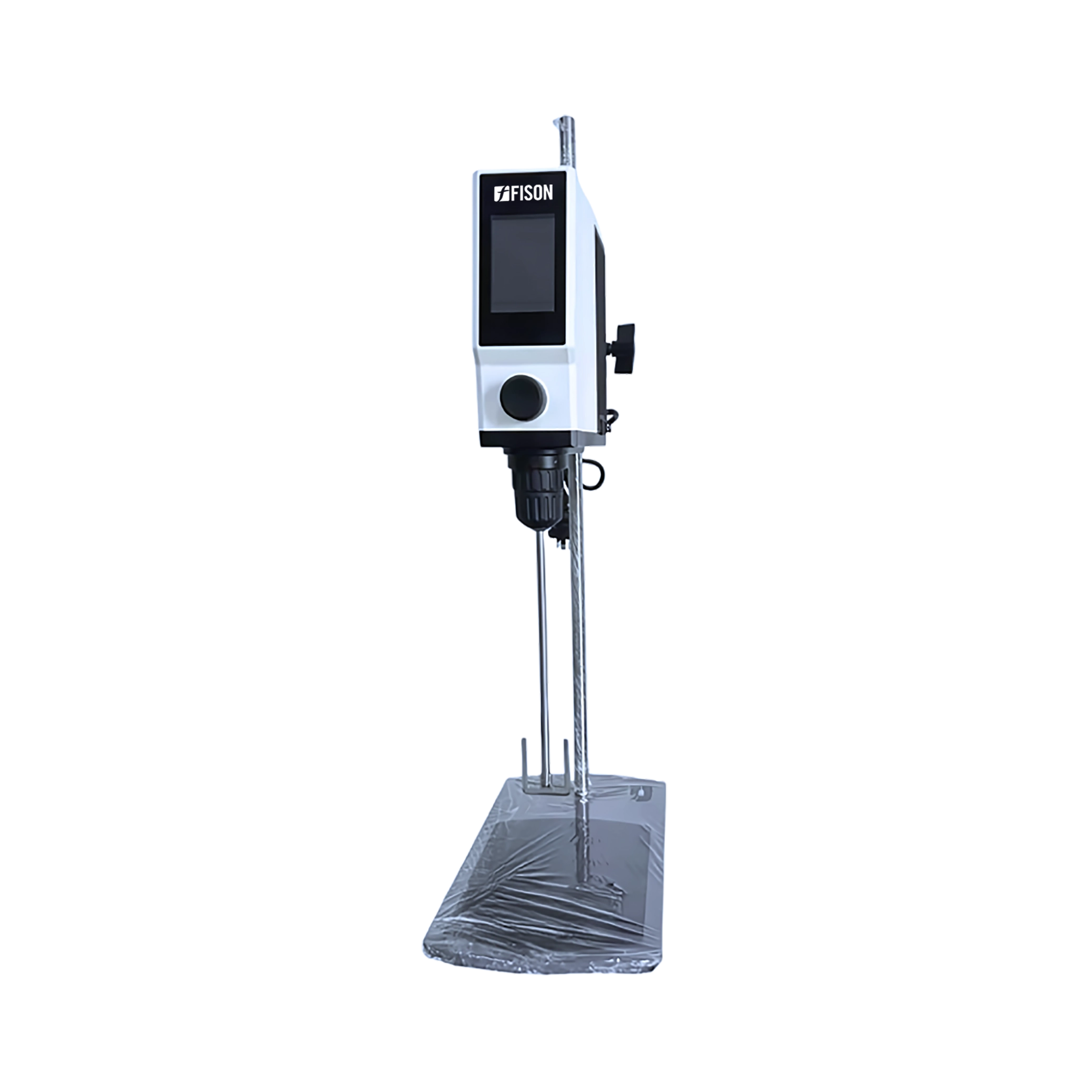

Electric overhead stirrer FM-EOS-A102
Electric Overhead Stirrer FM-EOS-A102 have a capacity of 100 liters and a speed range of 5 to 2,000 rpm, suitable for large-scale mixing tasks. It features a six-segment program setting, allowing for precise control. The stirrer is equipped with an intuitive 3.5-inch TFT touch screen ensuring easy operation. Its clockwise and anti-clockwise rotation options provide flexibility. Our electric overhead stirrer is designed for continuous use, making them ideal for various laboratory setting.
Specifications
| Capacity | 100 L |
| Speed Range | 5 to 2000 rpm |
| Maximum Viscosity | 100000 mPas |
| Diameter | 0.5 to 10 mm |
| Speed Setting Accuracy | 1 rpm |
| Maximum Torque | 80 Ncm |
| Motor Type | BLDC motor |
| Display | 3.5-inch TFT touch screen |
| Timer | 999h 59min 59sec |
| Protection Class | IP42 |
| Communication Interface | USB / RS232 |
| LED Light | Yes |
| Input Power | 180 W |
| Output Power | 144 W |
| Power Supply | AC 230 V 60Hz |
Features
- Screen lock
- LED light
- Intuitive operation
- Overload Protection
- Allow continuous running time
Applications
- Electric Overhead Stirrer is used for mixing, blending, and homogenizing various liquids. It is widely used in research institutions, chemical laboratories and pharmaceutical industries.
Accessories
- H-type stand
Boss Head
Accessories Optional
Accessories Specification Quantity Strap Clamp nil 1 UNIT 3-Blades Propeller 1 SS316, Dia: 50mm, Length: 350mm 1 UNIT 3-Blades Propeller 2 SS316, Dia: 80mm, Length: 350mm 1 UNIT 3-Blades Propeller 3 SS316, Dia: 150mm, Length: 800mm 1 UNIT 4-Blades Propeller 1 SS316, Dia: 50mm, Length: 350mm 1 UNIT 4-Blades Propeller 2 SS316, Dia: 80mm, Length: 350mm 1 UNIT 4-Blades Propeller 3 SS316, Dia: 120mm, Length: 550mm 1 UNIT
