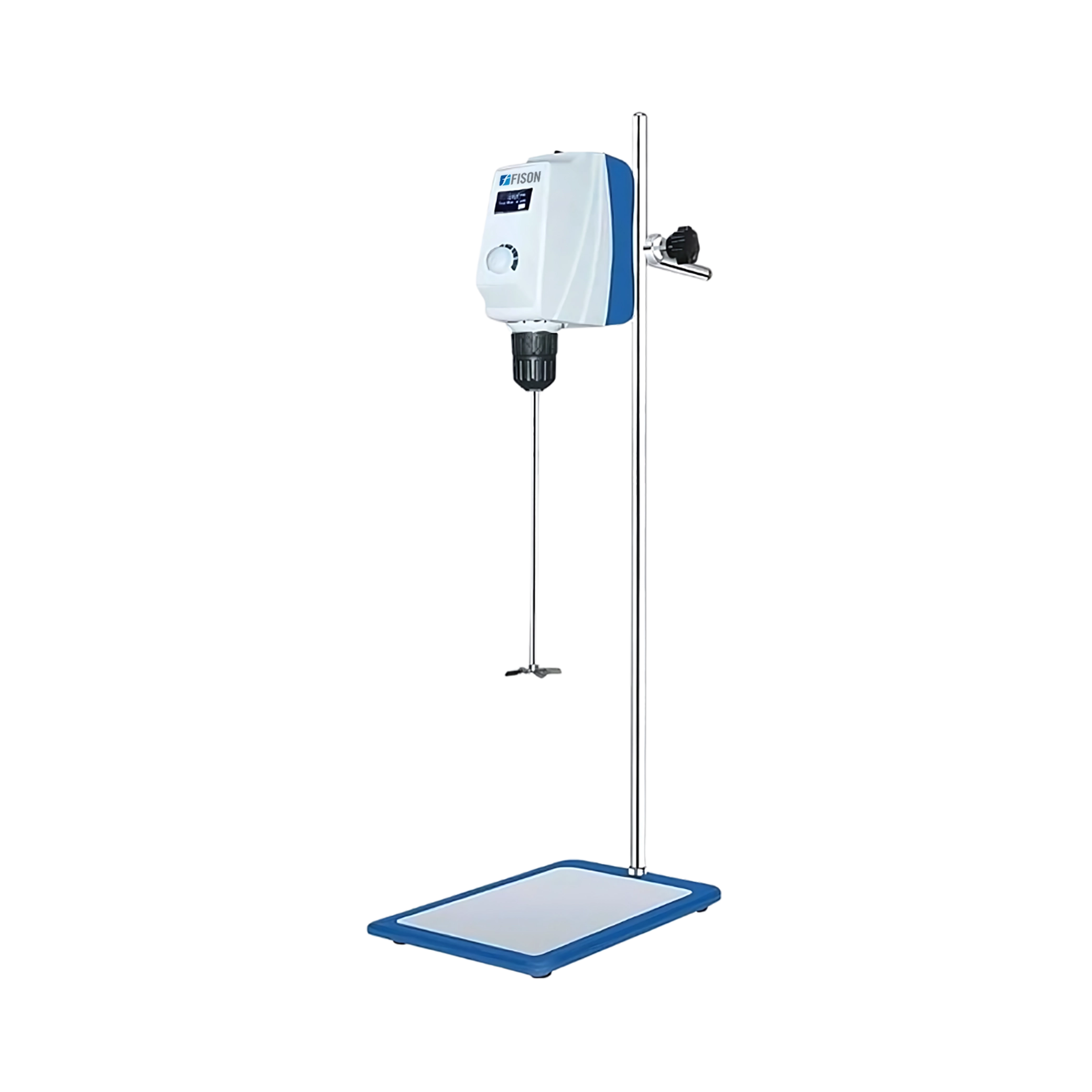

LCD Electric Overhead Stirrer FM-EOS-A100
LCD Electric Overhead Stirrer FM-EOS-A100 offers adjustable speed range of 100 to 2200 rpm and 0.4 Nm adjustable torque. The LCD display allow the user to set the required torque and speed, and observe the true values of torque and speed. It is applicable for maximum 20 L capacity of the sample liquid. Enclosed chuck prevents liquid from splashing into the internal circuit of machine. Designed with Impeller changing hole for easy changing of sample vessel, self-locking drill clip, brushless DC motor and base with protected resist layer. Used in scientific research, colleges, chemical, pharmaceutical and medical units etc.
Specifications
| Capacity | 20 L |
| Speed range | 30 to 2200 rpm |
| Max viscosity | 10000 mPas |
| Diameter | 0.5 to 10 mm |
| Speed display | LCD |
| Speed resolution | ±1rpm |
| Torque | 0.4 Nm |
| Time setting | ≤ 9999 m |
| Ambient temperature | 5 to 40°C |
| Ambient humidity | 0.8 |
| Overload protection | Yes |
| Motor protection | Yes |
| Protect class | IP42 |
| Interface | RS232 |
| Input power | 60 W |
| Output power | 50 W |
| Power | 70 W |
| Power supply | AC 220 V 50 Hz |
| Exterior dimension | 186 × 83 × 220 mm |
| Net weight | 2.6 kg |
Features
- Adjustable speed range 100 to 2200 rpm
- 5.829 kg Base with protective resist layer
- LCD screen display speed and time
- Self-locking drill clip avoid tool installation and agitator
- Automatically adjustable torque
- Alarm function for overload, short circuit and abnormal speed
- Smooth start prevent sample overflow
- Impeller changing hole allows easy changing of vessel
- PC control via RS232 interface
- Brushless DC motor for smooth working
- Overload and motor protection
Applications
- Used in scientific research, colleges, chemical, pharmaceutical and medical units etc.
Optional Propeller
Name Dimension Material Application 4 blades propeller Length: 400 mm, diameter: 50 mm 316 stainless steel Used for mid-high speed 4 blades propeller Length: 350 mm, diameter: 65 mm PTEE Used for mid-high speed One line propeller Length: 400 mm, diameter: 60 mm 316 stainless steel Low viscocity mixing, mid-high mixing One line propeller Length: 350 mm, diameter: 70 mm PTEE Low viscocity mixing, mid-high mixing Flat hole propeller Length: 400 mm, diameter: 68 mm 316 stainless steel Gentle mixing, mid-low speed Flat hole propeller Length: 350 mm, diameter: 68 mm PTEF coating Gentle mixing, mid-low speed
Optional Impeller
Name Dimension Material Application Centrifugal impeller Length: 400 mm, diameter: 90 mm 316 stainless steel Used for small mouth round flask, mid-high speed Centrifugal impeller Length: 350 mm, diameter: 85 mm PTEF coating Used for small mouth round flask, mid-high speed
