Ductless Fume Hood FM-DFL-A203

Name: Ductless Fume Hood FM-DFL-A203
Brand: Fison
SKU: FM-DFL-A203
Rating: 4.3 (286 reviews)

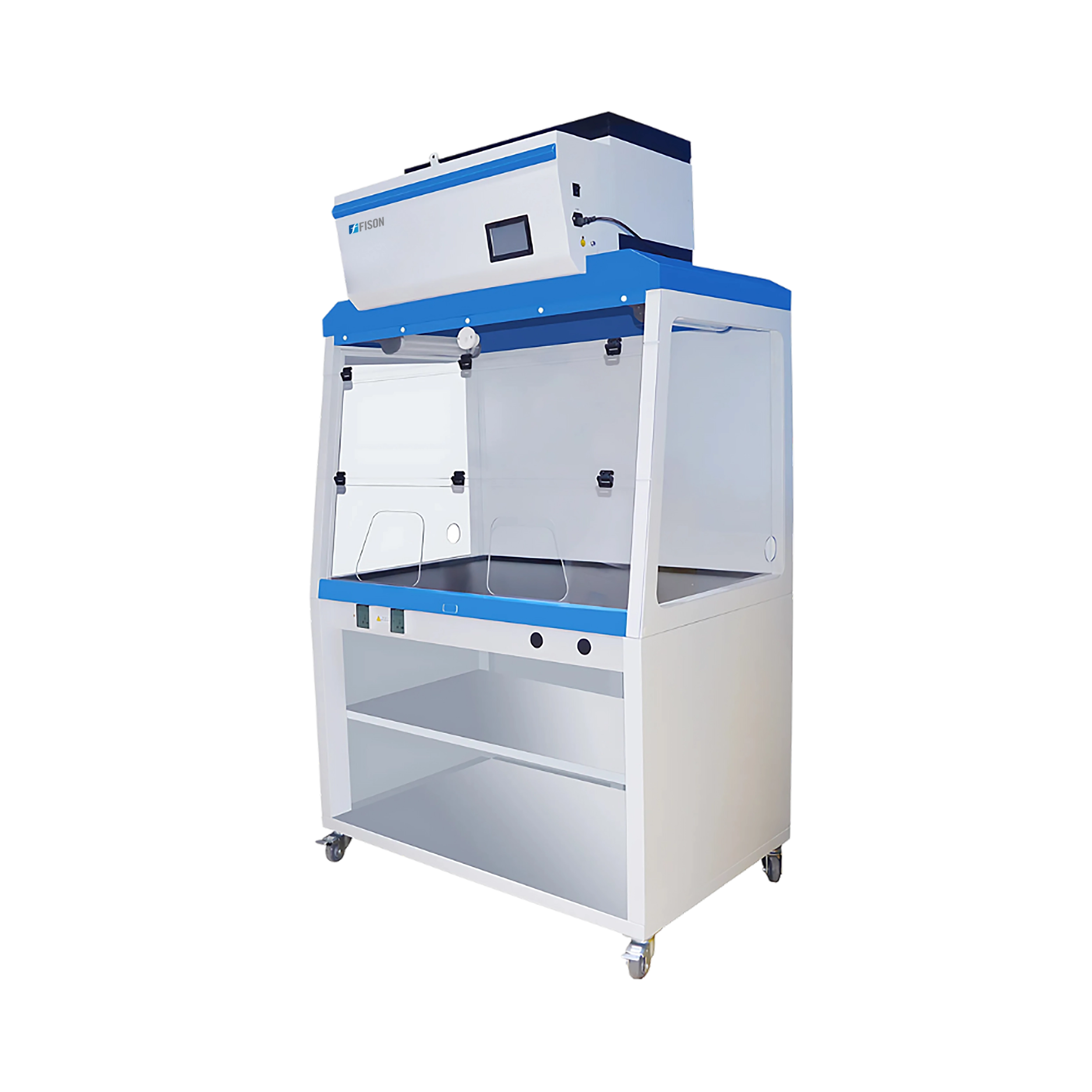

Ductless Fume Hood FM-DFL-A203 is a floor standing unit with microprocessor control system, and LCD display. It comes with 1710 × 690 × 740 mm chamber dimension, 650 mm maximum opening and 4 pcs chemical filter. Equipped with UV lamp for effective sterilization of working environment, centrifugal blower and electronic control system. Designed with three side transparent acrylic glass window, front window with reversal design and waterproof sockets, 4 caster wheel for easy movement and double layer structure: 1 mm metal sheet surface and chemical resistant phenolic resin work table.

Catalog Buy Now

✔ Ductless type of fume hood
✔ Microprocessor control system
✔ Digital LCD display
✔ UV lamp for effective sterilization of working environment
✔ Built-in centrifugal blower
✔ Three side transparent acrylic glass window, front window with reversal design
✔ 4 Casters for easy movement
✔ Two shelves below work cabinet for storage
✔ Double layer structure: 1 mm metal sheet surface and chemical resistant phenolic resin work table
✔ External material made up of cold rolled steel with anti-bacterial powder coating
✔ Electronic control system for anti-overload, anti-electric shock and stable performance
✔ Audible and visual alarm for changing filter
✔ Inside and outside probe to detect indoor air pollution and filter conditions

Internal dimension (W × D × H)

1710 × 690 × 740 mm

External dimension (W × D × H)

1800 × 940 × 2140 mm

Work surface height

900 mm

Maximum opening

650 mm

Air velocity

0.25 to 0.35 m/s

Airflow volume

415 m3/h

Noise

≤ 55 dB (A)

Fluorescent lamp

16 W × 3

UV lamp

Emission of 253.7 nanometers for most efficient decontamination

Blower

Built-in centrifugal blower, speed adjustable

Front window

Acrylic window; Manual; reversal design;

Material

Exterior	Cold-rolled steel with anti-bacteria powder coating.
Side window	Acrylic Window
Work table	Chemical resistant phenolic resin

Chemical filter

4 pcs

Power

500 W

Power supply

AC 220 V ± 10%, 50/60 Hz; 110 V ± 10%, 60 Hz

Pacakaging dimension

Main body	1950 × 1110 × 1510 mm
Base cabinet	1950 × 1110 × 1080 mm

Gross weight

Main body	280 kg
Base cabinet	155 kg

Used for providing effective working environment for laboratory experiments in various fields of microbiology, chemical, biotechnology, research centers etc.
