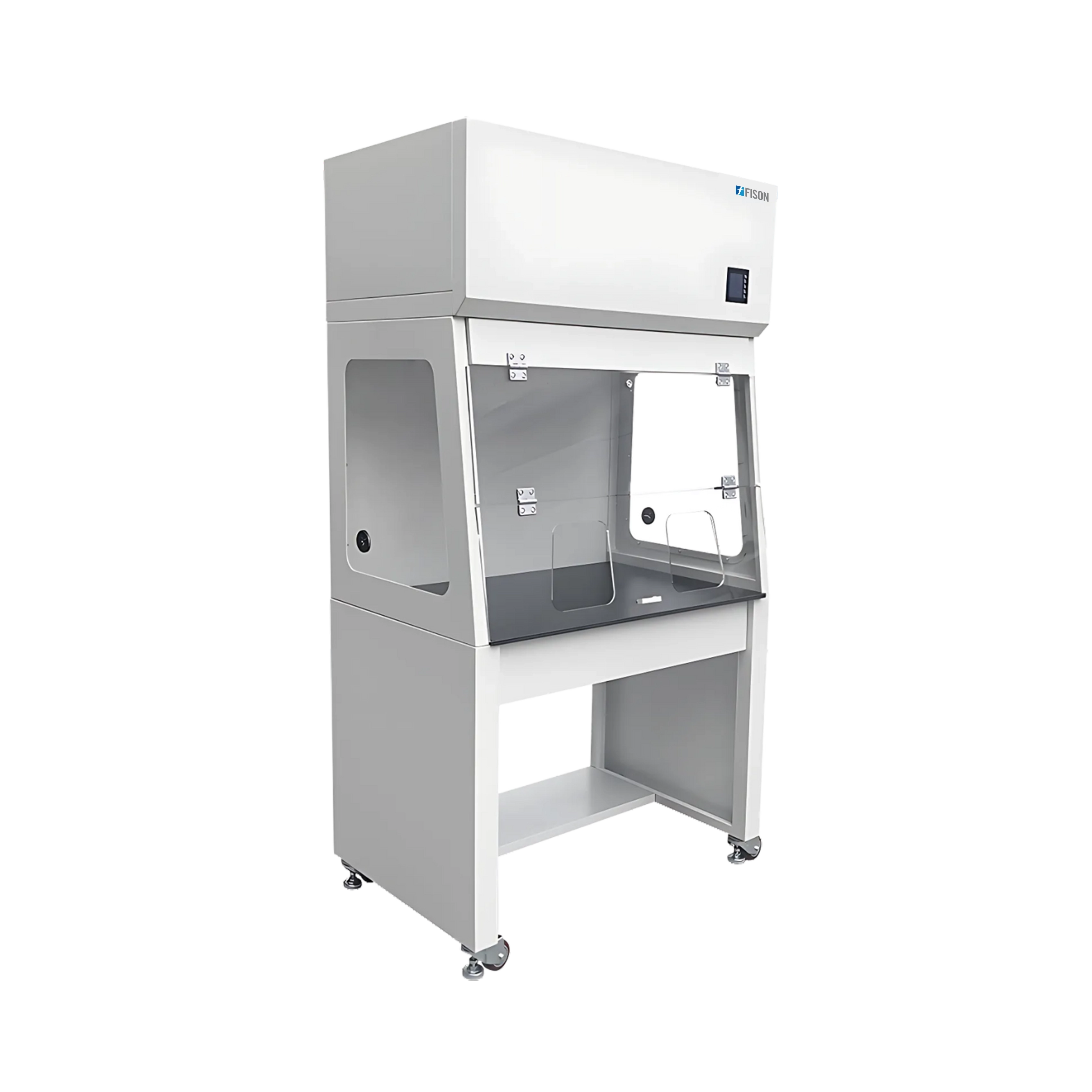

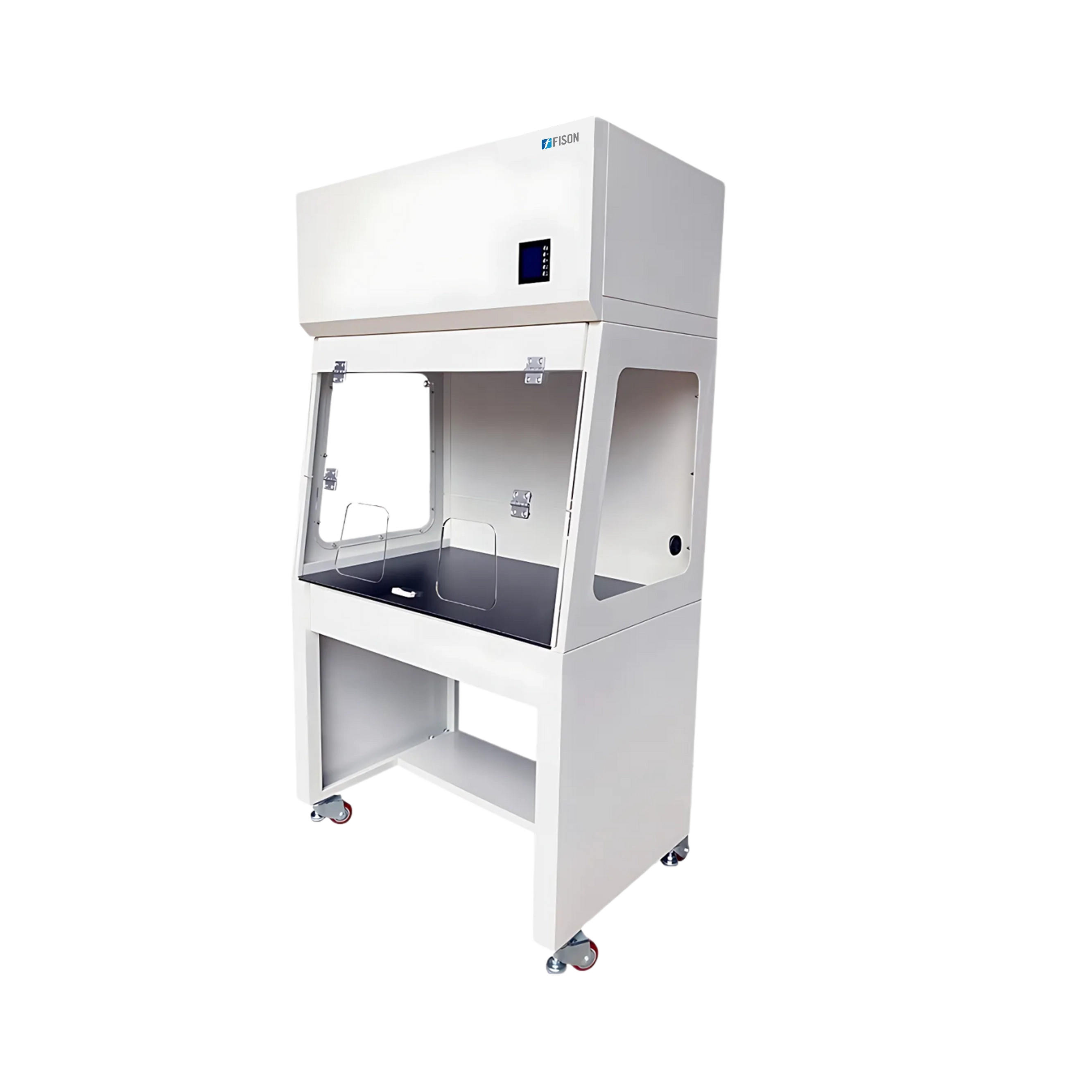

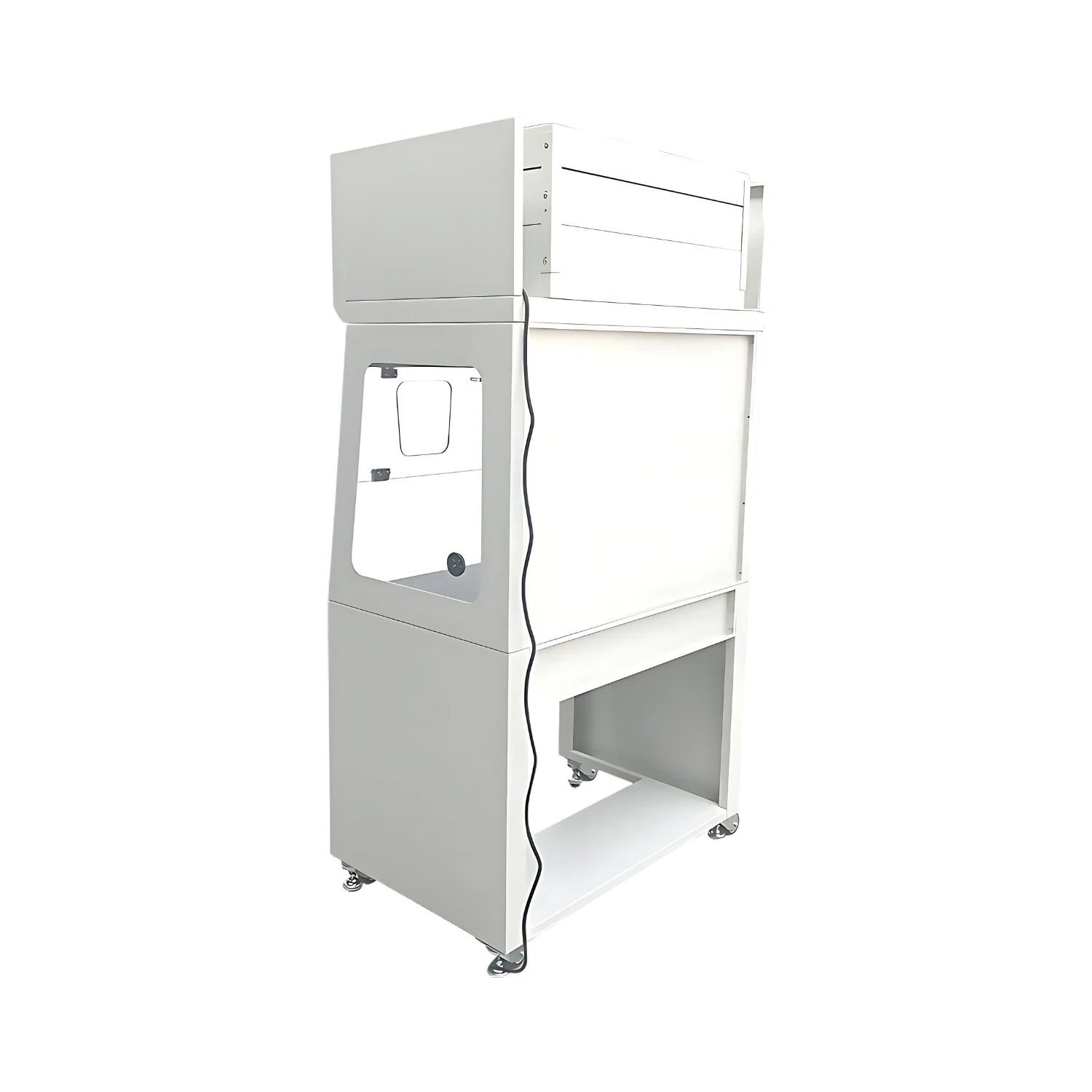

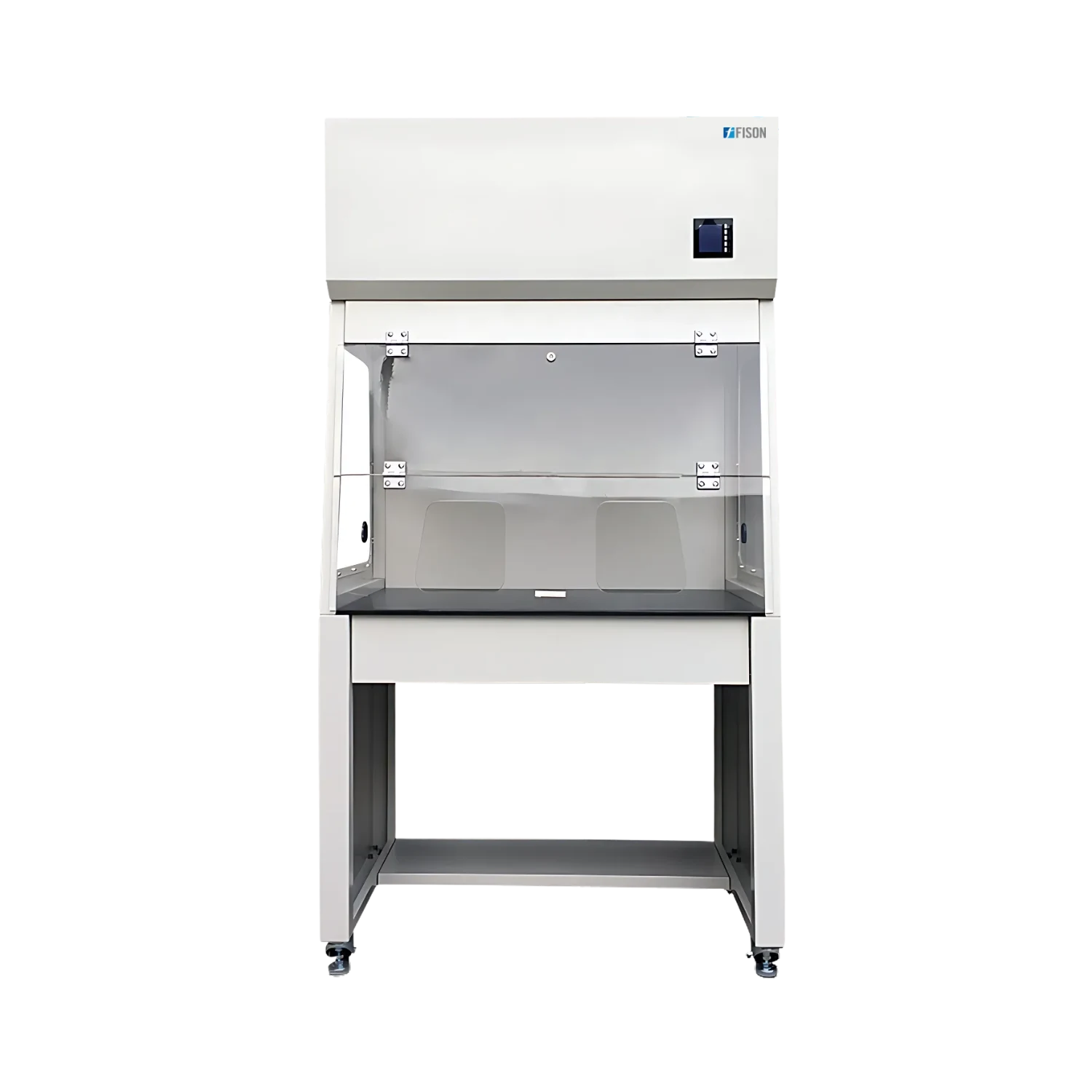

Ductless Fume Hood FM-DFL-A200
Ductless Fume Hood FM-DFL-A200 is a floor standing unit with microprocessor control system, and LCD display. It comes with 910 × 690 × 740 mm chamber dimension, 650 mm maximum opening and 2 pcs chemical filter. Equipped with UV lamp for effective sterilization of working environment, centrifugal blower and electronic control system. Designed with three side transparent acrylic glass window, front window with reversal design and waterproof sockets, 4 caster wheel for easy movement and double layer structure: 1 mm metal sheet surface and chemical resistant phenolic resin work table.
Specifications
| Internal dimension (W × D × H) | 910 × 690 × 740 mm | ||||||
| External dimension (W × D × H) | 1000 × 880 × 2140 mm | ||||||
| Work surface height | 900 mm | ||||||
| Maximum opening | 650 mm | ||||||
| Air velocity | 0.25 to 0.35 m/s | ||||||
| Airflow volume | 105 m3/h | ||||||
| Noise | ≤ 55 dB (A) | ||||||
| Fluorescent lamp | 16 W × 2 | ||||||
| UV lamp | Emission of 253.7 nanometers for most efficient decontamination | ||||||
| Blower | Built-in centrifugal blower, speed adjustable | ||||||
| Front window | Acrylic window; Manual; reversal design; | ||||||
| Material |
|
||||||
| Chemical filter | 2 pcs | ||||||
| Power | 400 W | ||||||
| Power supply | AC 220 V ± 10%, 50/60 Hz; 110 V ± 10%, 60 Hz | ||||||
| Pacakaging dimension |
|
||||||
| Gross weight |
|
Features
- Ductless type of fume hood
- Microprocessor control system
- Digital LCD display
- UV lamp for effective sterilization of working environment
- Built-in centrifugal blower
- Three side transparent acrylic glass window, front window with reversal design
- 4 Casters for easy movement
- Two shelves below work cabinet for storage
- Double layer structure: 1 mm metal sheet surface and chemical resistant phenolic resin work table
- External material made up of cold rolled steel with anti-bacterial powder coating
- Electronic control system for anti-overload, anti-electric shock and stable performance
- Audible and visual alarm for changing filter
- Inside and outside probe to detect indoor air pollution and filter conditions
Applications
- Used for providing effective working environment for laboratory experiments in various fields of microbiology, chemical, biotechnology, research centers etc.
Accessories
Accessories no. Accessories name Unit 1 Fluorescent Lamp, 1 2 Base cabinet total load of 2 waterproof sockets: 500W 1
Accessories Optional
Accessories no. Accessories name Unit 1 Water tap 1 2 Gas tap 1 3 UV Lamp 1 4 Electric height adjustable Base Stand 1 5 HEPA filter 1 6 Chemical filter 1 7 Water Tap 1
