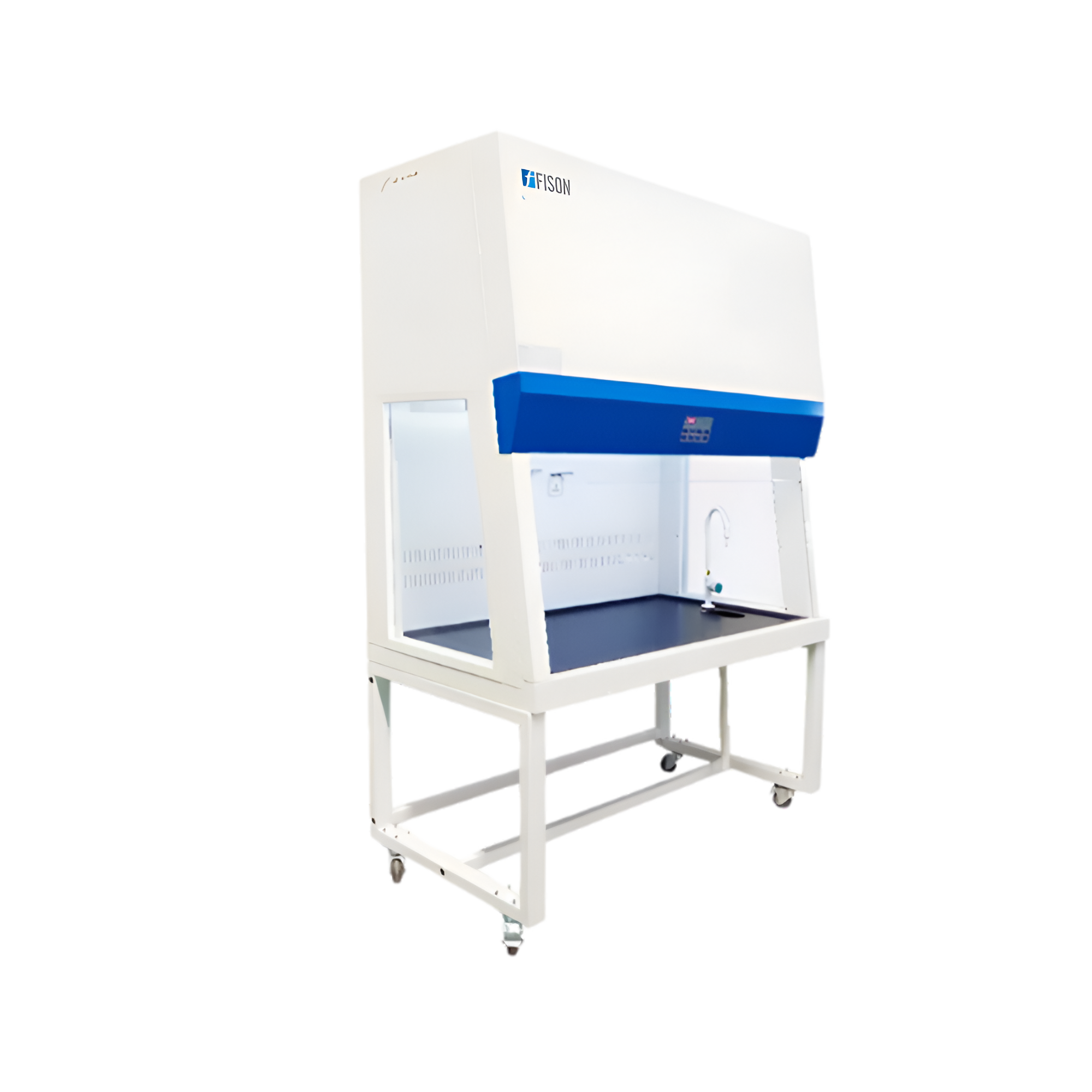

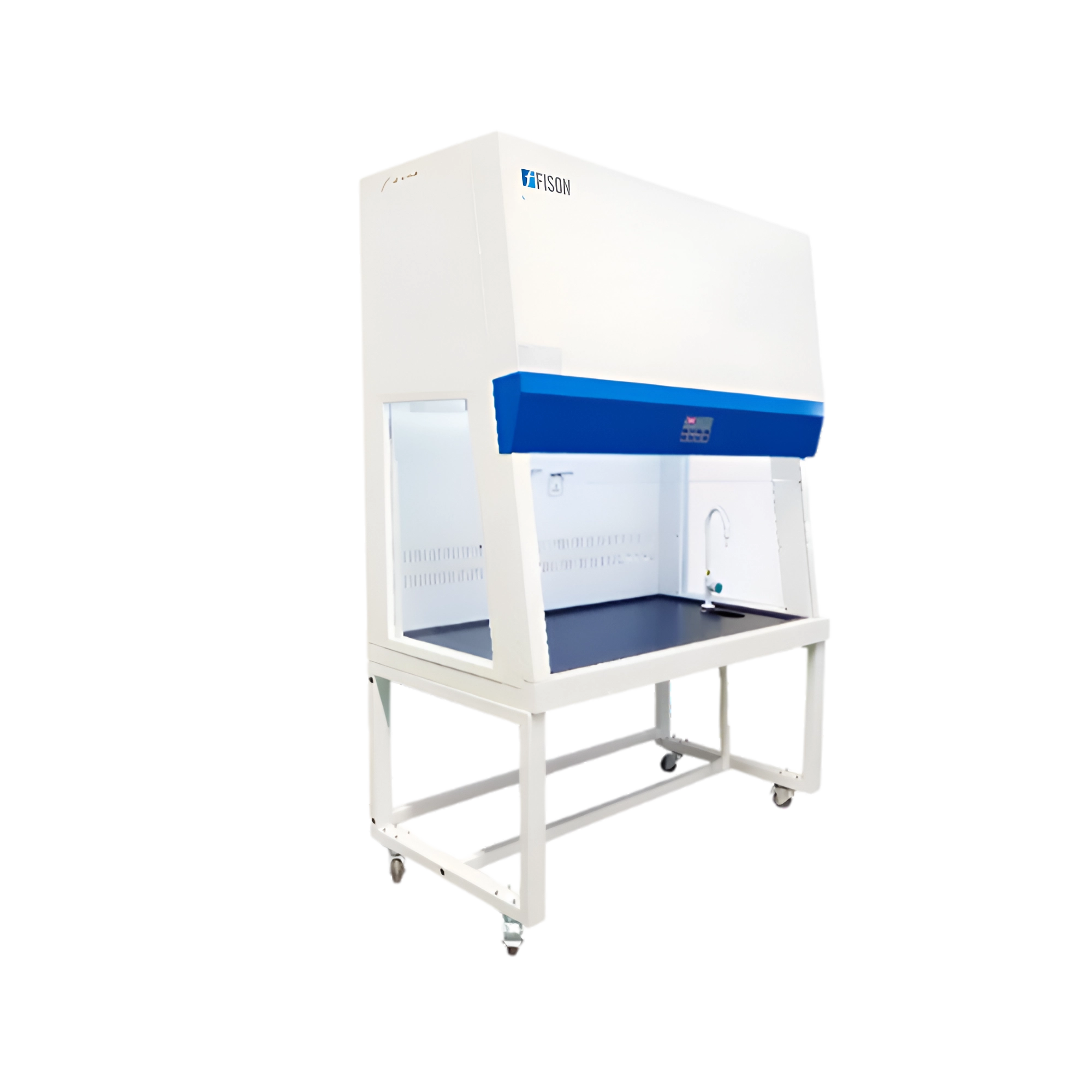

Ducted Fume Hood FM-PDF-A202

Name: Ducted Fume Hood FM-PDF-A202
Brand: Fison
SKU: FM-PDF-A202
Rating: 4.3 (241 reviews)

Ducted Fume Hood FM-PDF-A202 is a floor standing unit with microprocessor control system, and LED display. It comes with 1380 × 730 × 745 mm chamber dimension, 520 mm maximum opening and 9 levels adjustable air speed. Equipped with UV lamp for effective sterilization of working environment, centrifugal blower and electronic control system. Designed with three side transparent toughened glass window, anti-UV motorized sliding design front window and waterproof sockets, 4 caster wheel for easy movement, water sink, water tap, gas tap, foot switch, exhaust, active carbon filter and chemical resistant phenolic resin work table.

Catalog Buy Now

✔ Ductless type of fume hood
✔ 9 levels adjustable air speed
✔ Resistance to weak acid and alkali
✔ UV lamp for effective sterilization of working environment
✔ Built-in centrifugal blower
✔ Three side transparent glass window, anti-UV motorized sliding design front window
✔ Microprocessor control system
✔ Digital LED display
✔ 4 Casters for easy movement
✔ Chemical resistant phenolic resin work table
✔ Ergonomically design 8 degree front slope
✔ External material made up of cold rolled steel with anti-bacterial powder coating
✔ Recovery function from power failure
✔ Alarm when filter work time is 3500 hours

Internal dimension (W × D × H)

1380 × 730 × 745 mm

External dimension (W × D × H)

1500 × 840 × 2150 mm

Work surface height

750 mm

Maximum opening

520 mm

Air velocity

0.3 to 0.8 m/s

Noise

≤ 68 dB

LED lamp

16 W × 1

UV lamp

Emission of 253.7 nm for most efficient decontamination

Blower

Built-in centrifugal blower, speed adjustable with 9 levels

Front window

Motorized 5 mm anti-UV toughened glass

Material

Exterior	Cold-rolled steel with anti-bacteria powder coating.
Work table	Chemical resistant phenolic resin

Waterproof sockets

2 pcs

Power

500 W

Power supply

AC 220 V ± 10%, 50/60 Hz; 110 V ± 10%, 60 Hz

Packaging dimension (W × D × H)

1650 × 1120 × 1680 mm

Gross weight

290 kg

Used for providing effective working environment for laboratory experiments in various fields of microbiology, chemical, biotechnology, research centers etc.

Accessories no.	Accessories name	Unit
1	Water tap	1
2	Gas tap	1
3	Water sink	1
4	Base stand	1
5	UV lamp	2
6	LED lamp	1
7	Socket
8	4 m exhaust duct	1
9	Active carbon filter	1
10	Foot switch	1
