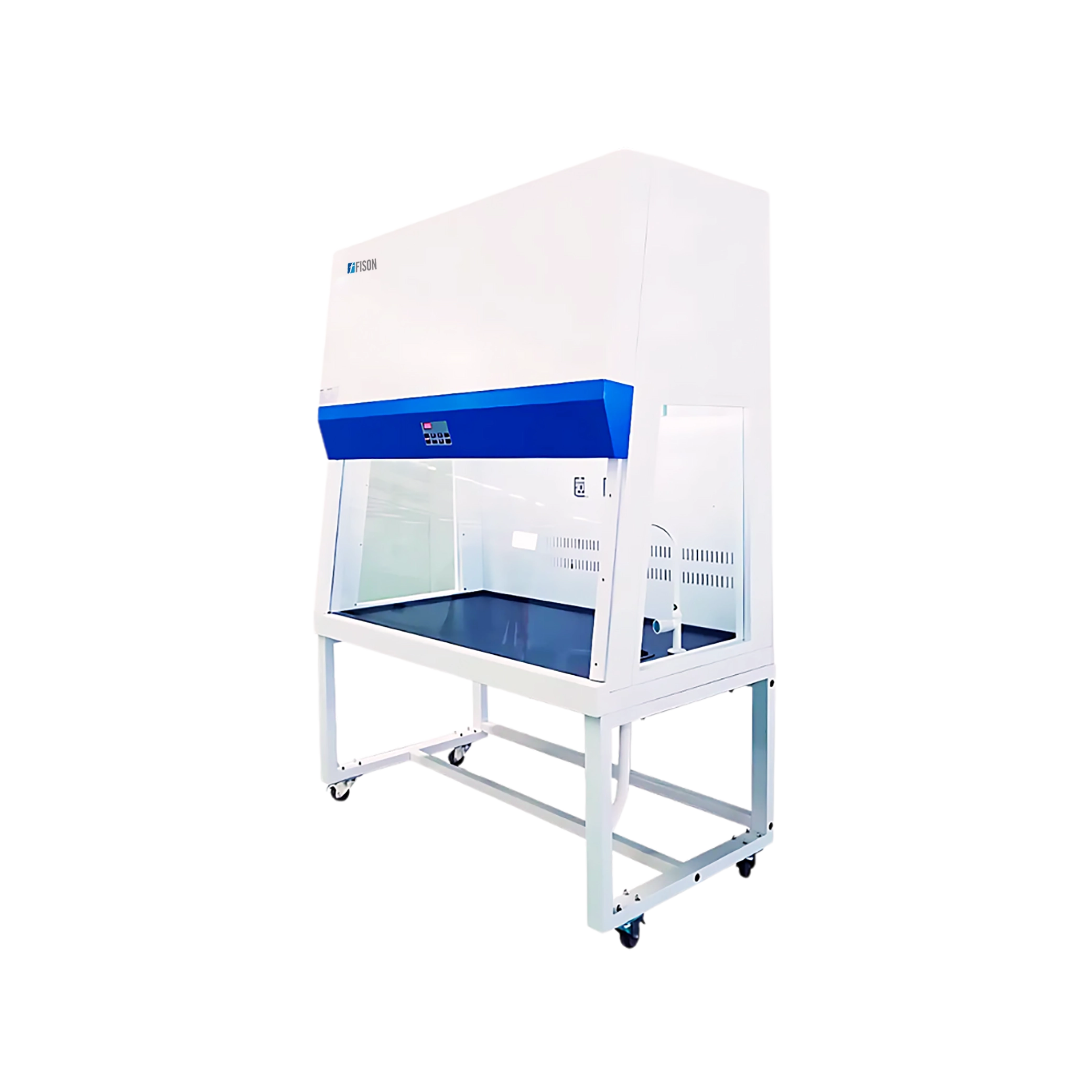

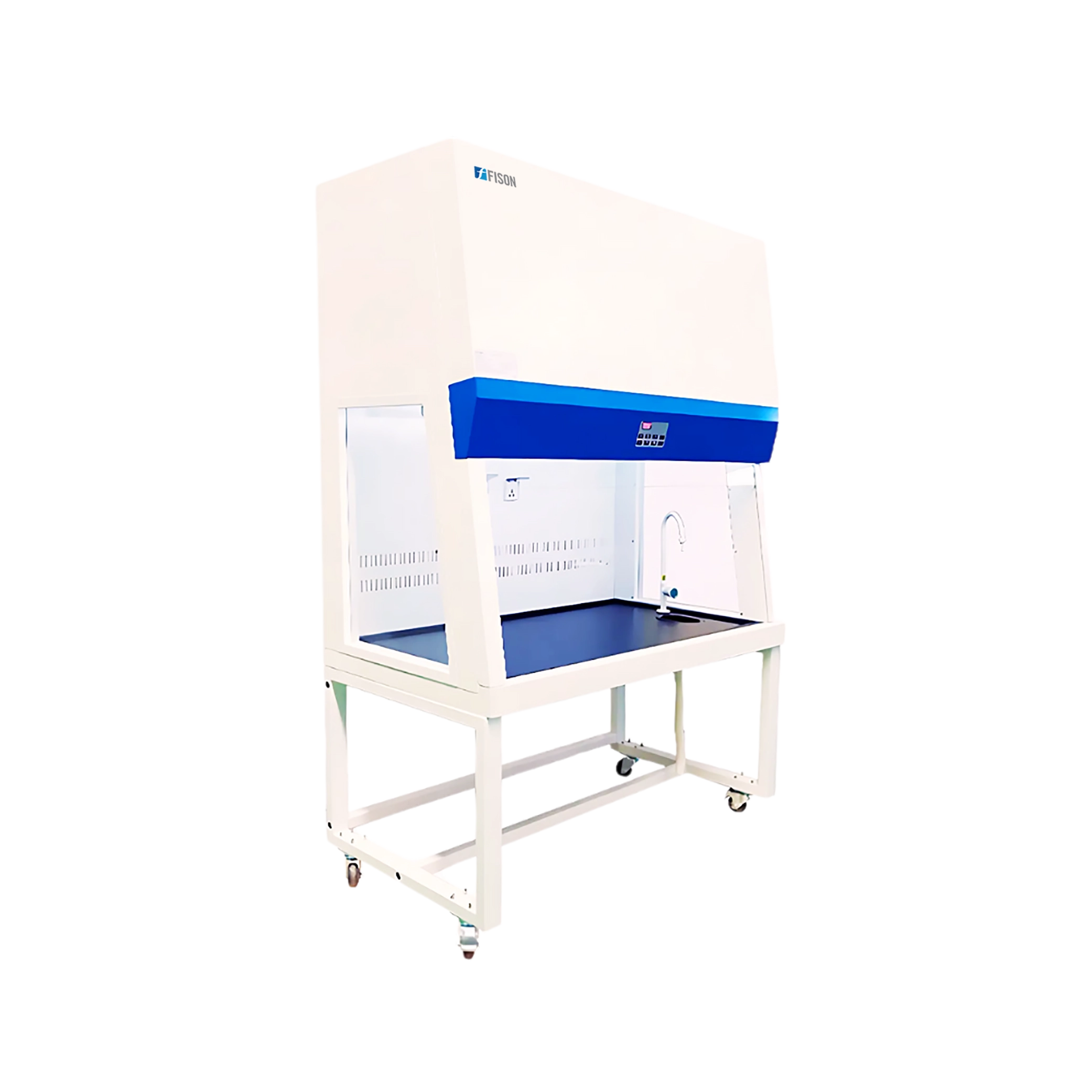

Ducted Fume Hood FM-PDF-A200
Ducted Fume Hood FM-PDF-A200 features an exhaust system with a capacity of 630 m³/h, effectively removing contaminated air to maintain a safe environment. Its motorized front glass window, made of toughened anti-UV glass, ensures smooth operation. This includes alarm system alerts when the filter reaches 3500 hours, ensuring timely replacement. Our Ducted Fume Hood built-in active carbon filter purifies the air preventing pollutants from escaping.
Specifications
| Work Surface Height | 750mm |
| Air Velocity | 0.3 to 0.8m/s |
| Noise | ≤ 68dB |
| LED Lamp | 8W×1 |
| UV Lamp | 20W |
| Blower | Built-in centrifugal blowers, speed adjustable with 9 levels |
| Front Window | Motorized, 5mm toughened glass, anti-UV |
| Material Exterior | Cold-rolled steel with anti-bacteria powder coating |
| Material Work Table | Chemical resistant phenolic resin |
| Waterproof Sockets | 1 pc |
| System Exhaust Volume | 630m³/h |
| Power Consumption | 400W |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Dimensions (W×D×H) | 1150×1120×1680mm |
| Internal Dimension (W×D×H) | 880×730×745mm |
| External Dimension (W×D×H) | 1000×840×2150mm |
| Weight | 230kg |
Features
- Balanced air compensation system
- Reliable power memory function

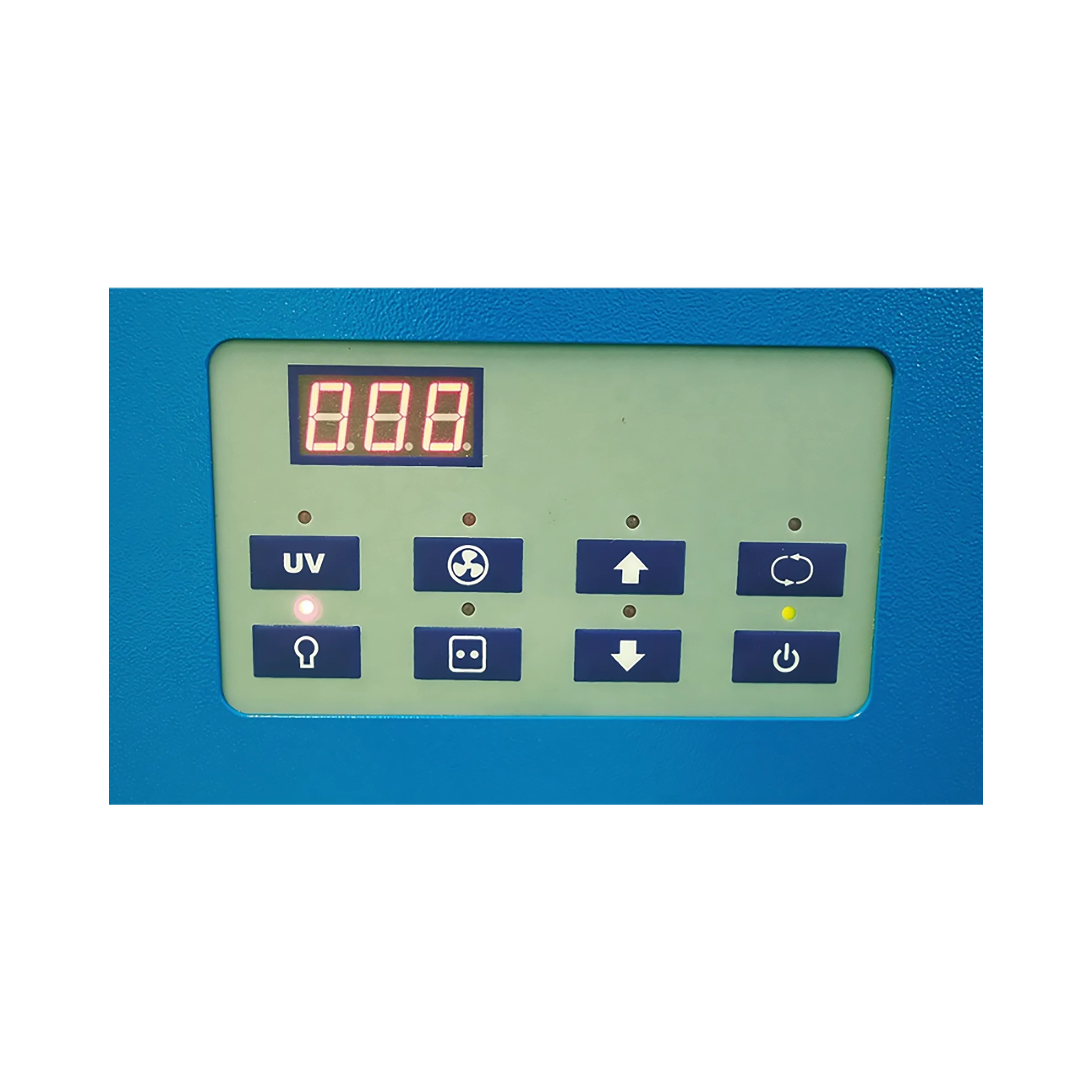

- Advanced microprocessor control system
- Efficient UV sterilization lamp
- Integrated waterproof electrical sockets
Applications
- Ducted Fume Hood FM-PDF-A200 is used in laboratories to safely capture and exhaust hazardous fumes, vapours, and aerosols. It is ideal for protecting both operators and the surrounding environment during chemical experiments.
Accessories
- Water tap
Gas tap
Water sink
Base stand
UV lamp×2, LED lamp
Socket, 4.3 meters exhaust duct
Active carbon filter
Footswitch
Accessories Optional
- HEPA filter
Activated carbon filters
