PP Ducted Fume Hood FM-PDF-A103

PP Ducted Fume Hood FM-PDF-A103

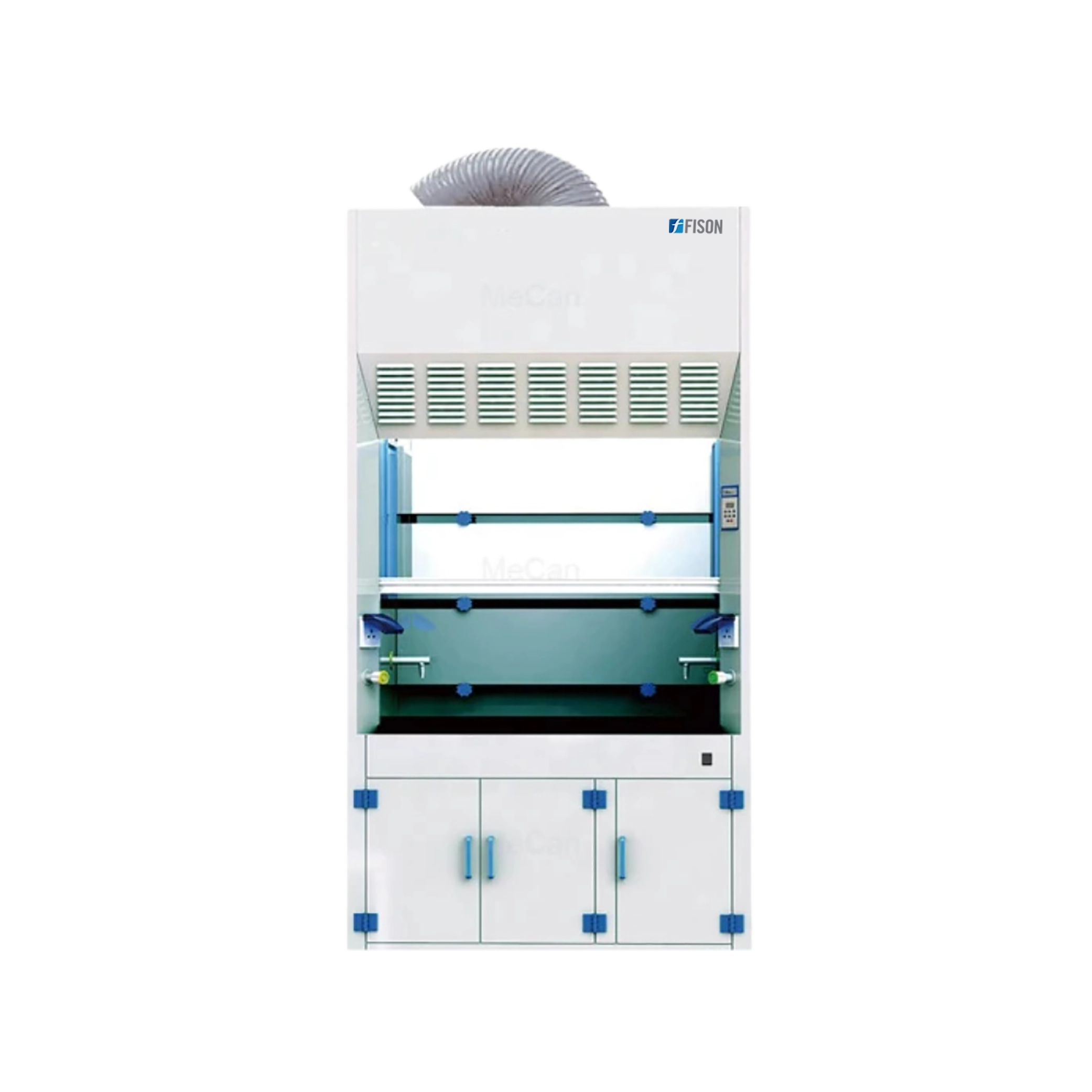

PP Ducted Fume Hood FM-PDF-A103 is a floor standing unit with microprocessor control system, and LED display. It comes with 1580 × 570 × 700 mm chamber dimension, 740 mm maximum opening and adjustable air speed. Equipped with 4 m PVC exhaust duct situated at the top, and built-in PP centrifugal blower. Designed with Manual 5 mm toughened glass adjusting window, waterproof sockets, water sink, water tap, gas tap, exhaust and chemical resistant phenolic resin work table. Single door and double door base cabinet with handle allows large storage place.

Specifications

Internal dimension (W × D × H) 1587 × 560 × 700 mm
External dimension (W × D × H) 1847 × 800 × 1422 mm
Work surface height 820 mm
Maximum opening 740 mm
Air velocity 0.3 to 0.8 m/s
Noise ≤ 68 dB
Illuminating lamp LED
36 W × 2
Blower 2 Built-in PP centrifugal blower, speed adjustable
Front window Manual 5 mm toughened glass with adjusting height
Material
Exterior8 mm thickness porcelain white PP, resistance to acid, alkali and anti-corrosion
Work tableChemical resistant phenolic resin
Waterproof socket 2 pcs
Power 360 W
Power supply AC 220 V ± 10%, 50/60 Hz or 110 V ± 10%, 60 Hz
Pacakging dimension
Main body1988 × 938 × 1612 mm
Base cabinet1988 × 888 × 1000 mm
Net weight 177 kg
Gross weight 345 kg

Features

  • Ducted type of fume hood
  • Adjustable air speed
  • Resistance to weak acid, alkali and anti-corrosive
  • Built-in centrifugal blower
  • Manual 5 mm toughened glass window with adjusting height
  • Remote control water and gas system
  • Designed with waterproof sockets, PP sink and anti-corrosive water tap
  • 4 m PVC exhaust duct at top
  • Single door and double door base cabinet with handle

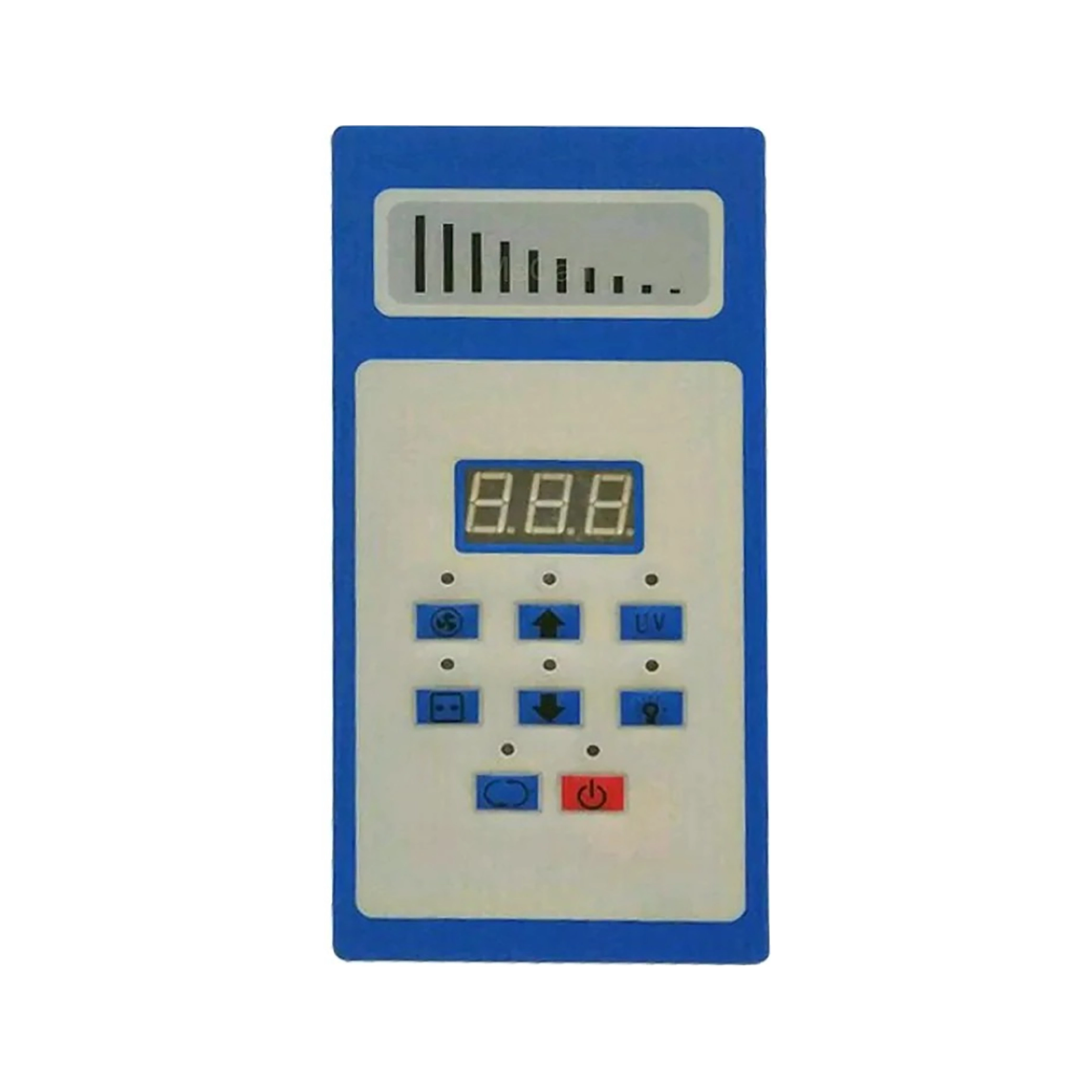

  • Microprocessor control system
  • Digital LED display
  • Chemical resistant phenolic resin work table
  • 8 mm thickness porcelain white PP external material
  • Recovery from power failure

Applications

  • Used for providing effective working environment for laboratory experiments in various fields of microbiology, chemical, toxicology, biotechnology, research centers etc. Also has applications in chemical engineering, material science, environmental toxic analysis, analytical chemistry, and trace metal analysis.

Accessories

  • Accessories no. Accessories name Unit
    1 Illuminating lamp 1

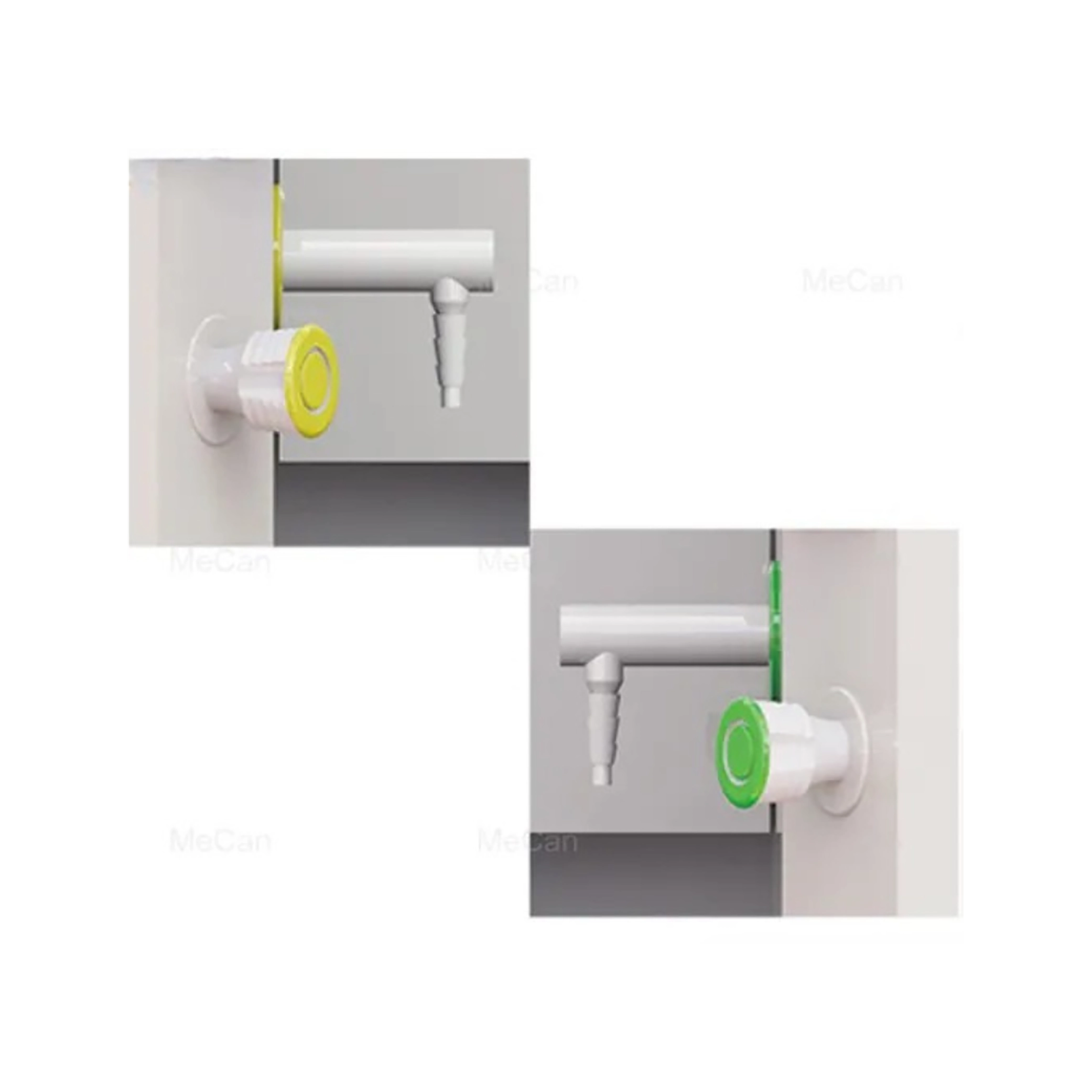

    2 Water tap 1
    3 Gas tap 1

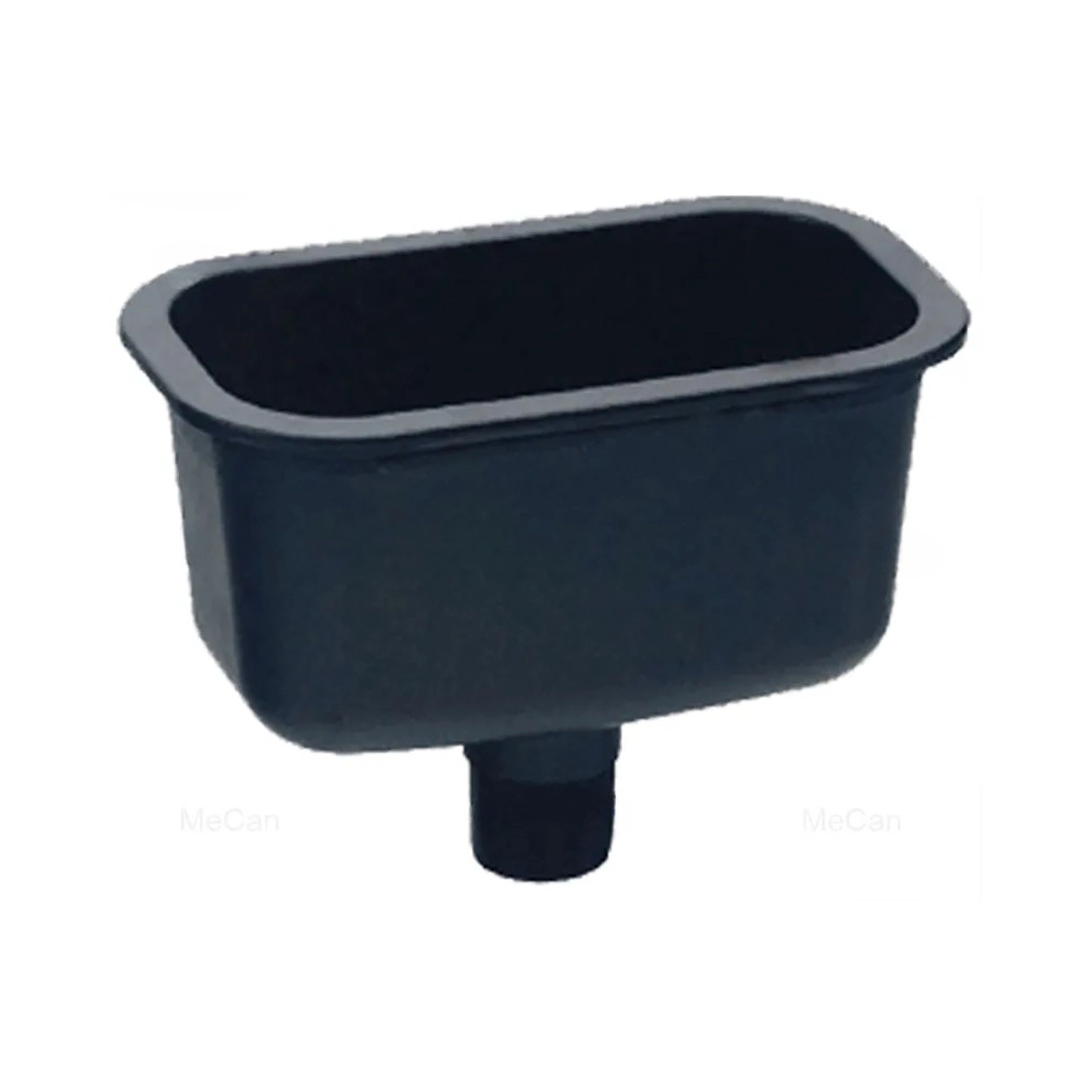

    4 Water sink 1
    5 Base cabinet 1

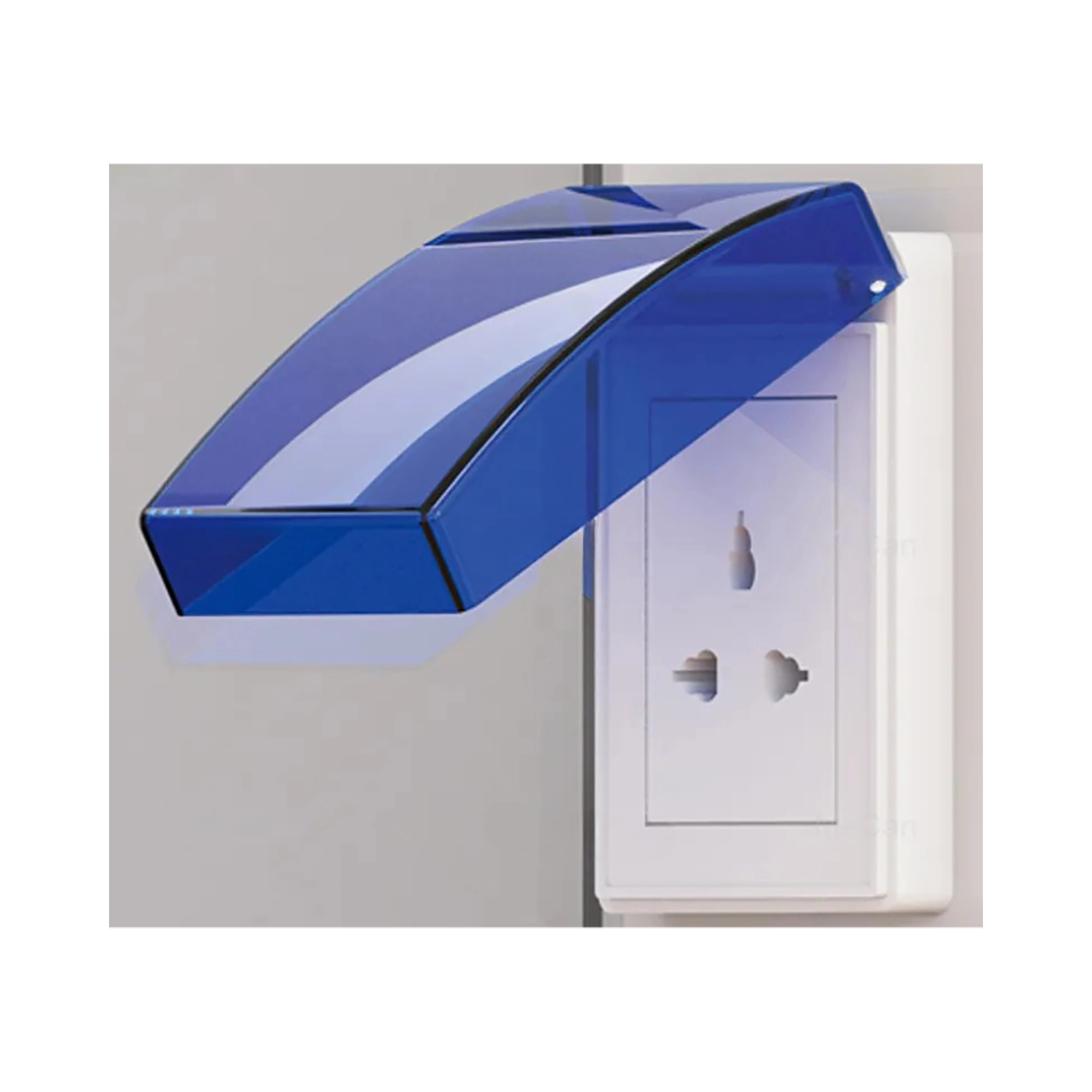

    6 Waterproof socket 2
    7 4 m PVC exhaust duct 2
    8 PP centrifugal blower pipe strap 4

Accessories Optional

  • Accessories no. Accessories name Unit
    1 PP work table 1
    2 Epoxy resin board 1
    3 Ceramic board 1
    4 Outer PVC centrifugal blower 1
