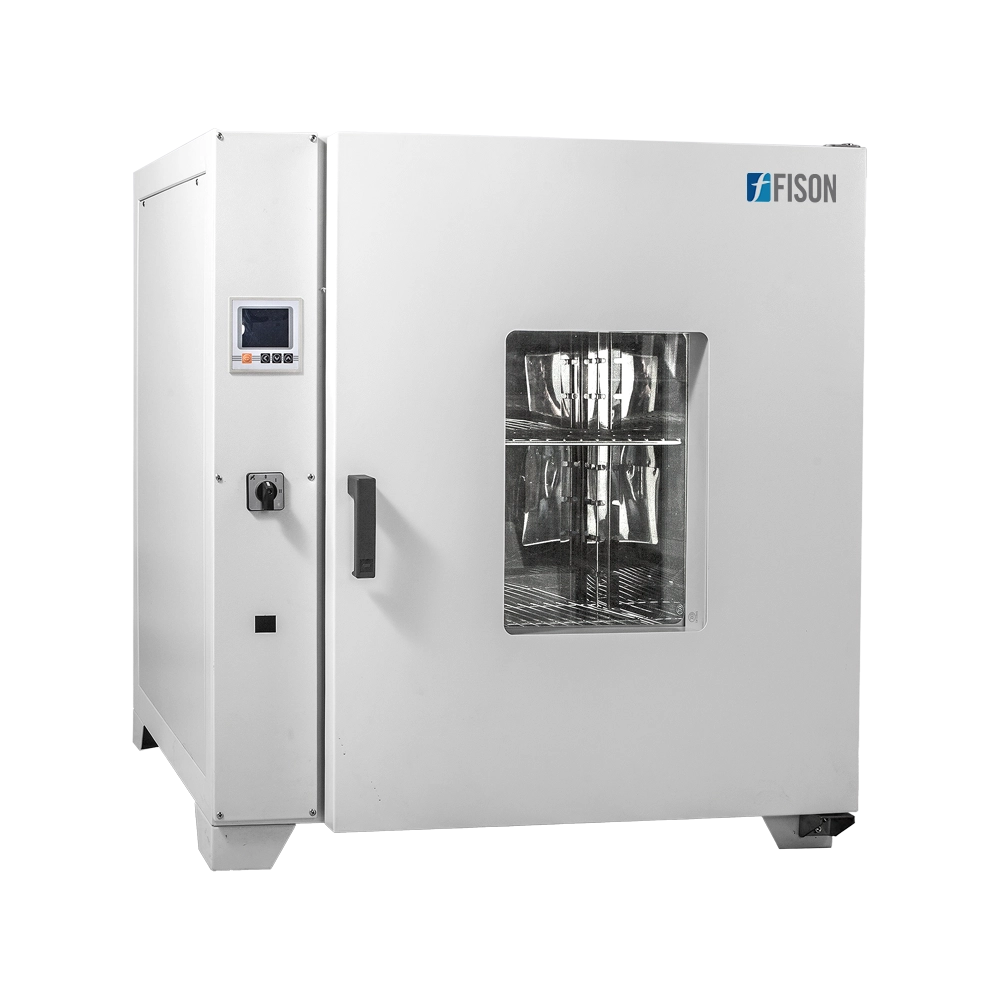

Drying Oven FM-DO-A300

Drying Oven FM-DO-A300

Drying Oven FM-DO-A300 features a temperature control range from room temperature +10℃ to 250℃, allowing for flexible use. It utilizes forced convection to heat objects quickly, significantly reducing the sterilization time. The oven includes a leakage protector for added safety during operation. Its dual over-temperature protection system automatically interrupts power if limits are exceeded. Our drying oven is designed with intelligent adjustable timing control, providing robust performance.

Specifications

Temperature Control Range Room temperature +10℃ to 250℃
Temperature Resolution ± 1℃
Ambient Temperature +5 to 40℃
Slide Bracket (Standard) 2
Timing Range 1 to 9999min
Input Power 650 W
Power Supply 220 V 50 Hz
Chamber Dimension 300 × 300 × 280 mm
Dimension 580 × 500 × 450 mm

Features

  • Microprocessor temperature controller
  • Stainless steel arc structure
  • Convenient operation
  • Energy-efficient design
  • Adjustable shelves

Applications

  • Drying Oven is widely used for removing moisture and sterilizing materials in research labs, hospitals, chemical plants, and manufacturing facilities.

Alternative Models Of Drying Oven

Fison Drying Oven sterilizes equipment and removes moisture from materials for reliable processing. They provide precise control and uniform heat distribution for even drying using radiation and thermal energy. They feature adjustable shelves for flexibility in accommodating various sizes and types of materials. The system has digital controls, timer, and overheat protection to enhance usability and safety. Our Drying Oven ensure products are free from contaminants and moisture before packaging during production.

Drying oven FM-DO-A100

  • Chamber volume: 30 L
  • Method: The aplomb forces convection
  • Temperature range: Ambient temperature + 10 to 200°C
Catalog

Drying oven FM-DO-A101

  • Chamber volume: 70 L
  • Method: The aplomb forces convection
  • Temperature range: Ambient temperature + 10 to 200°C
Catalog

Drying oven FM-DO-A102

  • Chamber volume: 140 L
  • Method: The aplomb forces convection
  • Temperature range: Ambient temperature + 10 to 200°C
Catalog
Drying oven FM-DO-A103
  • Chamber volume: 230 L
  • Method: The aplomb forces convection
  • Temperature range: Ambient temperature + 10 to 200°C
Catalog
Drying oven FM-DO-A104
  • Chamber volume: 430 L
  • Method: The aplomb forces convection
  • Temperature range: Ambient temperature + 10 to 200°C
Catalog

Drying oven FM-DO-A105

  • Chamber volume: 620 L
  • Method: The aplomb forces convection
  • Temperature range: Ambient temperature + 10 to 200°C
Catalog

Drying Oven FM-DO-A200

  • Capacity: 640L
  • Temperature Range: 50 to 300℃
  • Temperature Resolution: 0.1℃
Catalog

Drying Oven FM-DO-A106

  • Chamber volume: 125 L
  • Method: Forced convection
  • Temperature Range: RT + 10 to 300 ℃
Catalog
Drying Oven FM-DO-A107
  • Capacity: 50 L
  • Temperature Range: 50 to 400 °C
  • Temperature Fluctuation: ± 0.5 °C
Catalog
Drying Oven FM-DO-A201
  • Capacity: 252 L
  • Temperature Range: RT + 10 to 300 °C
  • Temperature Fluctuation: ± 1 °C
Catalog

Vacuum Oven

Vacuum oven FM-VO-A200

  • Chamber volume : 8 L
  • Temperature range : RT+10 to 200°C (250°C)
  • Working temperature : +5 to 40℃
Catalog

Vacuum oven FM-VO-A201

  • Chamber volume : 25 L
  • Temperature range : RT+10 to 200°C (250°C)
  • Working temperature : +5 to 40℃
Catalog
Vacuum oven FM-VO-A202
  • Chamber volume : 55 L
  • Temperature range : RT+10 to 200°C (250°C)
  • Working temperature : +5 to 40℃
Catalog

Vacuum Pump for Vacuum Oven

Rotary Vane Vacuum Pump FM-VP-01
  • Exhausting speed : 1 L/S
  • Ultimate vacuum Gas Ballast Off : ≤ 6×10-2
  • Ultimate vacuum Gas Ballast on : ≤ 1.33
Catalog

Rotary Vane Vacuum Pump FM-VP-02

  • Exhausting speed : 2 L/S
  • Ultimate vacuum Gas Ballast Off : ≤ 6×10-2
  • Ultimate vacuum Gas Ballast on : ≤ 1.33
Catalog
