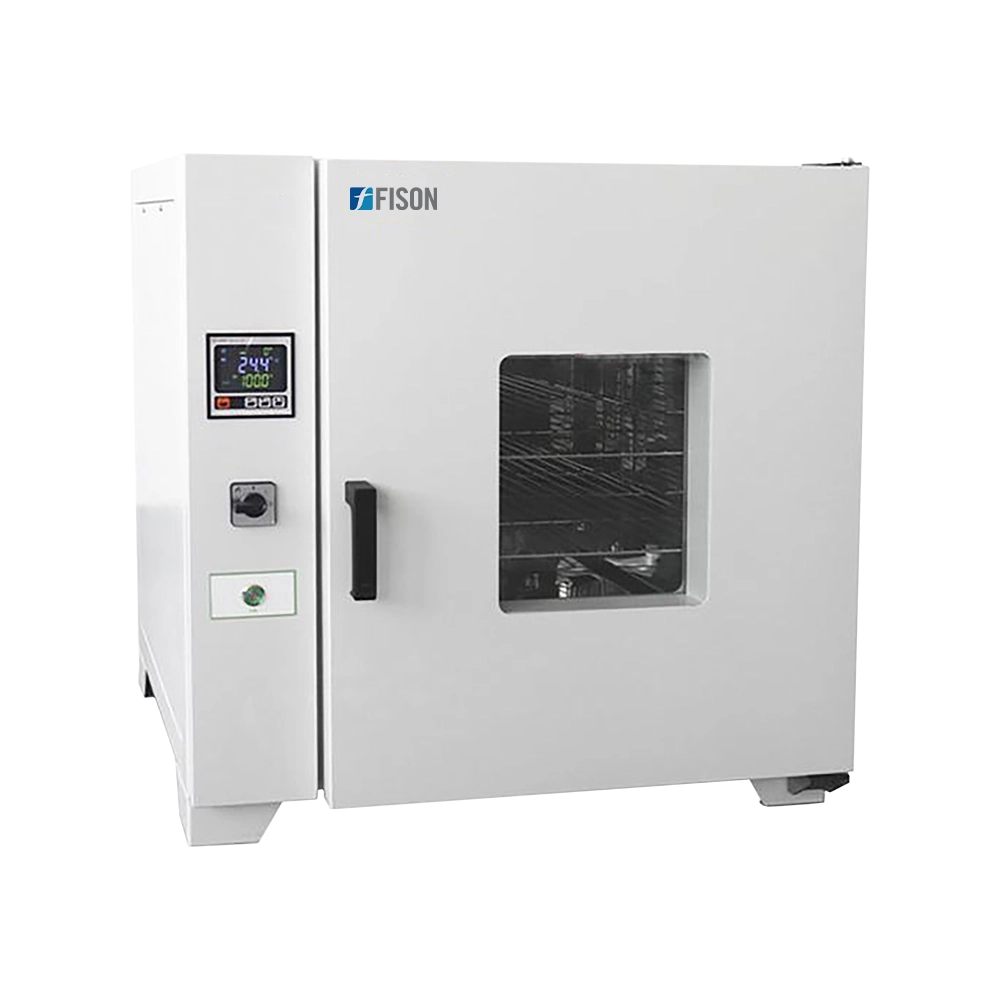

Drying Oven FM-DO-A201
Drying Oven FM-DO-A201 handles sample volume of 252 L in temperature range of RT +10 to 300 °C. Engineered with advanced PT100 sensor and microcontroller for process monitoring. Built with high-quality mirror stainless steel for corrosion-free operation. Features audio-visual alarm and leakage protector for enhanced safety and security. Our Drying Oven is essential for moisture content analysis in material testing and quality control.
Specifications
| Capacity | 252 L |
| Temperature Range | RT + 10 to 300 °C |
| Temperature Fluctuation | ± 1 °C |
| Temperature Resolution | 0.1 °C |
| Temperature Uniformity | ± 2.5 % |
| Temperature Sensor Type | PT100 |
| Circulation Mode | Forced Convection |
| Controller | Microcomputer |
| Timer | 1 to 9999 |
| Display | High-definition LCD |
| Internal Material | Mirror stainless steel |
| External Material | Coated steel |
| Safety Features | Over-temperature visible and audible alarm, leakage protector, spare temperature control |
| Power Consumption | 3500 W |
| Power Supply | AC 220 V, 50/60 Hz |
| Internal Dimension W × D × H | 600 × 600 × 700 mm |
| External Dimension W × D × H | 880 × 730 × 950 mm |
| Packaging Dimensions W × D × H | 900 × 1020 × 1150 mm |
| Net Weight | 110 kg |
| Gross Weight | 150 kg |
Features
- Forced convection mechanism
- High-definition LCD display
- Internal circulation system
- Spare temperature control
- Adjustable shelves
Applications
- Drying Oven is crucial in industries for environmental testing, chemical, textile, electronics and semiconductor manufacturing.
Accessories
- Shelves × 3
Accessories Optional
- Spare shelves (Maximum 7)
RS485 port
Built-in printer
Touch screen (with USB interface)
Multi-segment programmable control
