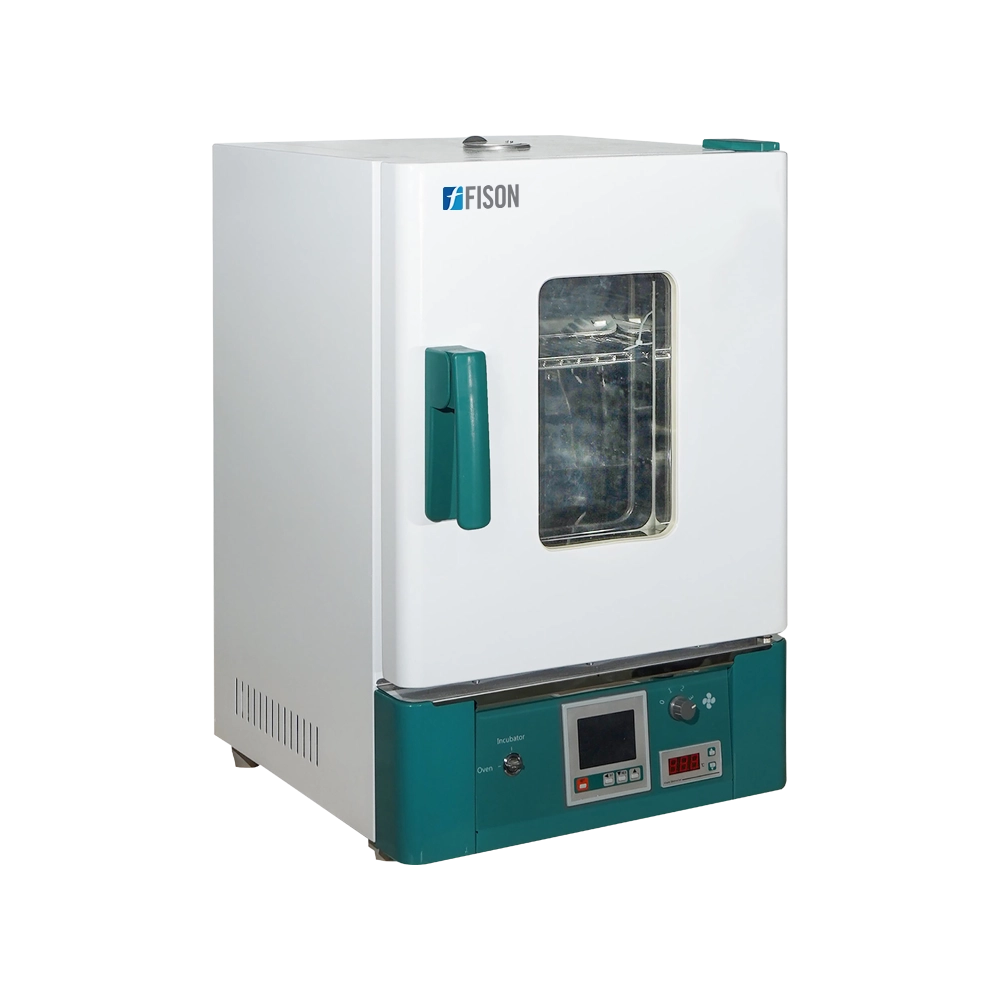

Drying Oven FM-DO-A106
Drying Oven FM-DO-A106 operates on a forced convection cycling mode, offering a temperature range of RT + 10 to 300 ℃. Designed for user convenience, it features an LCD temperature controller for smooth operation. Users can adjust the fan speed according to the experiment's requirements. Moreover, it is equipped with an integrated over-temperature protection system, ensuring safety by preventing overheating. Its robust 304 stainless steel body not only provides durability but also offers corrosion resistance.
Specifications
| Chamber volume | 125 L |
| Method | Forced convection |
| Temperature Range | RT + 10 to 300 ℃ |
| Temperature Resolution | 0.1 ℃ |
| Temperature Motion | ±1 ℃ |
| Temperature Uniformity | ±2.5% |
| Temperature Sensor | PT100 |
| Temperature controller | Two temperature section PID intelligent, Touch type function |
| Temperature display | LCD |
| Interior Material | Mirror Stainless Steel |
| Exterior Material | Cold rolling steel electrostatic spraying exterior |
| Insulation Material | High quality rock wool board |
| Heater | Stainless steel heater |
| Power rating | 2.3 kW |
| Exhaust hole | Φ 35 mm |
| Timer | 0 to 9999 min |
| Operation function | Fixed temperature operation, Timing function, Auto stop |
| Max Shelf number | 11 |
| Load per rack | 15 Kg |
| Shelf space | 40 mm |
| Shelves | 2 |
| Shelf frame | 4 |
| Power rating (50/60HZ) | AC220V/10.5A |
| Interior dimension (W × L × H) | 500 × 450 × 550 mm |
| Exterior dimension (W × L × H) | 640 × 640 × 930 mm |
| Packaging dimension (W × L × H) | 710 × 730 × 1100 mm |
| Net weight | 60 Kg |
| Gross Weight | 66 Kg |
Features
- Drying Oven comprises anti-hot handle
- Double air ducts ensure efficient air circulation
- PID controller maintains precise temperature
- User-friendly interface includes fan switch and LED display
- Adjustable airflow with a 4-speed fan caters
- High precision digital temperature limiter
Applications
- Drying Oven maintains precise temperature control and uniformity across industries like biotechnology, food, pharmaceuticals, textile, and agriculture.
Accessories Optional
- Spare Shelf
RS485 Interface
Printer
Program controller
U-disk storage
3.5-inch color touch screen
Temperature controller
