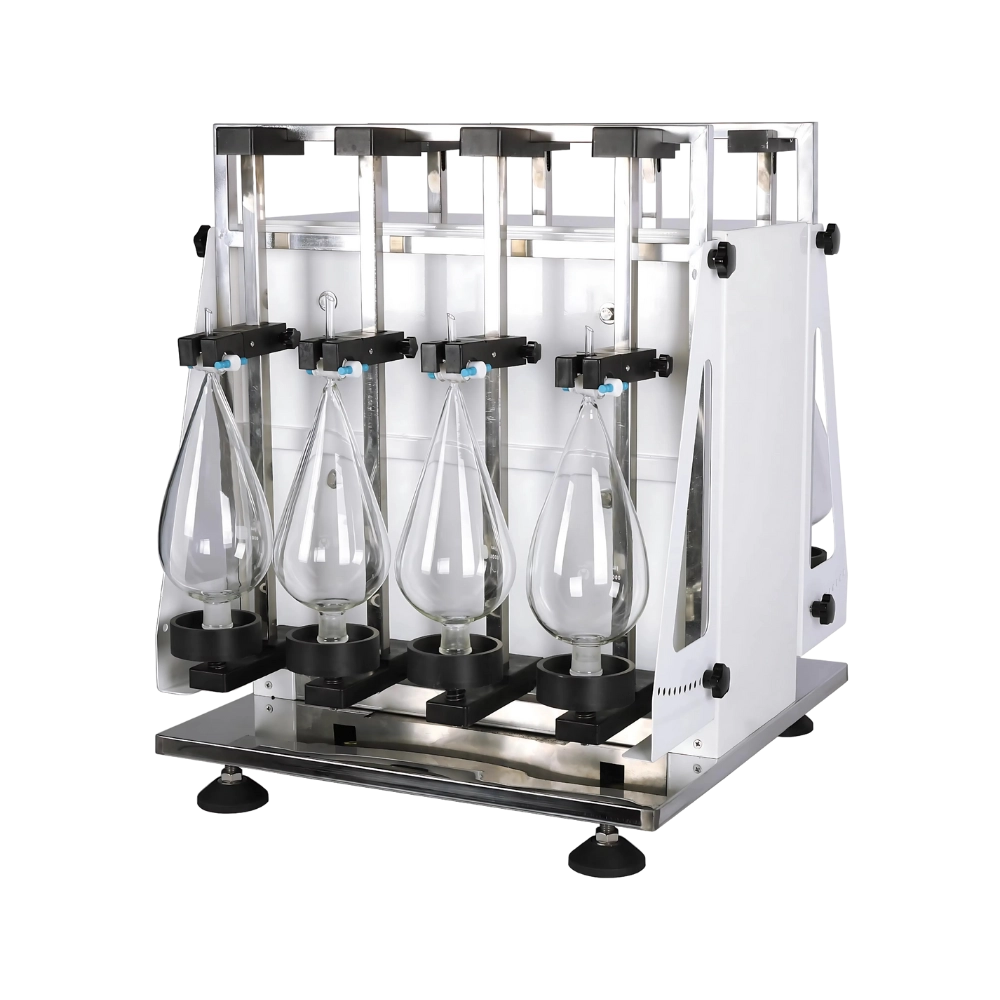

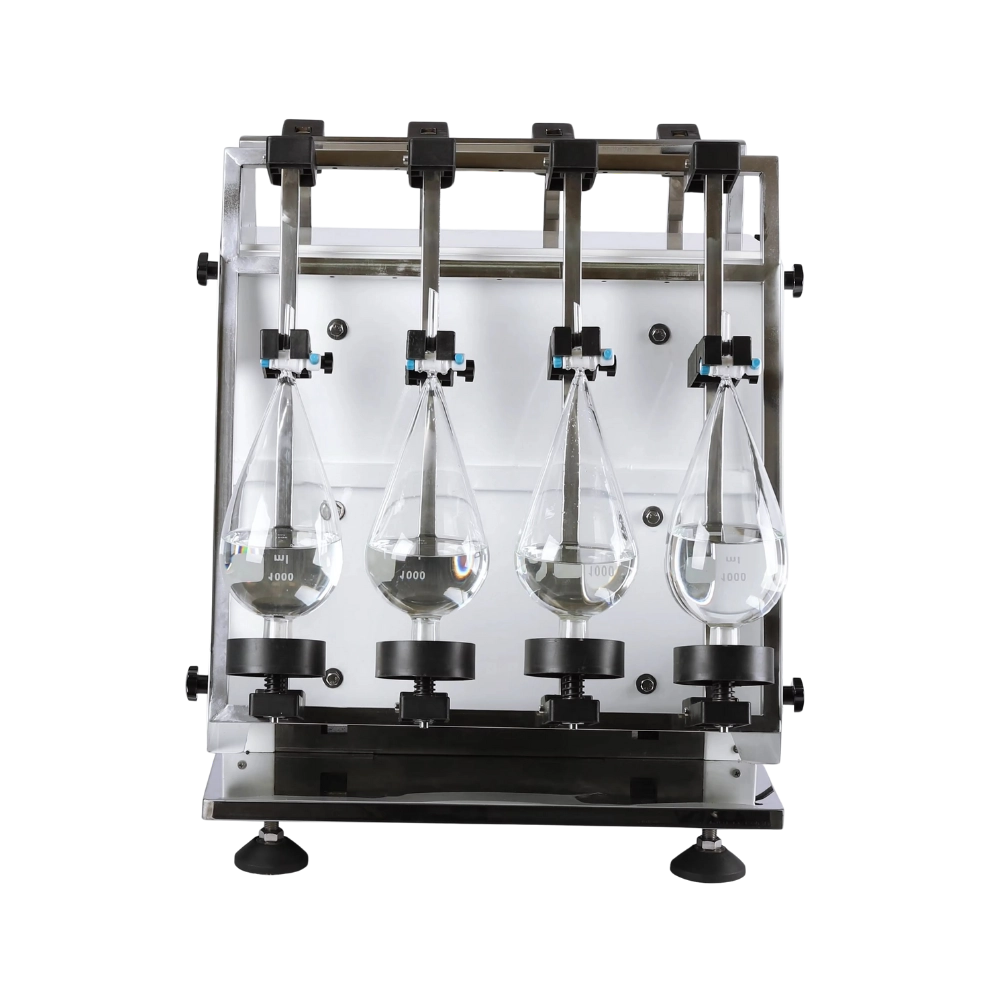

Double Sided Vertical Shaker FM-DVS-A100

Double Sided Vertical Shaker FM-DVS-A100

Double sided vertical shaker FM-DVS-A100 is a shaker with automatic vertical and slanting shaking mode of the separating funnel. Operates multiple batches of samples with high efficiency and recovery rate. With vertical and slanting shaking mode, it minimizes user exposure to chemical agents and protects personal safety. It holds up to 8 pcs of 500 ml and 10 pcs of 250 ml funnels.

Specifications

Shaking speed 300 T (turns)/ min
Shaking (distance) range 40 mm

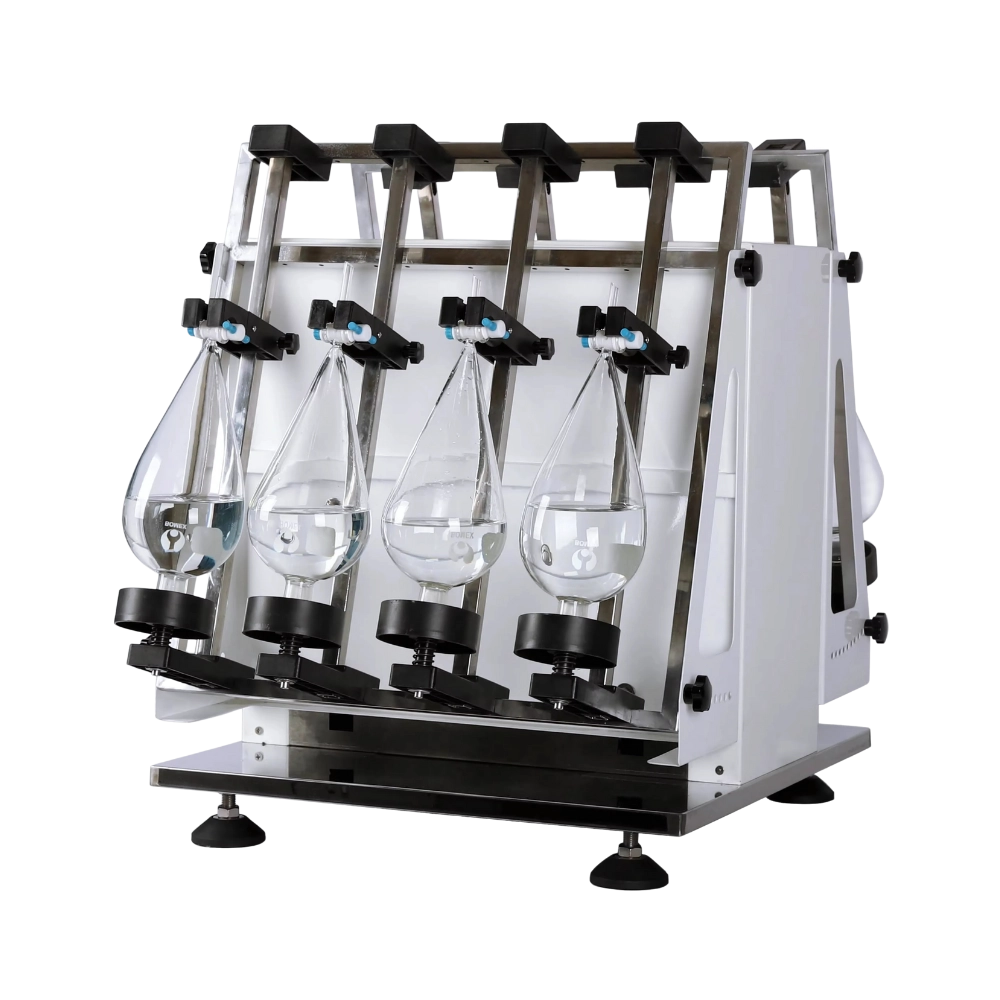

Shaking method Vertical and Slanting shaking (tilt angle 0 to 20° adjustable)
Frequency control Infinite variable speed
Display LCD Display
Time set range 0 to 99 hours (with adjustable count down )
Applied Vessel 50 to 2000 ml standard pyriform or ball type separating funnel
Vessel number 4/6/8/10 pcs
Extraction efficiency 95 to 110%
Load rated Bilateral symmetry, 11 kg
Power 110 W
Power supply AC 220 V, 50/60 Hz
Dimension 535 × 475 × 690 mm
Net weight 120 kg

Features

  • Vertical and slanting shaking mode
  • Large amplitude, high speed, adjustable working time
  • Low noise & long time stable working condition
  • Shaker with 11 kg maximum loading capacity
  • Holds 50 to 500 ml different volume flasks
  • Customizable holders as per the vessel size
  • LCD screen with time and shaking frequency display
  • Easy to install and detach rotated sample holder
  • CE and ISO certified

Applications

  • Used for mixing viscous liquids, solid separations and liquid-liquid extractions. Used in oil extraction from water, organic pollutant extraction from water and pesticide residue extraction from potable liquids, soil solutions, volatile phenol extraction.

Accessories Optional

  • Accessories No. Name
    1 Glass Funnel (Reusable)

Reciprocating Horizontal Shaker

Fison Reciprocating Horizontal Shakers are designed for precise and efficient sample agitation. They offer a controlled reciprocating motion that ensures uniform mixing of various samples. These units feature quiet, low-vibration operation to minimize disruptions in sensitive laboratory settings. They provide variable speed control, allowing users to adjust the shaking intensity based on experimental requirements. Our shakers are equipped with a user-friendly interface allowing easy handling and monitoring.

Reciprocating Horizontal Shaker FM-RHS-A100

  • Shaking method : Reciprocating shaking
  • Shaking range : 40 mm
  • Shaking speed : 0 to 200 T/ min (Adjustable)
Catalog

Microplate Shaker

Fison Microplate Shaker features adjustable shaking speeds to customize the mixing intensity to suit specific experimental requirements. Their multiple shaking modes, including orbital, linear, and vortex motions, optimize sample mixing for various applications. They include an LCD or touch display for precise parameter adjustments and real-time monitoring. The non-slip platforms or spring-loaded clamps provide stability, even during high-speed operation. Our Microplate Shaker operates quietly, minimizing disruptions in shared lab environments.

Microplate Shaker FM-MPS-A100

  • Speed : 100 to 1200 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 4 mm
Catalog
Microplate Shaker FM-MPS-A101
  • Speed : 100 to 1200 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 4 mm
Catalog
Microplate Shaker FM-MPS-A102
  • Speed : 100 to 1200 rpm
  • Motor : Brushless Motor
  • Horizontal Gyration Amplitude : 3 mm
Catalog

Water Bath Shaker

Water Bath Shaker FM-WBS-A100

  • Capacity : 45 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog

Water Bath Shaker FM-WBS-A101

  • Capacity : 83 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog
Water Bath Shaker FM-WBS-A102
  • Capacity : 175 L
  • Control : Microprocessor PID controlled system
  • Speed range : 20 to 200 rpm
Catalog

De-staining Shaker

De-staining Shaker FM-DS-A100
  • Controller : Microprocessor PID control system
  • Shaking mode : Orbital
  • Shaking speed : 30 to 300 rpm
Catalog

De-staining Shaker FM-DS-A101

  • Controller : Microprocessor PID control system
  • Shaking mode : Orbital
  • Shaking speed : 30 to 300 rpm
Catalog

De-staining Shaker FM-DS-A102

  • Controller : Microprocessor PID control system
  • Shaking mode : Linear
  • Shaking speed : 30 to 300 rpm
Catalog

Wrist Shaker

Wrist Shaker FM-WRS-A100
  • Shaking angle : 3°
  • Shaking speed : 30 to 1000 rpm
  • Shaking accuracy : ±1 rpm
Catalog
