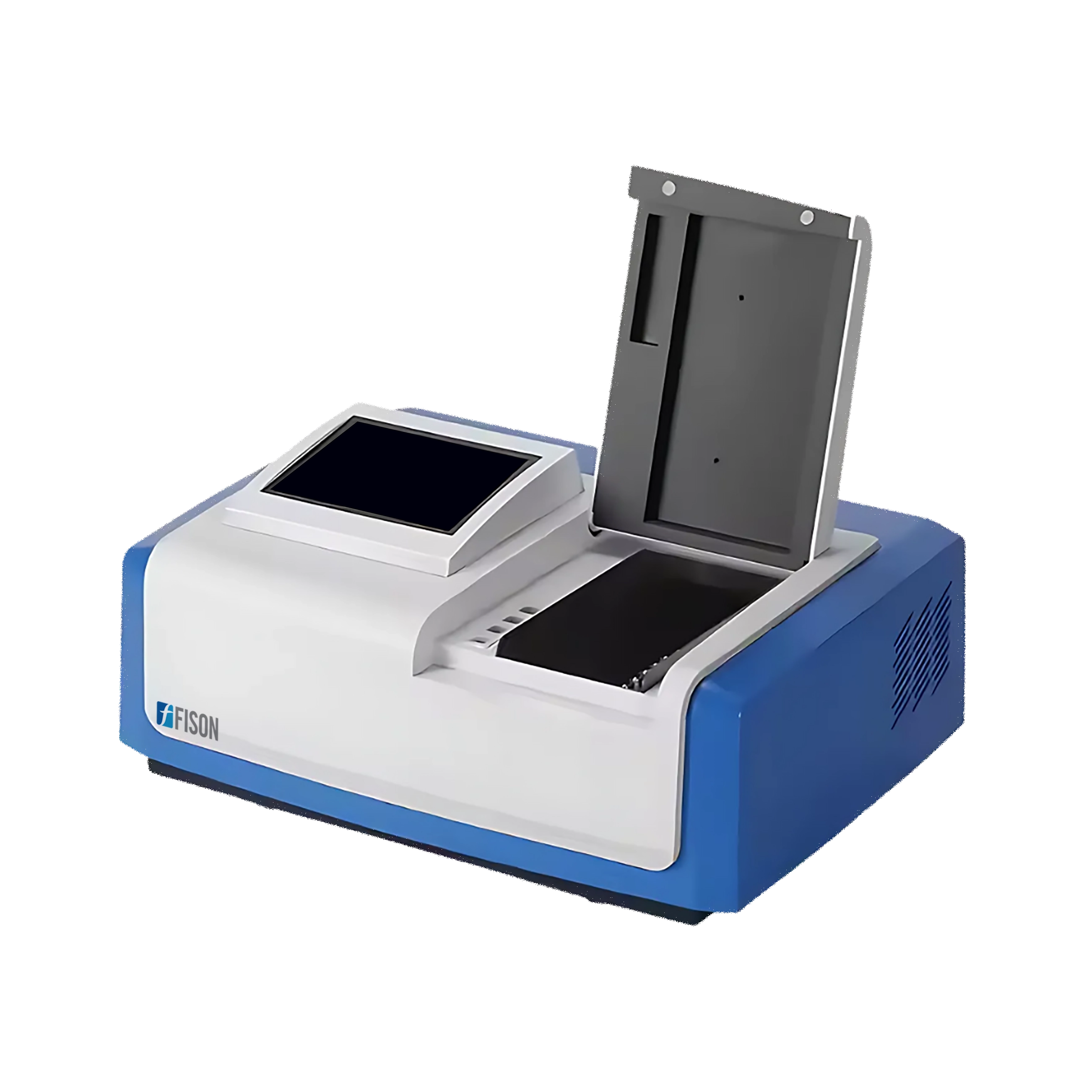

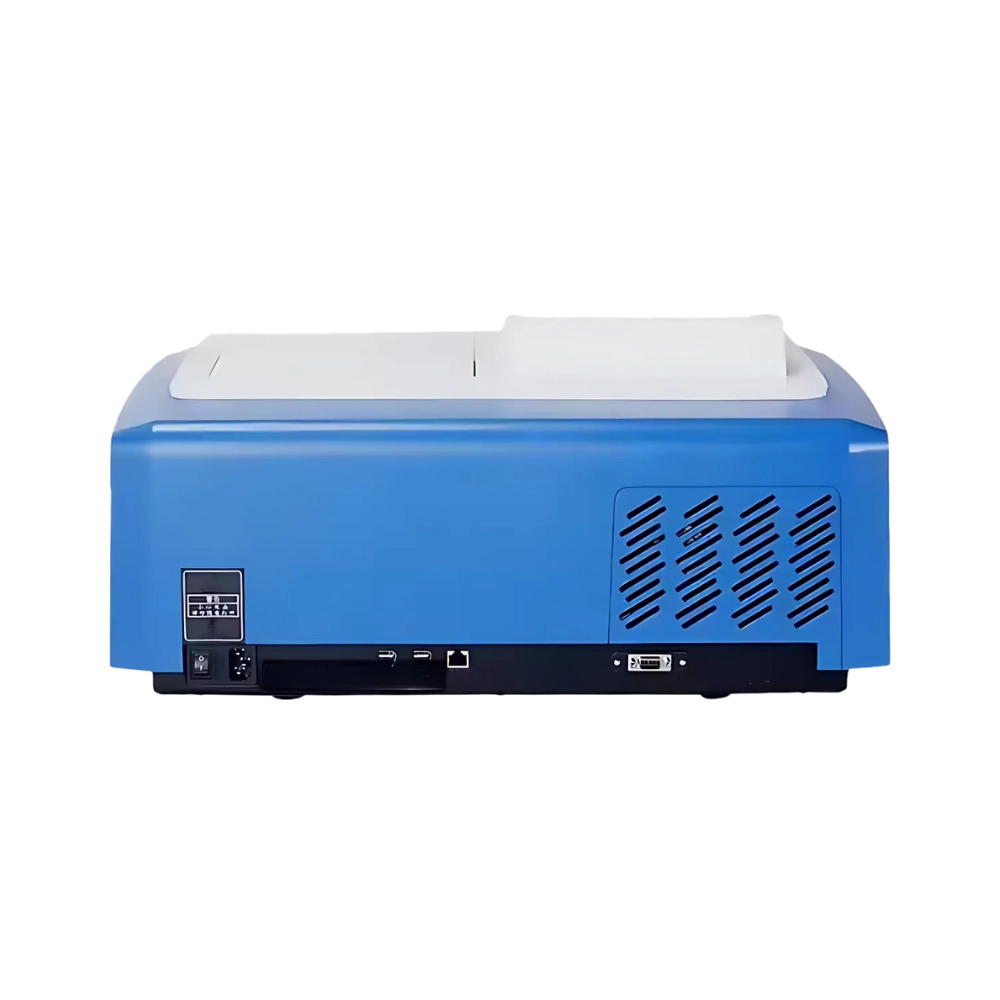

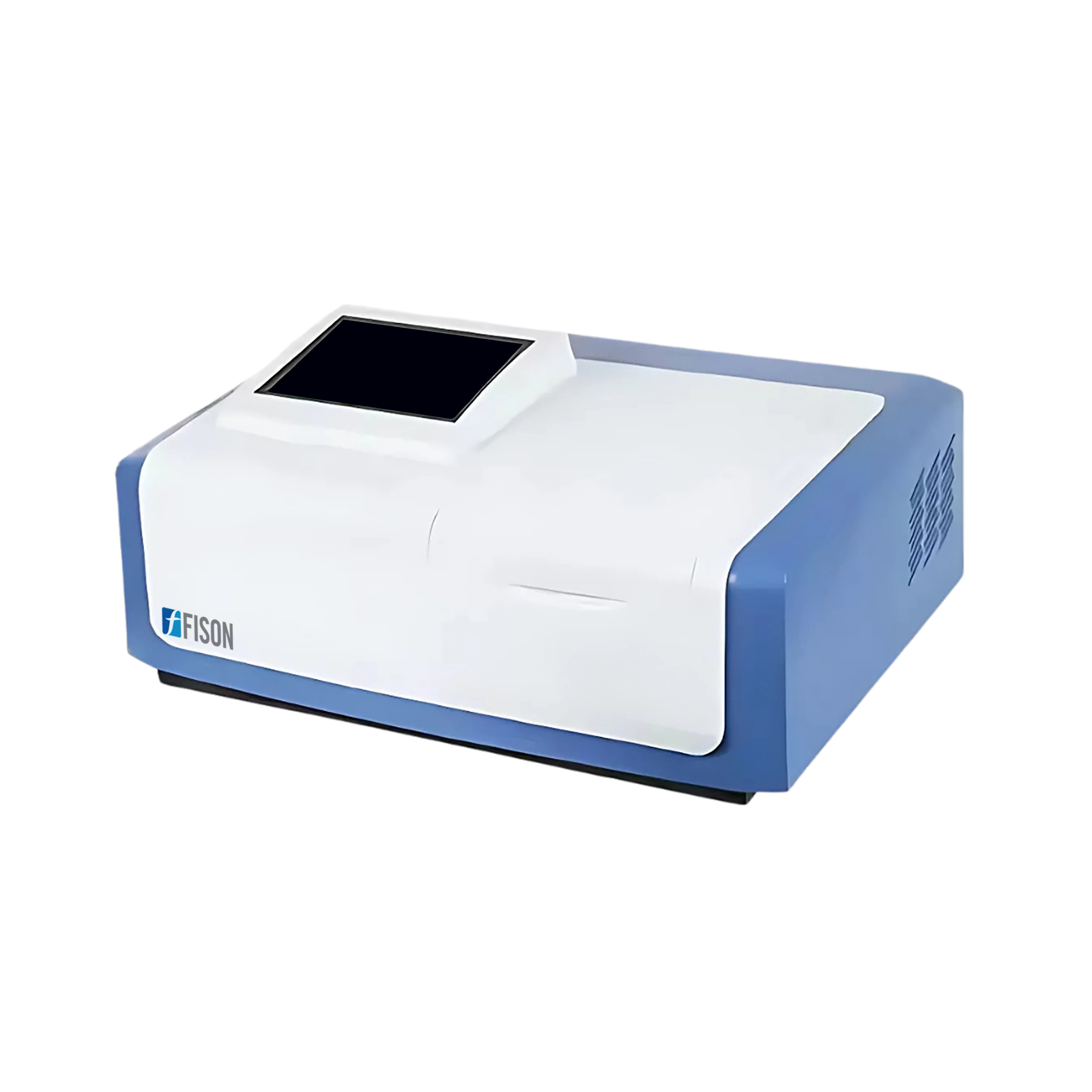

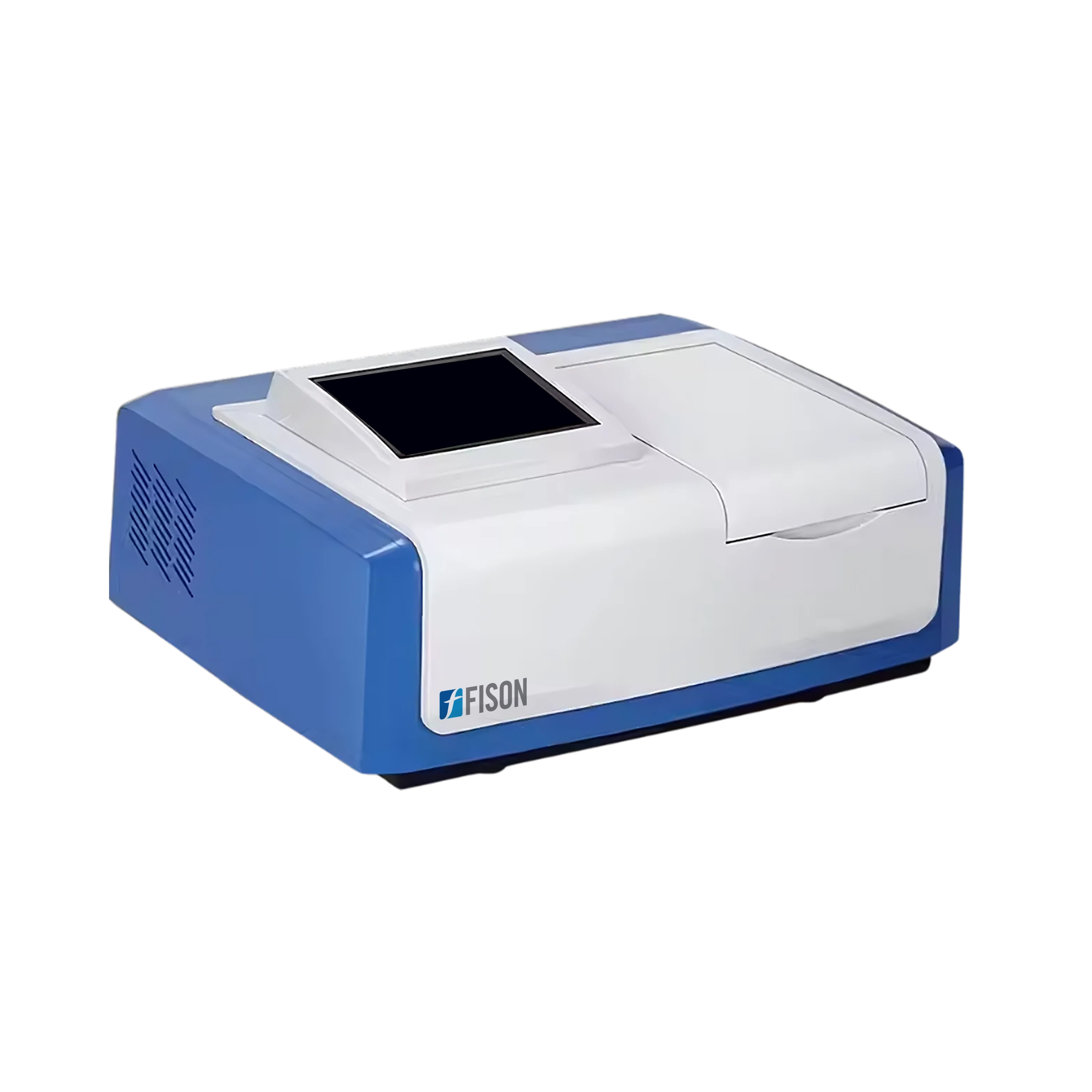

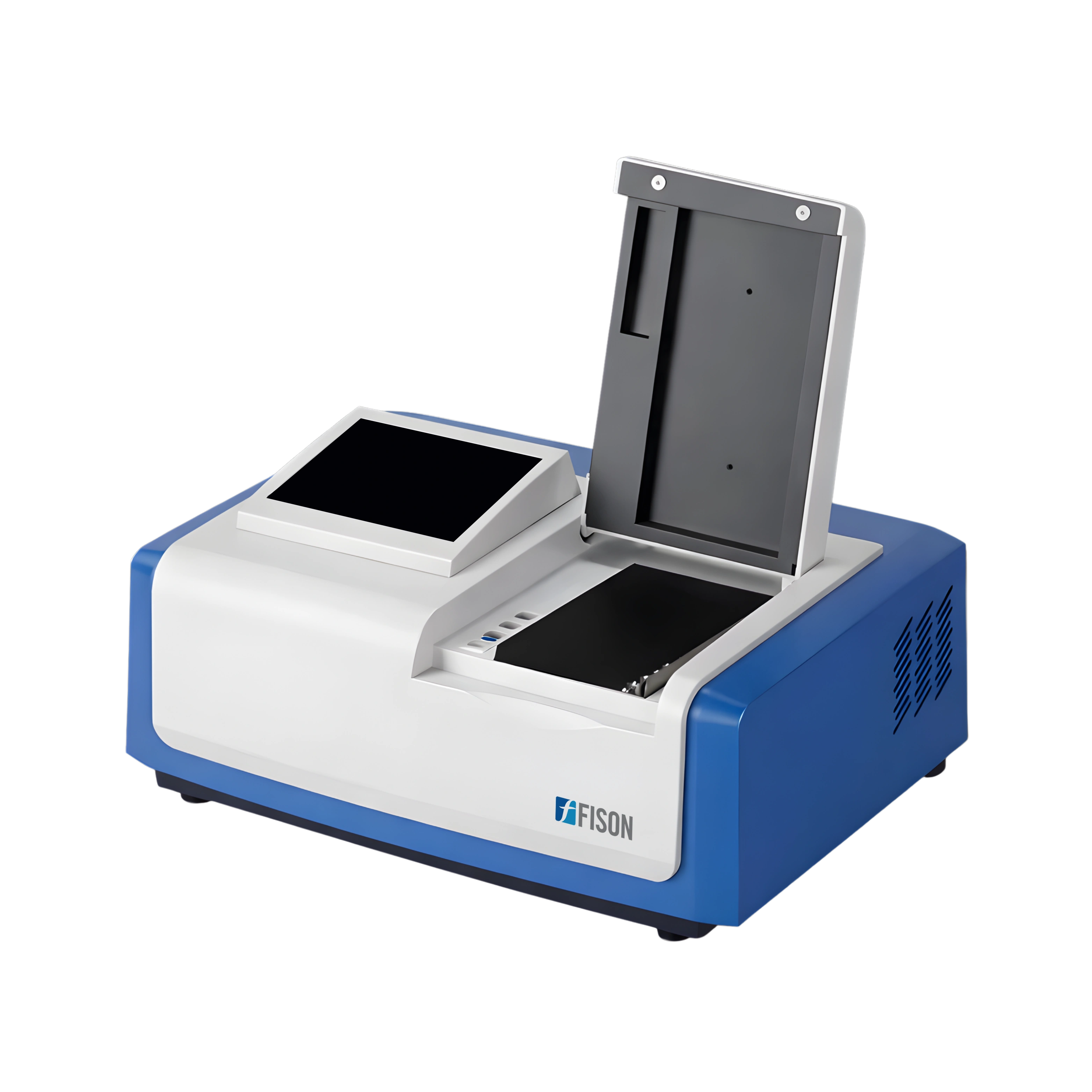

Name: Double Beam Scanning UV-Visible Spectrophotometer FM-UVS-D100
Brand: Fison
SKU: FM-UVS-D100
Rating: 4.4 (273 reviews)

Wavelength range	190 to 1100 nm
Spectral bandwidth	1.8 nm
Optical system	Double beam; Grating 1200 lines/mm
Wavelength accuracy	±0.5 nm
Wavelength repeatability	≤0.2 nm
Scanning speed	Fast-Medium-Slow
Photometric range	0.0 to 200.0% T; -0.301 to 4.000 A; 0.000 to 9999C
Photometric accuracy	±0.3% T; ±0.002Abs (0 to 0.5 A); ±0.004 Abs (0.5 to 1 A)
Photometric repeatability	≤0.15% T; 0.001 Abs (0 to 0.5 A); 0.002 Abs (0.5 to 1 A)
Noise	100% (T) noise ≤0.15% (T) & 0% (T) noise≤0.1% (T)
Light source	Tungsten lamp, Deuterium lamp
Stray light	≤0.03%T (at 220 nm NaI, 360 nm NaNo2)
Drifting	≤0.0009 Abs/30 min (250 nm and 500 nm after 2h warm up)
Display	8 inch color touch screen
Baseline	≤±0.002 A (200 to 1090 nm)
Standard Sample holder	1 position 10 mm cell holder
Sample compartment	10 mm pathlength cuvette
Detector	Silicon Photocell
Monochromator	Czerny-Turner
Focal length	160 mm
Function	Full-spectrum scanning, Linear regression, Detailed spectrum scanning, Concentration direct reading, Time-based kinetics determination, Peak / Valley detecting, GOTO λ, Multi-wavelength measurement
Wavelength setting	Automatic
Zero and full-scale adjustment	Automatic
Interface	USB
PC software	Yes
Power supply	AC 220 V,50 Hz, 200 W
Packaging Dimensions (W×D×H)	710×590×505 mm
Gross weight	36 kg

✔ Compact, benchtop double beam optical system designed spectrophotometer
✔ Silicon photocell detector; Czerny-Turner monochromator
✔ Tungsten and deuterium lamp as light source with sophisticated power protection system
✔ 8 inch color touch screen, USB COM port, and standard cell holder
✔ Offers Full-spectrum scanning, Linear regression, Detailed spectrum scanning, Concentration direct reading, Time-based kinetics determination, Peak / Valley detecting, GOTO λ, Multi-wavelength measurement
✔ Automatic zero and full-scale adjustment; Automatic wavelength settings
✔ Scanning speed: Fast-Medium-Slow

Wavelength range	190 to 1100 nm
Spectral bandwidth	1.8 nm
Optical system	Double beam; Grating 1200 lines/mm
Wavelength accuracy	±0.5 nm
Wavelength repeatability	≤0.2 nm
Scanning speed	Fast-Medium-Slow
Photometric range	0.0 to 200.0% T; -0.301 to 4.000 A; 0.000 to 9999C
Photometric accuracy	±0.3% T; ±0.002Abs (0 to 0.5 A); ±0.004 Abs (0.5 to 1 A)
Photometric repeatability	≤0.15% T; 0.001 Abs (0 to 0.5 A); 0.002 Abs (0.5 to 1 A)
Noise	100% (T) noise ≤0.15% (T) & 0% (T) noise≤0.1% (T)
Light source	Tungsten lamp, Deuterium lamp
Stray light	≤0.03%T (at 220 nm NaI, 360 nm NaNo2)
Drifting	≤0.0009 Abs/30 min (250 nm and 500 nm after 2h warm up)
Display	8 inch color touch screen
Baseline	≤±0.002 A (200 to 1090 nm)
Standard Sample holder	1 position 10 mm cell holder
Sample compartment	10 mm pathlength cuvette
Detector	Silicon Photocell
Monochromator	Czerny-Turner
Focal length	160 mm
Function	Full-spectrum scanning, Linear regression, Detailed spectrum scanning, Concentration direct reading, Time-based kinetics determination, Peak / Valley detecting, GOTO λ, Multi-wavelength measurement
Wavelength setting	Automatic
Zero and full-scale adjustment	Automatic
Interface	USB
PC software	Yes
Power supply	AC 220 V,50 Hz, 200 W
Packaging Dimensions (W×D×H)	710×590×505 mm
Gross weight	36 kg

Double Beam Scanning UV-Visible Spectrophotometer are used for analysis of band gap, optical coatings and thin films, quantitative analyses, kinetics, wavelength scanning, and DNA and Protein analysis across clinical and research laboratories.

Glass cuvette 10 mm ×4
Quartz cuvette 10 mm ×2
Fuse ×2
Power cable
