Dissolution Tester FM-DLT-A107

Name: Dissolution Tester FM-DLT-A107
Brand: Fison
SKU: FM-DLT-A107
Rating: 4.7 (292 reviews)

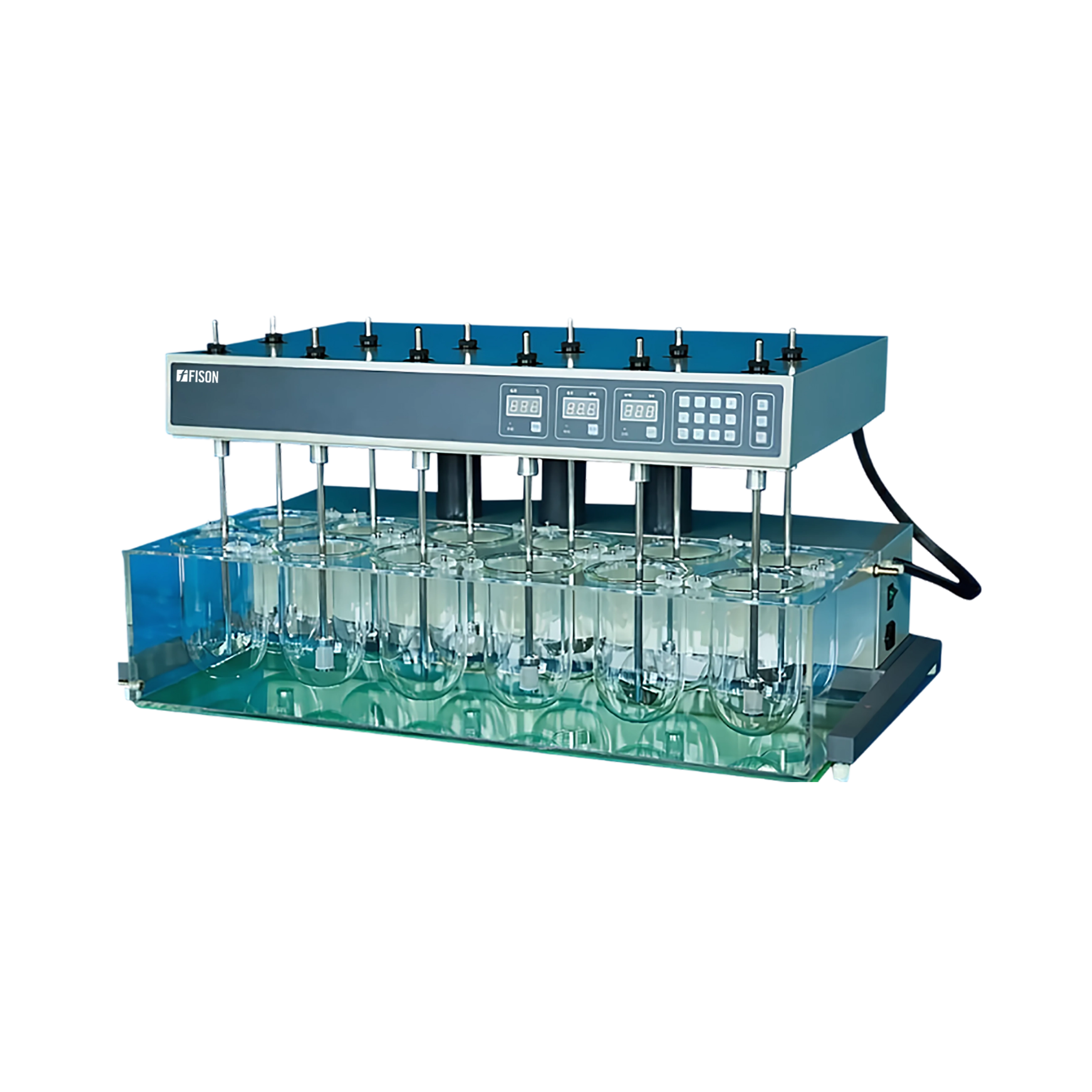

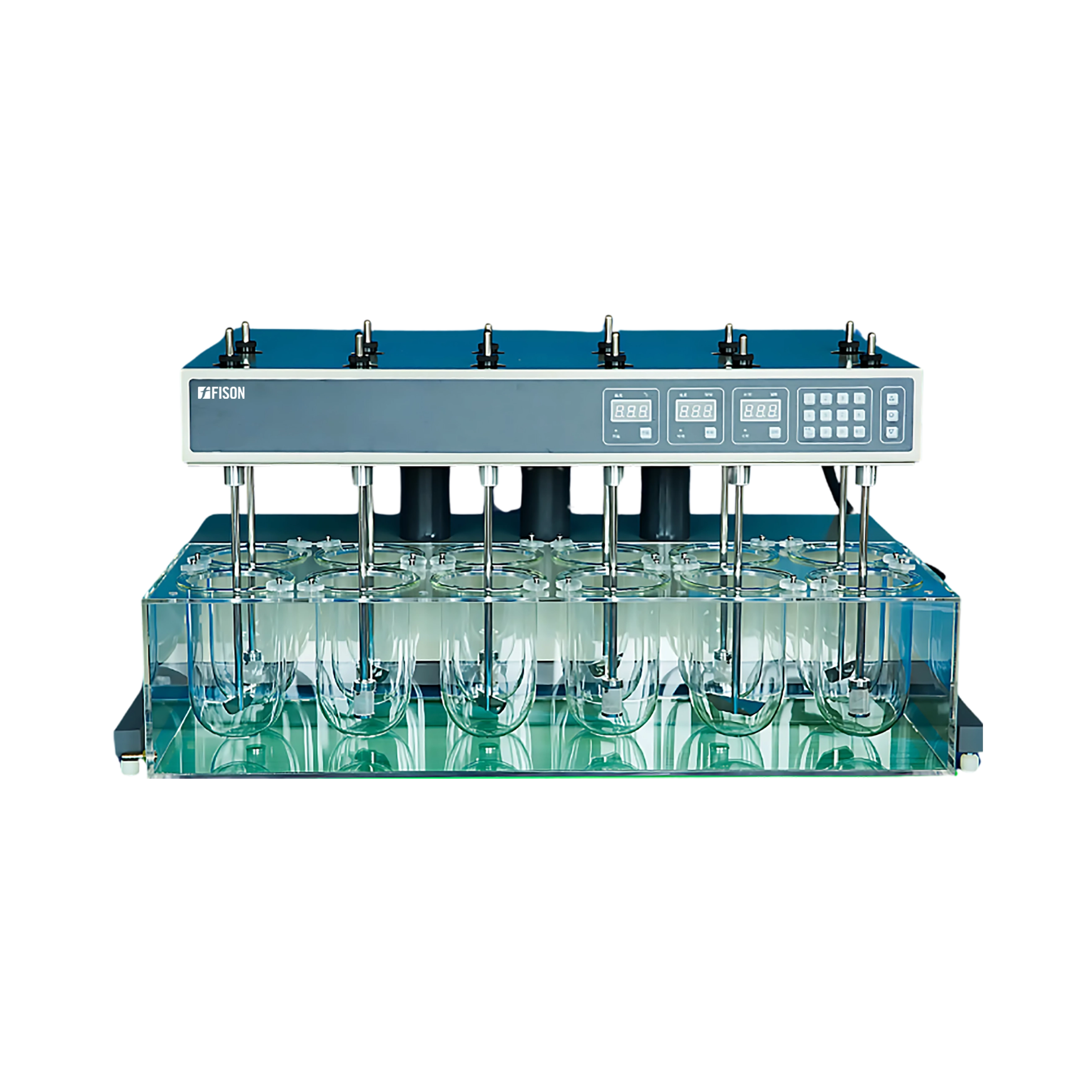

Dissolution Tester FM-DLT-A107 is a microprocessor controlled unit, features vessels and poles fitting in both backward and front positions, like 12 vessels and 12 poles (six vessels and six poles at front and other at back) with a speed range of 20 to 200 rpm and time range of 1 to 999 min. It automatically controls the temperature, time and rotation speed of experiment. The basket and paddle units of these dissolution tester are made of high quality SUS 316L stainless steel. Equipped with magnetism-pumped circular water current, maintains uniform temperature of the liquid throughout the water bath.

Catalog Buy Now

✔ Six vessels and six poles in front and others at back
✔ Automatic up and down movement of head part
✔ Basket and paddle units with SUS316L stainless steel
✔ Microprocessor controlled technology, to automatically control temperature, speed, time
✔ LED display shows preset and real data
✔ Automatic beeper sound for test point
✔ Splash proof alphanumeric keypad
✔ Auto test, auto diagnosis, auto alarm functions

No of vessels	12
No of poles	12
Position of vessels and poles	Six vessels and six poles in front and other six poles and vessels at back
Head part movement	Electrically (automatic) turn over
Preset time (for 9 points)	1 to 999 mins
Dimension range	960 × 540 × 480 mm
Speed range	20 to 200 rpm
Speed accuracy	± 2 rpm
Temperature range	Ambient to 45°C
Temperature accuracy	± 0.3°C
Time accuracy	± 0.3 %
Paddle radial run out	± 0.5 mm
Basket radial run out	± 1.0 mm
Power supply	220 V/ 50 Hz
Power	1200 W
Net Weight	95 kg
Gross Weight	130 kg

Used to detect rate (velocity and extent) dissolution limit of pharmaceutical drugs in the form of tablets, pills, capsules etc. in prescriptive form.
