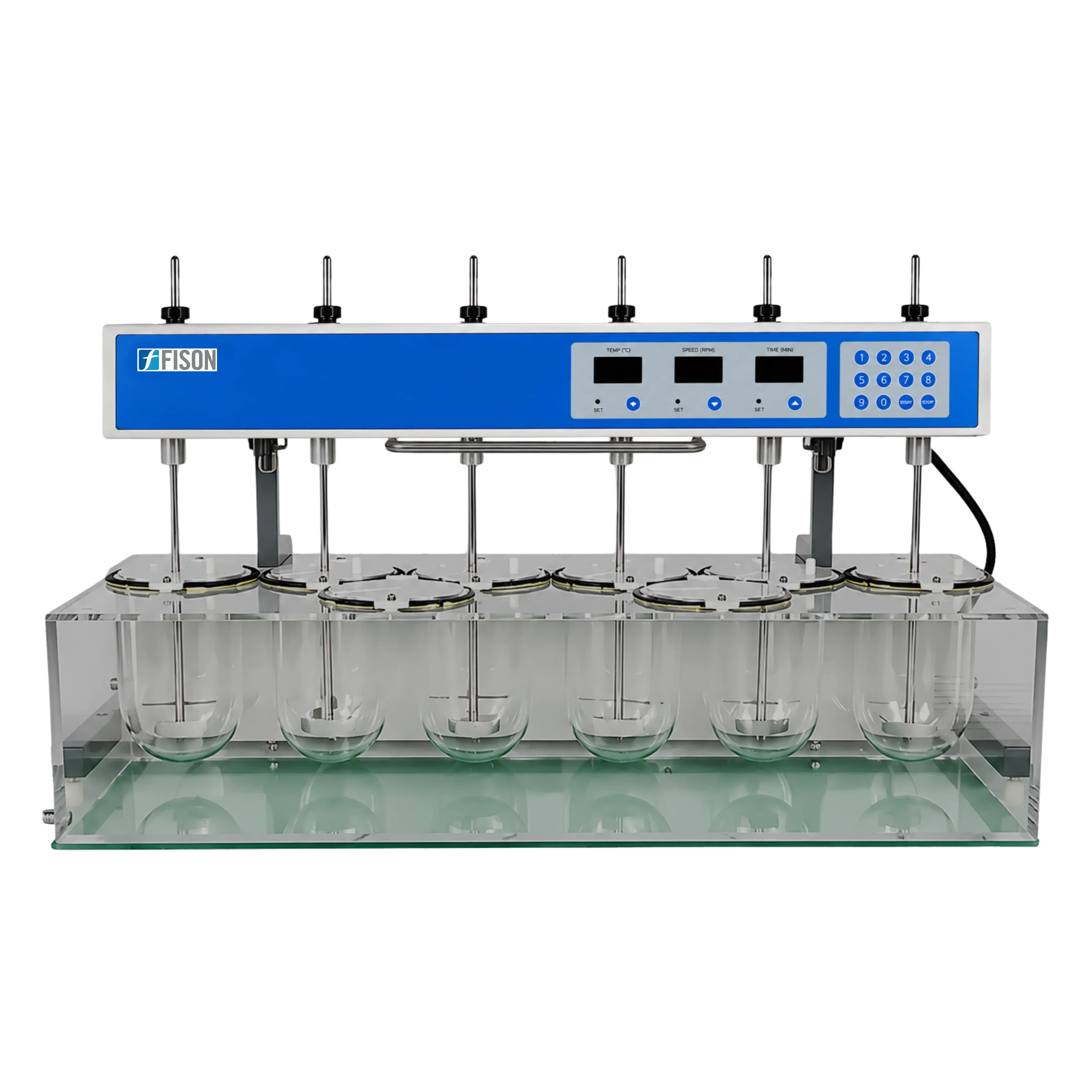

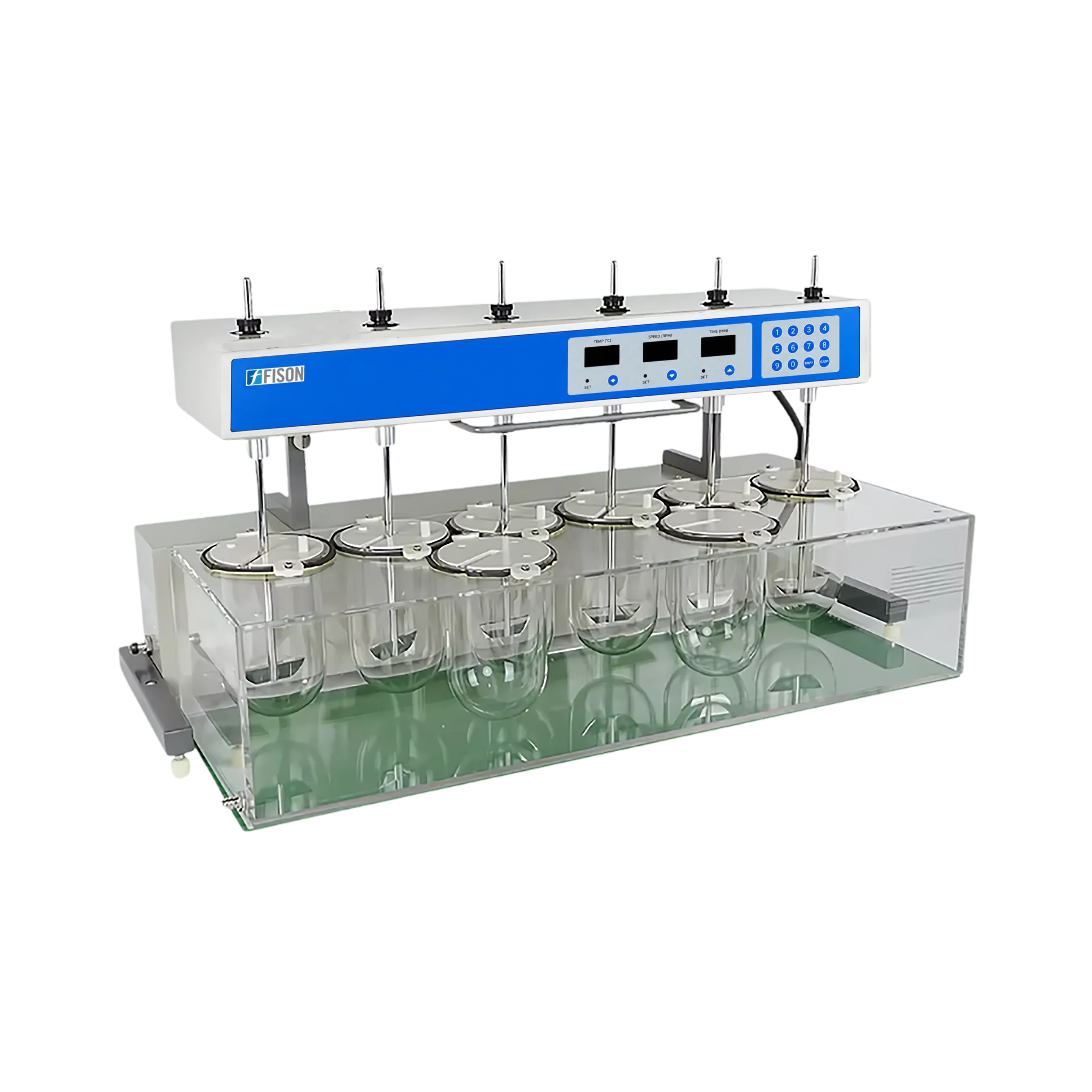

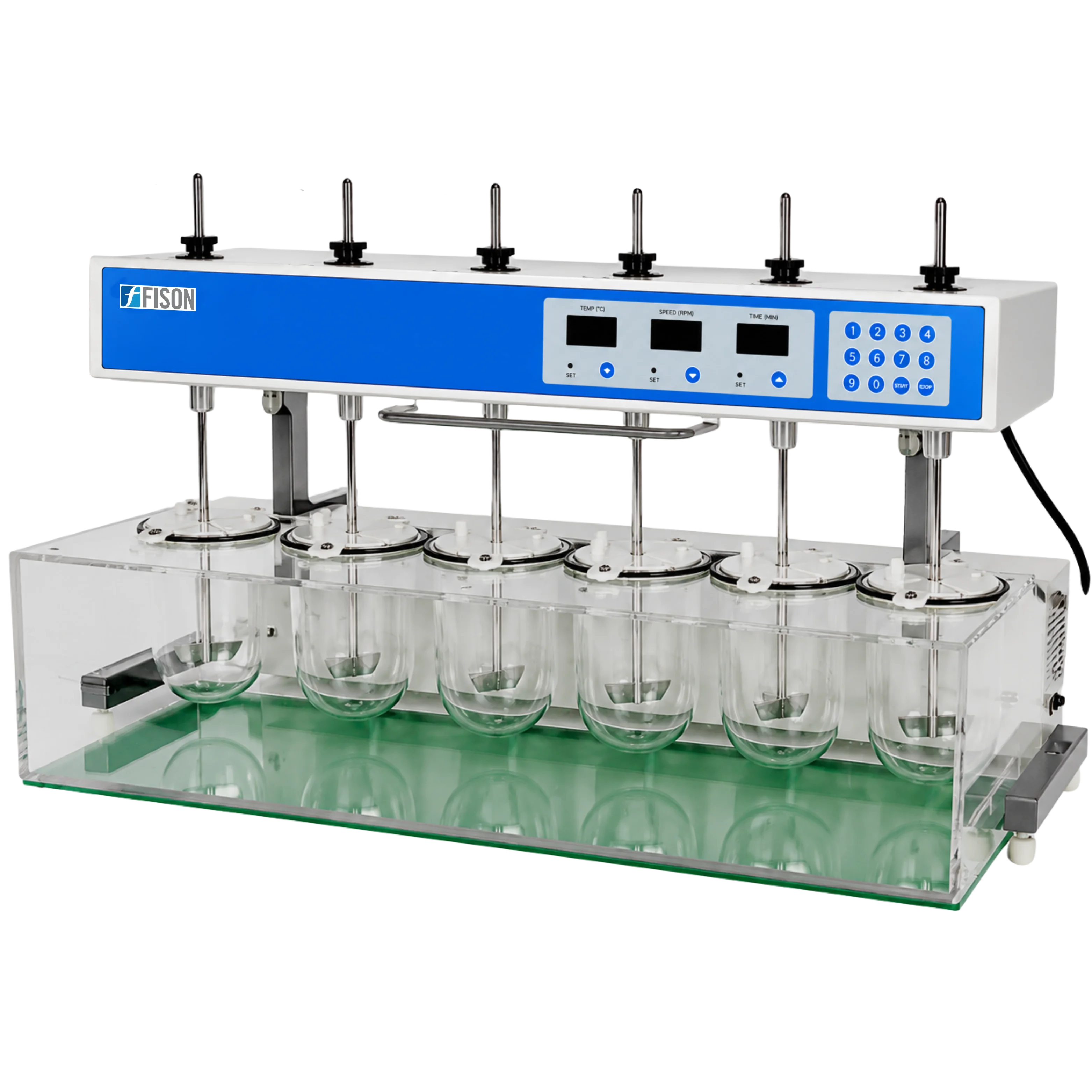

Dissolution Tester FM-DLT-A104
Dissolution Tester FM-DLT-A104 is a microprocessor controlled unit which consists of eight vessels and six poles (six vessels and six poles in back and other two vessels at front) with a speed range of 20 to 200 rpm and time range of 1 to 999 min. It is equipped with a cabinet, control system, electrical system, water bath system, transmission system, sensor, and paddle components. The baskets and paddle units are made-up of SUS316L stainless steel. It features magnetism-pumped circular water current to heat the system evenly and has convenient operation with high precision control, mobilization, sensitivity and low noise. The unit has auto testing, auto diagnose and auto alarm system with LED screen to display preset and real data alternately in time.
Specifications
| No of vessels | 8 |
| No of poles | 6 |
| Position of vessels and poles | Six vessels and six poles in back and other two vessels at front |
| Head part movement | Manually turn over |
| Speed range | 20 to 200 rpm |
| Speed accuracy | ± 2 rpm |
| Temperature range | Ambient to +45.0°C |
| Temperature Stability | ± 0.3°C |
| Preset timing nine points | 1 to 999 min |
| Time accuracy | ± 0.3% |
| Maximum capacity of beaker | 1000 ml |
| Basket radial run-out | ± 1.0 mm |
| Paddle radial run-out | ± 0.5 mm |
| Power | 1200 W |
| Voltage | AC 220V, 50Hz or AC 110V, 60 Hz |
| Dimension (W × D × H) | 960 × 440 × 480 mm |
| Packaging dimension (W × D × H) | 1180 × 570 × 590 mm |
| Net weight | 45 kg |
| Gross weight | 71.5 kg |
Features
- Eight vessels and six poles design: Six vessels and six poles in back and other two vessels at front
- Uppermost part (head) of the tester can be twisted manually
- Baskets and paddle units are made-up of SUS316L stainless steel
- Magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature
- A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time
- Conveniently operated by keystroke
- Preset and real data can be displayed alternately on the LED screen
- High automation with auto test, auto diagnose and auto alarm
- Time and other parameters can be preset at many points
- Tester automatically runs to the next vessel with the automatic beep sound
Applications
- Used in the pharmaceutical, animal feed, pesticides and other industries for detecting velocity and extent of pharmic dissolution from the tablet and capsule during prescriptive menstruum.
Accessories
Accessories no. Accessories name 1 Transparent vessel of 185 mm height 2 Paddle 3 Rotating basket 4 Rotating basket of 0.425 mm pore size 5 Vessel cover 6 Close unit 7 Deep ruler 8 Centre ruler 9 Mercury thermometer 10 Filter head 11 Filter membrane 12 Sample needle
Accessories Optional
Accessories no. Accessories name 1 Vessels Paddle 3*3 / 6*6 / 8* 8 2 Rotating basket unit 3 Brown vessel of 185 mm height 4 Network disk (Small) 5 Network disk (Big)
