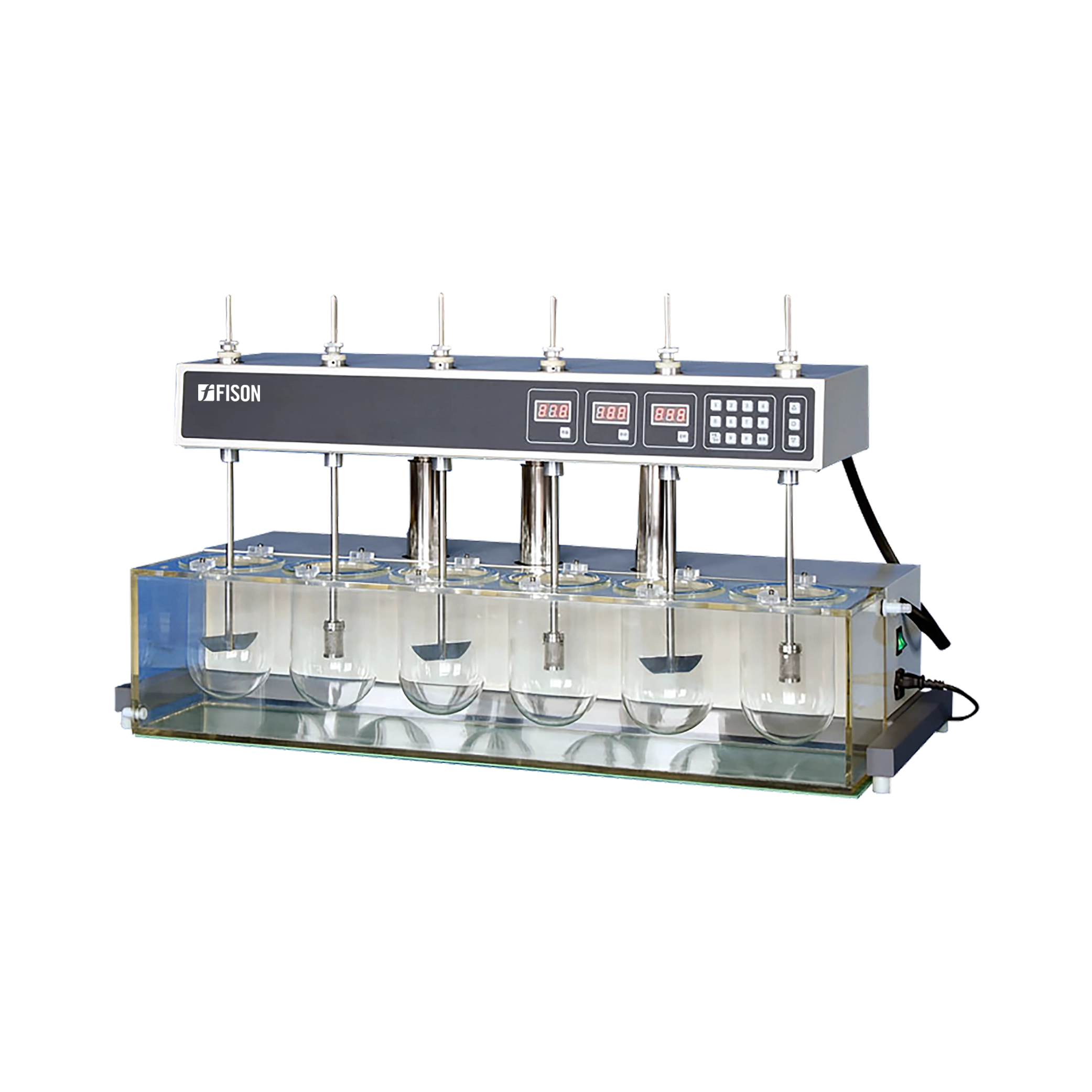

Dissolution Tester FM-DLT-A103

Dissolution Tester FM-DLT-A103

Dissolution Tester FM-DLT-A103 is a microprocessor controlled unit which consists of six vessels and six poles arranged on one line with a speed range of 20 to 200 rpm and time range of 1 to 999 min. It is equipped with a cabinet, control system, electrical system, water bath system, transmission system, sensor, and paddle components. The baskets and paddle units are made-up of SUS316L stainless steel. It features magnetism-pumped circular water current to heat the system evenly and has convenient operation with high precision control, mobilization, sensitivity and low noise. The unit has auto testing, auto diagnose and auto alarm system with LED screen to display preset and real data alternately in time.

Specifications

No of vessels 6
No of poles 6
Position of vessels and poles Arranged on one line
Head part movement Automatic turn over
Speed range 20 to 200 rpm
Speed accuracy ± 2 rpm
Temperature range Ambient to +45.0°C
Temperature Stability ± 0.3°C
Preset timing nine points 1 to 999 min
Time accuracy ± 0.3%
Maximum capacity of beaker 1000 ml
Basket radial run-out ± 1.0 mm
Paddle radial run-out ± 0.5 mm
Power 1200 W
Voltage AC 220V, 50Hz or AC 110V, 60 Hz
Dimension (W × D × H) 960 × 400 × 480 mm
Packaging dimension (W × D × H) 1200 × 510 × 590 mm
Net weight 56 kg
Gross weight 84.5 kg

Features

  • Six vessels and six poles arranged on one line
  • Automatic up and down head movement
  • Baskets and paddle units are made-up of SUS316L stainless steel
  • Magnetism-pumped circular water current heat the system evenly and bath liquid achieves an equal temperature
  • A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time
  • Conveniently operated by keystroke
  • Preset and real data can be displayed alternately on the LED screen
  • High automation with auto test, auto diagnose and auto alarm
  • Time and other parameters can be preset at many points
  • Tester automatically runs to the next vessel with the automatic beep sound

Applications

  • Used in the pharmaceutical, animal feed, pesticides and other industries for detecting velocity and extent of pharmic dissolution from the tablet and capsule during prescriptive menstruum.

Accessories

  • Accessories no. Accessories name
    1 Transparent vessel of 185 mm height
    2 Paddle
    3 Rotating basket
    4 Rotating basket of 0.425 mm pore size
    5 Vessel cover
    6 Close unit
    7 Deep ruler
    8 Centre ruler
    9 Mercury thermometer
    10 Filter head
    11 Filter membrane
    12 Sample needle

Accessories Optional

  • Accessories no. Accessories name
    1 Vessels Paddle 3*3 / 6*6 / 8* 8
    2 Rotating basket unit
    3 Brown vessel of 185 mm height
    4 Network disk (Small)
    5 Network disk (Big)
