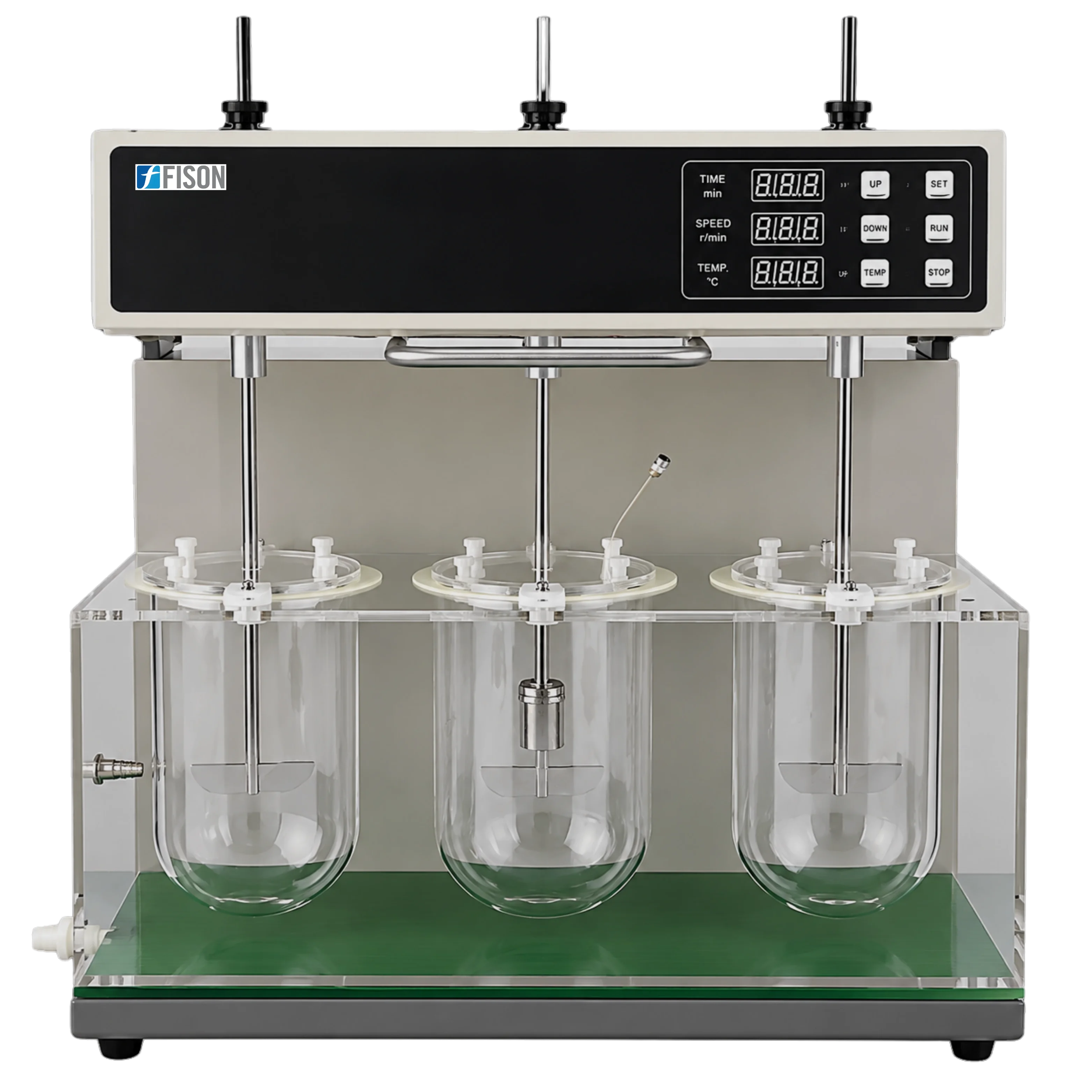

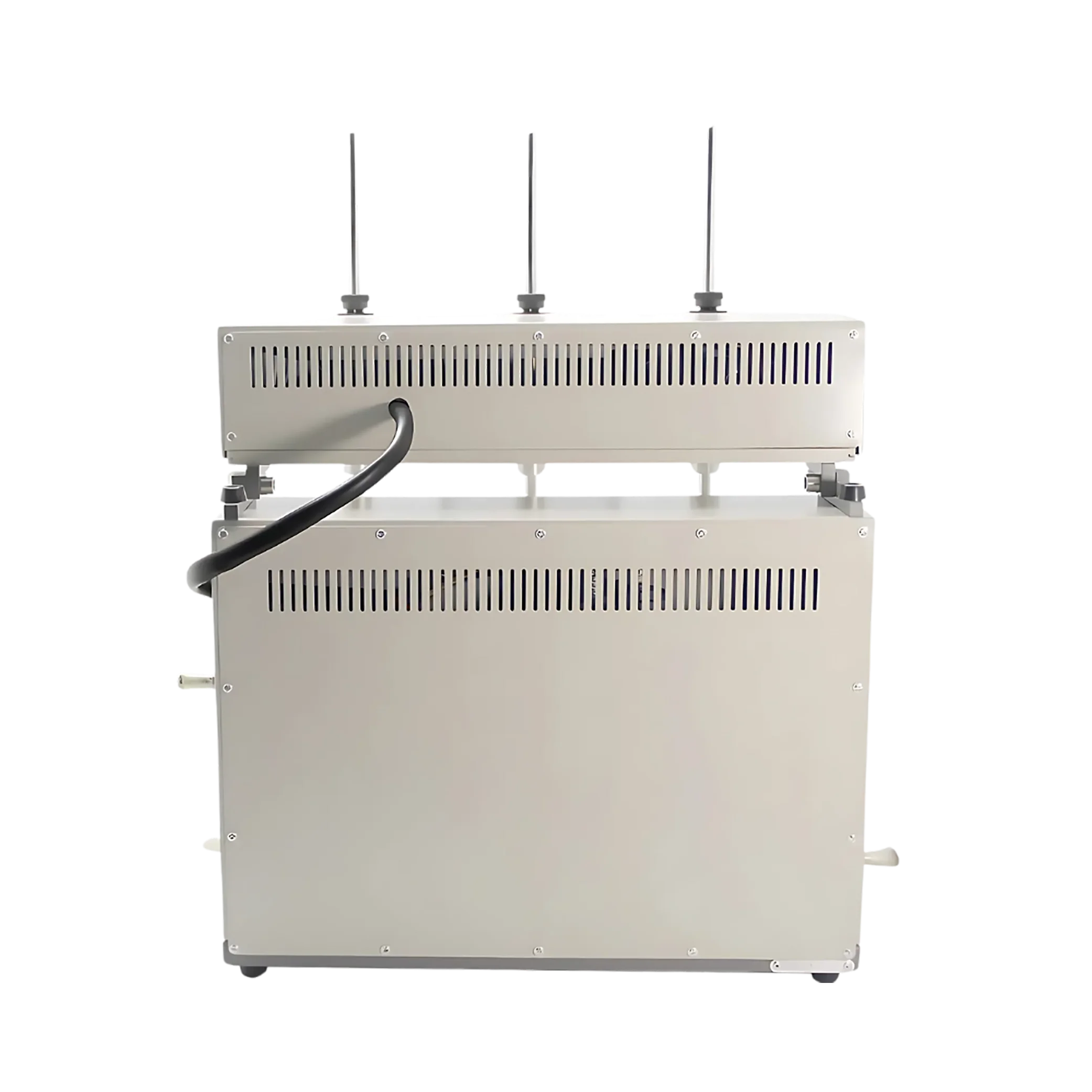

Dissolution Tester FM-DLT-A101

Name: Dissolution Tester FM-DLT-A101
Brand: Fison
SKU: FM-DLT-A101
Rating: 4.7 (280 reviews)

Dissolution Tester FM-DLT-A101 is a microprocessor controlled unit which consists of three vessels and three poles arranged on one line with a speed range of 20 to 200 rpm and time range of 5 to 900 min. It is equipped with a cabinet, control system, electrical system, water bath system, transmission system, sensor, and paddle components. The baskets and paddle units are made-up of SUS316L stainless steel. It features magnetism-pumped circular water current to heat the system evenly and has convenient operation with high precision control, mobilization, sensitivity and low noise. The unit has auto testing, auto diagnose and auto alarm system with LED screen to display preset and real data alternately in time.

Catalog Buy Now

✔ Three vessels and three poles arranged on one line

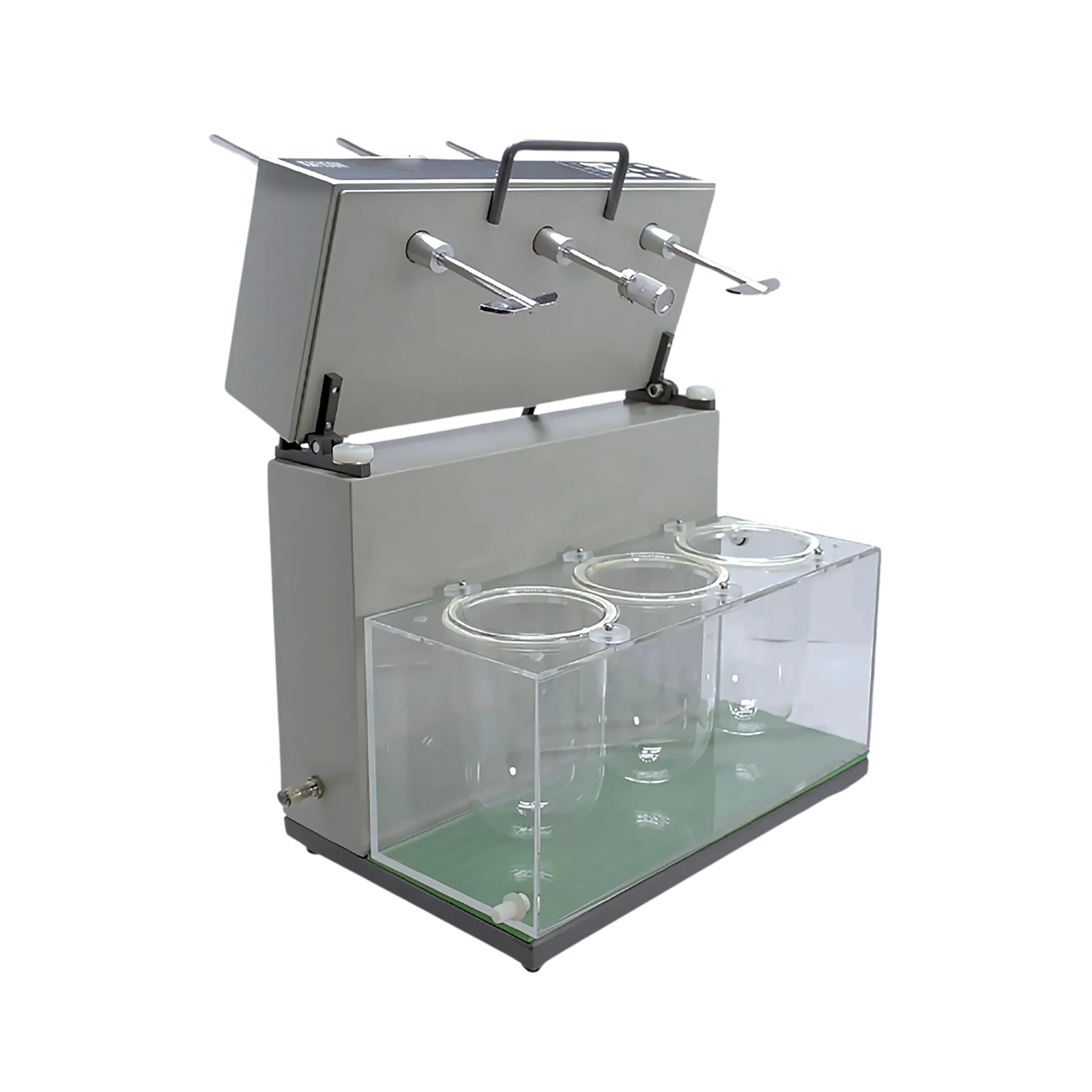

✔ Uppermost part (head) of the tester can be twisted manually
✔ Basket and paddle units are made-up of SUS316L stainless steel
✔ Magnetism-pumped circular water current heat the system evenly and bath liquid achieves an equal temperature
✔ A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time
✔ Conveniently operated by keystroke
✔ Parameters can be preset any time
✔ Preset and real data can be displayed alternately on the LED screen
✔ High automation with auto test, auto diagnose and auto alarm

No of vessels	3
No of poles	3
Position of vessels and poles	Arranged on one line
Head part movement	Manually turn over
Speed range	20 to 200 rpm
Speed accuracy	± 2 rpm
Temperature range	Ambient to +45.0°C
Temperature Stability	± 0.3°C
Preset timing nine points	5 to 900 min
Time accuracy	± 0.3%
Maximum capacity of beaker	1000 ml
Basket radial run-out	± 1.0 mm
Paddle radial run-out	± 0.5 mm
Power	600 W
Voltage	AC 220V, 50Hz or AC 110V, 60 Hz
Dimension (W × D × H)	510 × 300 × 480 mm
Packaging dimension (W × D × H)	730 × 420 × 560 mm
Net weight	26.5 kg
Gross weight	29 kg

Used in the pharmaceutical, animal feed, pesticides and other industries for detecting velocity and extent of pharmic dissolution from the tablet and capsule during prescriptive menstruum.

Accessories no.	Accessories name
1	Transparent vessel of 185 mm height
2	Paddle
3	Rotating basket
4	Rotating basket of 0.425 mm pore size
5	Vessel cover
6	Close unit
7	Deep ruler
8	Centre ruler
9	Mercury thermometer
10	Filter head
11	Filter membrane
12	Sample needle

Accessories no.	Accessories name
1	Vessels Paddle 33 / 66 / 8* 8
2	Rotating basket unit
3	Brown vessel of 185 mm height
4	Network disk (Small)
5	Network disk (Big)
