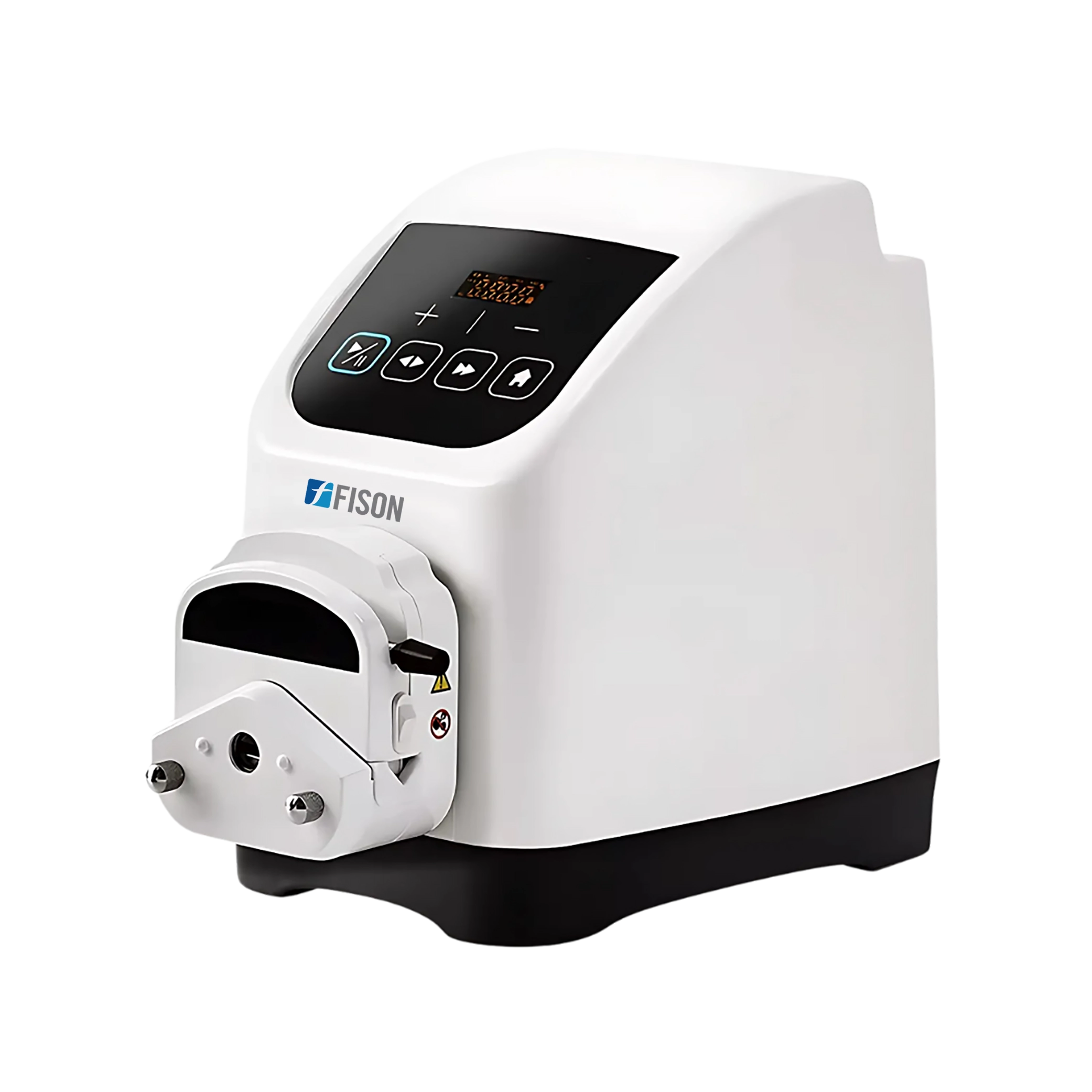

Dispensing Peristaltic Pump FM-DPP-A100

Dispensing Peristaltic Pump FM-DPP-A100

Dispensing Peristaltic Pump FM-DPP-A100 is a digital transfer pump designed for precise flow control of liquid. With a maximum flow rate of 1440 ml/min, it ensures efficient dispensing for various applications. Easy button operation and a clear 4-digit LED display make using it a breeze. Enhanced with calibration capabilities, ensuring alignment between target and actual values. Our pump is adaptable too, supporting external controls to suit different setups.

Specifications

Maximum speed 300 rpm (Reversible)
Maximum flow rate 1440 ml/min
Speed resolution 0.1 rpm
Display mode 4-digit LED displays
Speed mode Membrane key speed regulation
Timing range 0.1s to 9999 min
Quantitive Range 0.001mL to 9999 L
Reverse suction angle 10°to 720°C (0° means no back suction)
Reverse suction velocity 10 to 300 rpm
Ambient temperature 0℃ to 40℃
Protection level IP31
External Connectivity DB -15
External control mechanism RS485
Power supply AC 220 V ± 10%
Power Consumption <35 W
Dimension 231 × 185 × 248 mm
Packaging Dimension 410 × 280 × 250 mm
Net Weight 6.5 Kg
Gross Weight 8 Kg

Features

  • Dispensing Peristaltic Pump with LED Display
  • One key full speed
  • Liquid volume calibration
  • Membrane keys equipped with speed regulation
  • Supports various external controls
  • Compatible with multiple pump heads
  • Maximum speed is 300 rpm

Applications

  • Peristaltic Pump can be used in pharmaceutical, chemical industries, also in medical and research laboratories

Digital Peristaltic Pump

Fison Digital Peristaltic Pump adjustable speed settings, ensuring precise and consistent fluid flow rates tailored to specific requirements. They handle a broad flow range, enabling precise fluid transfer from microfluidic applications to high-volume tasks. Their display and controls, of the pump allow easy parameter setting and monitoring. These are powered by efficient, high-torque motors, they deliver stable and reliable operation even under challenging conditions. Our Digital Peristaltic Pump provides real-time feedback on operational status that enhances process control and reliability.

Digital Peristaltic Pump FM-DPP-B100

  • Flow Range : 0.004 to 3850 mL/min
  • Speed Range : 0.1 to 350rpm
  • Speed Resolution : 0.1rpm (speed≤100rpm),1rpm (speed>100rpm)
Catalog

Industrial Peristaltic Pump

Fison offers Industrial Peristaltic Pump that delivers high-speed operation and reliable performance for precise fluid transfer and automation. Its one-key full speed function allows for quick filling or emptying of pipes. It features a powerful brushless DC motor and bidirectional large torque, enabling multiple pump heads to be cascaded for increased capacity. Our pump is easy to operate with a digital knob and a 4-digit LED display, providing clear and intuitive control.

Industrial Peristaltic Pump FM-IPP-A100

  • Max Flow : 6000 mL/min
  • Max Speed : 600 RPM (Reversible)
  • Speed Resolution : 1 rpm
Catalog
